Recirculation Flap, ACC

Air Recirculation Motor

To Remove

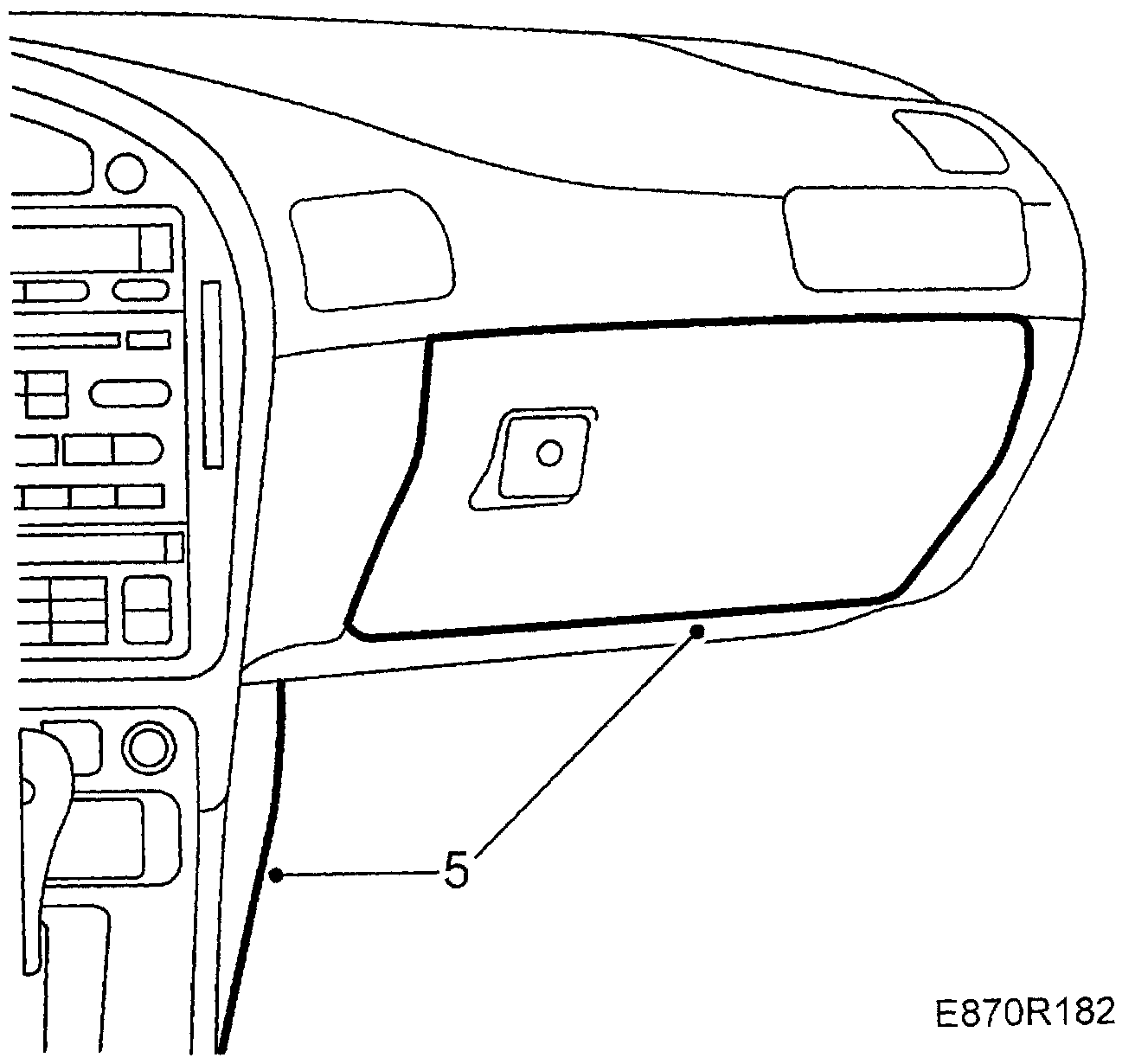

1. Remove the glove box.
Remove the trim from the side of the centre console.







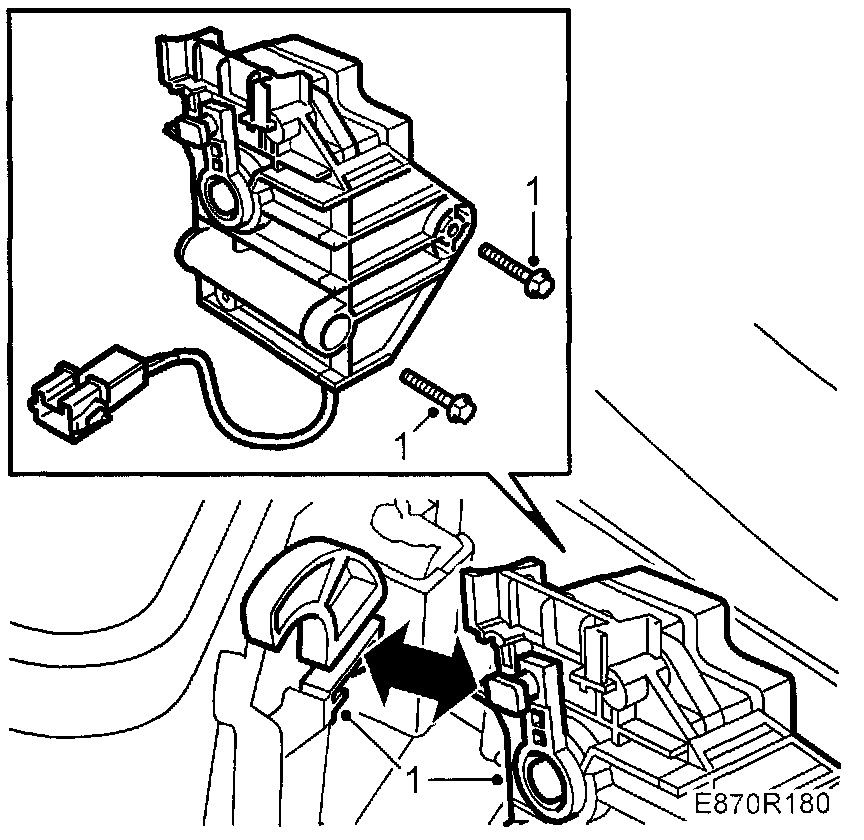

2. Remove the air recirculation motor, 2 bolts.

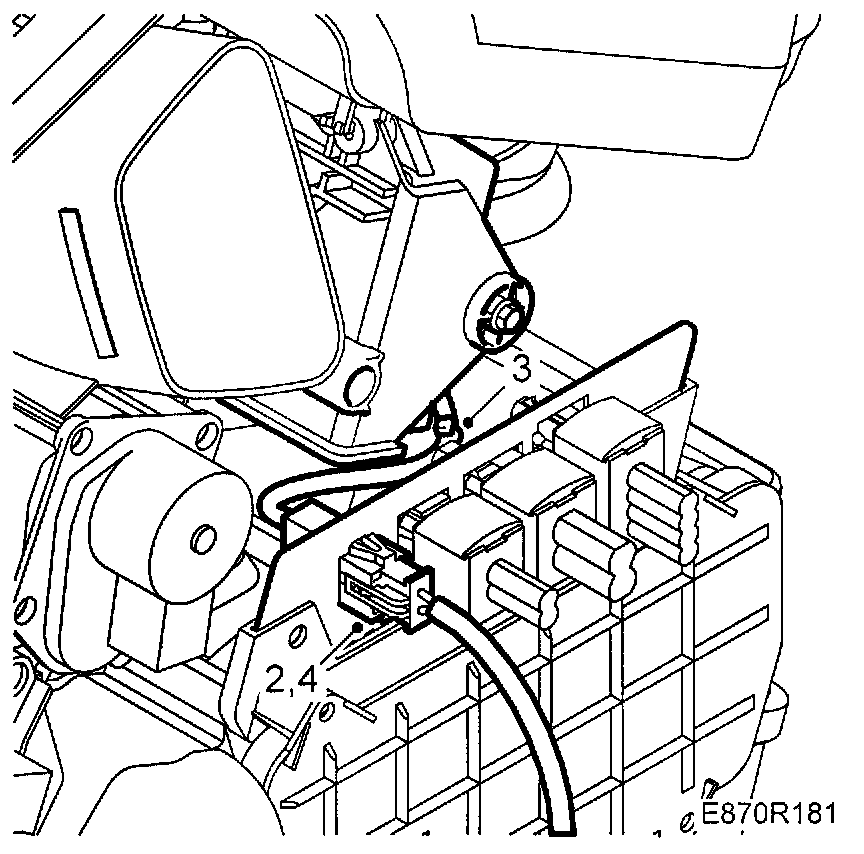

3. Unplug the connector.
4. Cut the cable tie holding the wiring harness.
5. Remove the connector from the plate.

To Fit

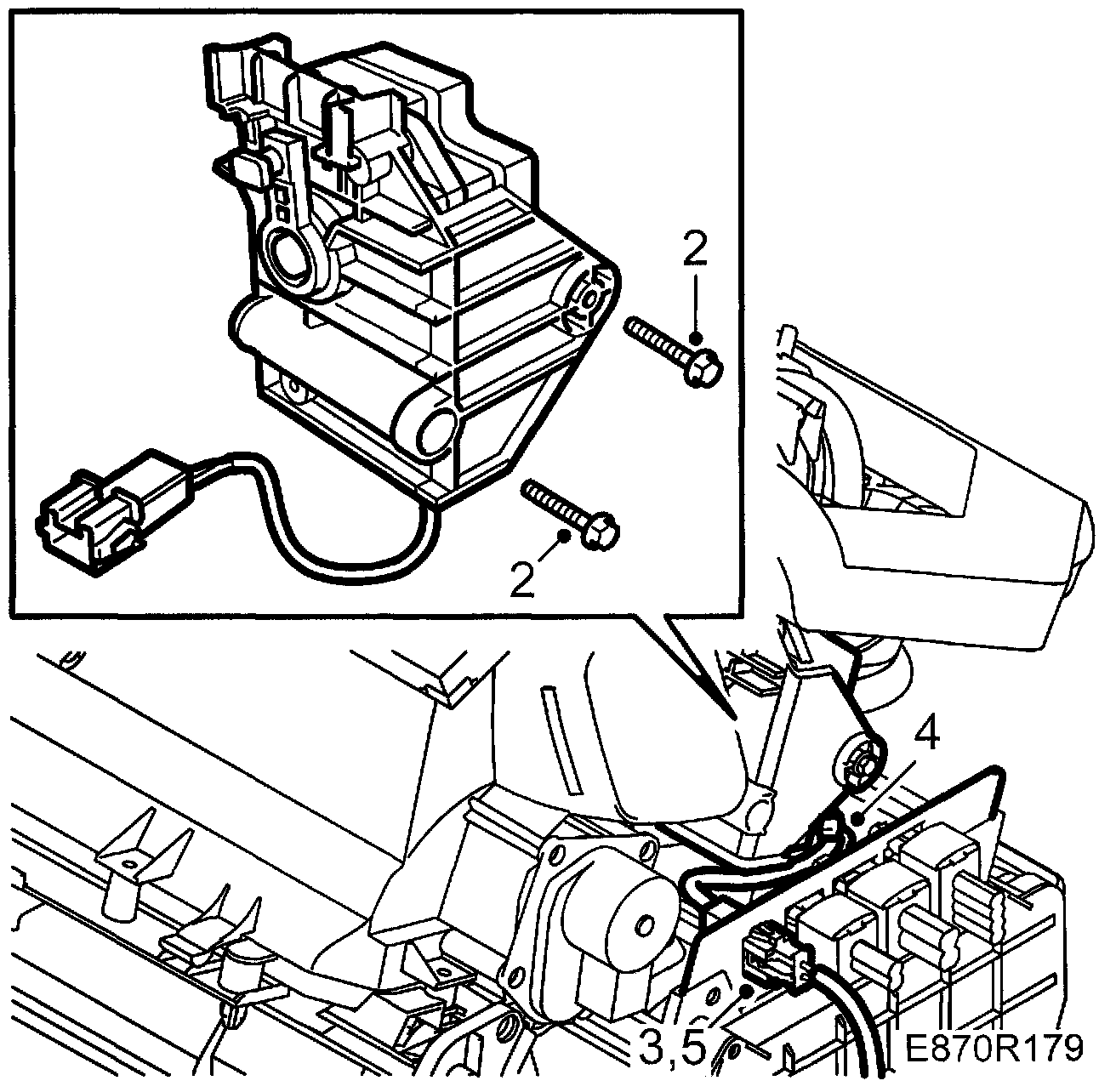

1. Fit the air recirculation motor.







2. Put back the connector in the plate.
3. Fasten the wiring harness with a cable tie.
4. Connect the contact.







5. Replace the side trim an the centre console.

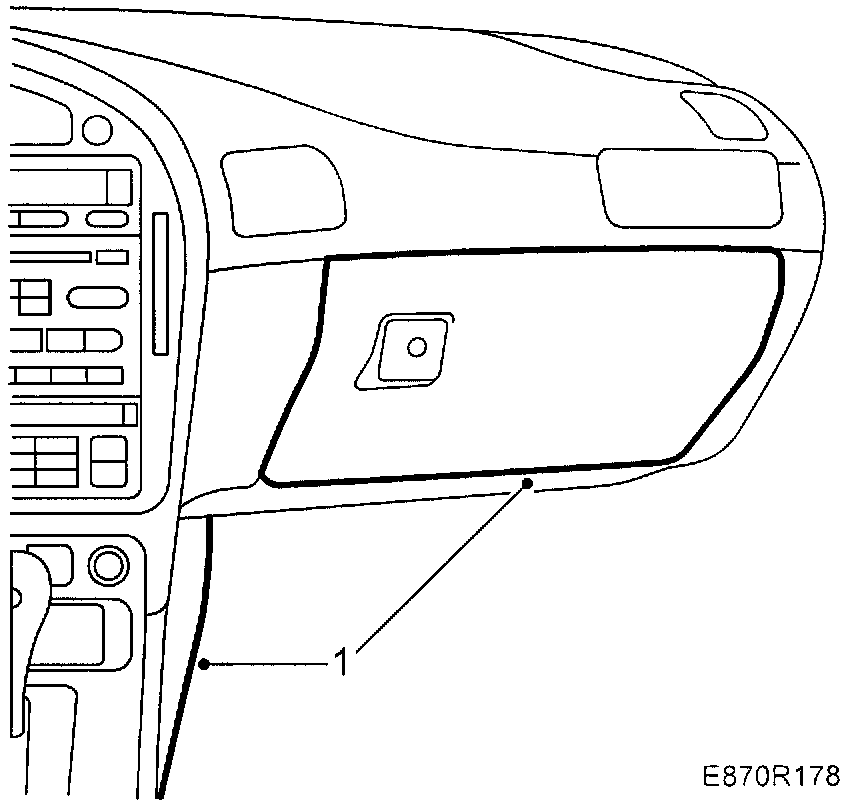

Fit the glove box.
