Tools Numbered 83 95 071 Through 89 96 696

83 95 071 Assembly tool for valve stem seal
4-cyl., V6
86 11 592 Toolboard T3
Group: Engine

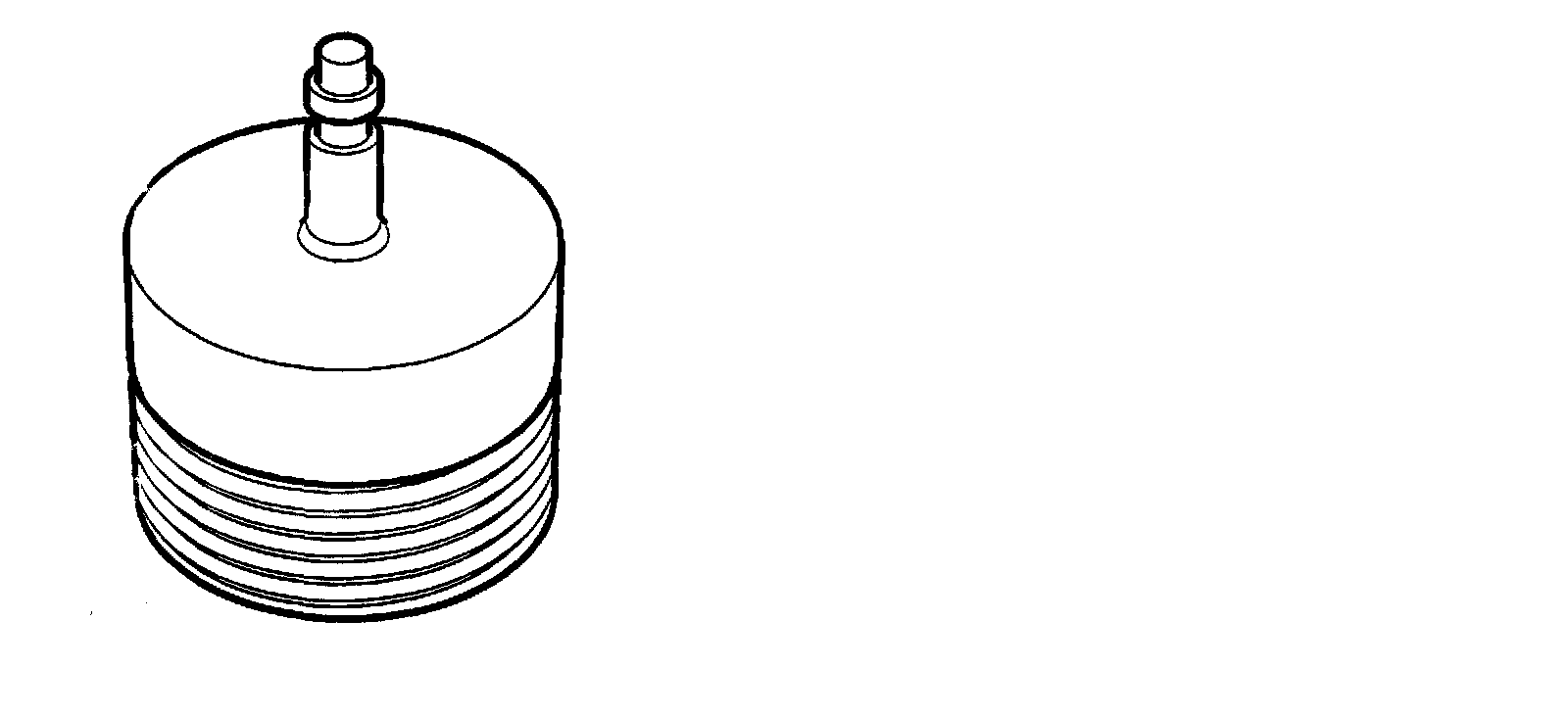

83 95 147 Adapter
Test pressurizing radiator cap
86 11 618 Toolboard T1
Group: Engine

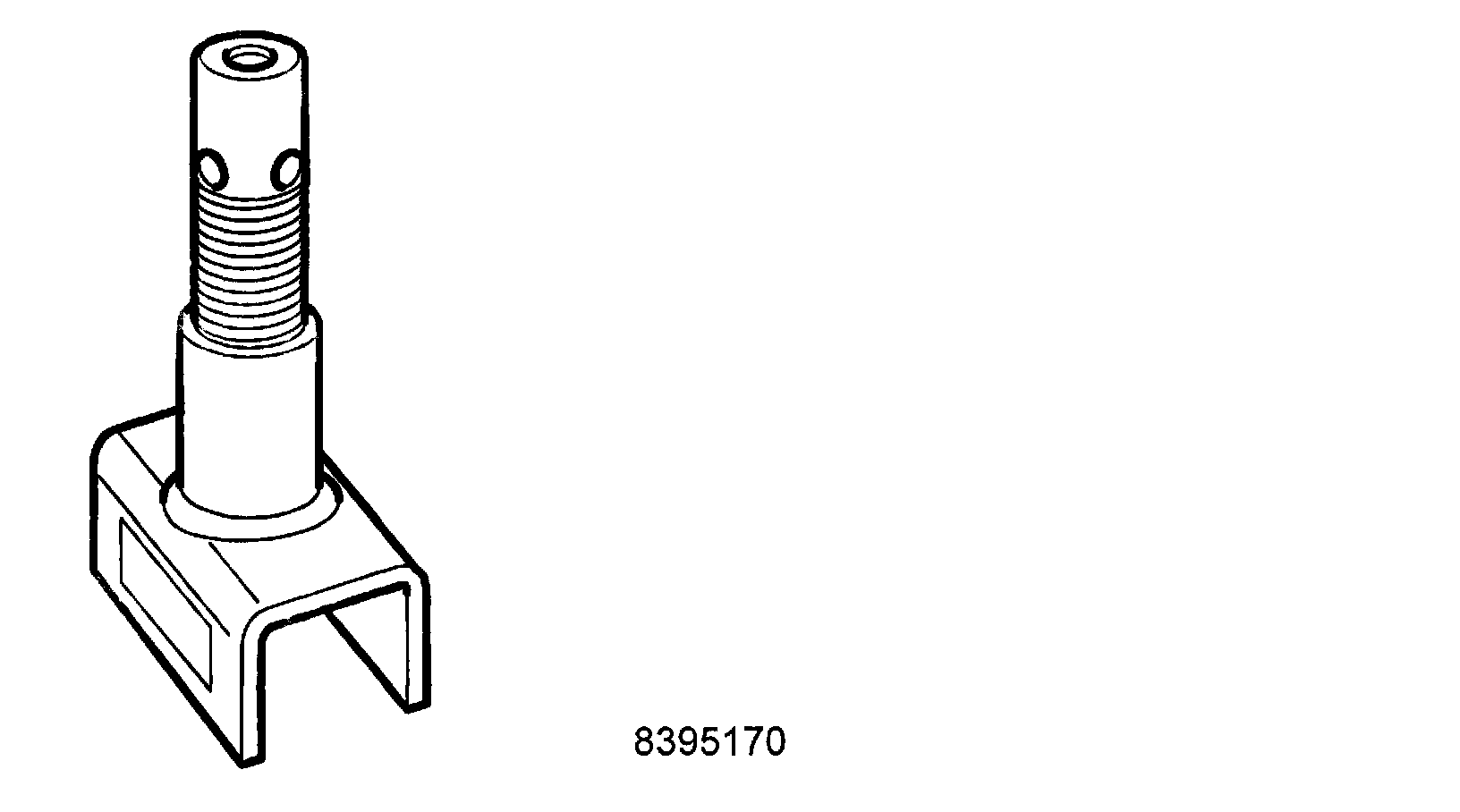

83 95 170 Spacer (x 4)
Used together with 83 95 311 Lifting trolley and 83 94 801 Parent fixture Group: Misc.





83 95 196 Holder front
Used together with 83 95 311 Lifting trolley and 83 94 801 Parent fixture Group: Miscellaneous

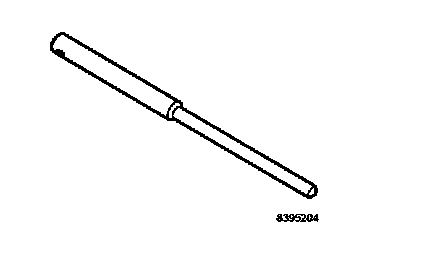

83 95 204 Steering swivel, 5 mm
86 11 618 Toolboard T1
Group: Engine





83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine

Tool No. 83 94 728:

83 95 220 Engine holder, 4-cyl.
86 11 568 Toolboard T6
Used together with 78 74 878 Floor stand .
Group: Engine





83 93 238 Wedge (x5)
Group: Body, Engine

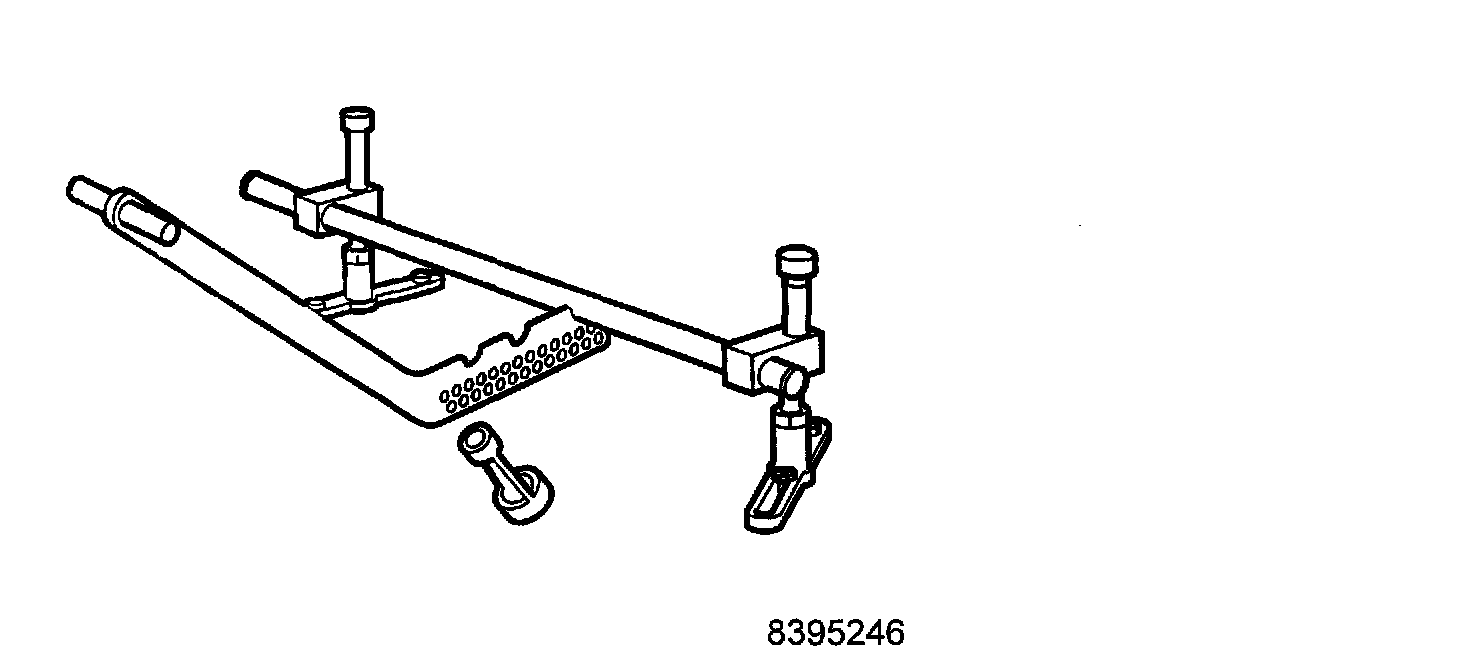

83 95 246 Valve spring compressor
Group: Engine

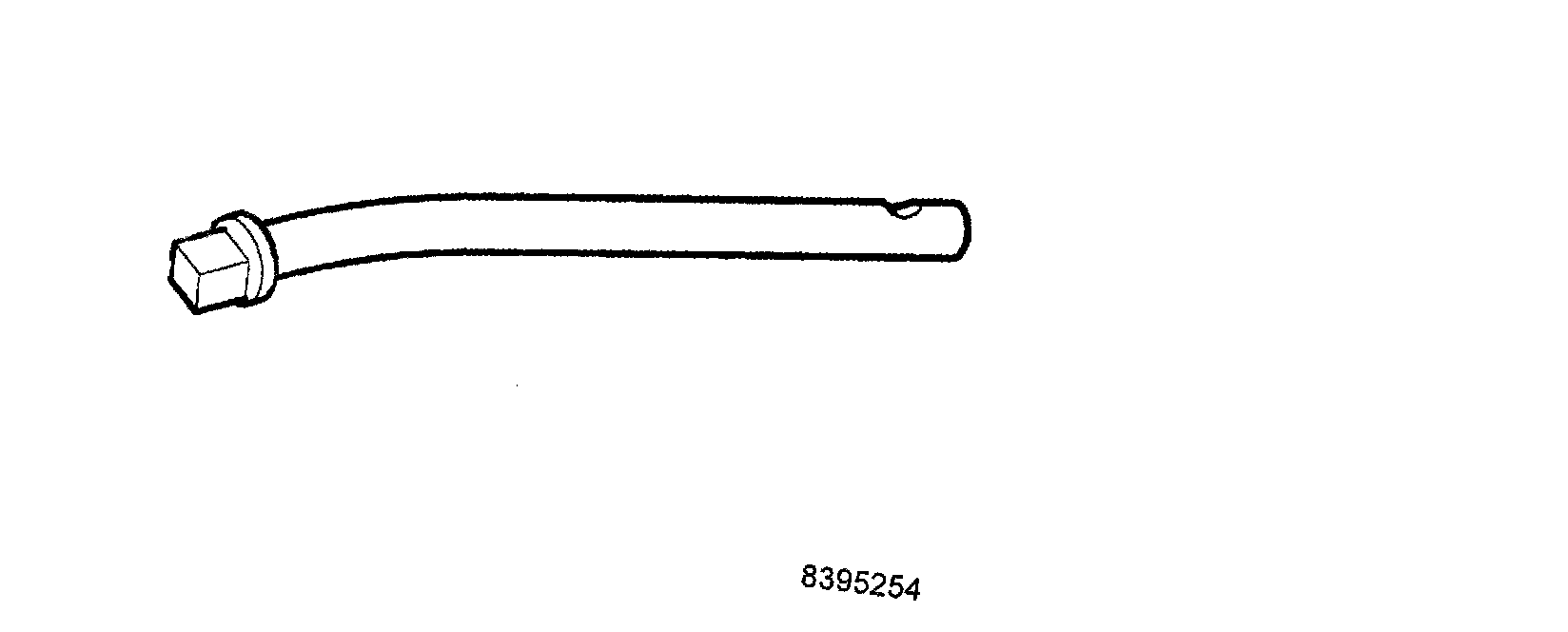

83 95 254 Drawbar handle, hydraulic belt
For unloading the belt tensioner
86 11 618 Toolboard T1.
Group: Engine





83 95 261 Tool, fuel line
For separating fuel line and tank venting
86 11 618 Toolboard T1
Group: Engine





83 95 287 Holder
Engine support
Group: Engine





83 95 311 Trolley Unit
Group: Miscellaneous





83 95 345 Adapter, compression pressure sensor
Motometer compression gauge sensor
86 12 392 Toolboard T7
Group Engine

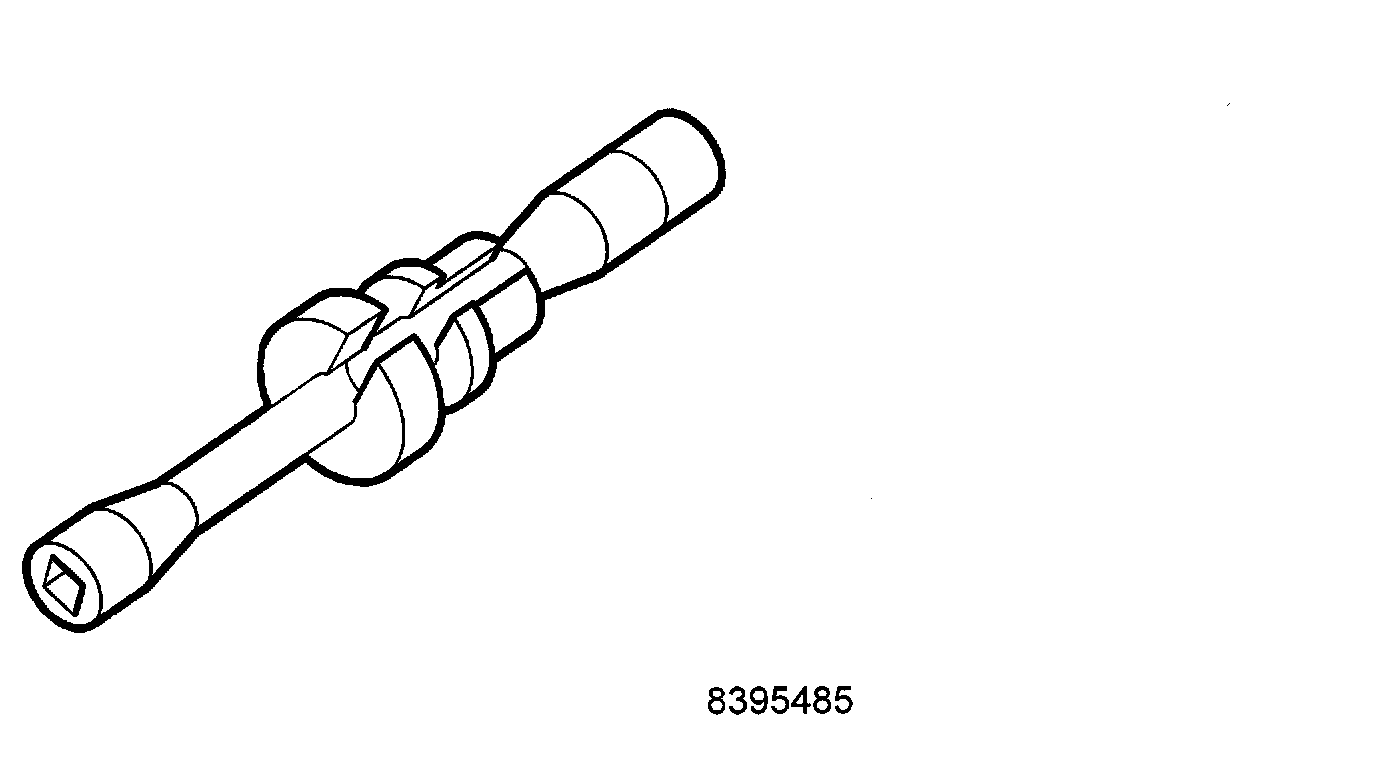

83 95 485 Spark plug socket assembly with locating sleeves
86 11 618 Toolboard T1
Group: Engine





83 95 50l Air nipple
Pressure setting for cylinders during change of e.g. valve seal
86 12 392 Toolboard T7
Used together with 83 95 345 Adapter, compression pressure sensor
Group: Engine

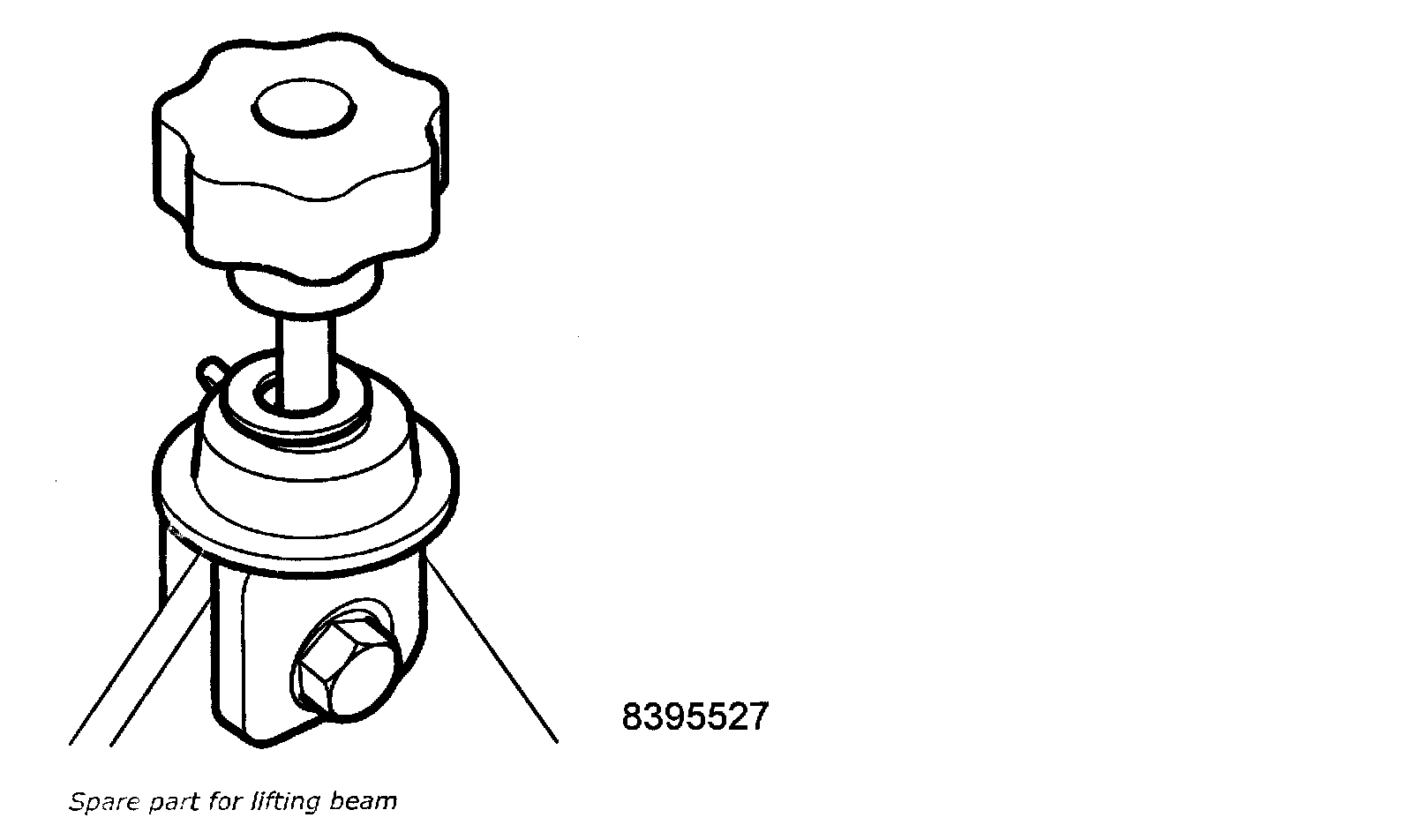

83 95 527 Guide and plastic screw
Spare part for lifting beam
Used together with 83 94 850 Lifting beam
Group: Engine





83 95 535 Hook and wing nut
Spare part for lifting beam
Used together with 83 94 850 Lifting beam
Group: Engine





85 80 144 Puller windscreen wiper arm
86 11 618 Tool board T1
Group: Body





86 12 509 Floor stand base
Allows independent placement of floor stand.
Used together with 78 74 878 Floor stand
Group: Engine





87 90 727 Mounting, dial gauge
86 11 584 Toolboard T4
Group: Automatic transmission





87 91&57 Contact points
86 11 592 Toolboard T5
Used together with 78 40.622.Dial indicator
Group: Engine





97 92 194 Kit, dial gauge
86 11 584 Toolboard T4
Group: Manual gearbox





87 92 335 Locking pin
For adjusting gear lever position fx2
86 11 618 Toolboard T1
Group: Manual gearbox





87 92 442 Lifting cable
86 11618 Tool board T1
Group: Manual gearbox, Automatic transmission





87 92 574 Holder
For torque converter
86 11618 Tool board T1
Group: Automatic transmission





87 92 665 Propeller shaft hole plugs (9-3 Viggen)
86 11 584 Toolboard T4
Group: Automatic gearbox, Manual gearbox





69 96 696 Puller
Removing the ball joint and steering link
86 11 603 Tool board T2
Group: Chassis
