Camshaft


Camshafts General Data

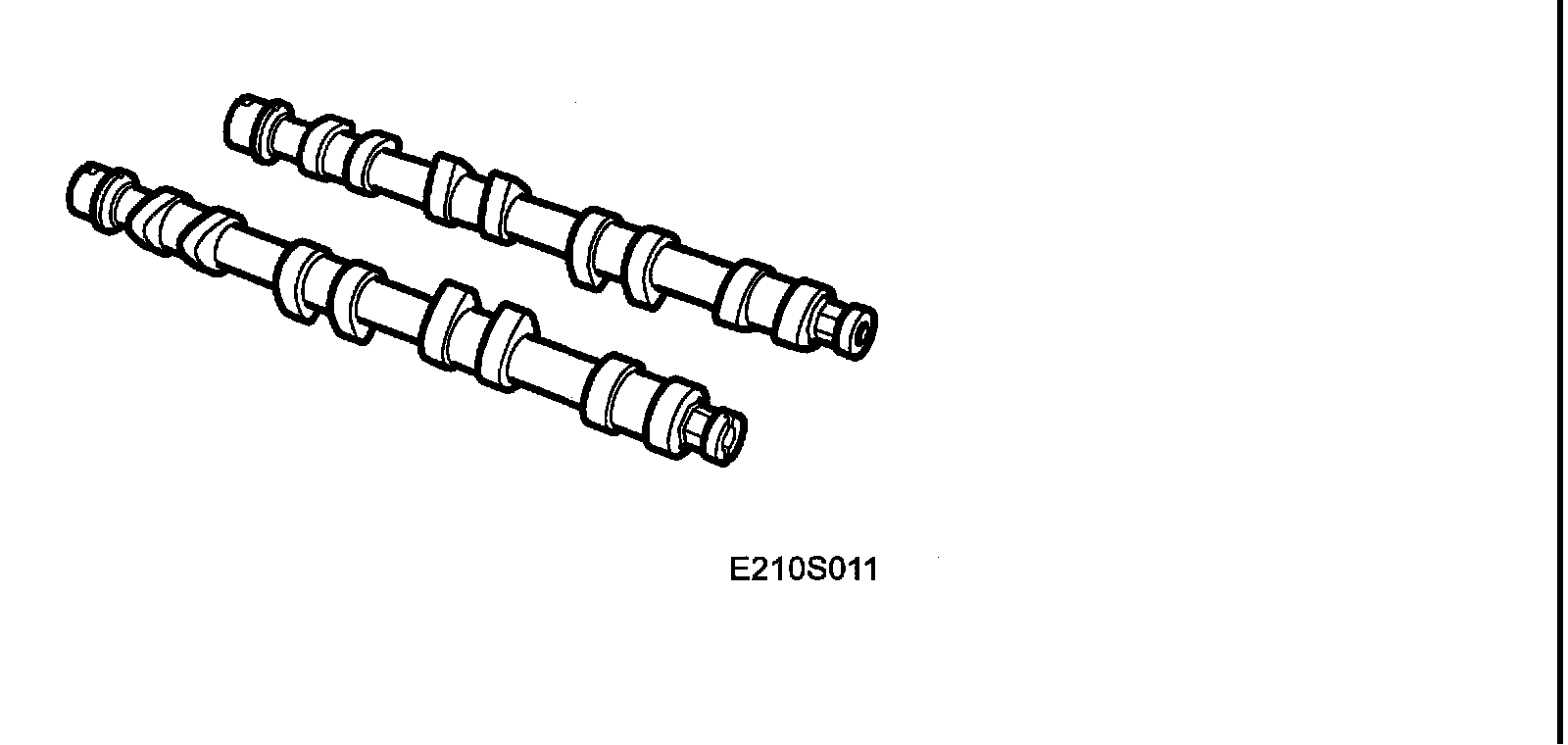

Component Illustration:

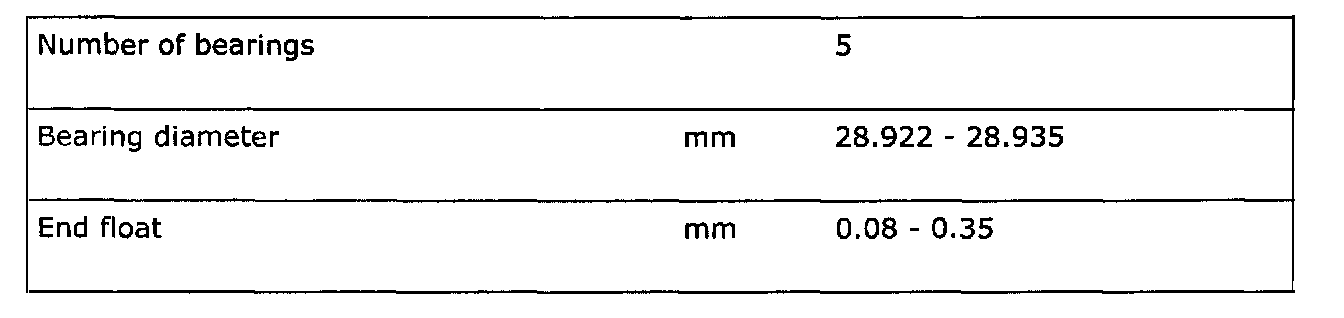

Specifications Table:

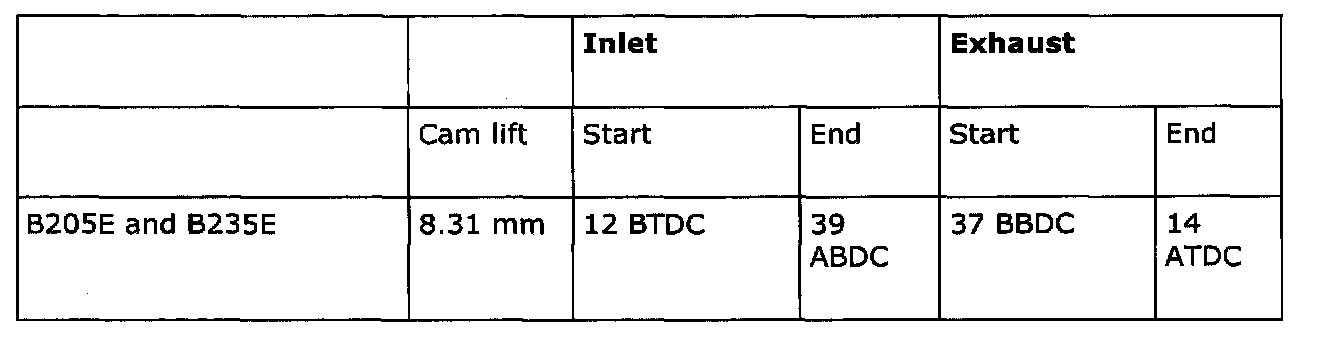

Valve Timing

Specifications Table:
