Radiator Cooling Fan: Specifications


Radiator Fan Motor

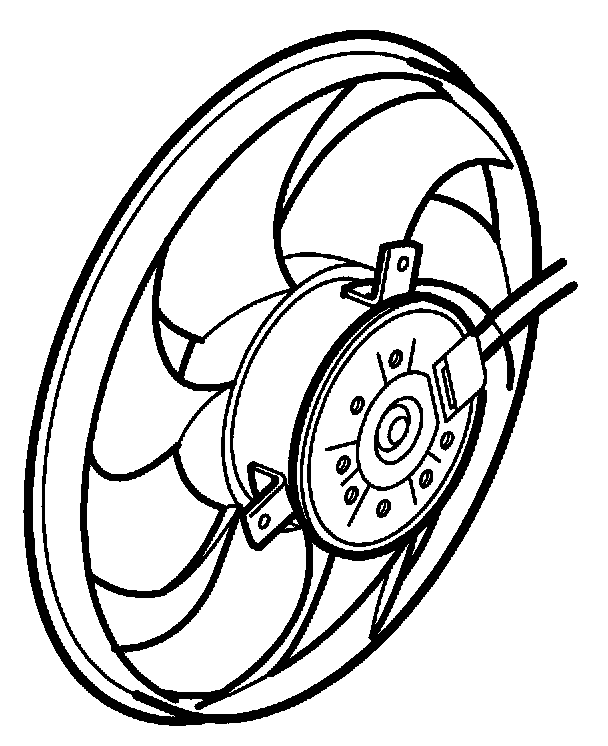

Component Illustration:

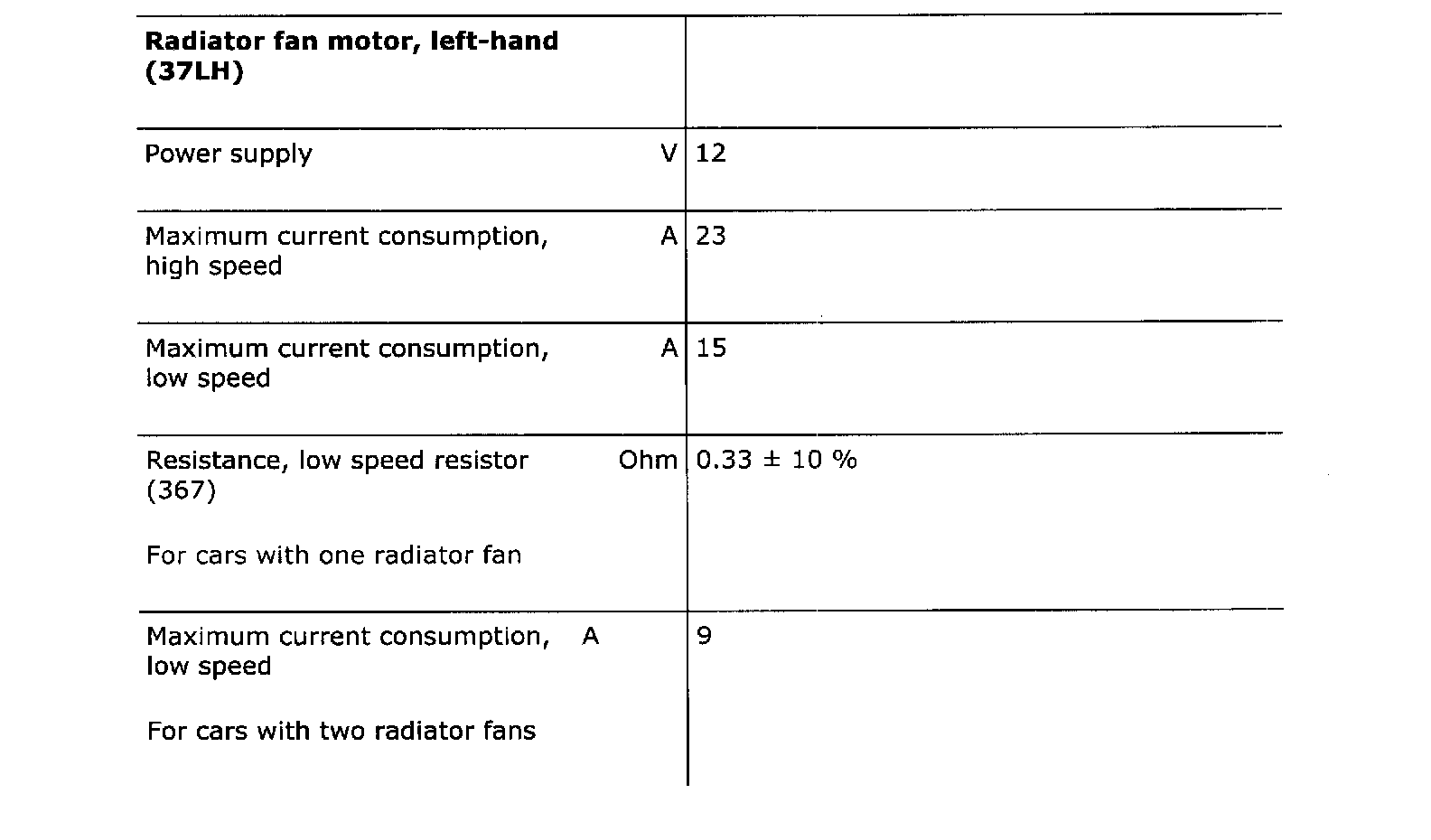

Specification Table (Left Hand Motor):

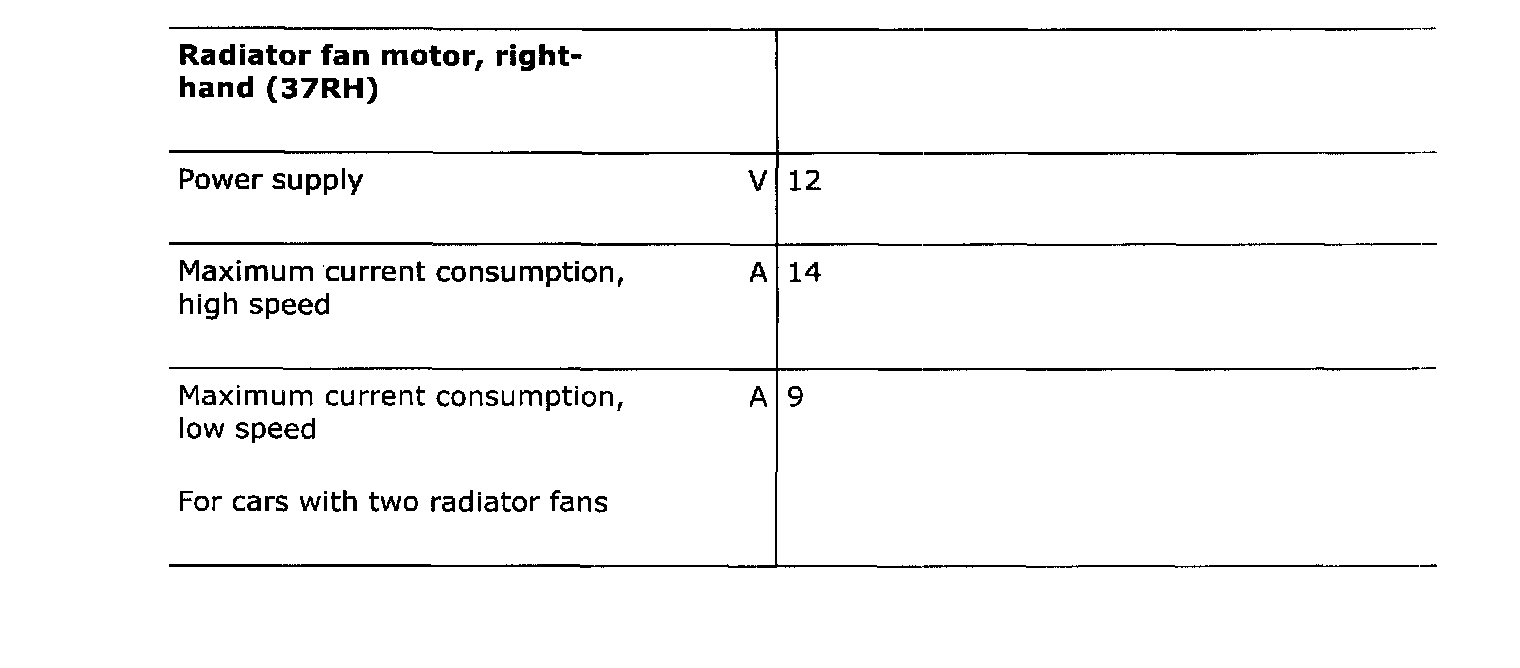

Specification Table (Right Hand Motor):
