Rear Window Wiper From Rev.1

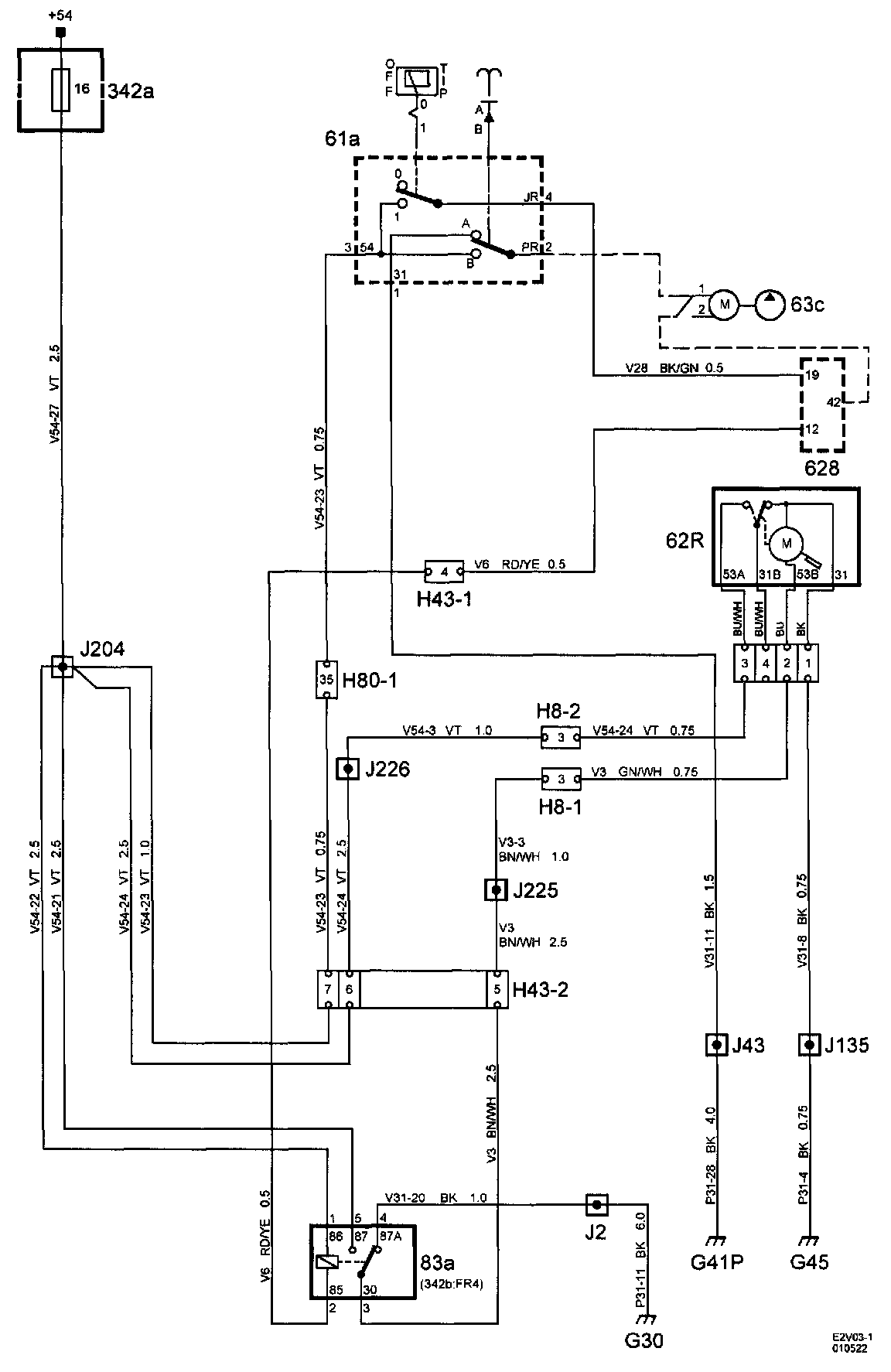

Rear Window Wiper 5D From Rev.1

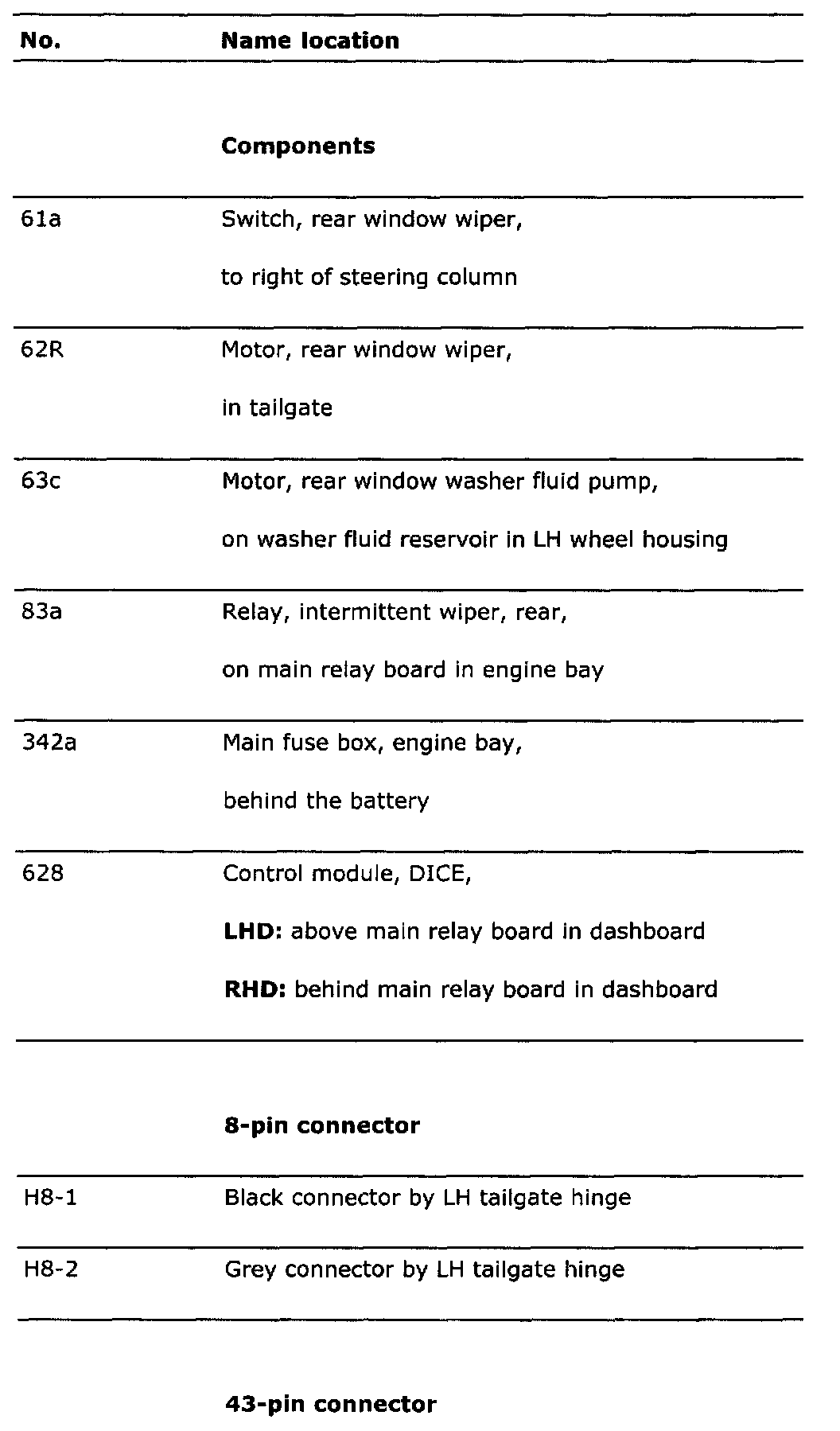

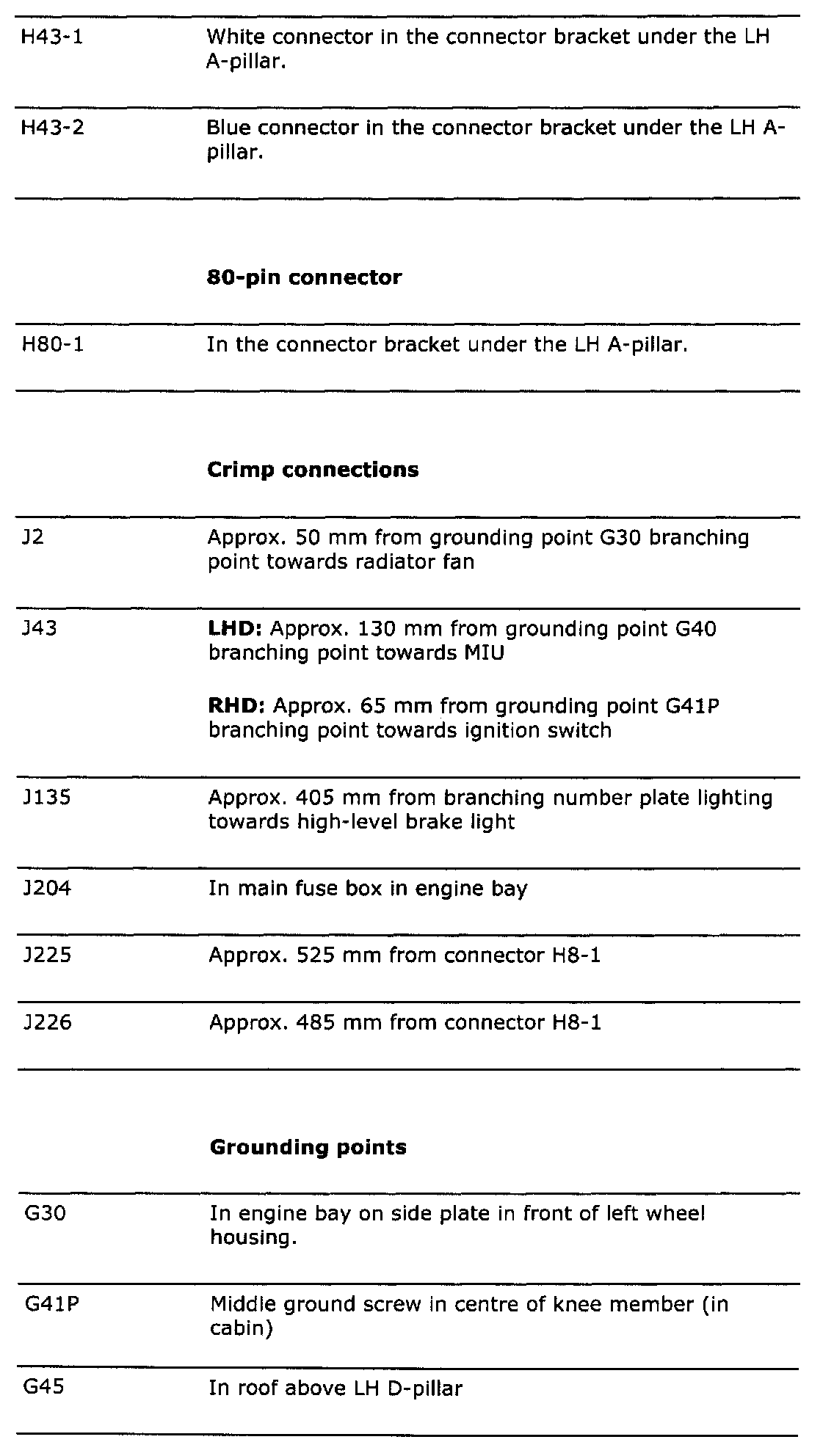

List of components


Part 1:






Part 2:
