Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Xenon Headlamps, Other Markets

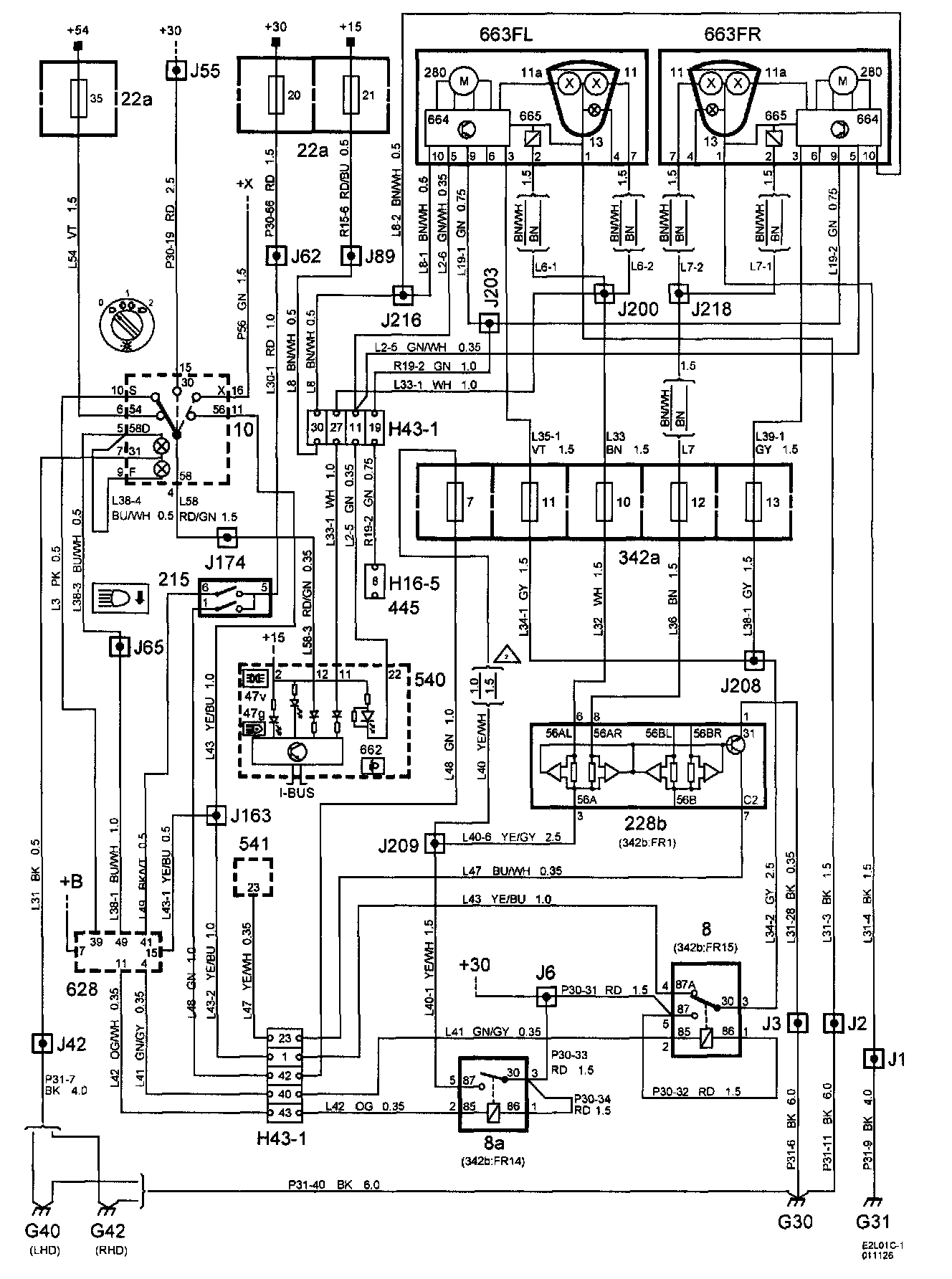

Xenon Headlamps, Other Markets




Xenon Headlamps, Other Markets

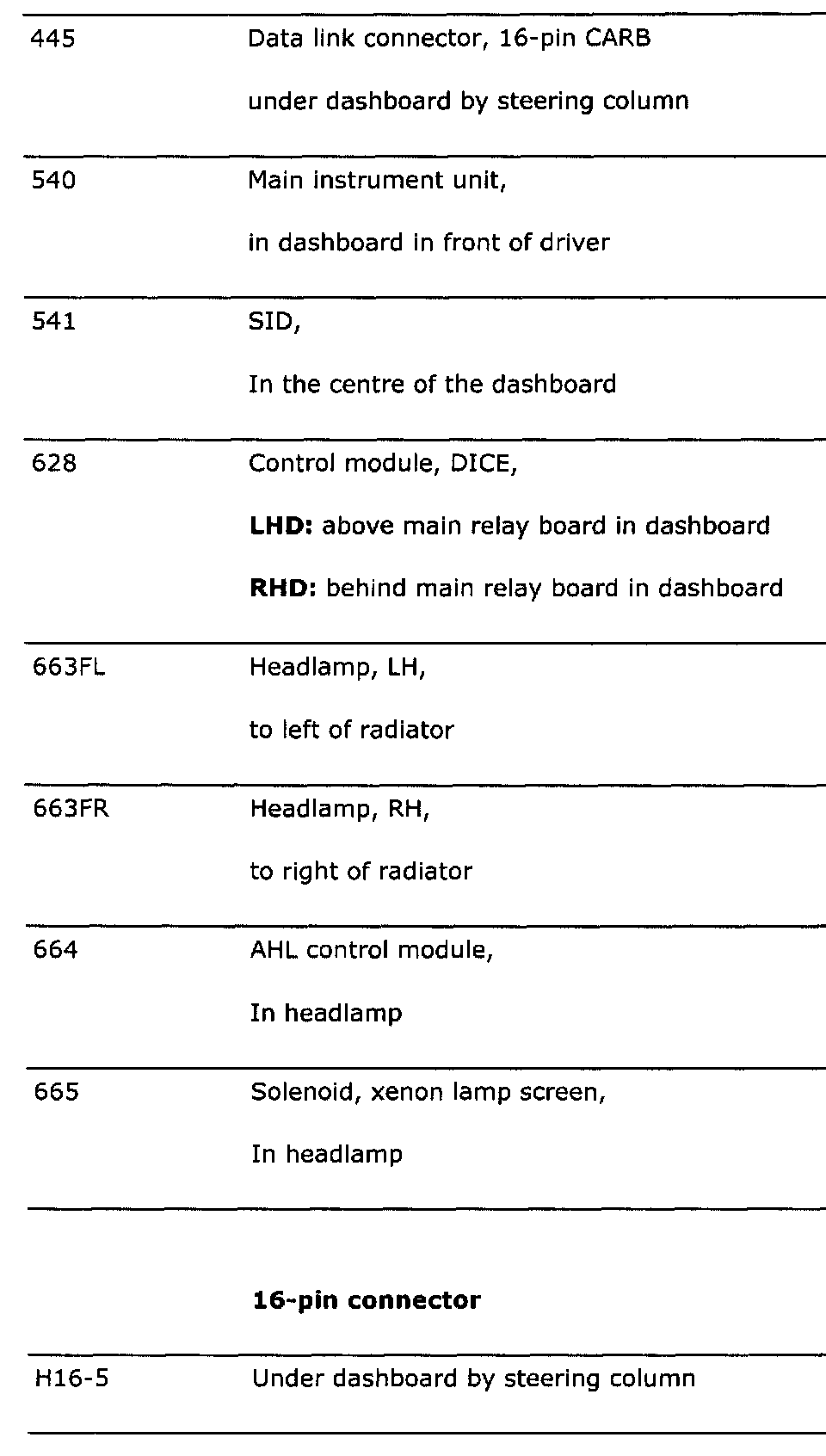

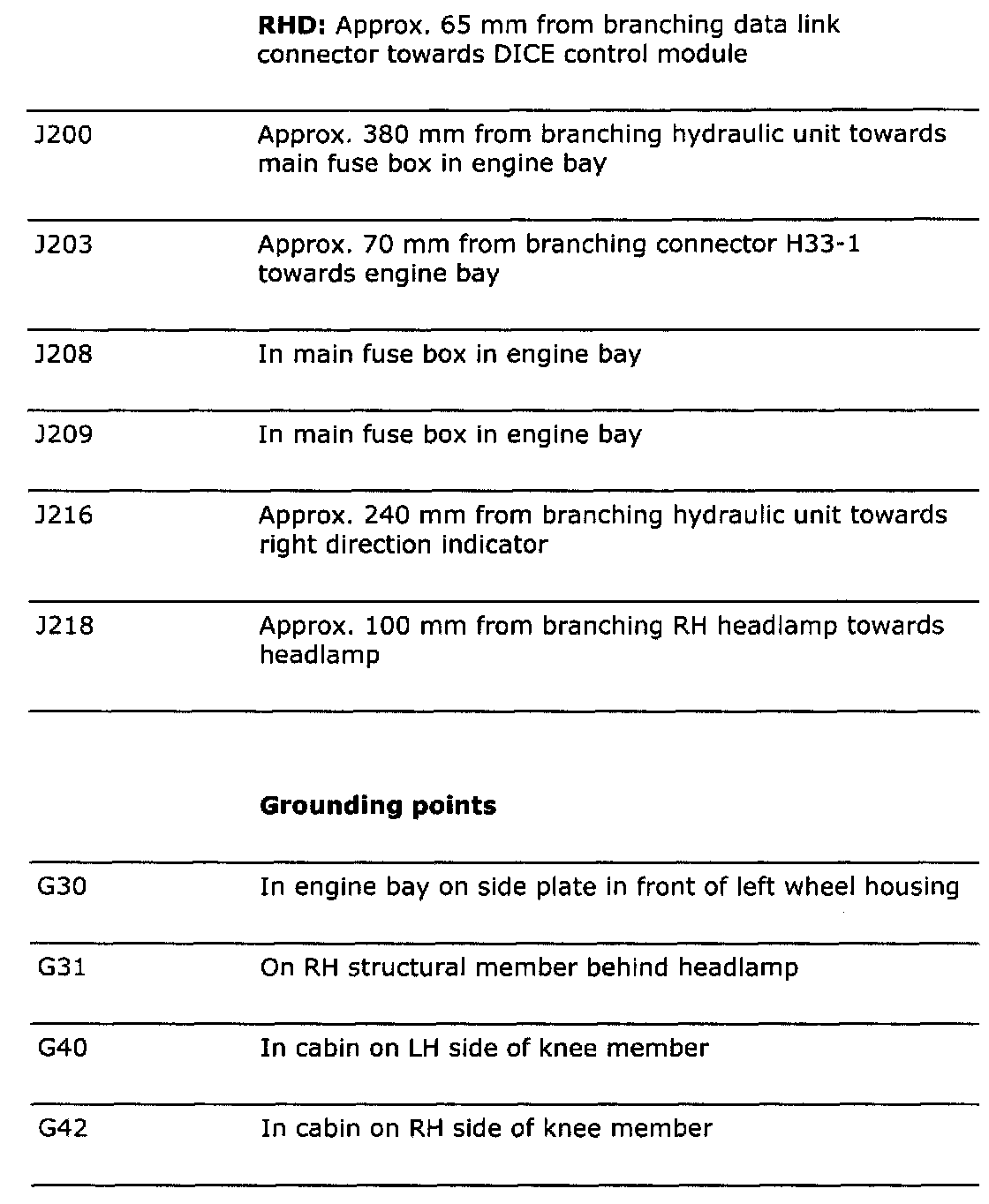

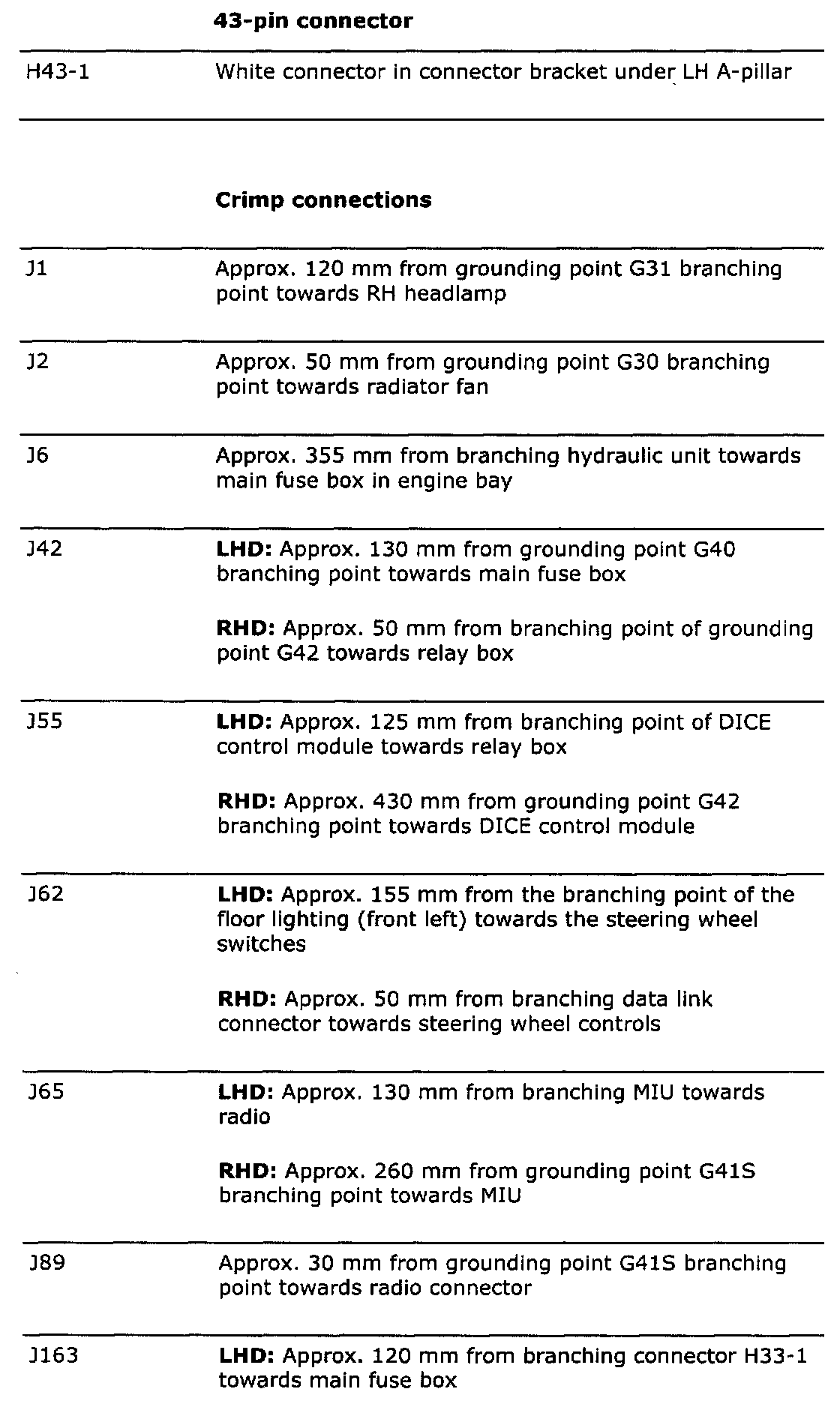

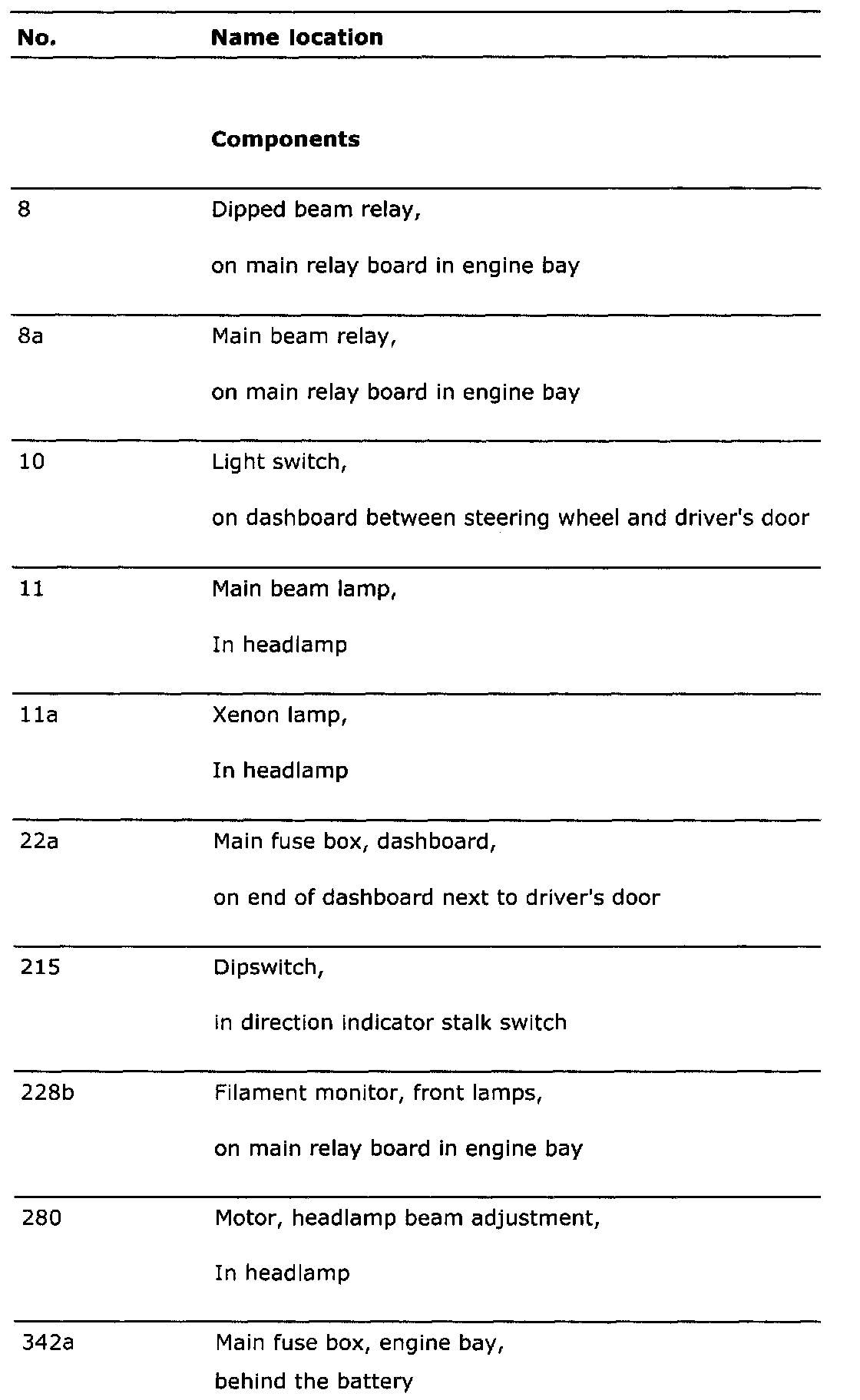

List of Components


Part 1:






Part 2:






Part 3:






Part 4:
