Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone >> Cellular Phone Microphone >> OnStar Provision

OnStar Provision

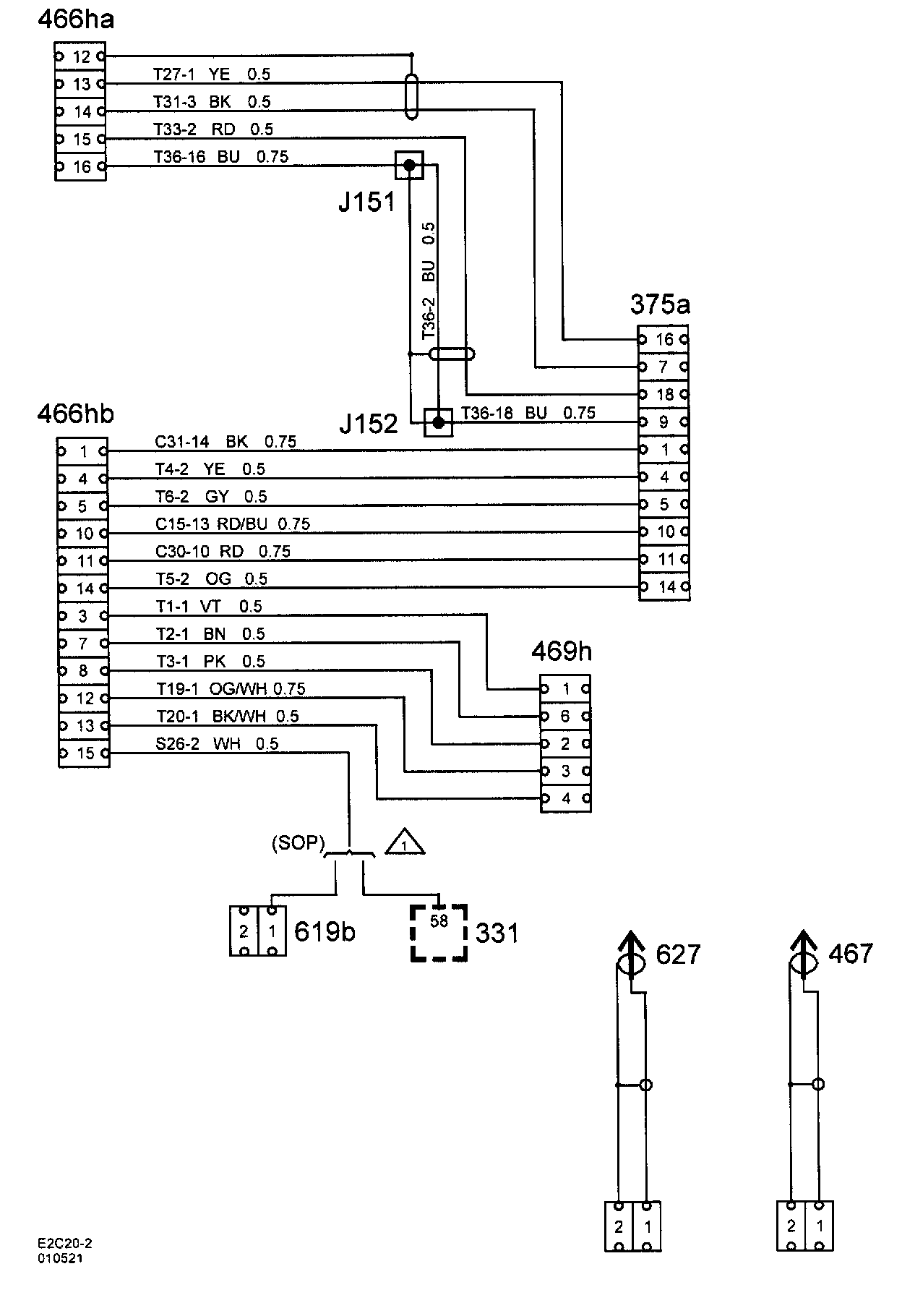

OnStar Provision, 5D

US/CA market

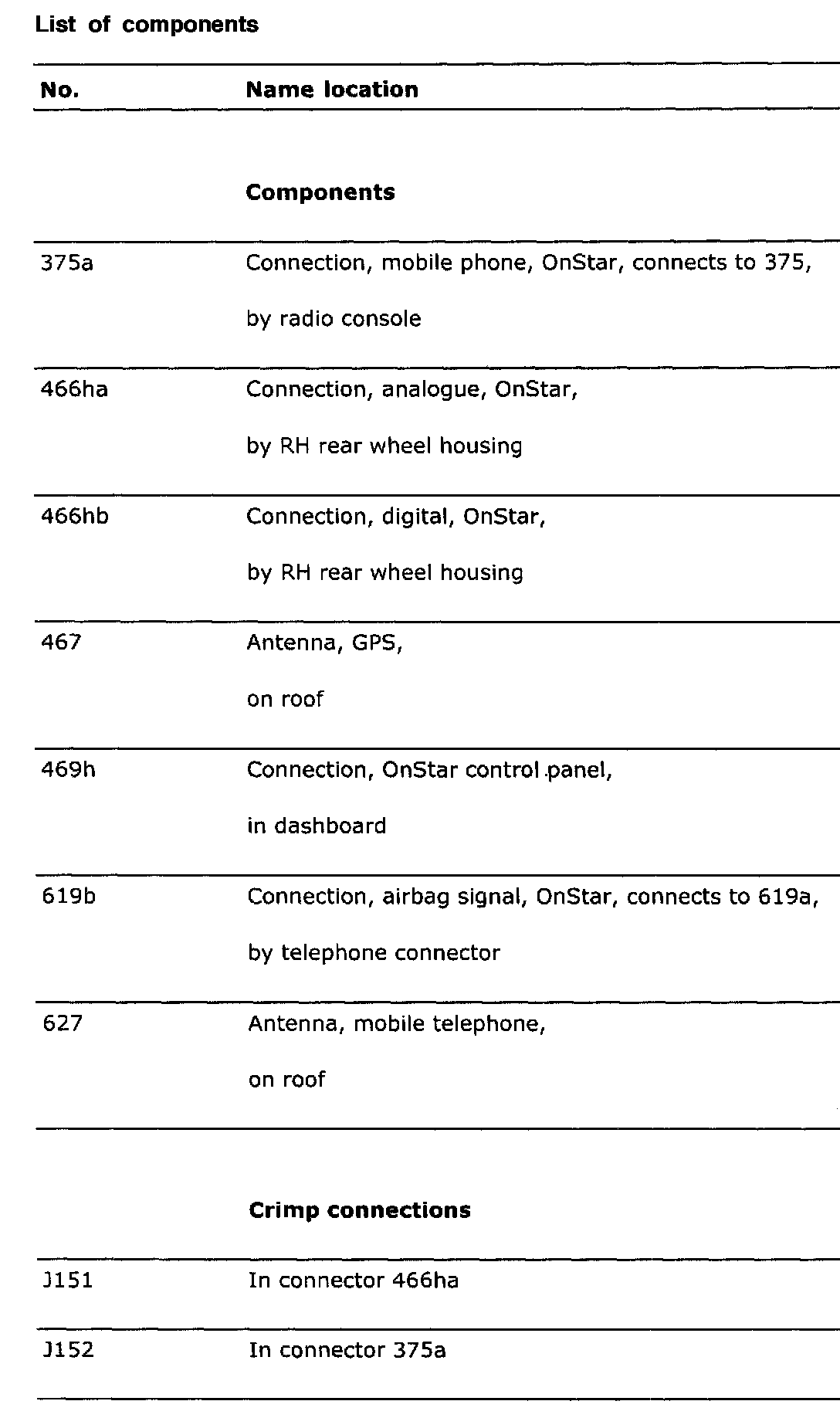

Component List
