Automatic Transmission/Transaxle
>>

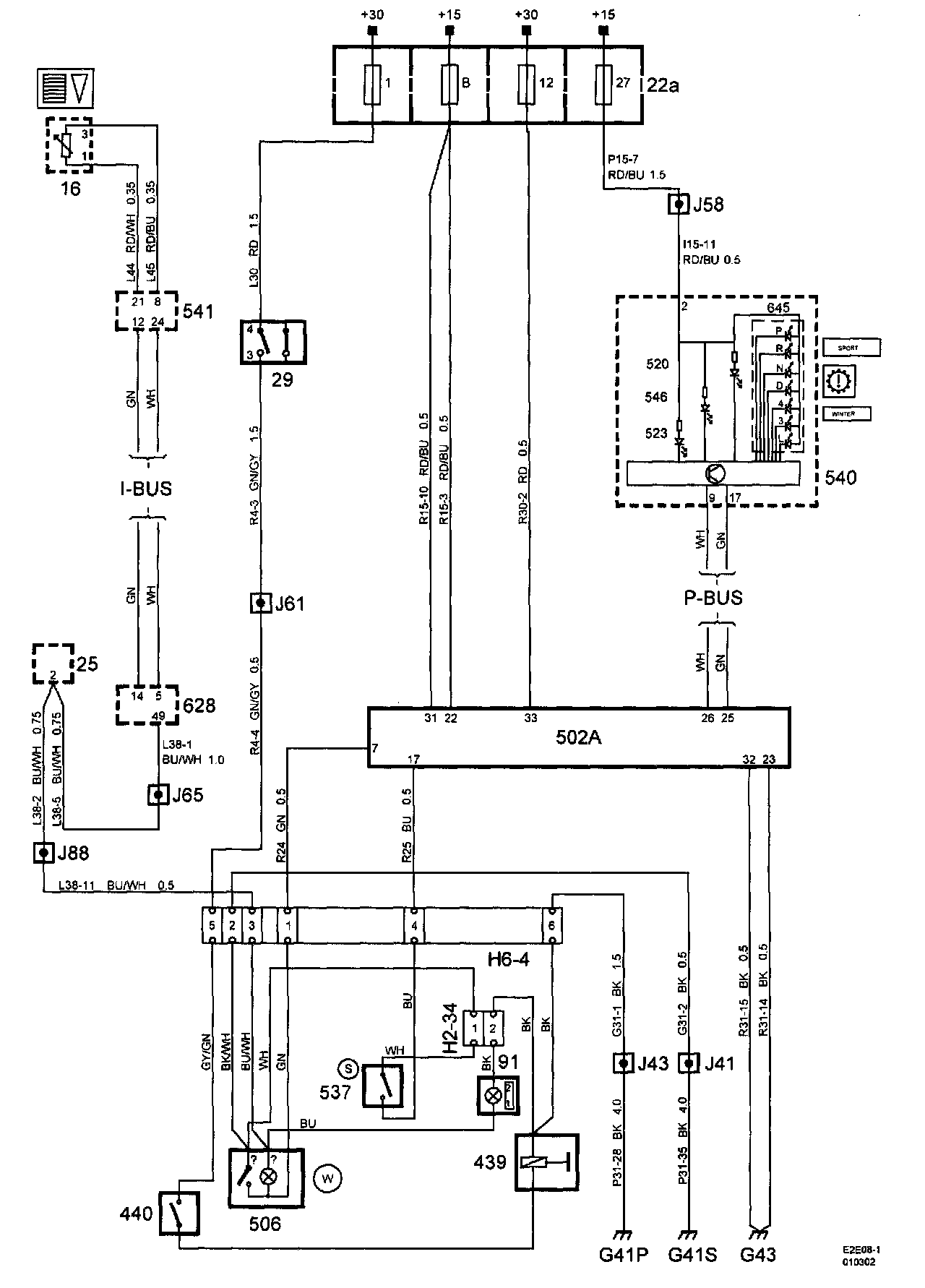

Transmission Control Module (TCM), (Part 1/2)
Transmission Control Module (TCM), (Part 1/2)
Transmission Control Module (TCM), (Part 1/2)

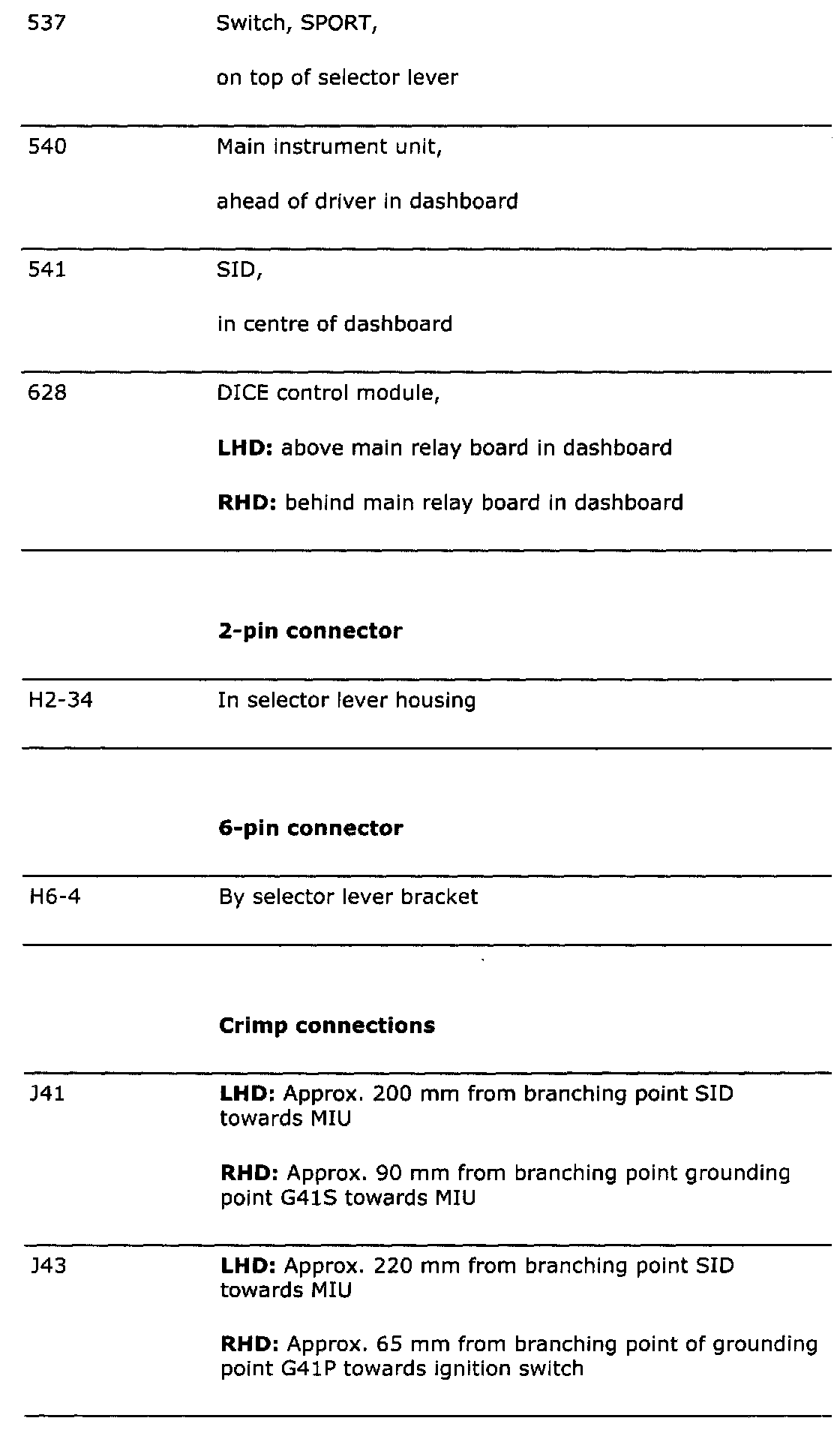

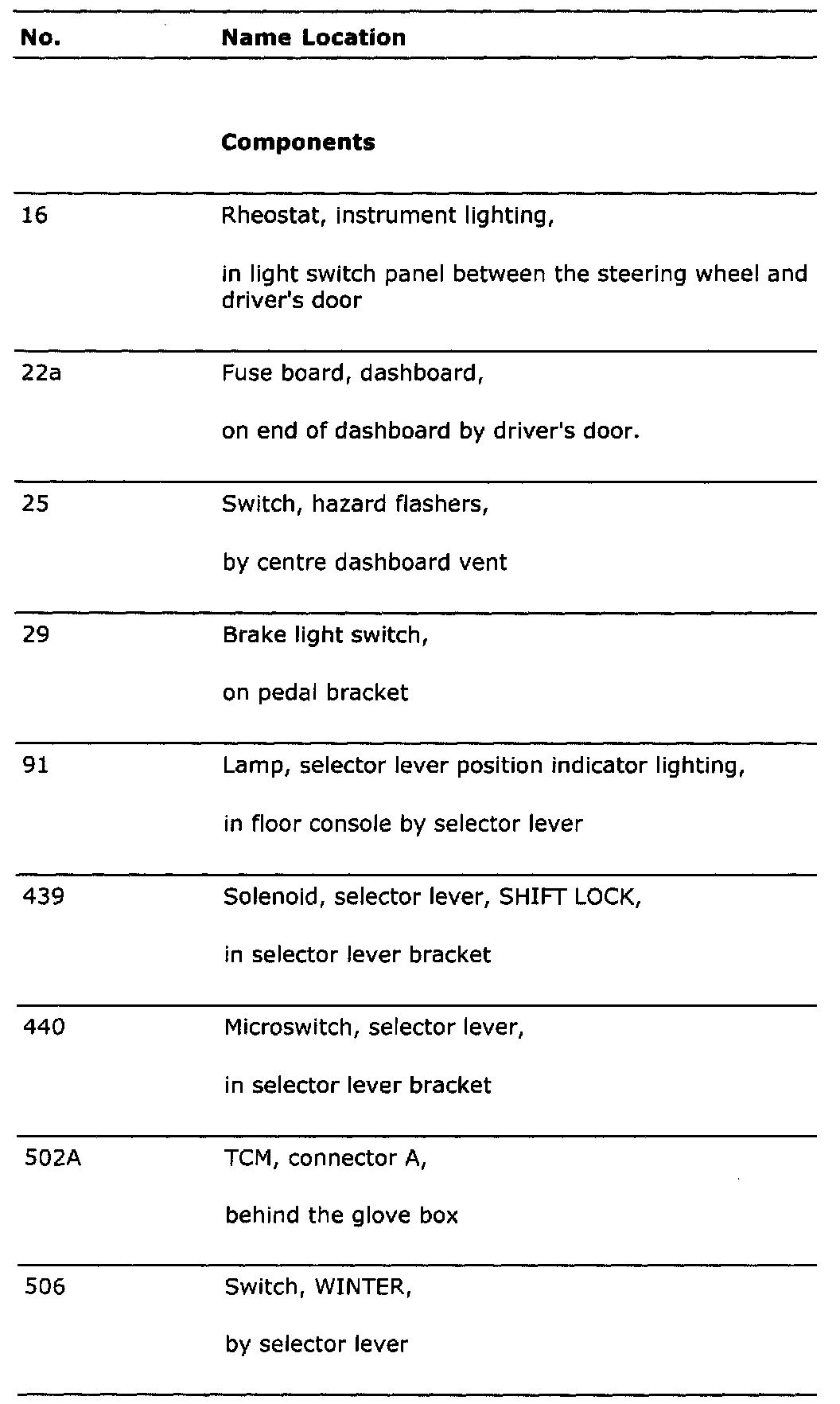

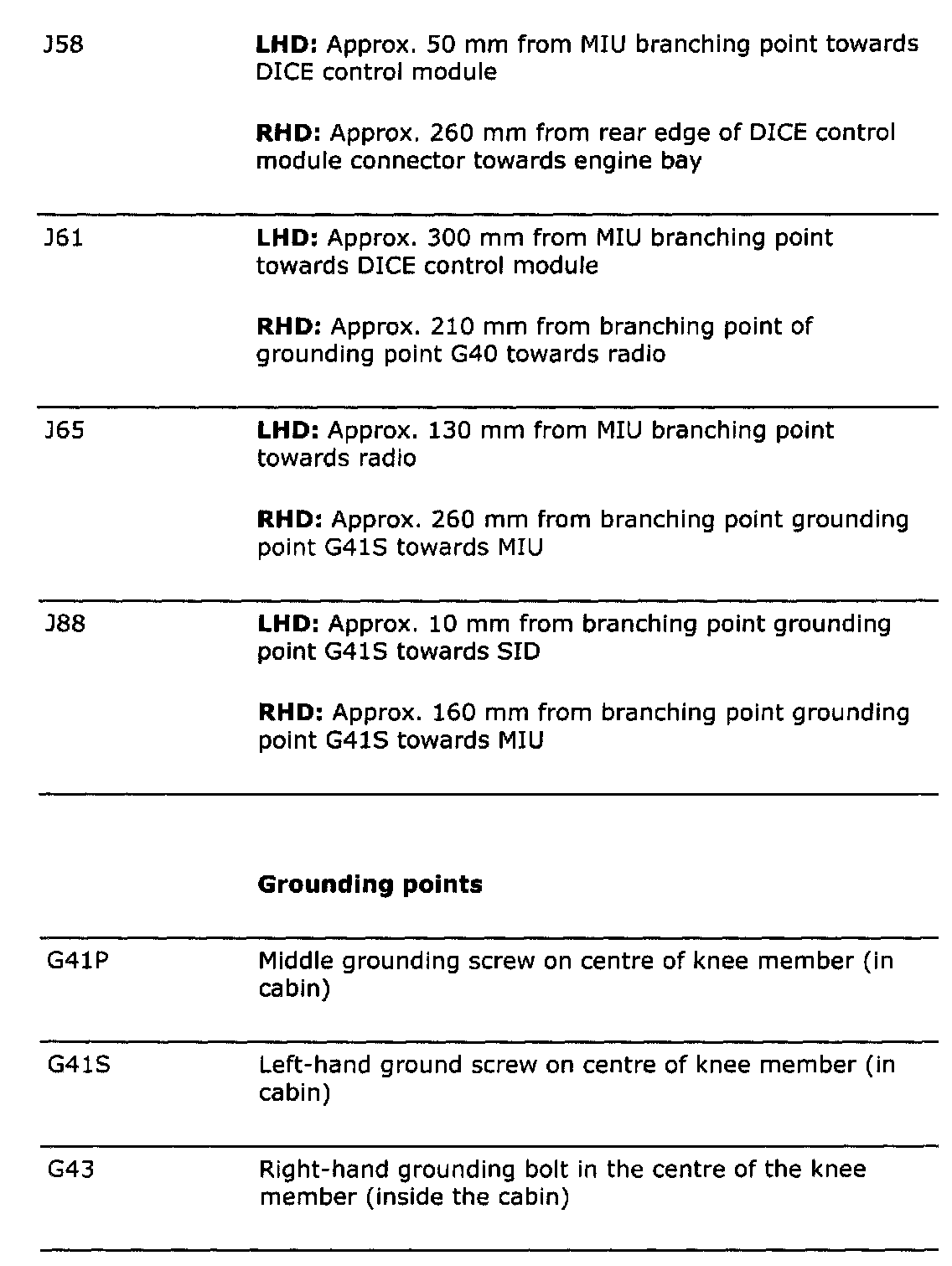

List of Components
Part 1:
Part 2:
Part 3:
