Starting System With Immobilizer

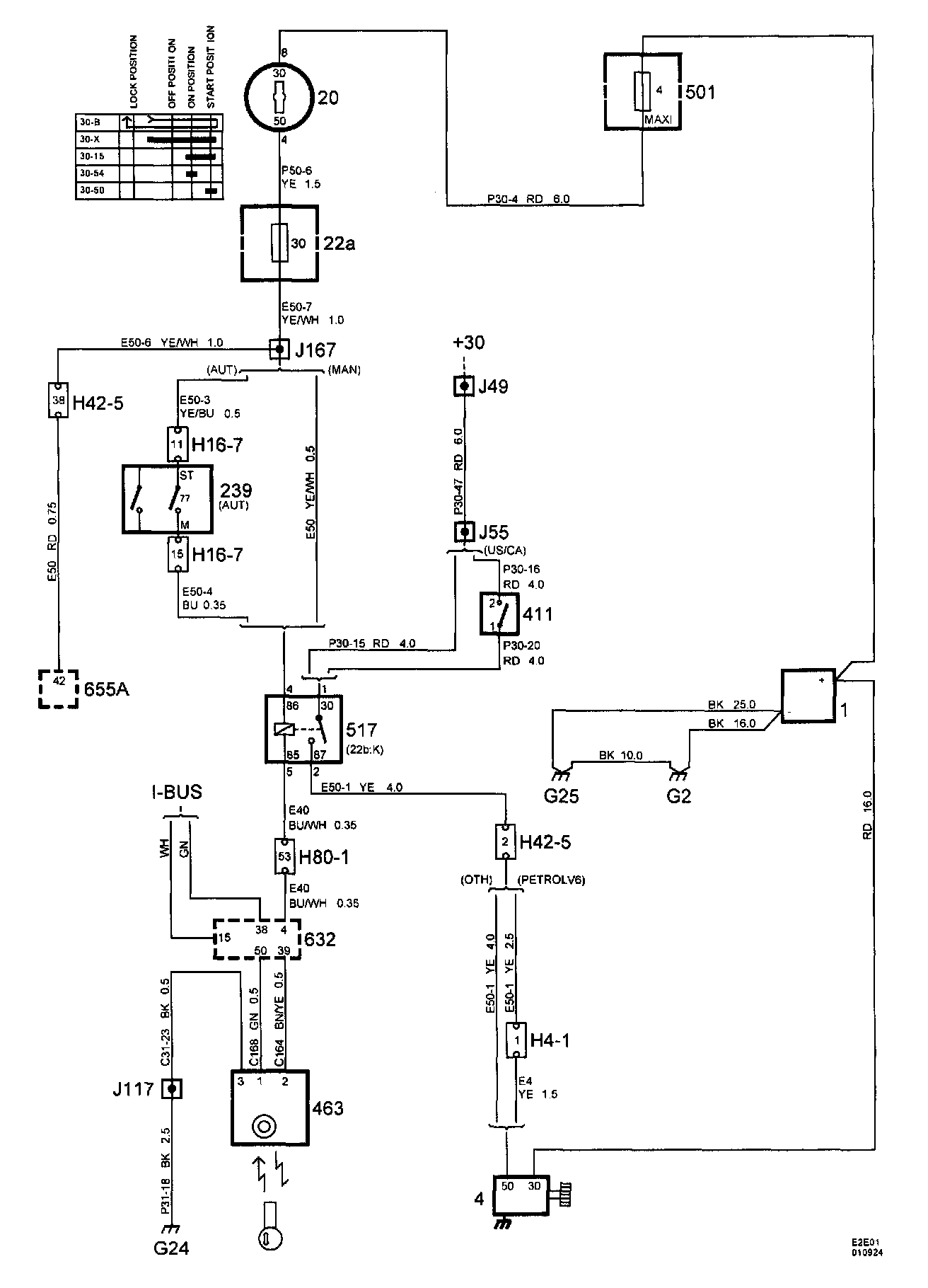

Starting System With Immobilizer







Component List

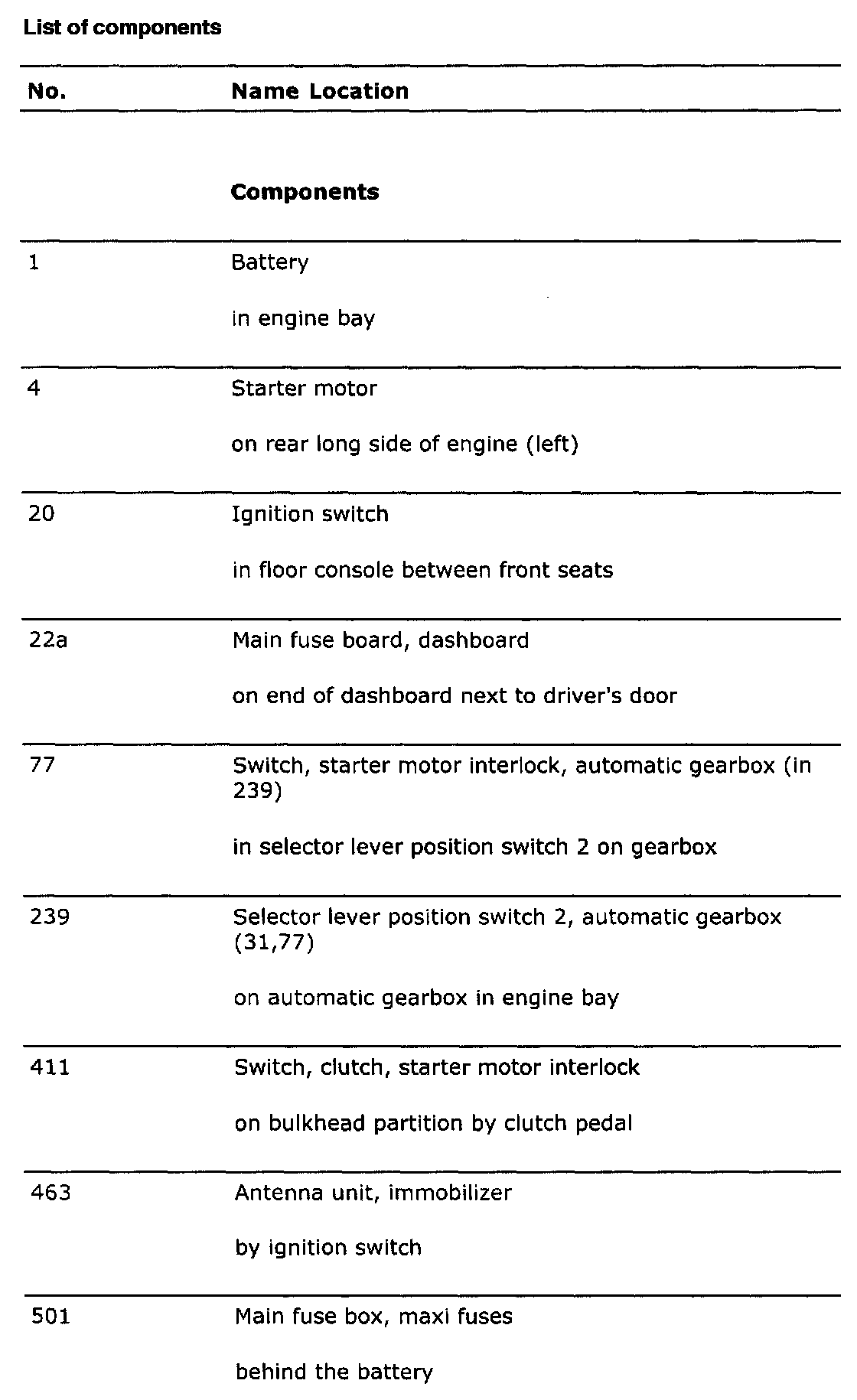

Part 1:

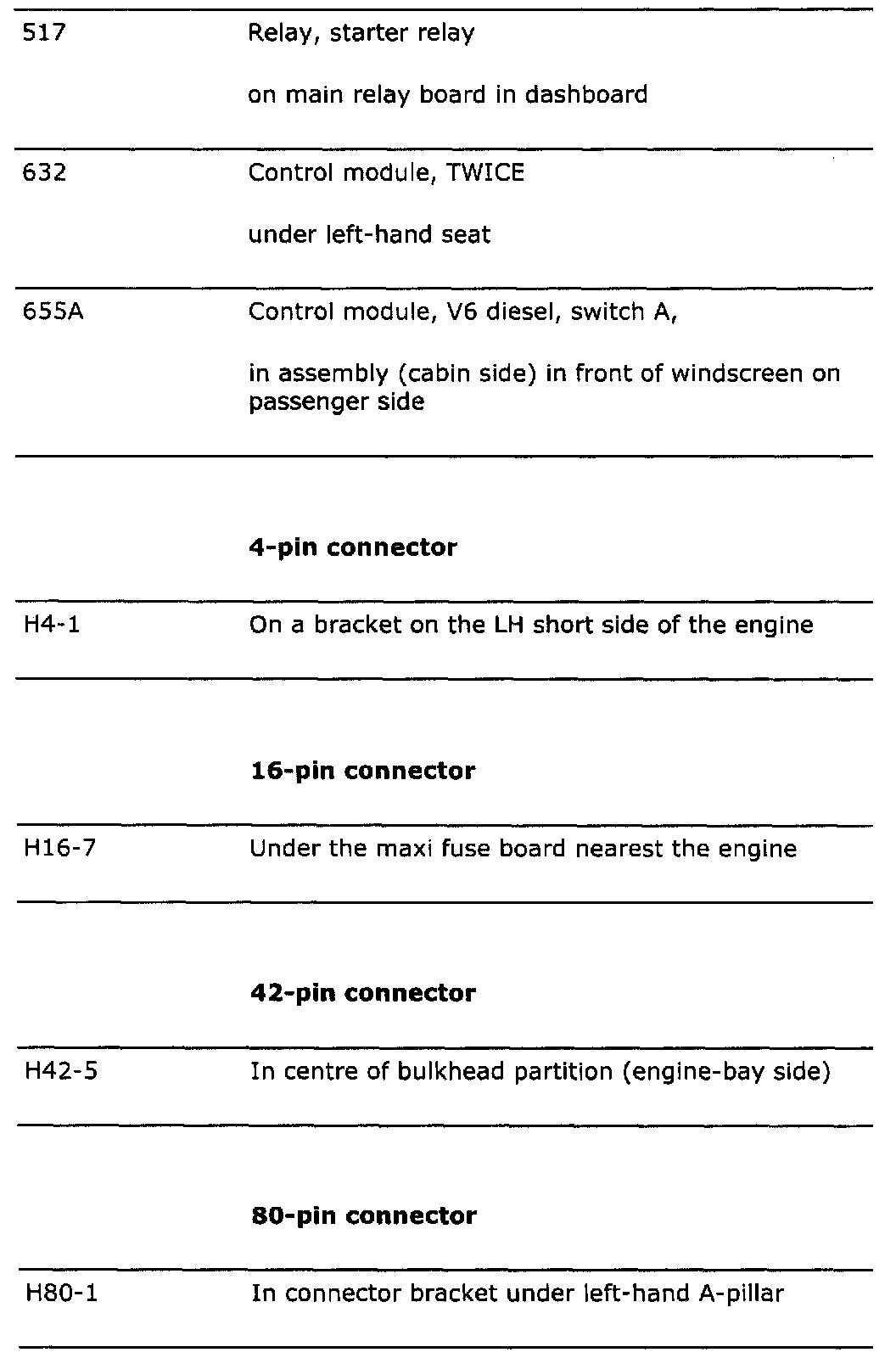

Part 2:

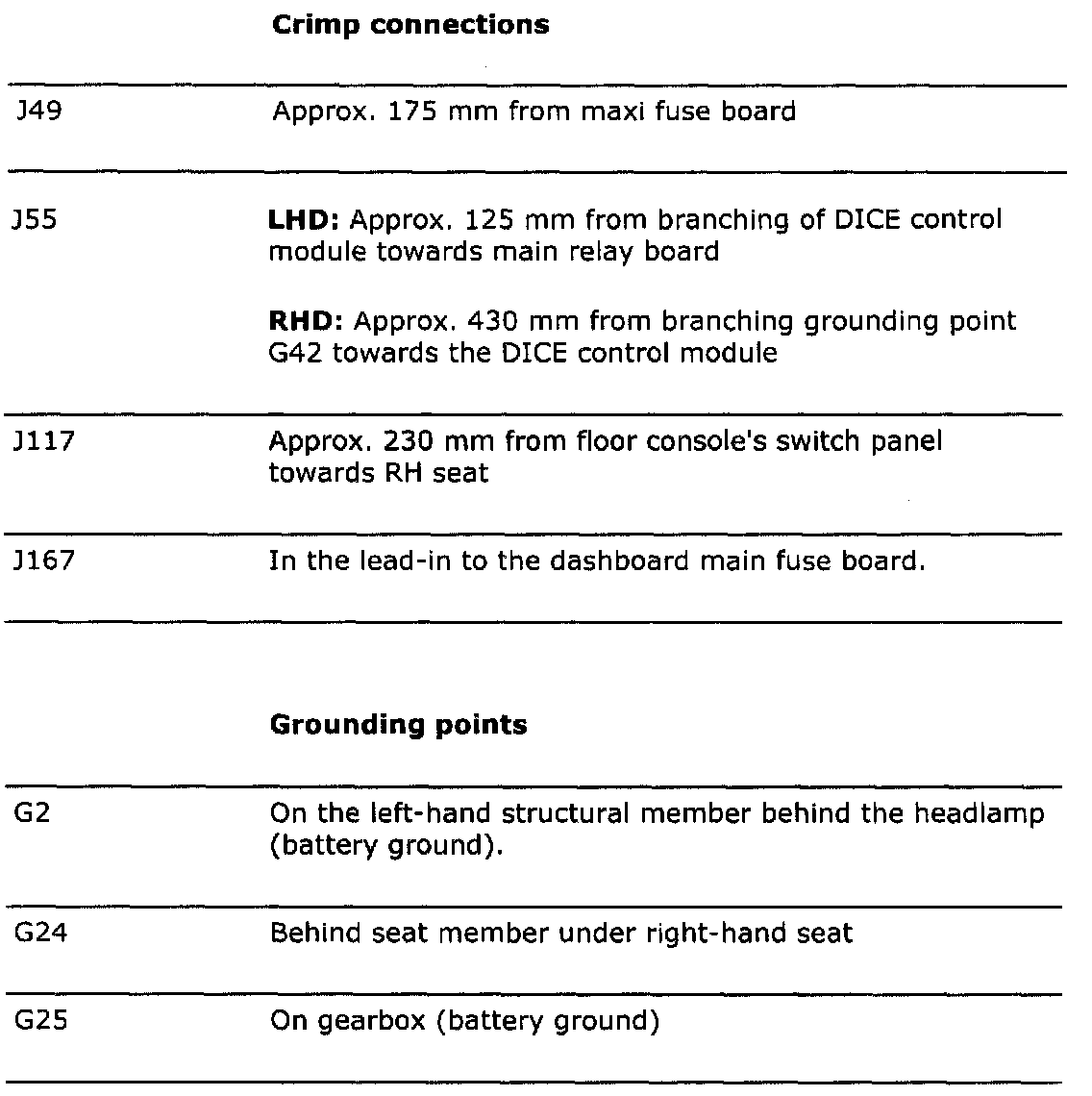

Part 3:
