Grounding Point G45 (Only 5D)




Grounding point G45 (only 5D)

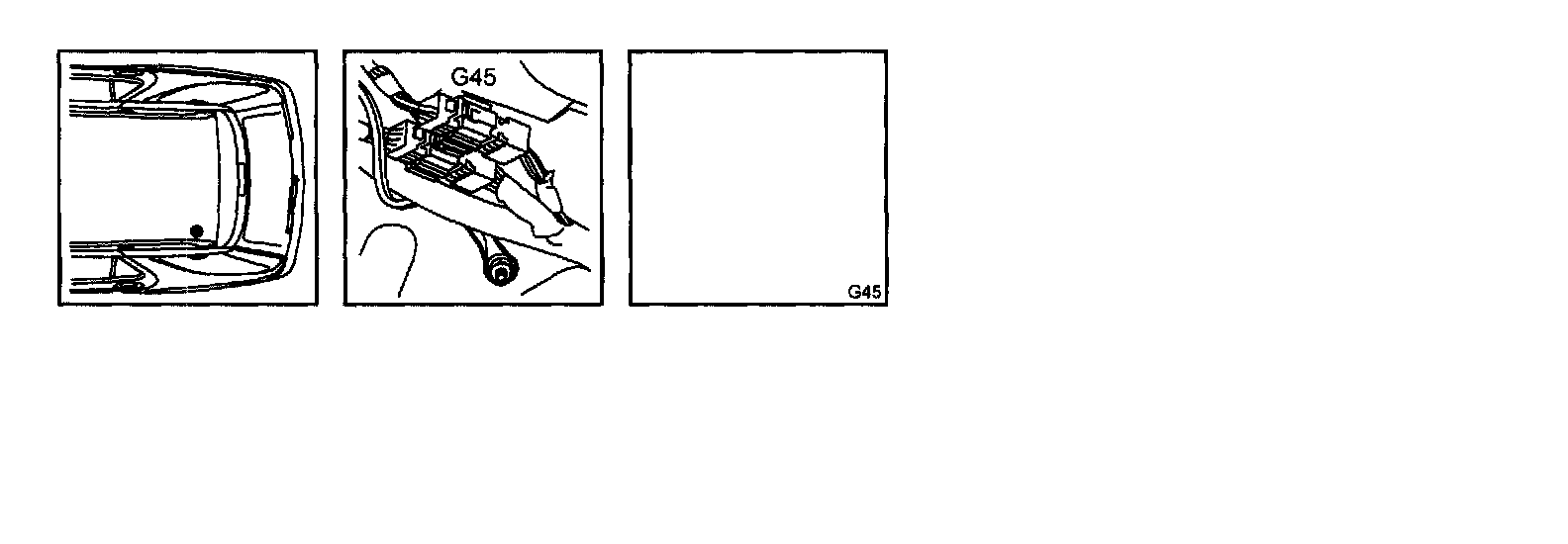

Location: In roof above LH D-pillar.

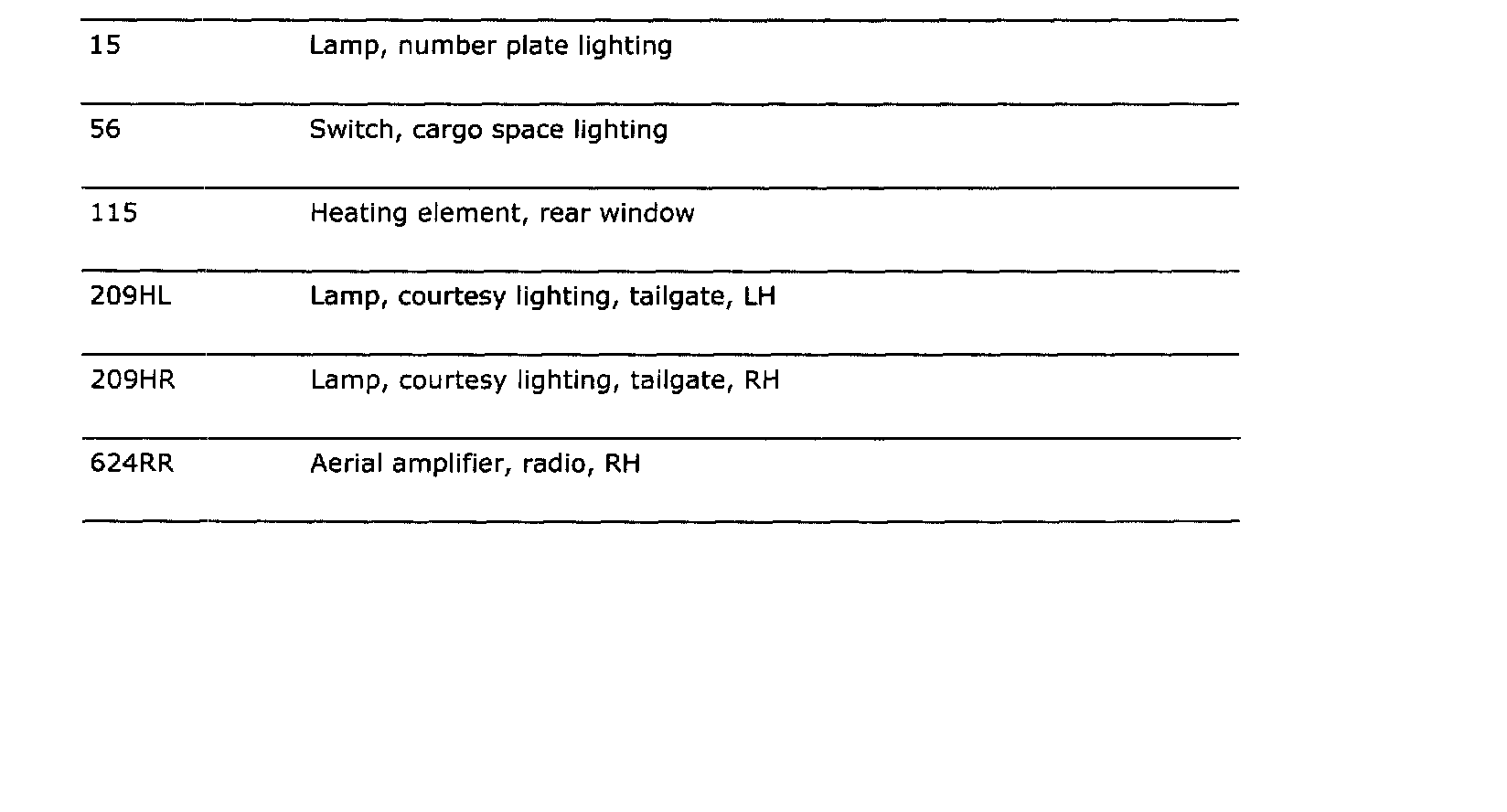

Via Crimp J135, tailgate wiring harness:

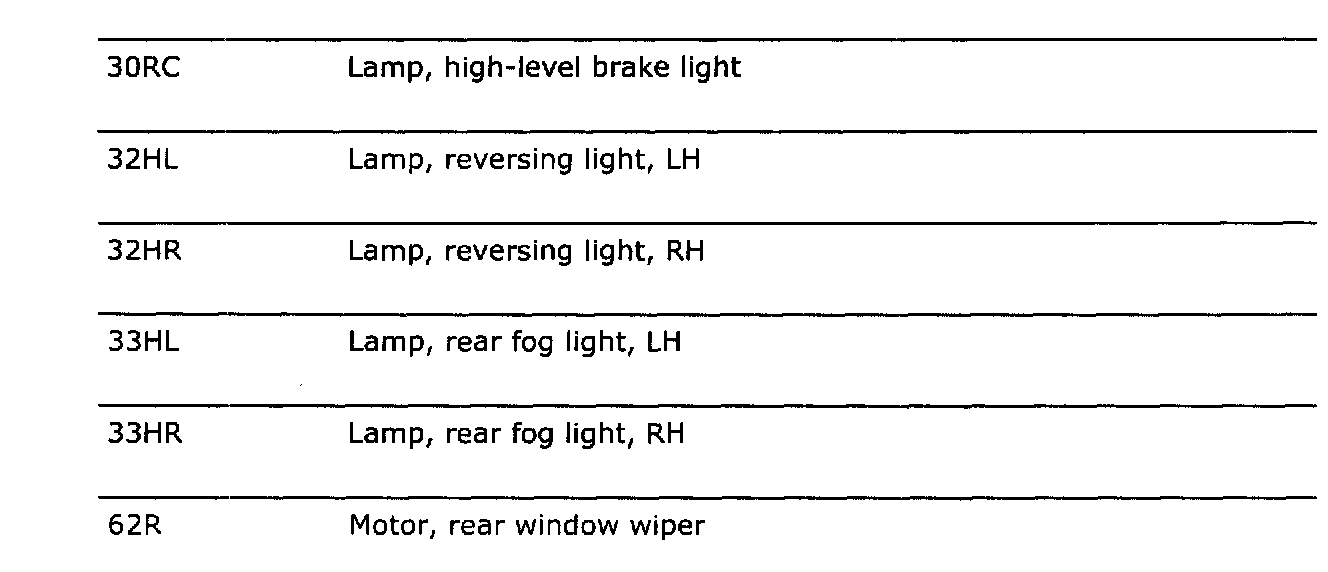

Via Crimp J136, tailgate, wiring harness:

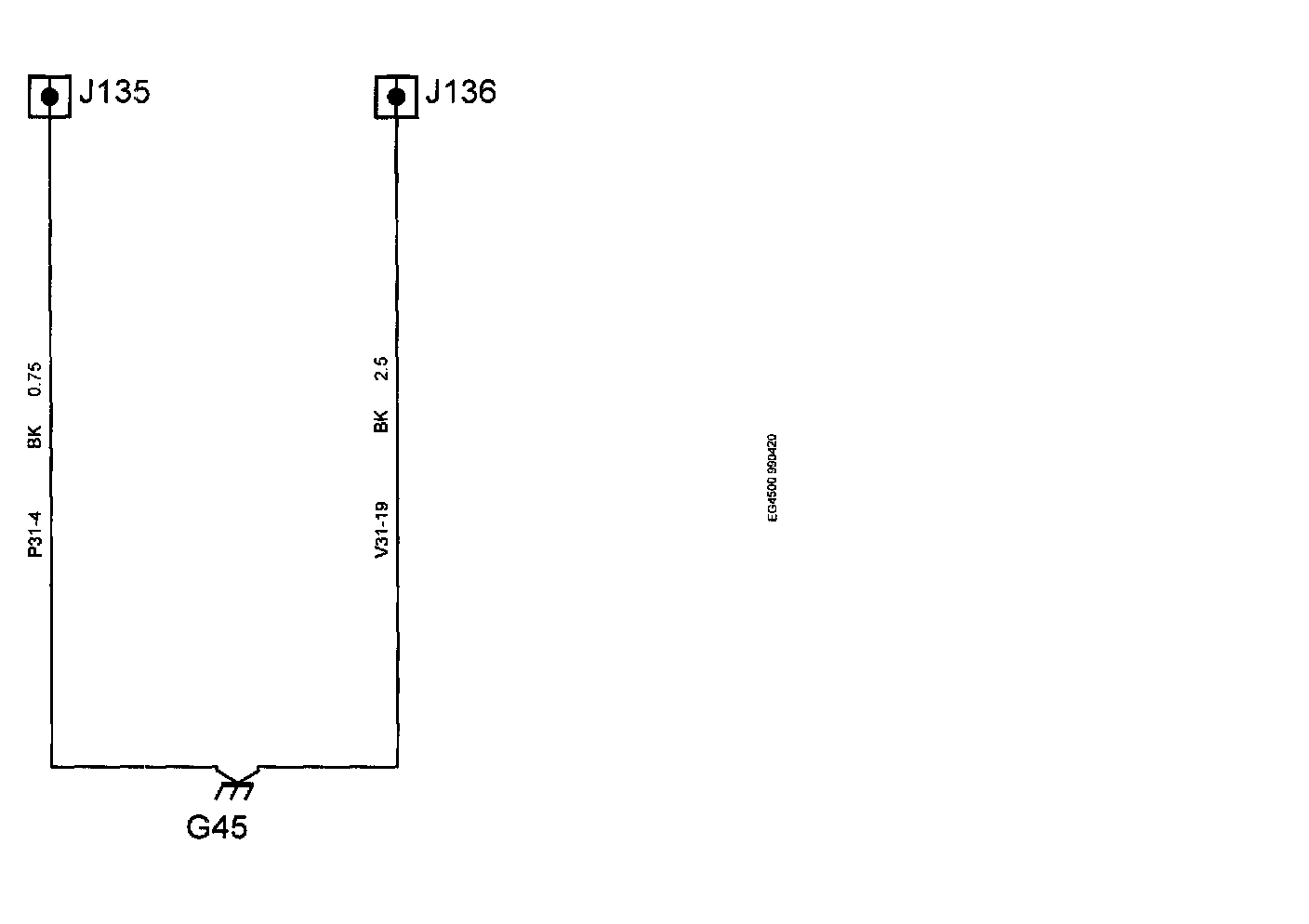

Connected components
