Grounding Point G3

Grounding point G3

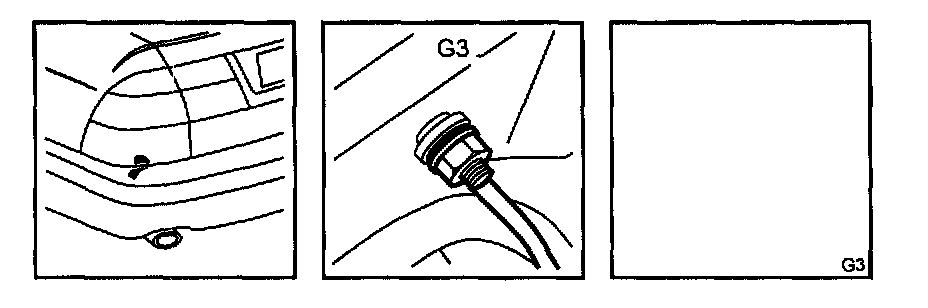

Location : In luggage compartment under LH light cluster.

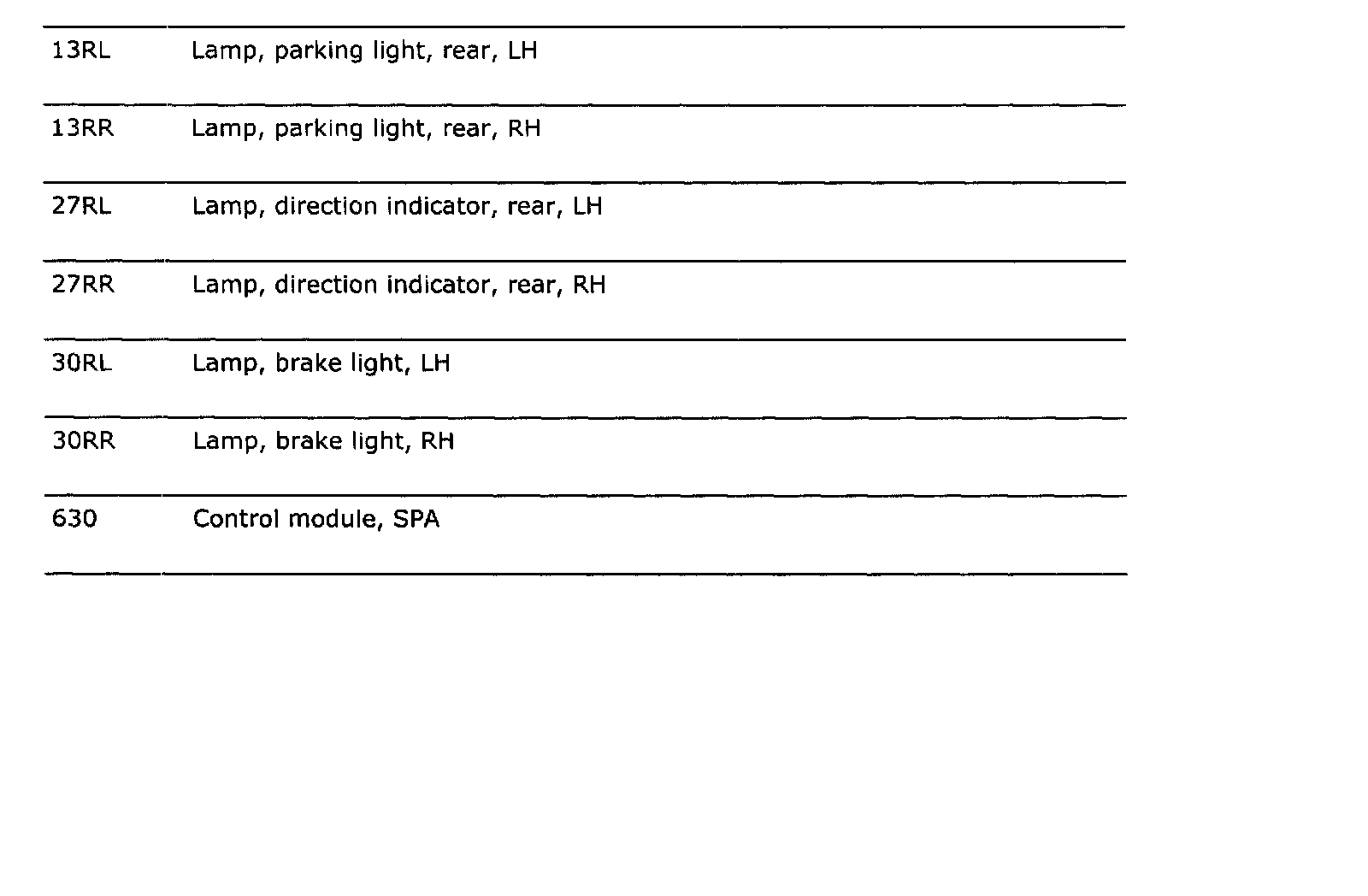

Via Crimp J91, rear wiring harness:

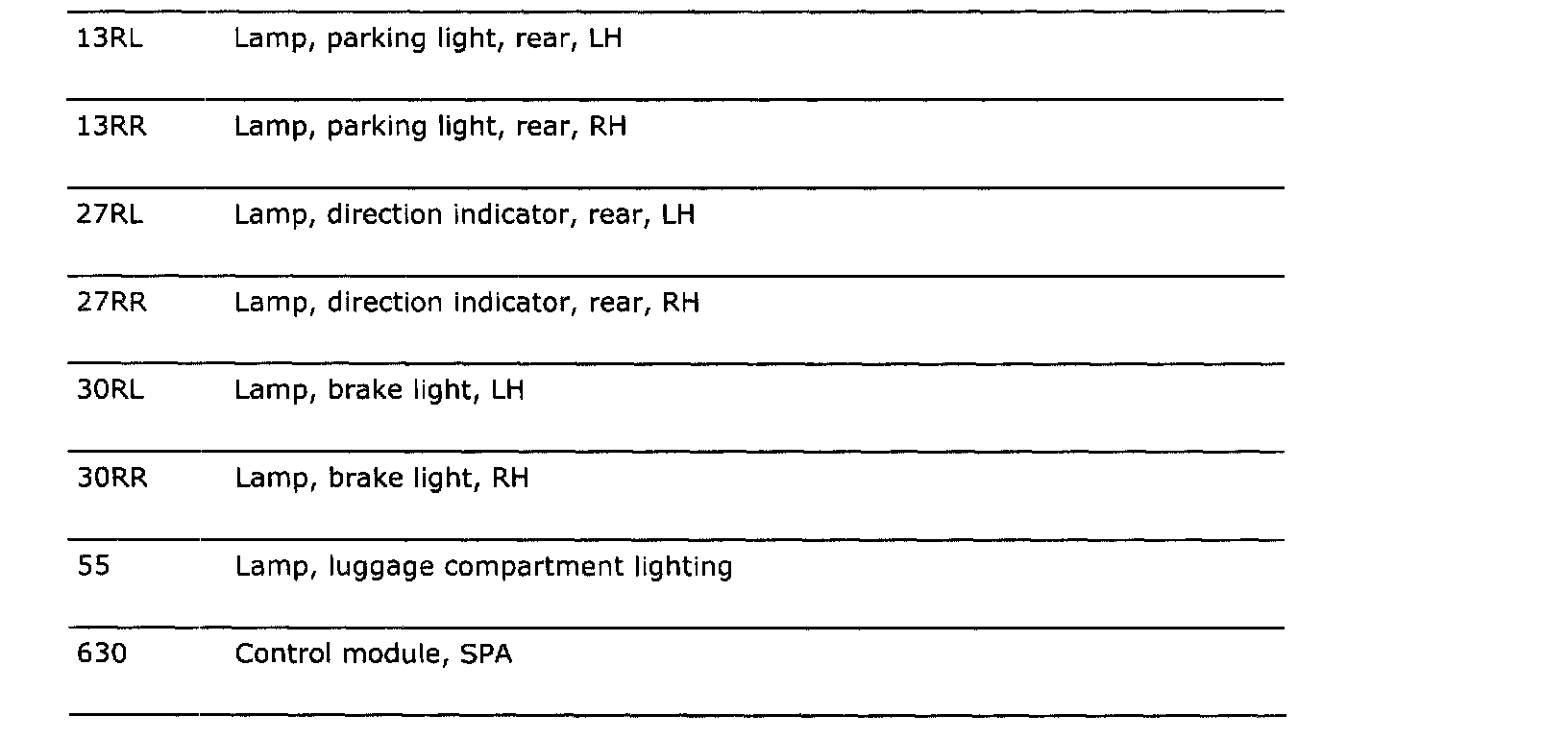

Via Crimp J132, boot lid, which is connected to crimp J91:

Connected components 4D

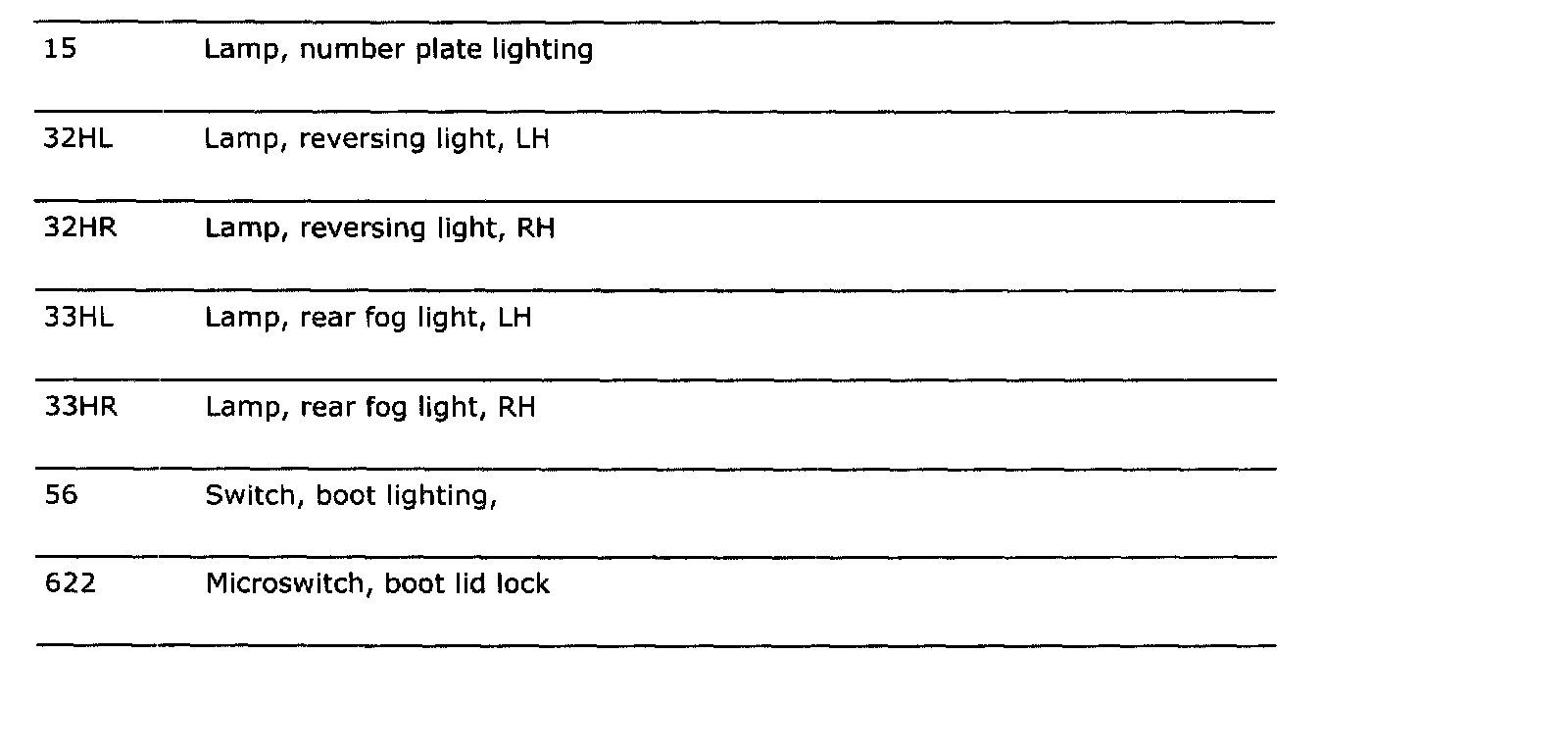

Via Crimp J120, rear wiring harness:

Connected components 5D
