Description

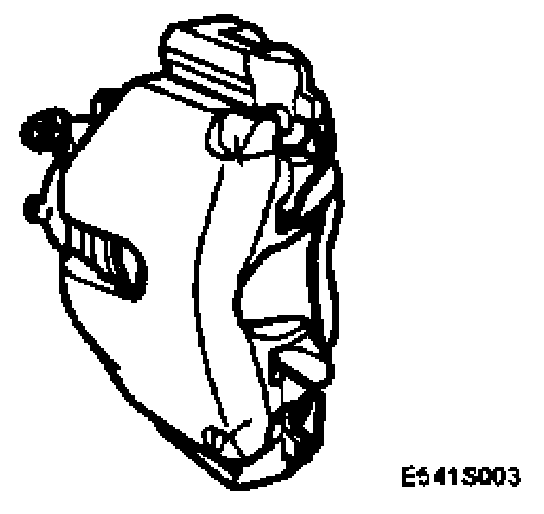

Front Wheel Brake Caliper

Manufacturer
ATE

Type
Swinging Brake Caliper, Single Cylinder





Rear Wheel Brake Caliper

Manufacturer
ATE

Type
Swinging Brake Caliper, Single Cylinder
