Grounding Point G40

Grounding point G40








Location: In cabin on left-hand side of knee protection bar.

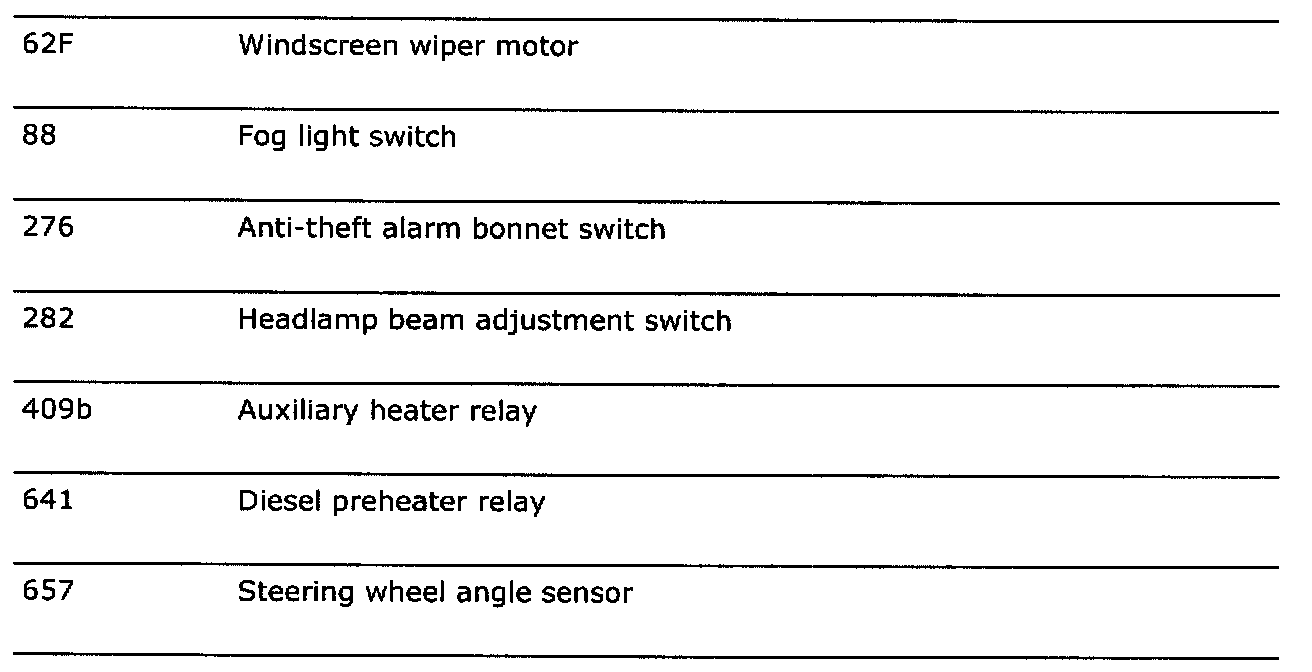

Via Crimp J42 instrument harness:

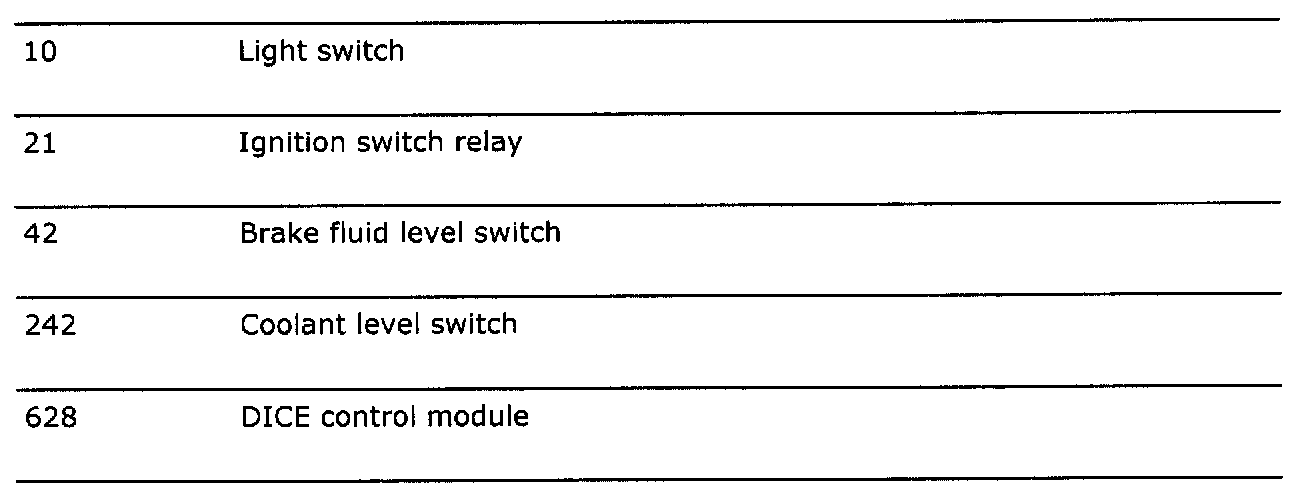

Via Crimp J48, instrument harness:

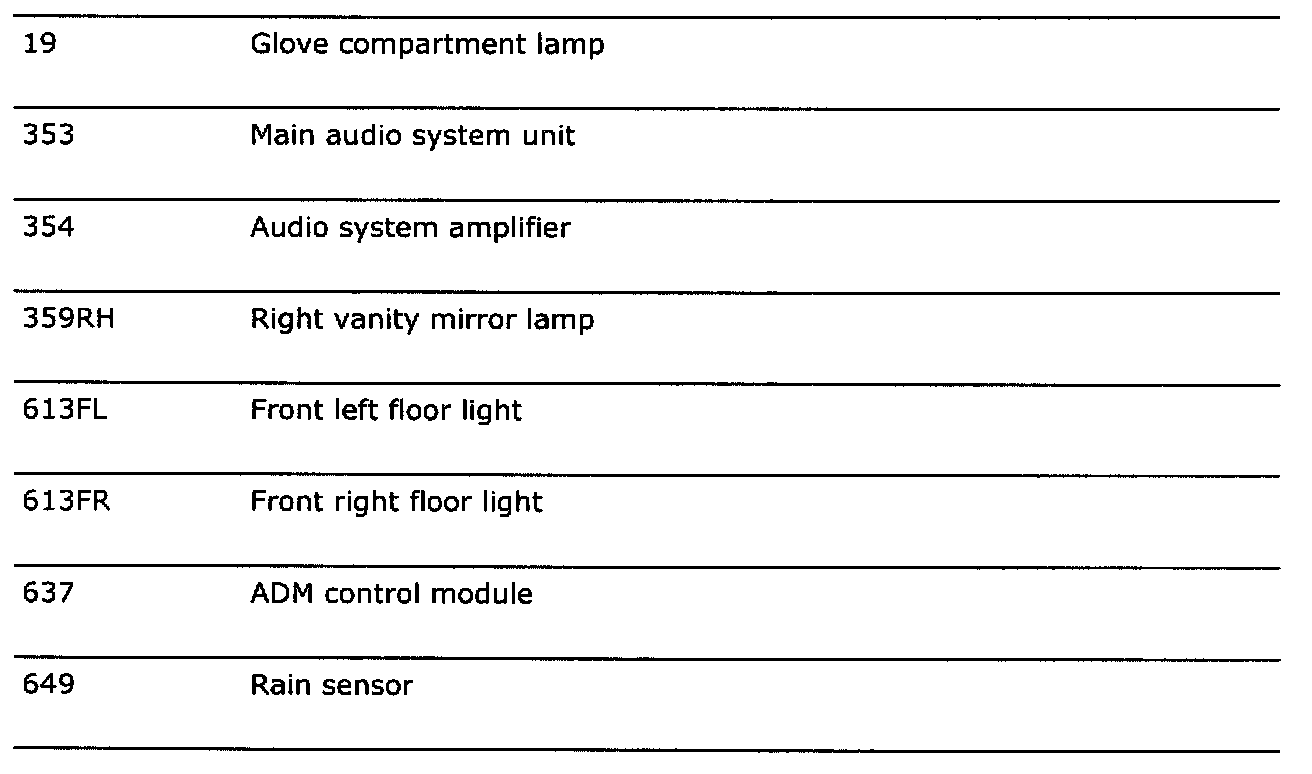

Via Crimp 346, instrument harness:

A: Connected components on LHD cars.
