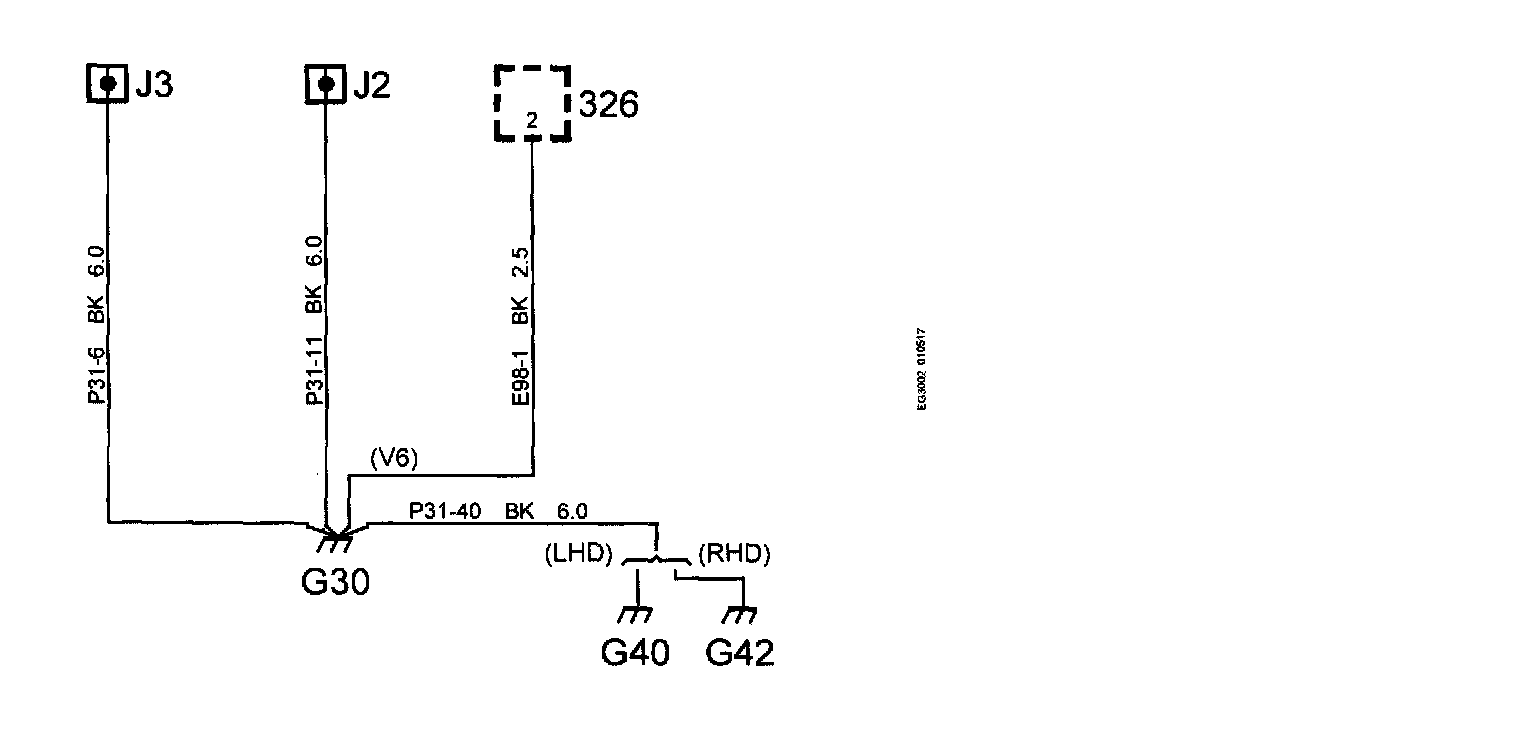

Grounding Point G30

Grounding point G30

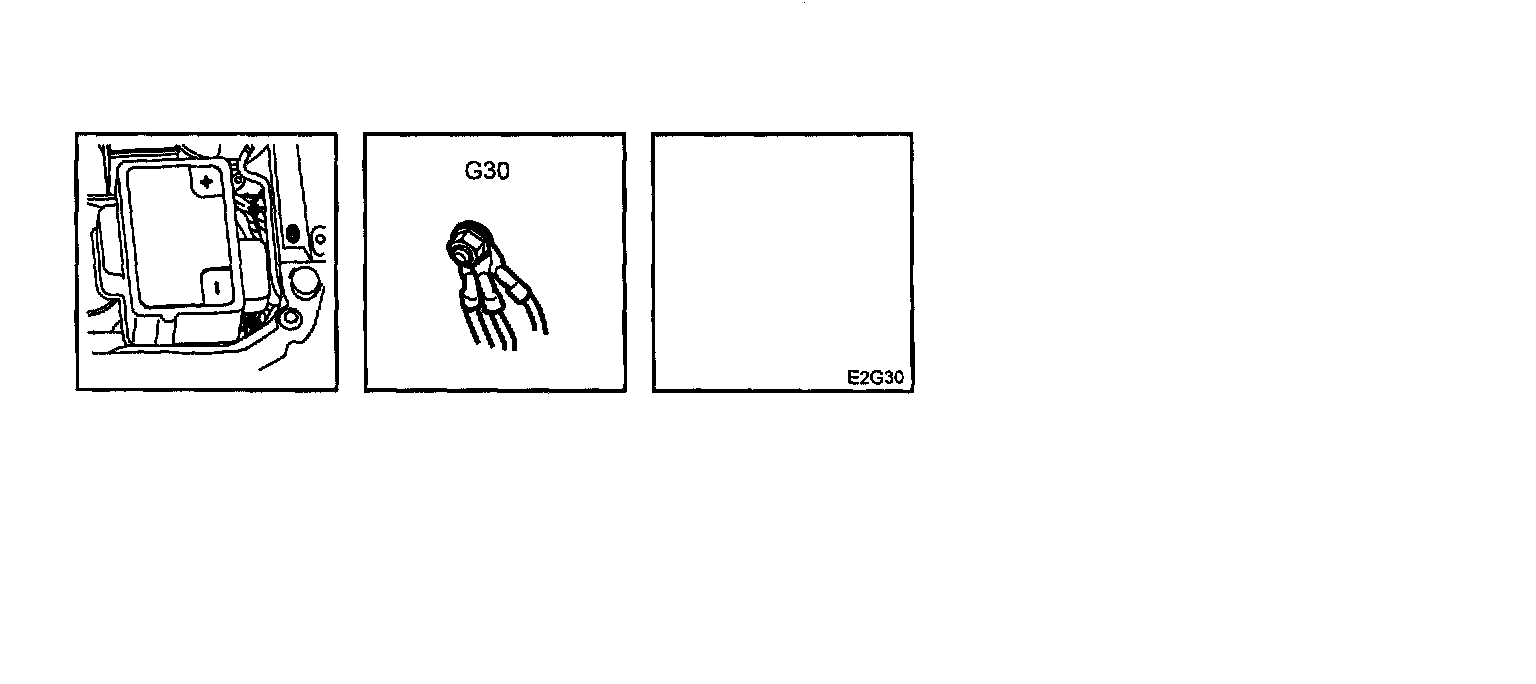

Location: In the engine bay on the side panel in front of the left-hand wheel housing

Via Crimp 32, front harness:

Via Crimp 33, front harness:

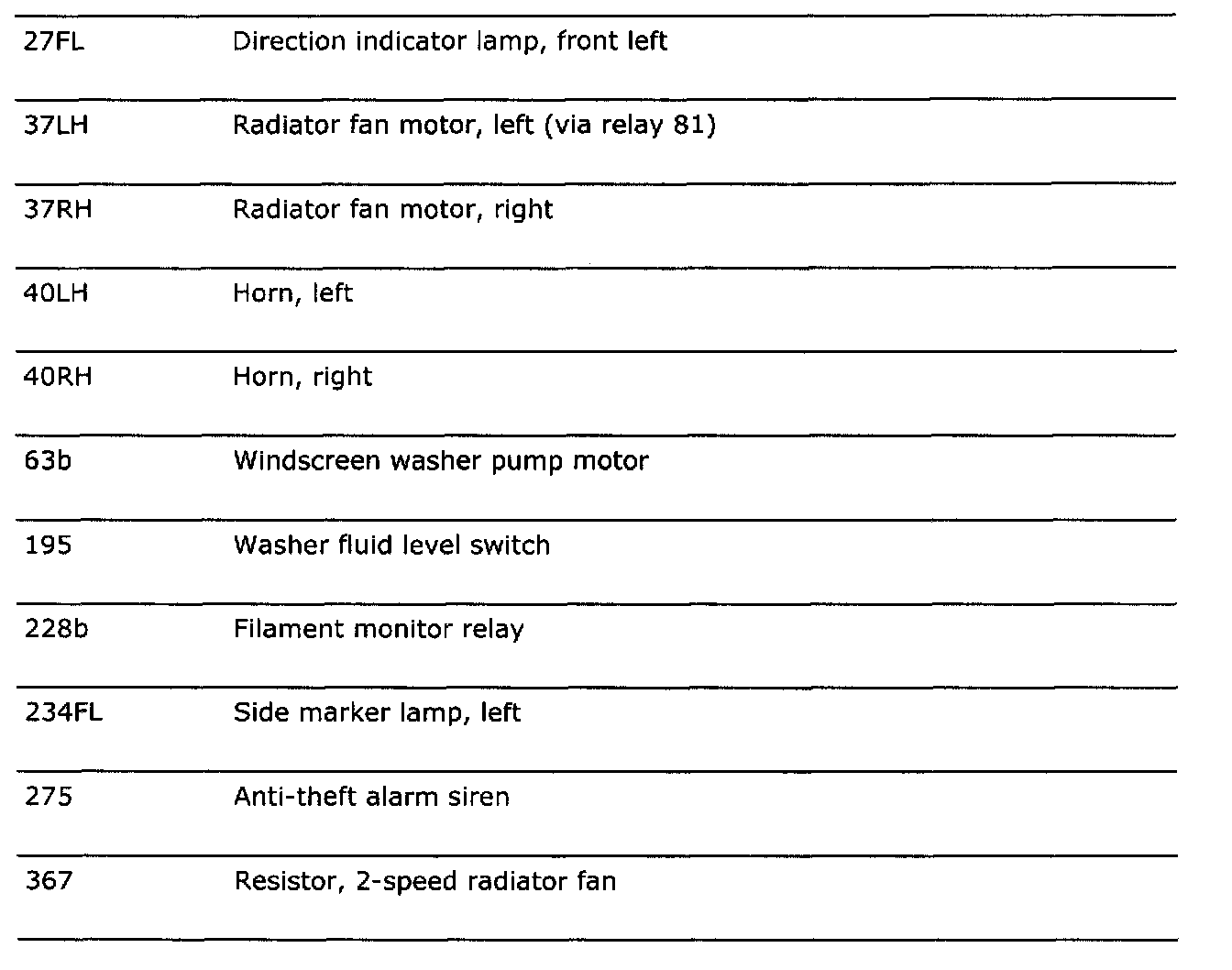

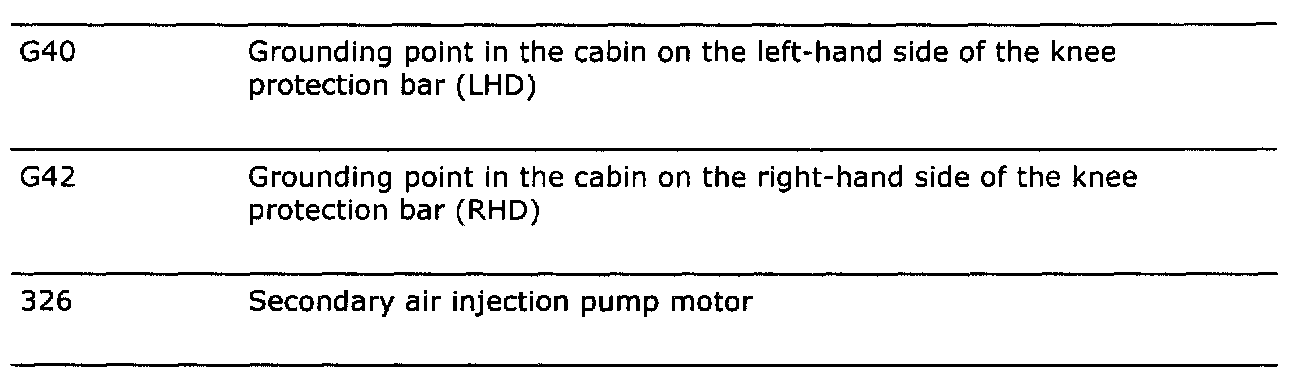

Connected components
