Grounding Point G2




Grounding point G2

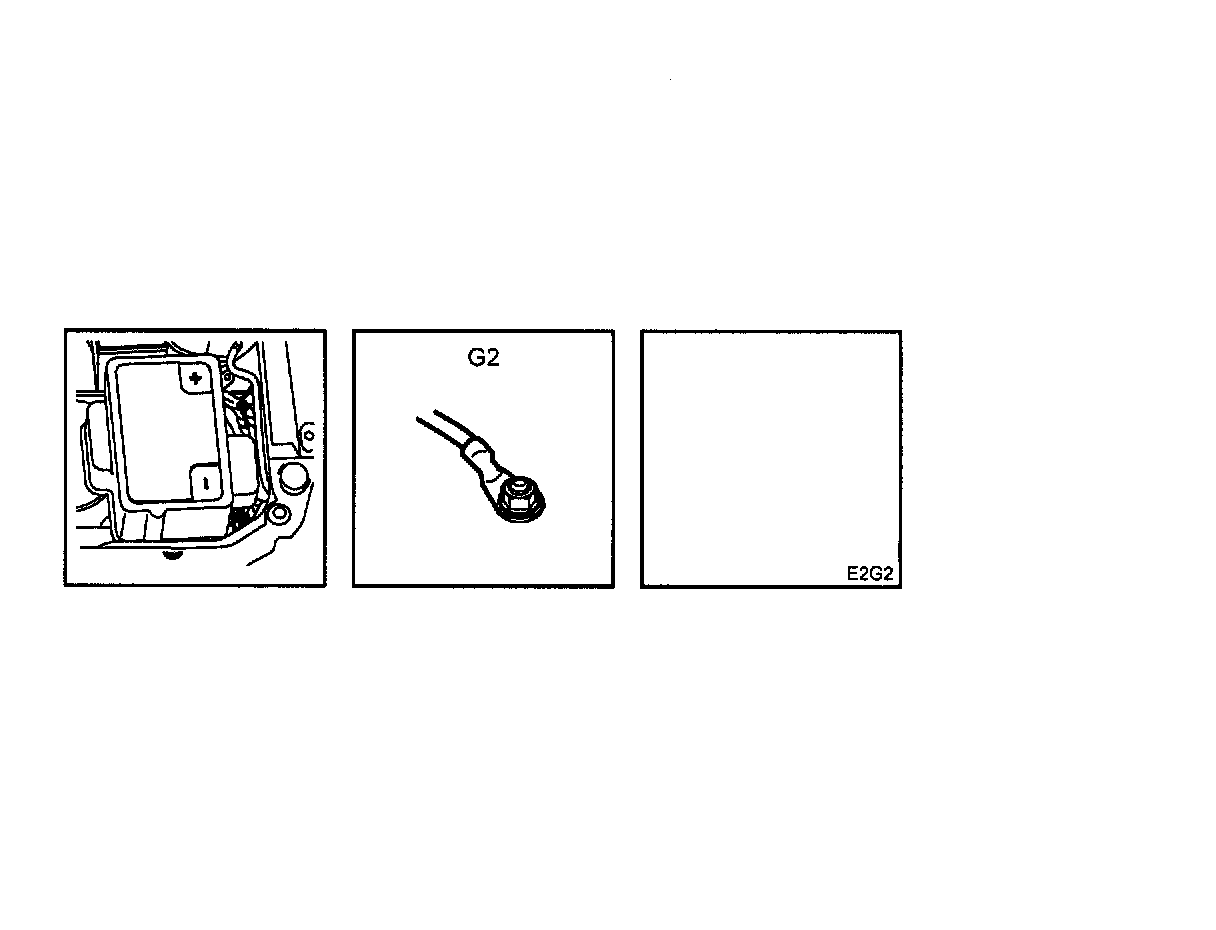

Location: Left-hand structural member behind headlamp (battery ground).

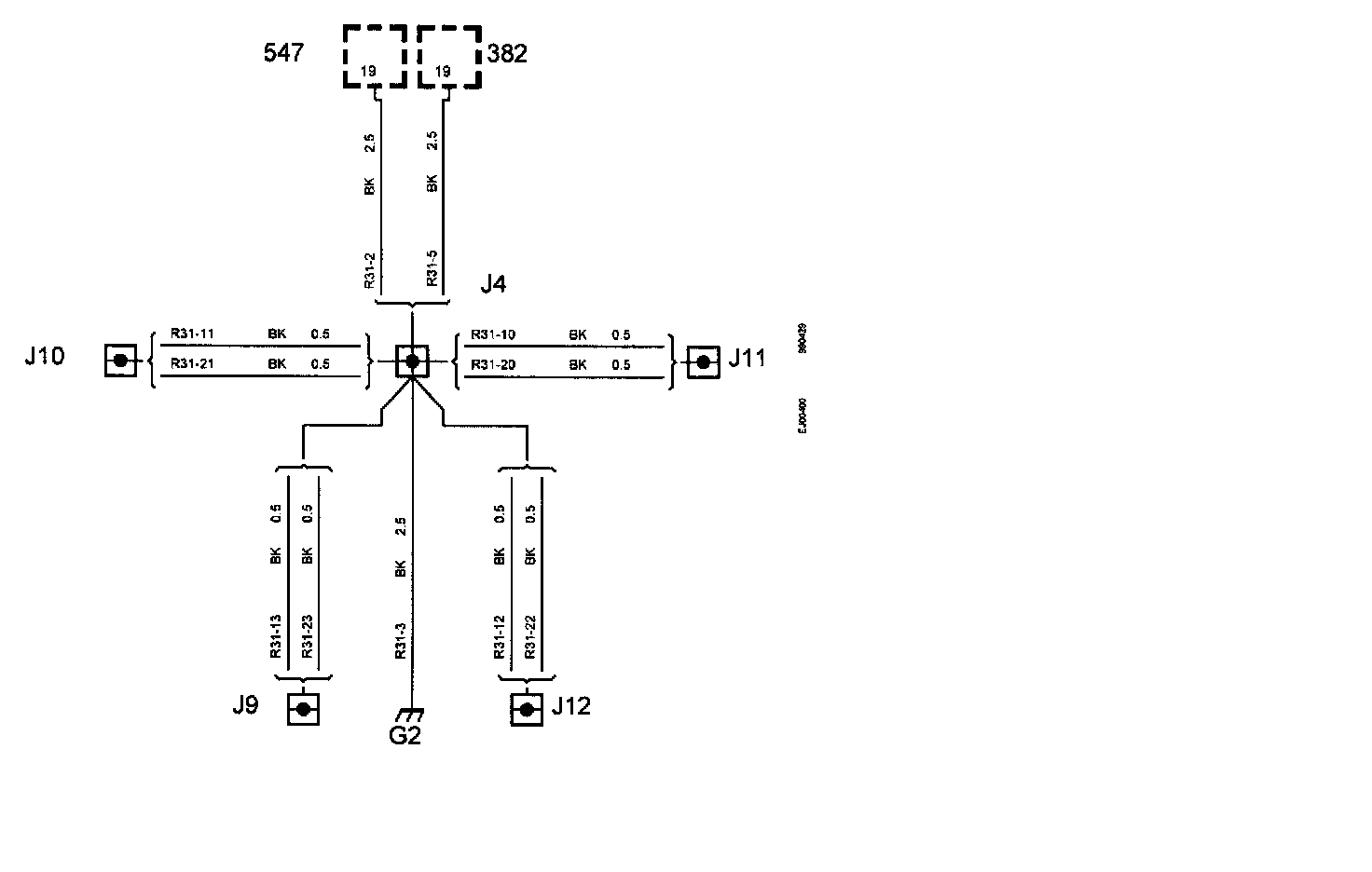

Via Crimp 34, front harness:

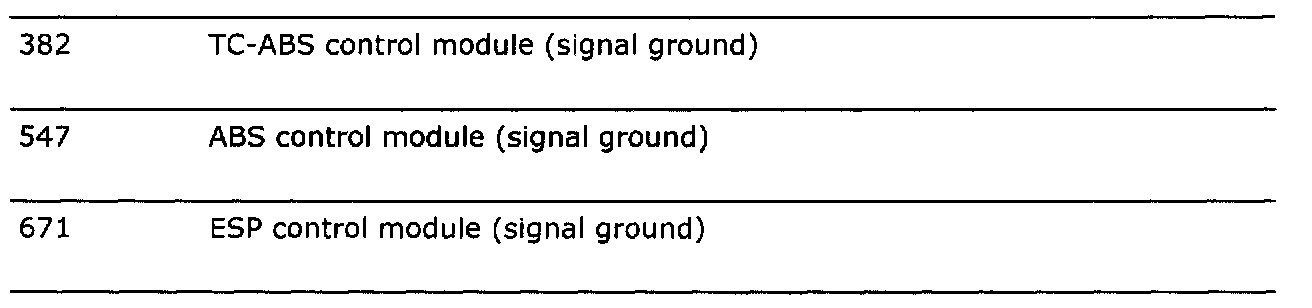

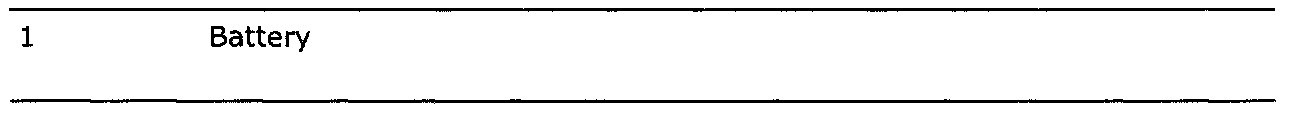

Connected components
