Grounding Parts G415




Grounding parts G415

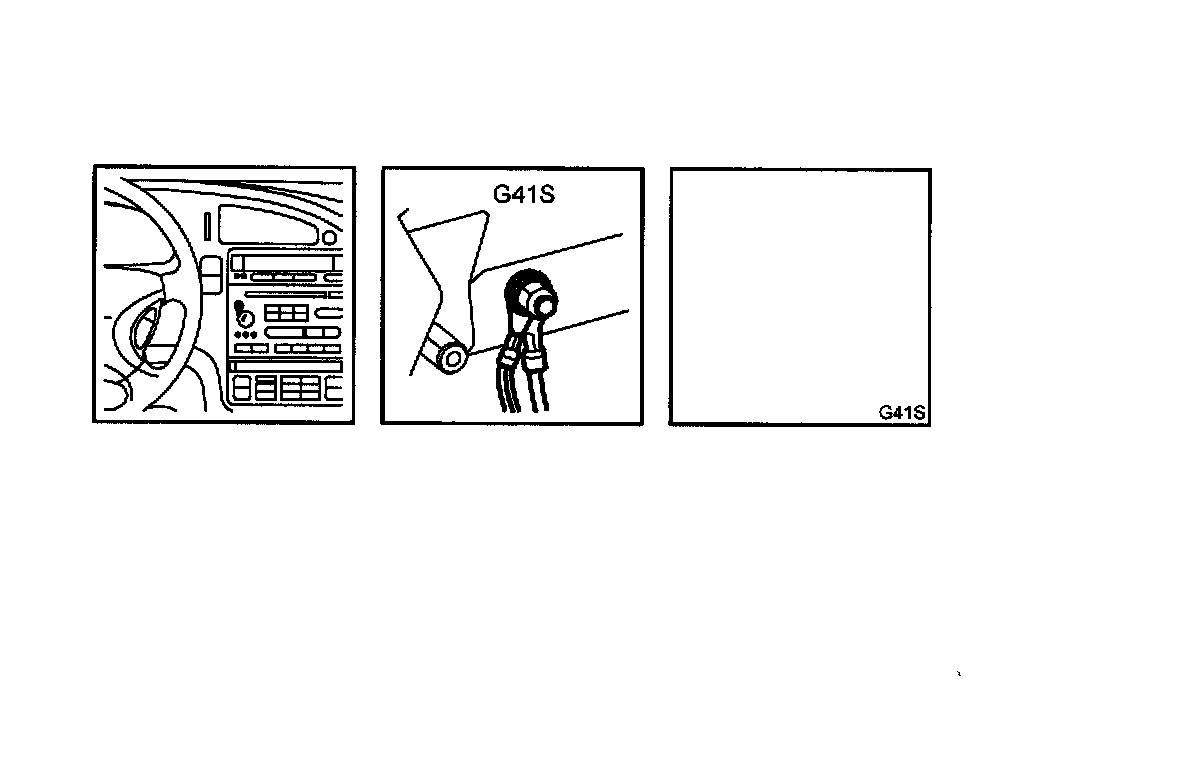

Location: Left-hand grounding screw in center of knee protection bar (in cabin)

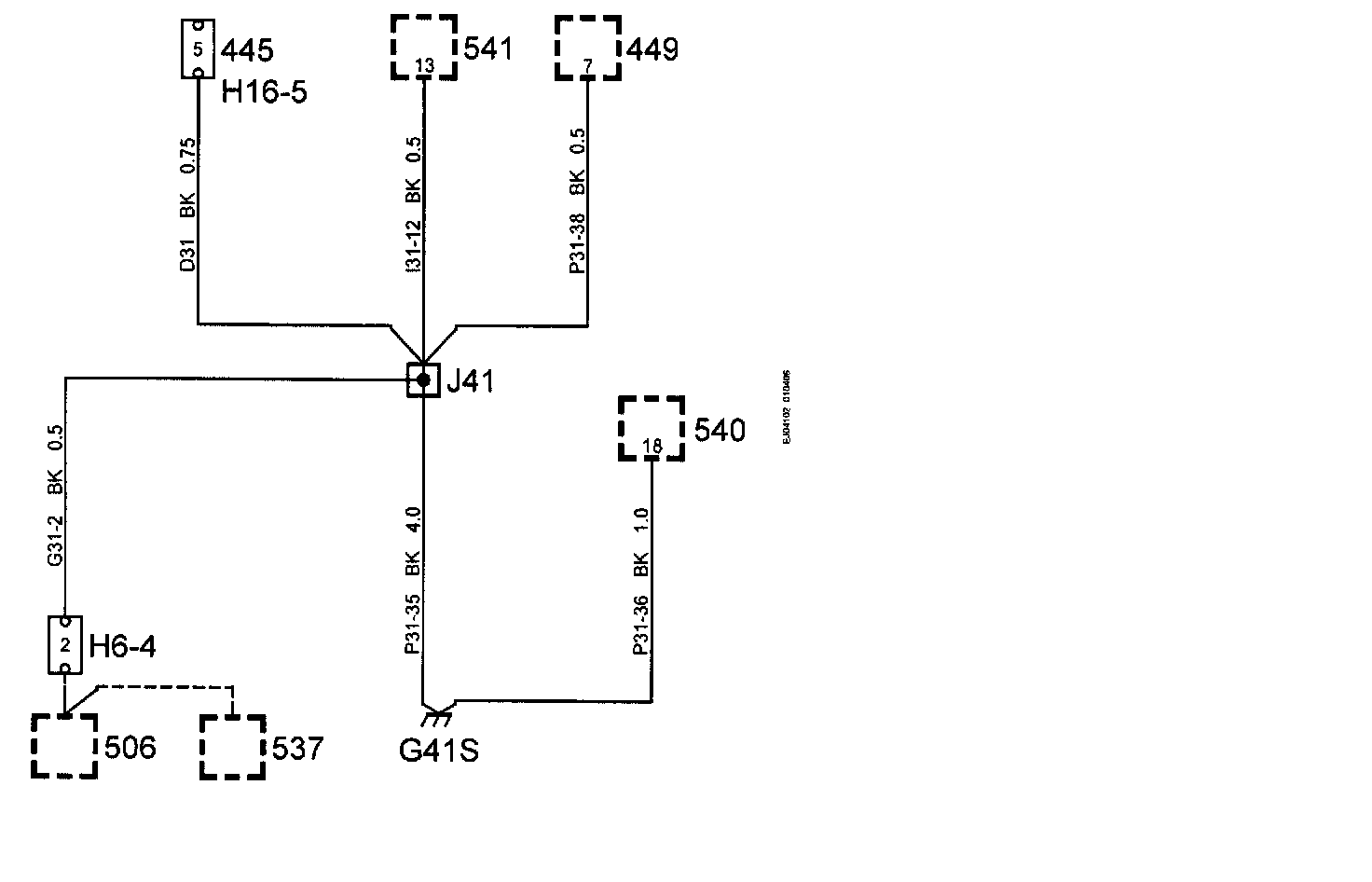

Via Crimp 341, instrument hacness:

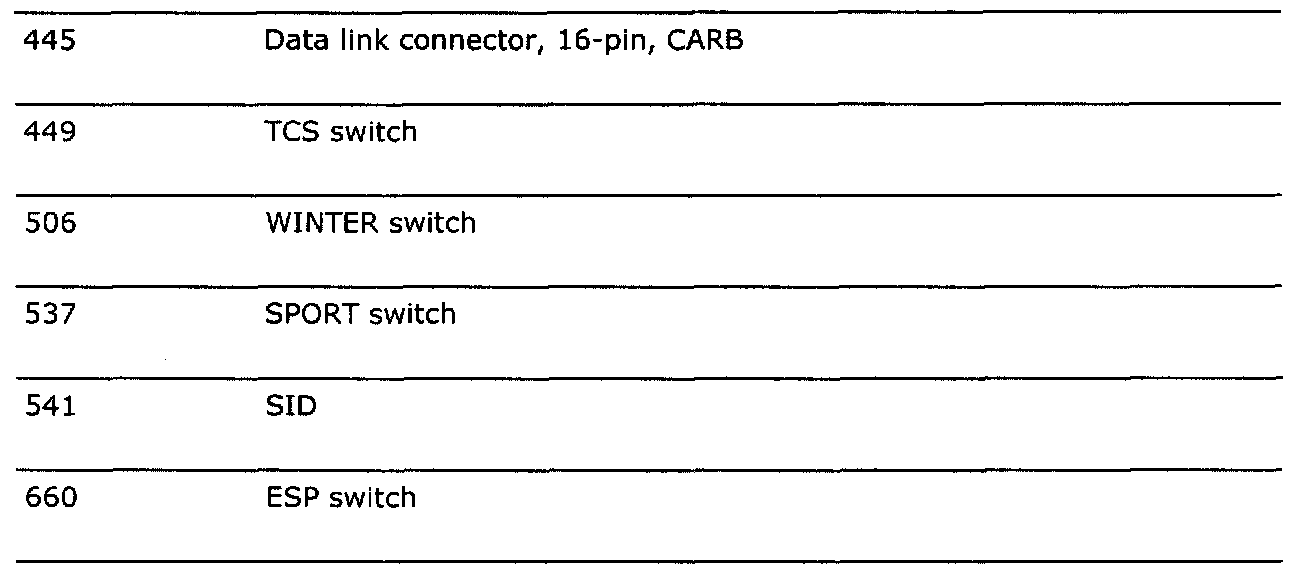

Connected components
