Grounding Point G42

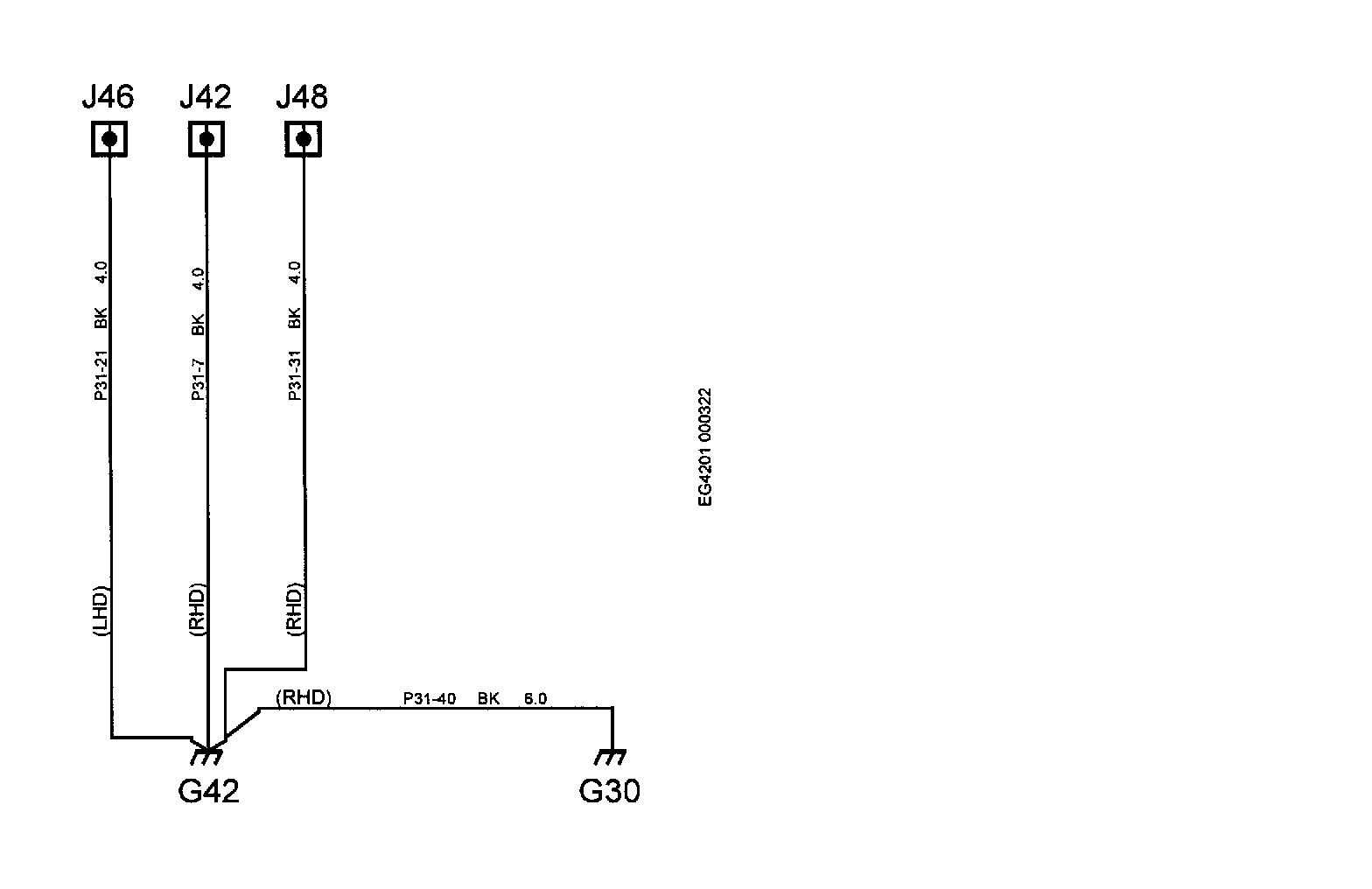

Grounding point G42








Location: On right-hand side of knee protection bar.

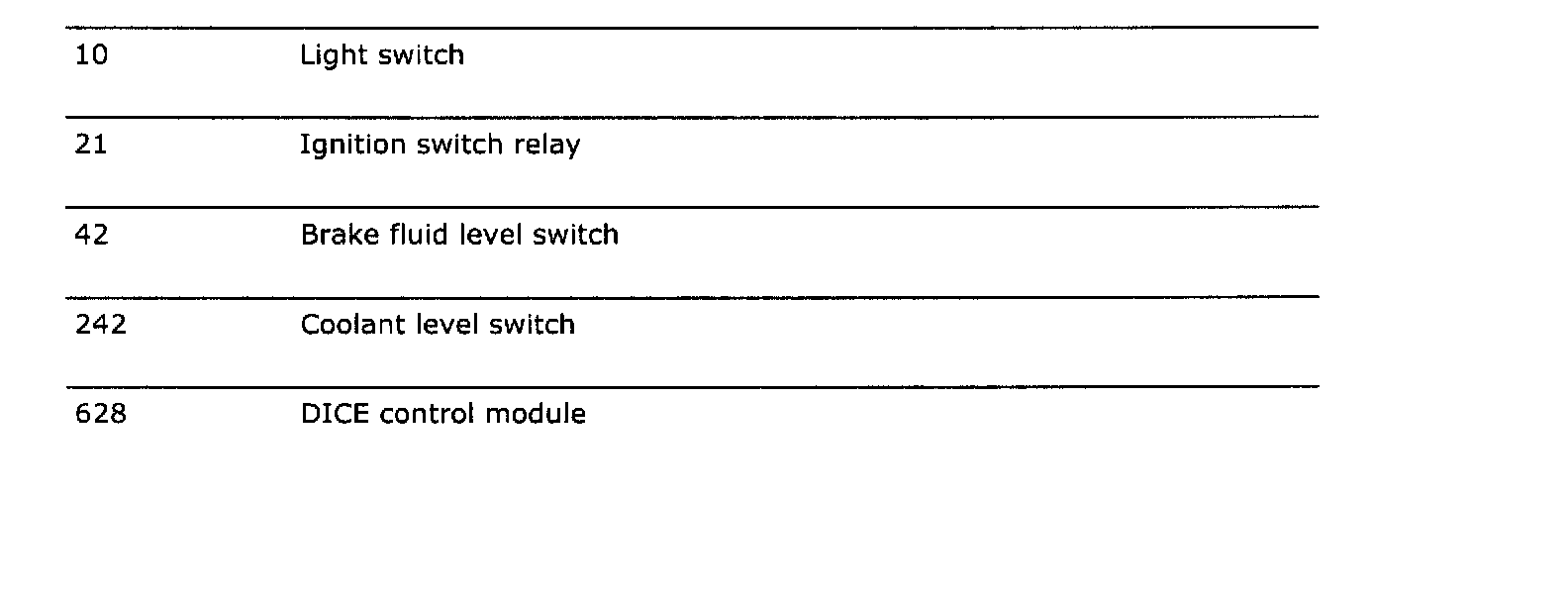

Via Crimp J46, instrument harness:





A: Connected components on LHD cars

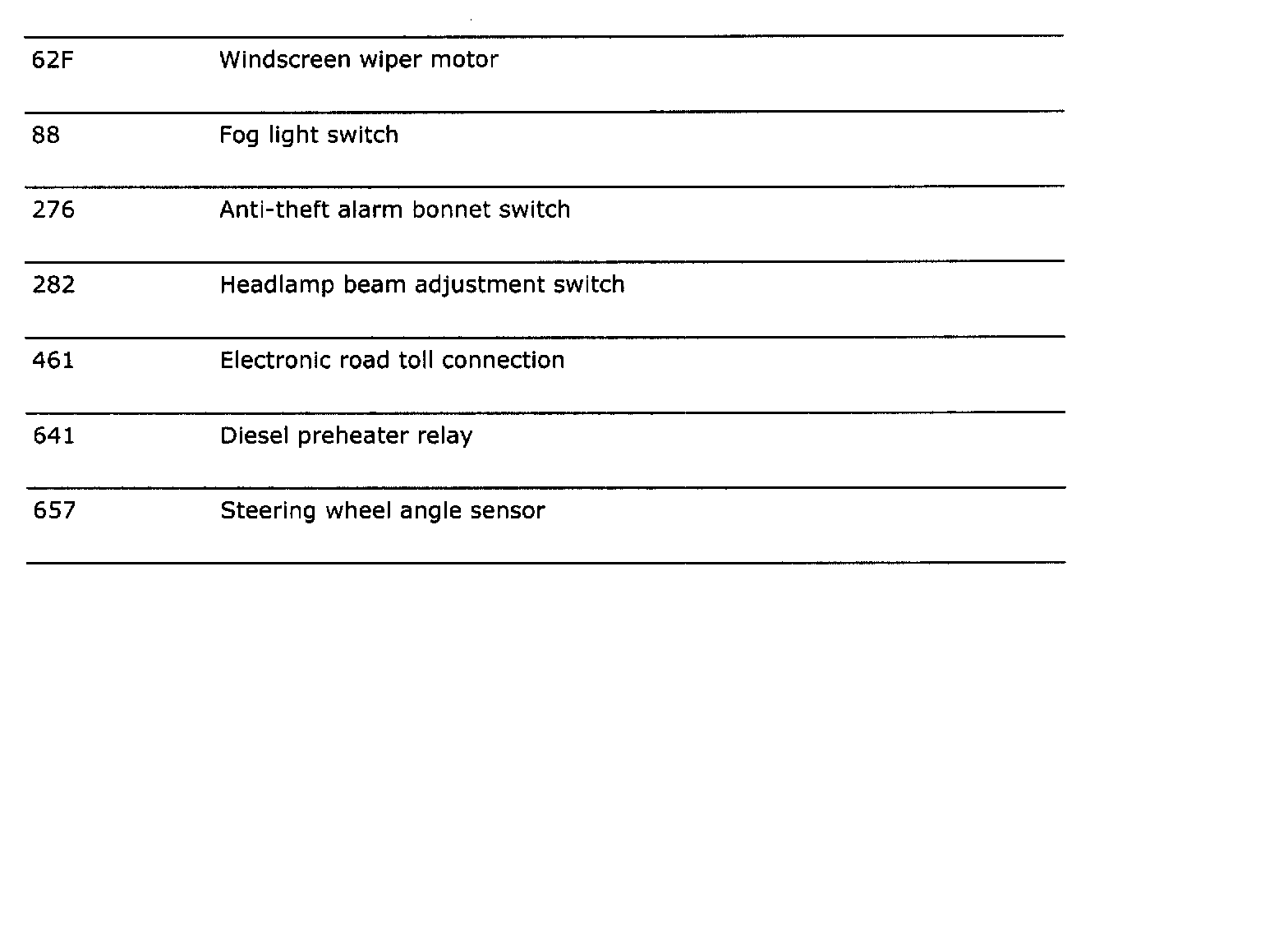

Via Crimp J42, instrument harness:

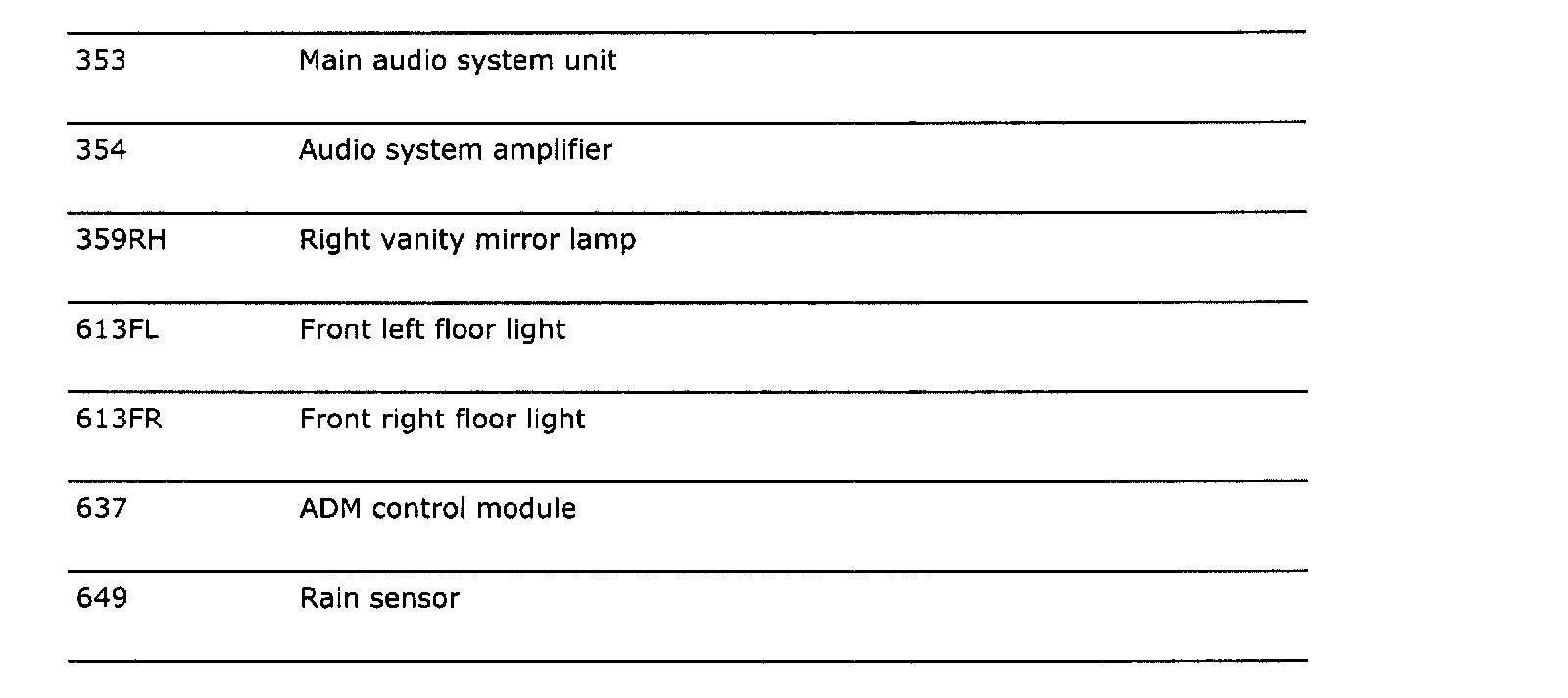

Via Crimp J48, instrument harness:





B: Connected components on RHD cars
