Grounding Paint G40

Grounding point G40

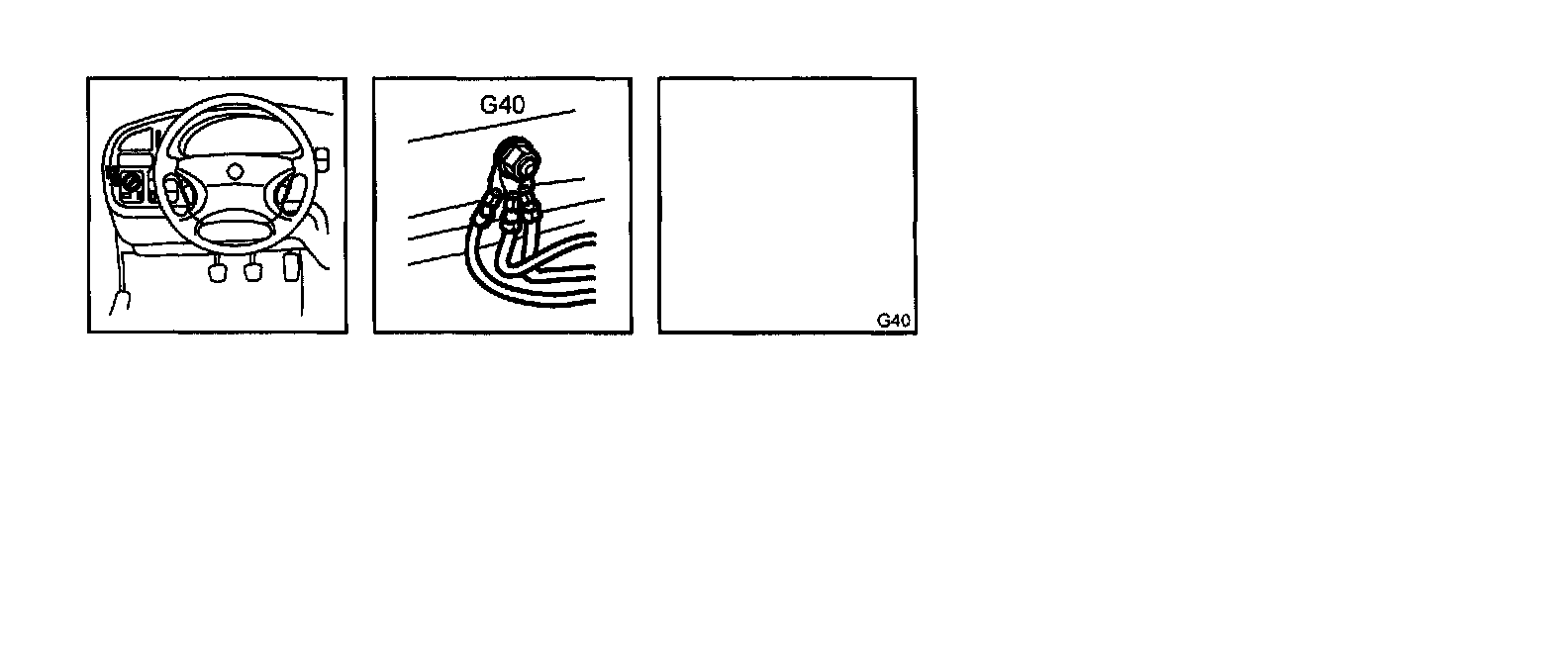

Location: In cabin on left-hand side of knee protection bar.

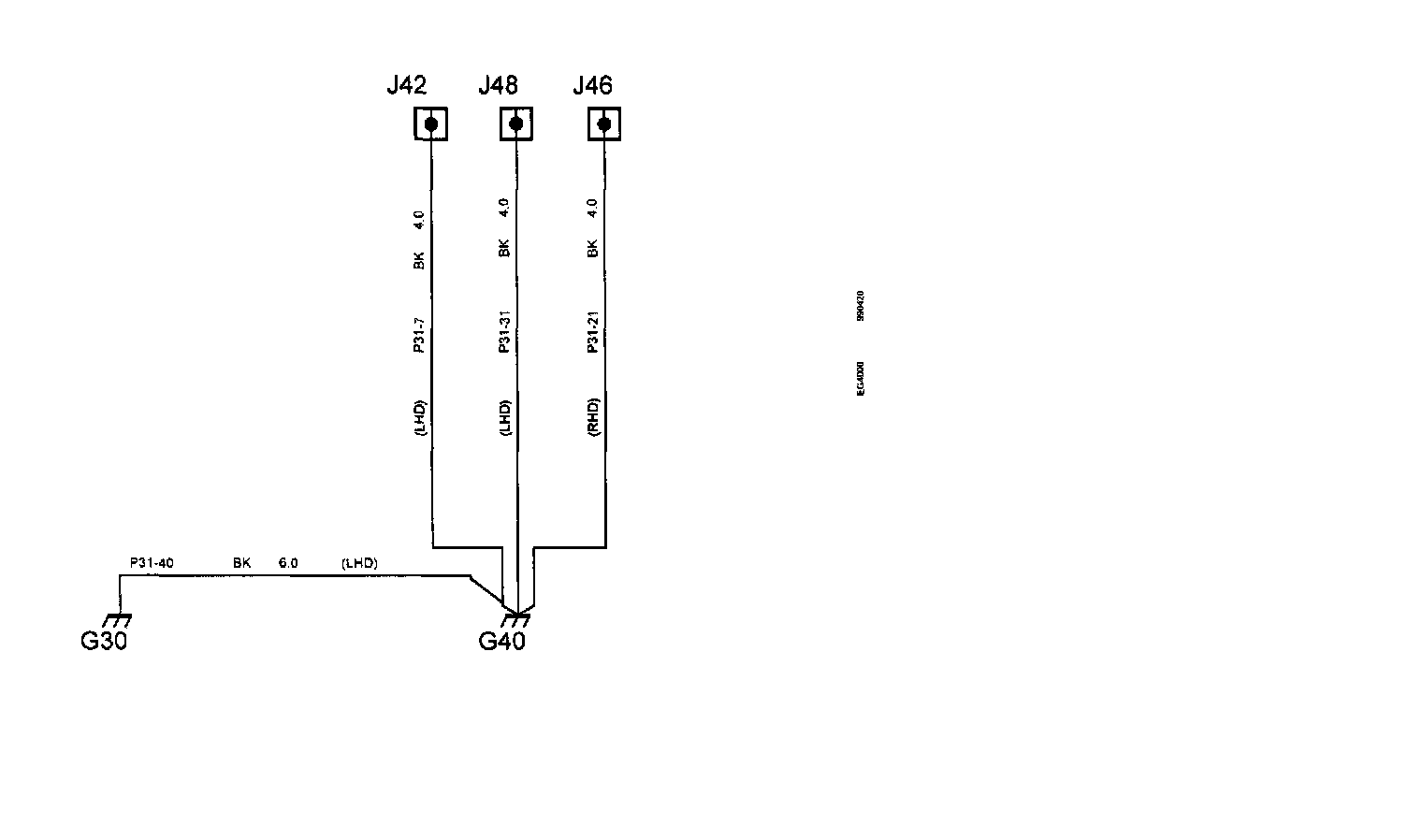

Via Crimp J42, instrument harness:

Via Crimp J48, instrument harness:

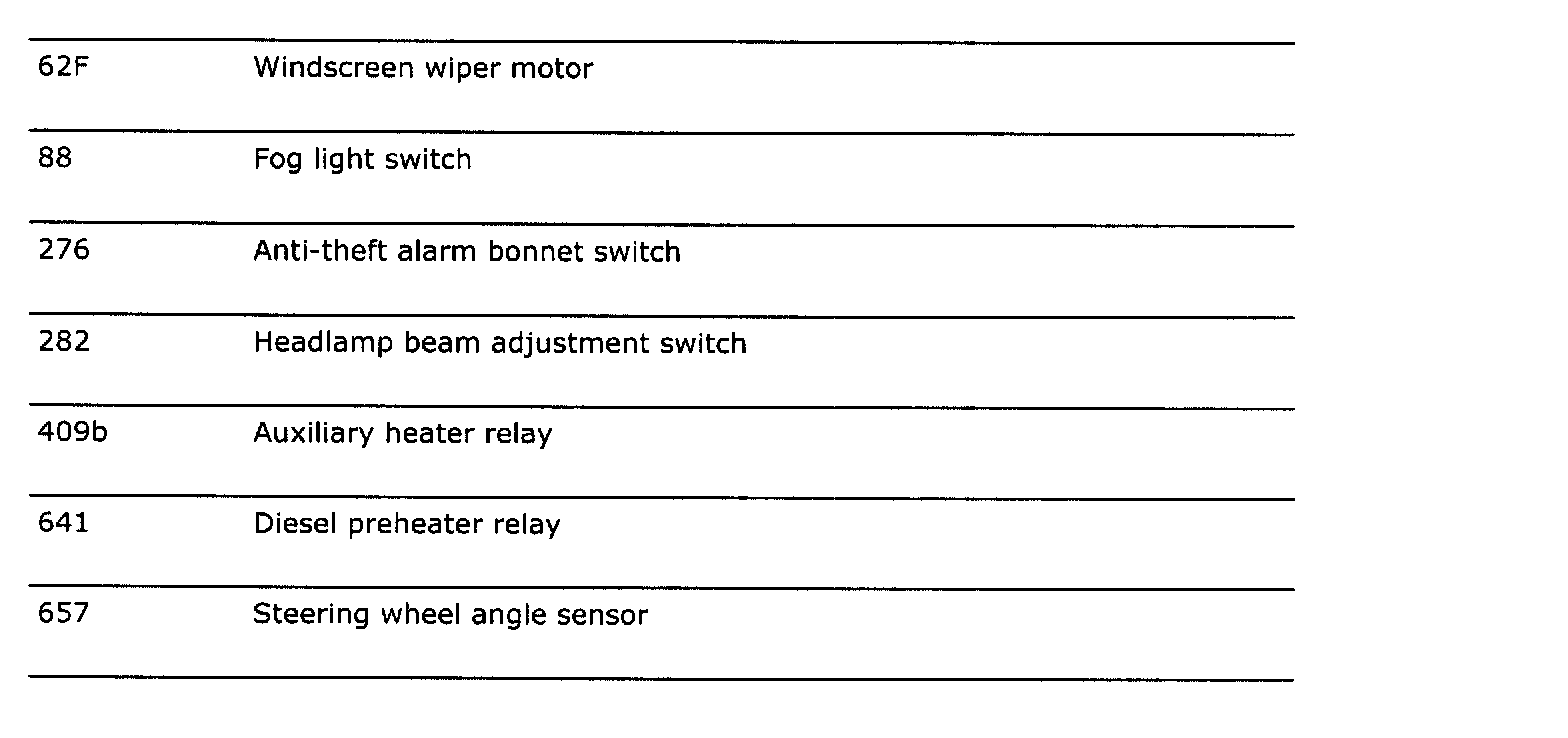

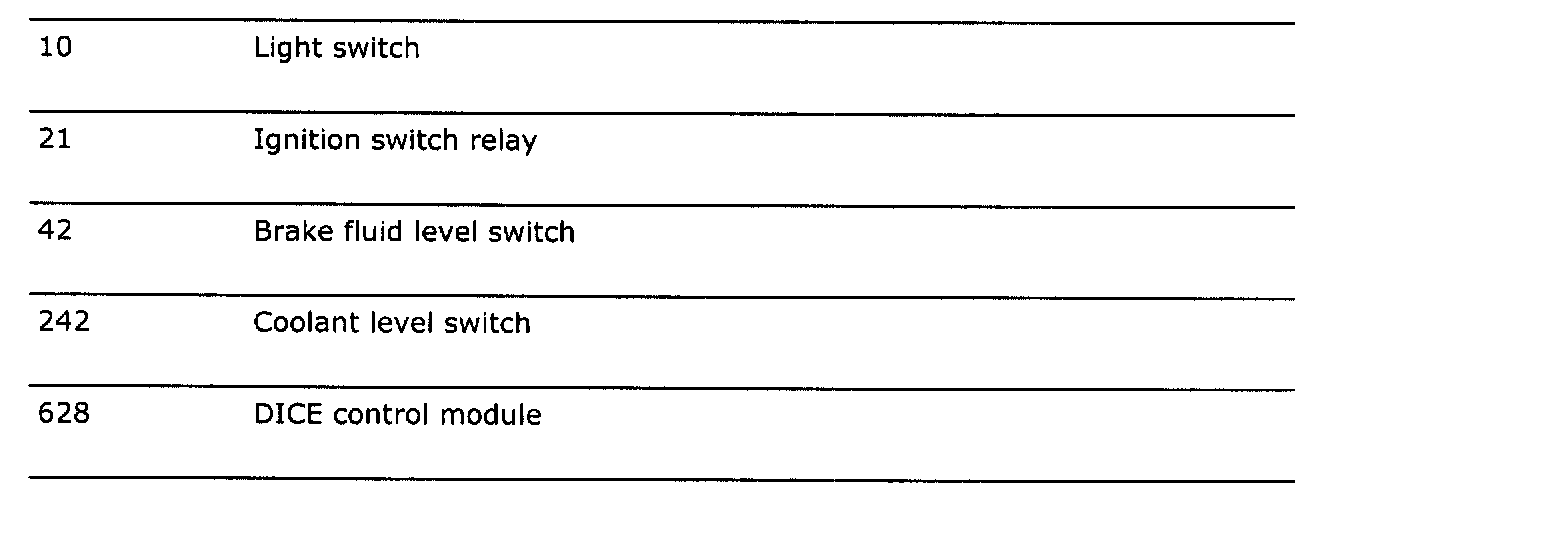

A: Connected components on LHD cars

Via Crimp J46, instrument harness:

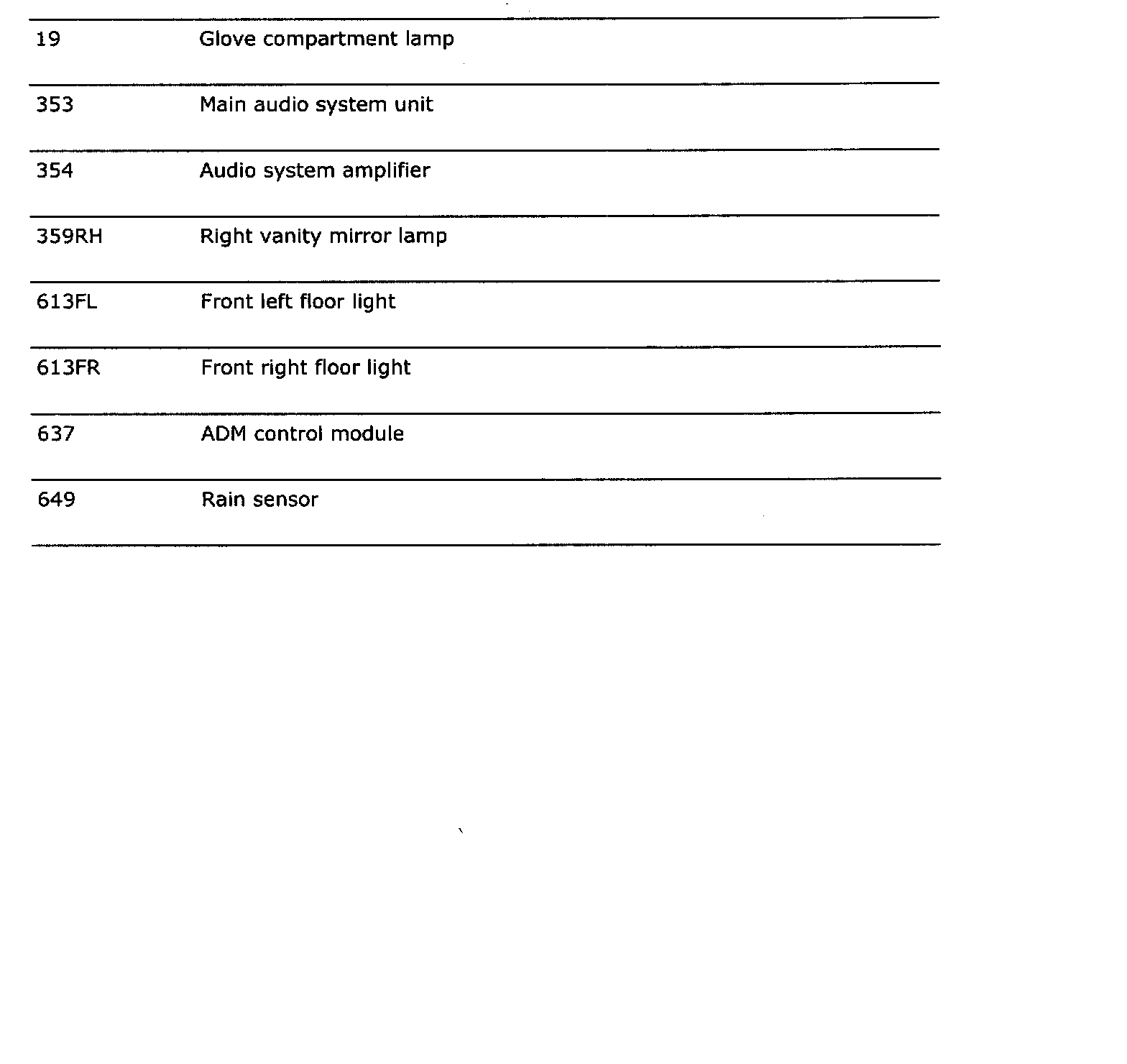

B: Connected components on RHD cars
