Grounding Paint G36

Grounding point G36

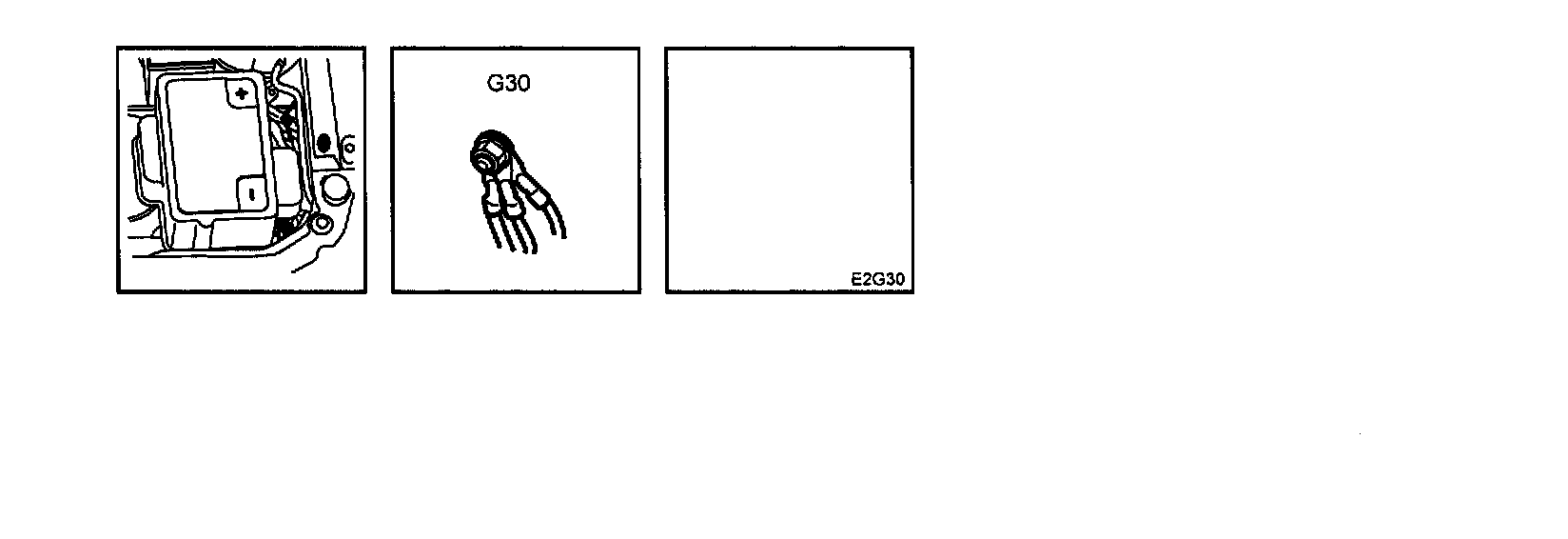

Location: In the engine bay on the side panel in front of the left-hand wheel housing

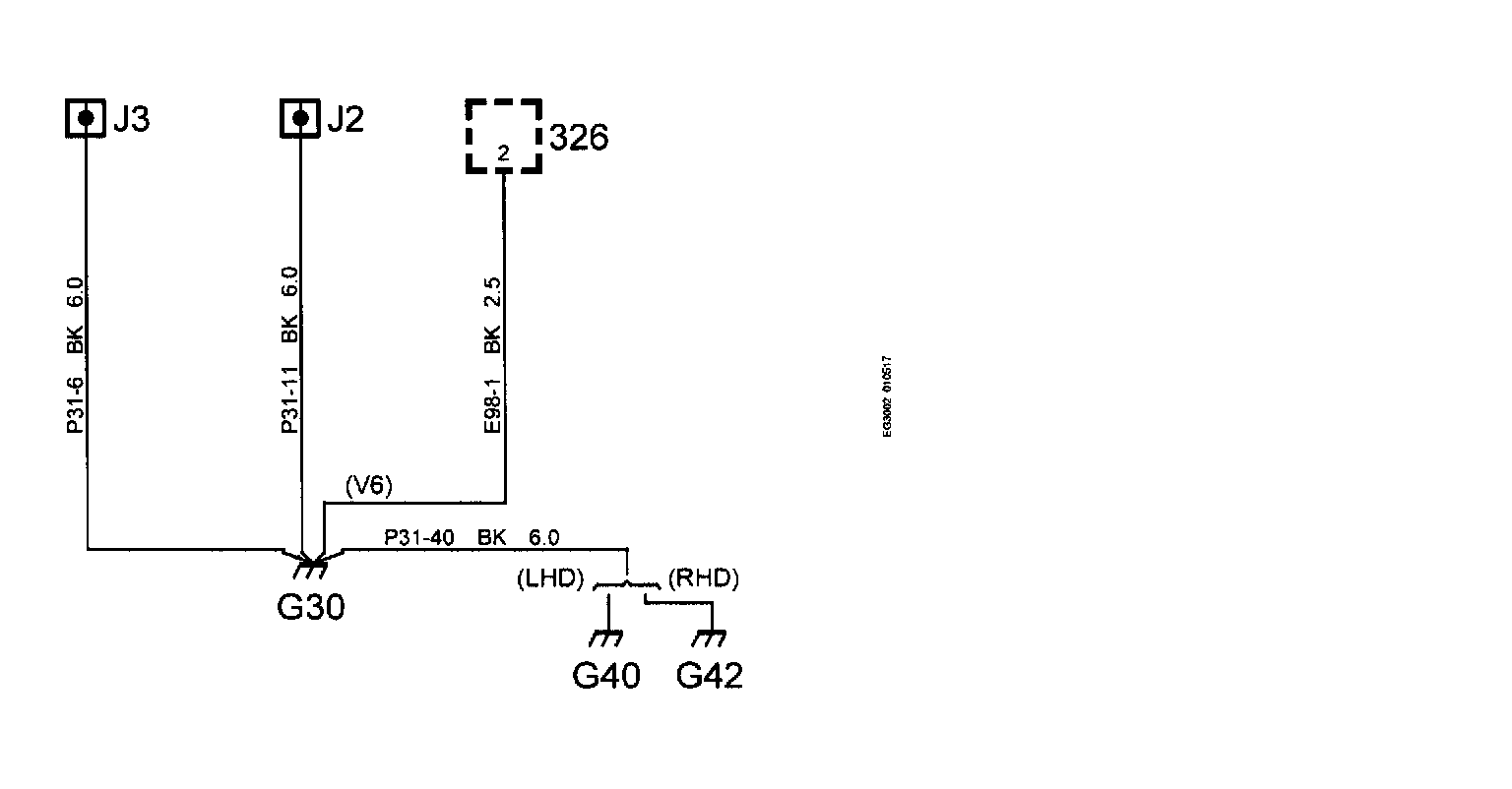

Via Crimp J2, front harness:

Via Crimp J3, front harness:

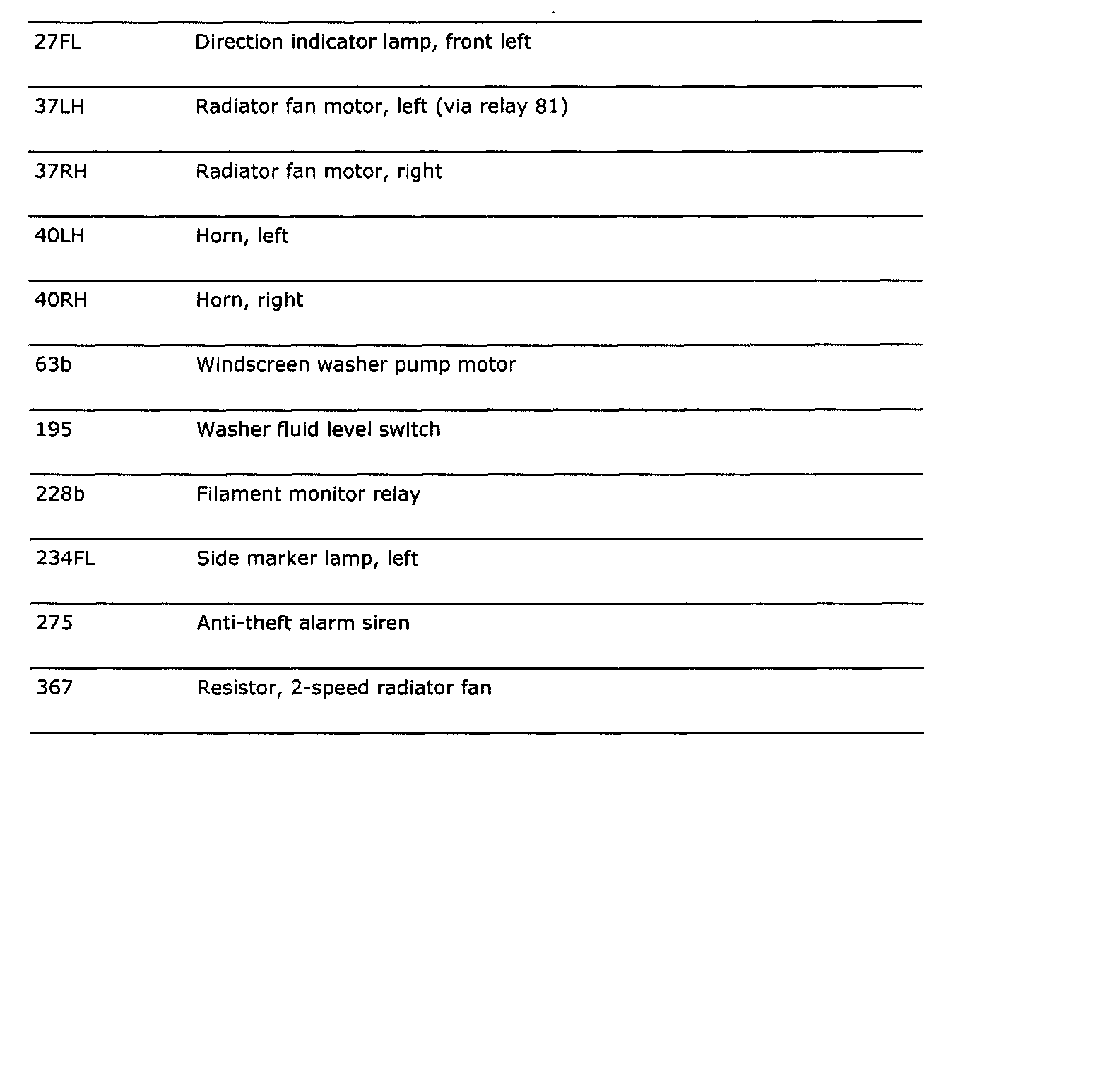

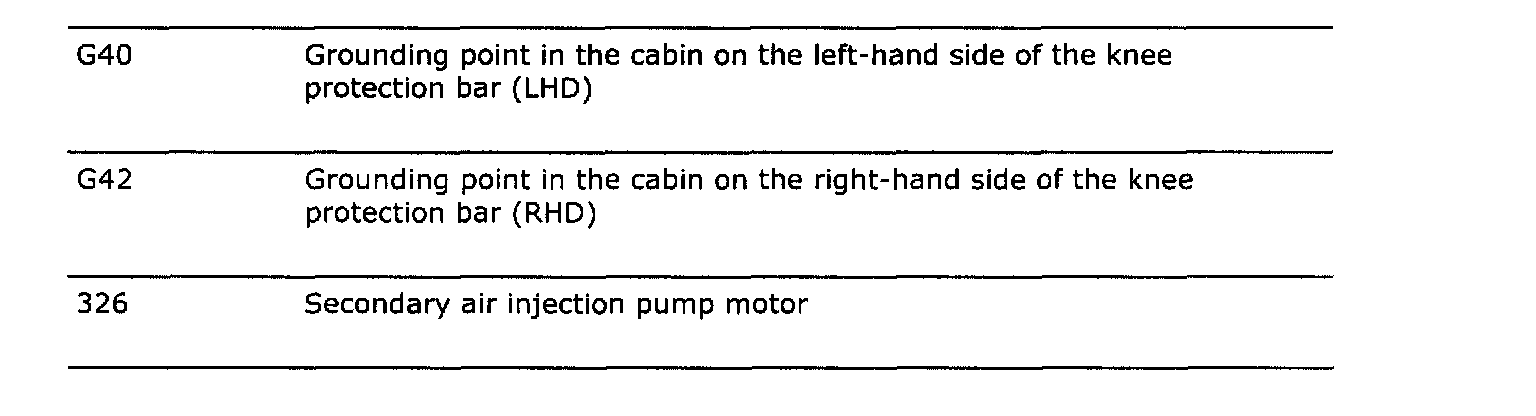

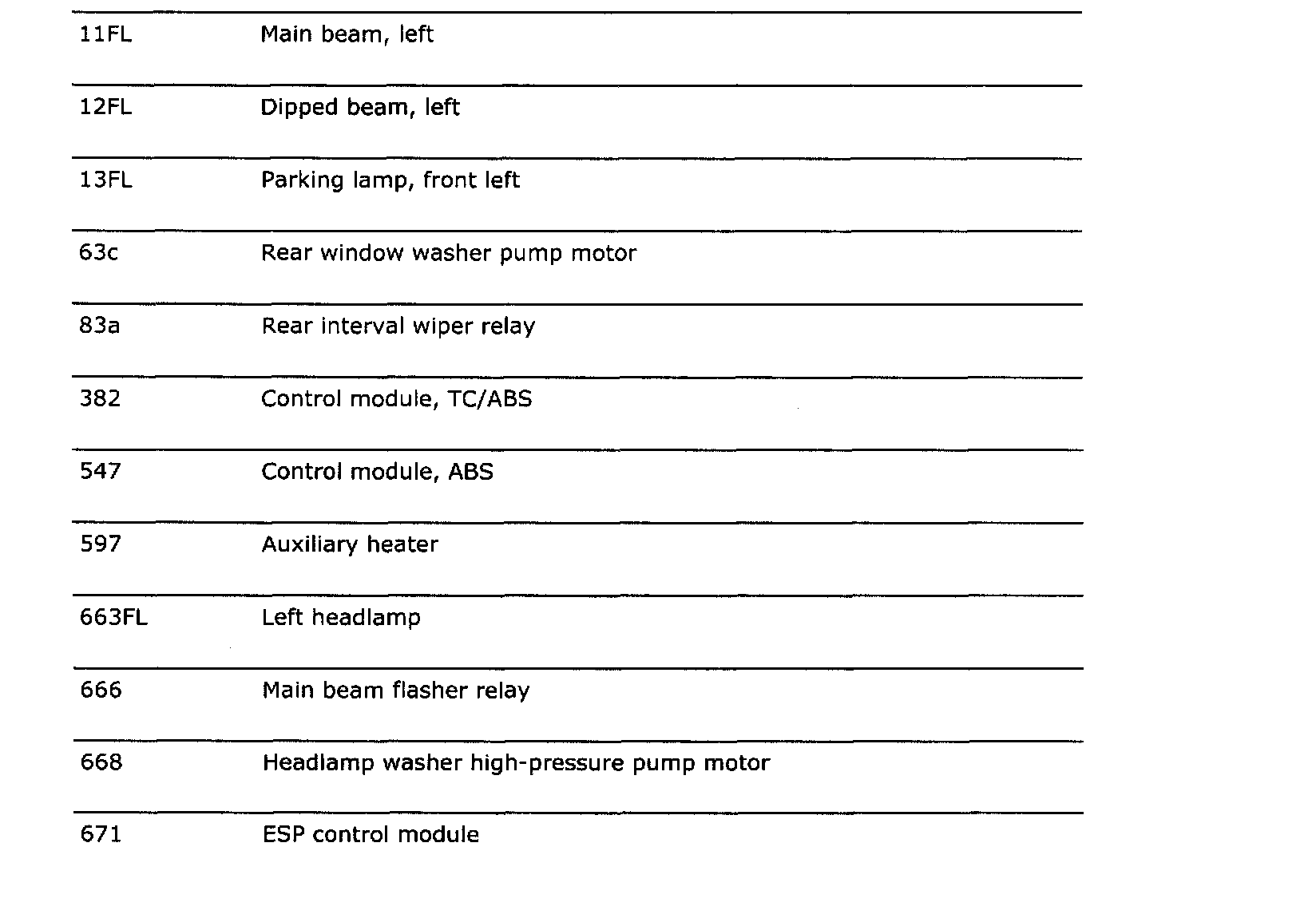

Connected components
