Rounding Point G30

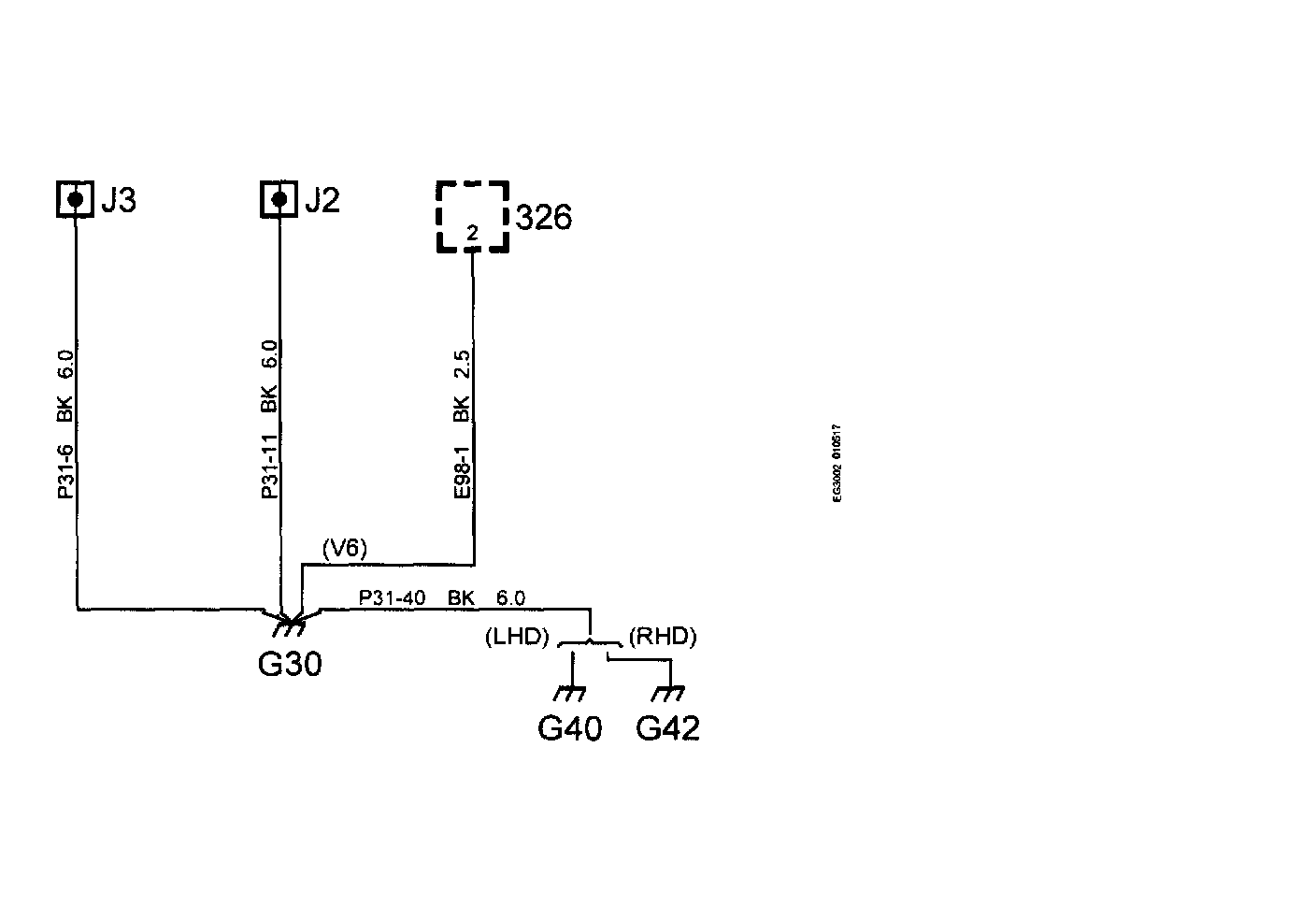

Grounding point G30

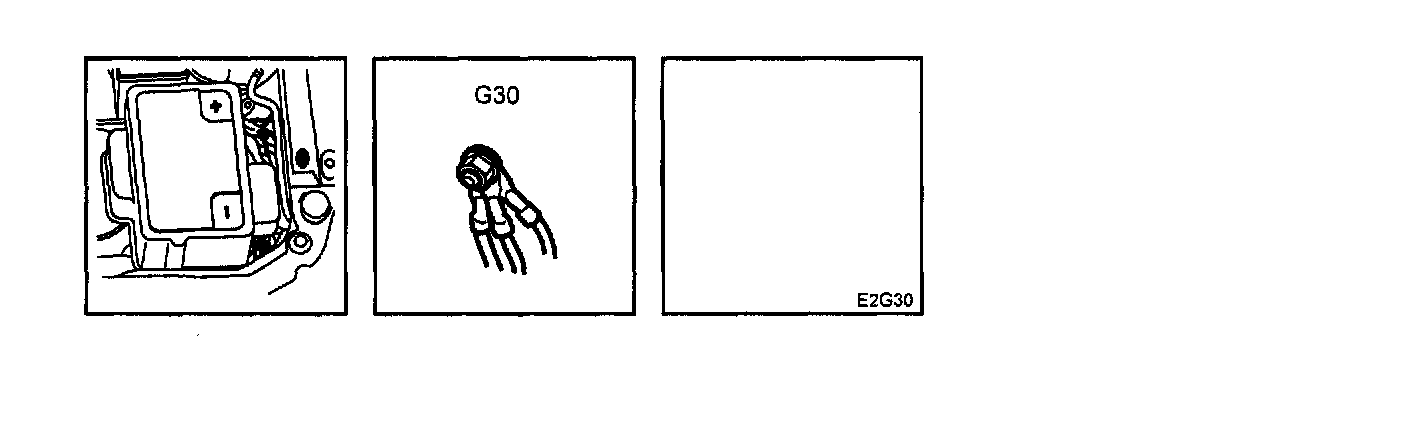

Location: In the engine bay on the side panel in front of the left-hand wheel housing

Via Crimp J2, front harness:

Via Crimp J3 front harness:

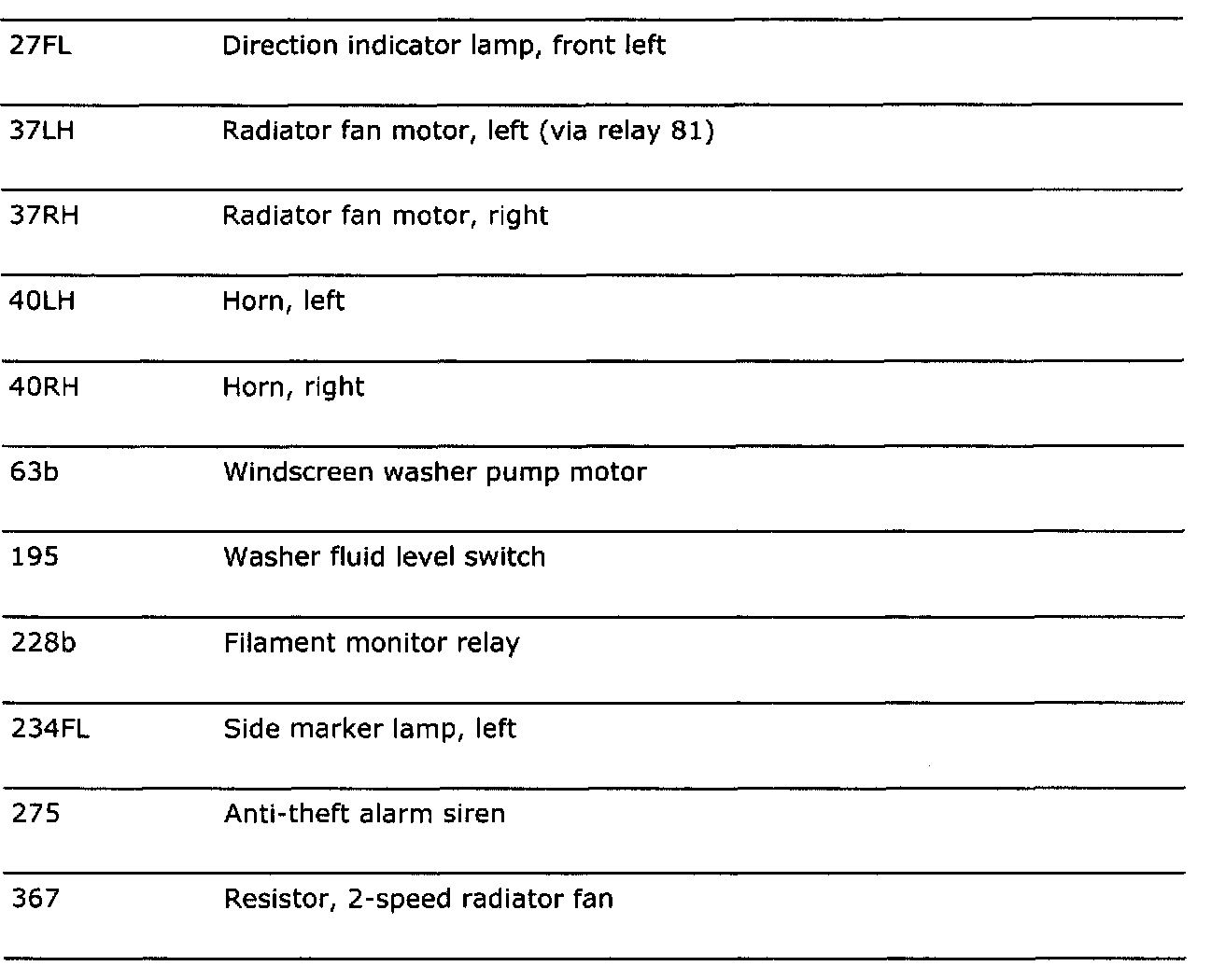

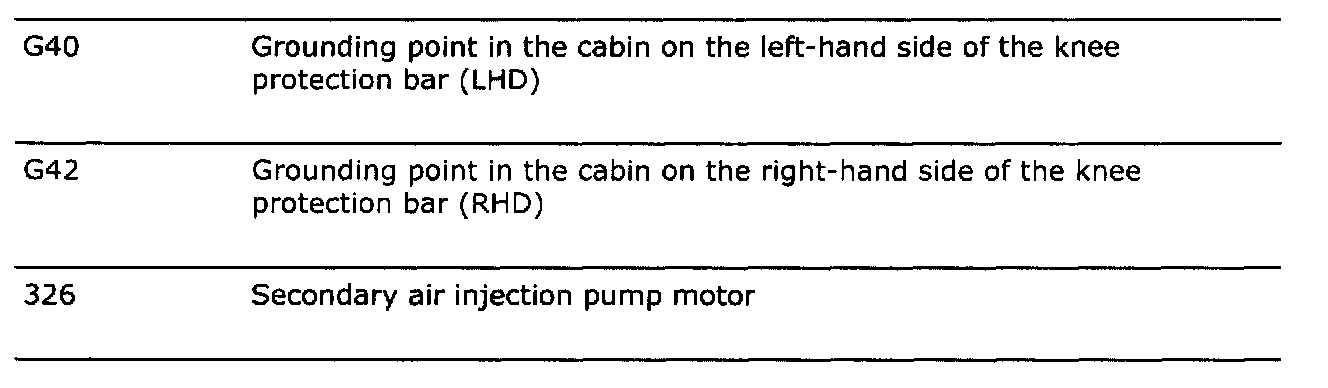

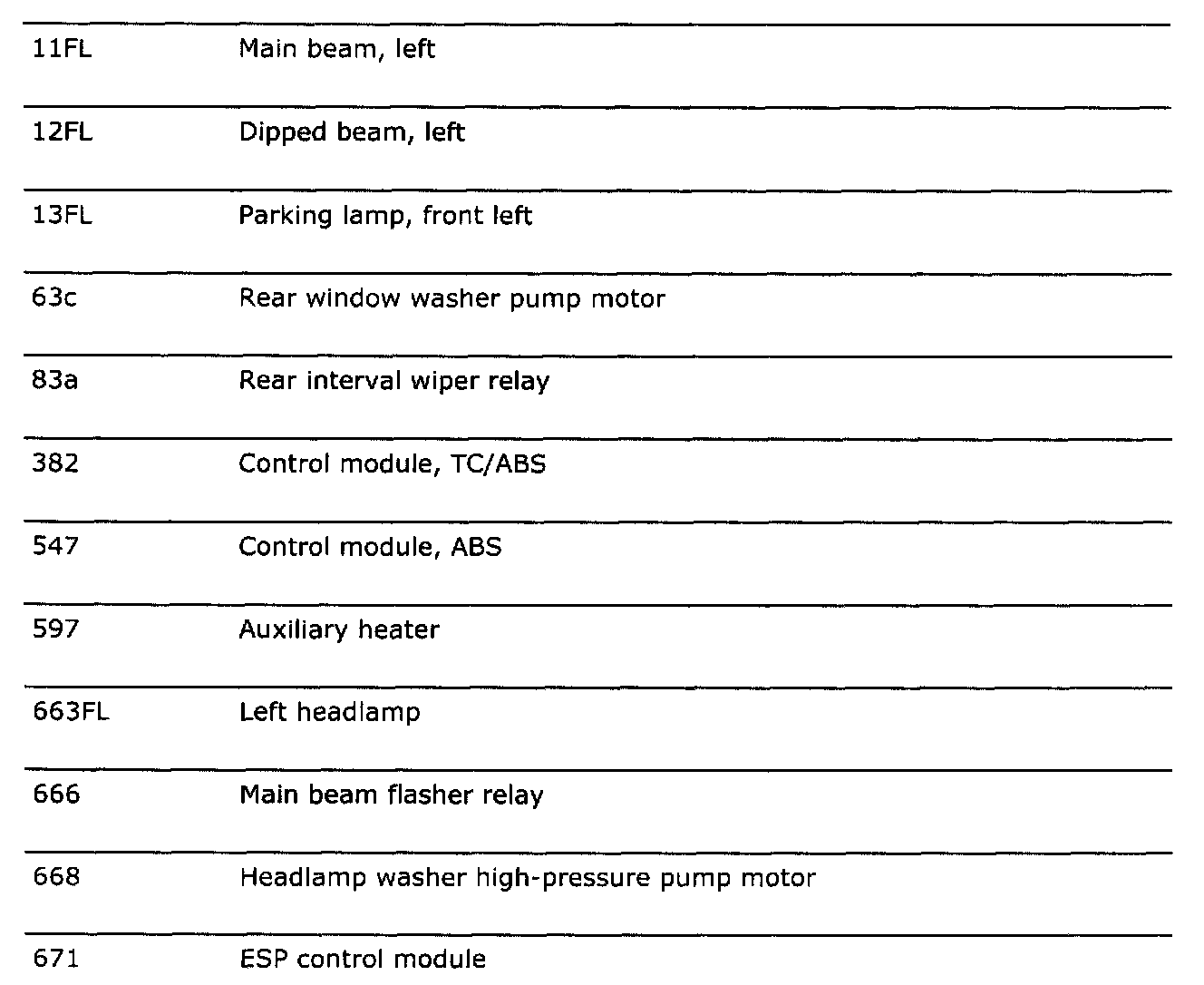

Connected components
