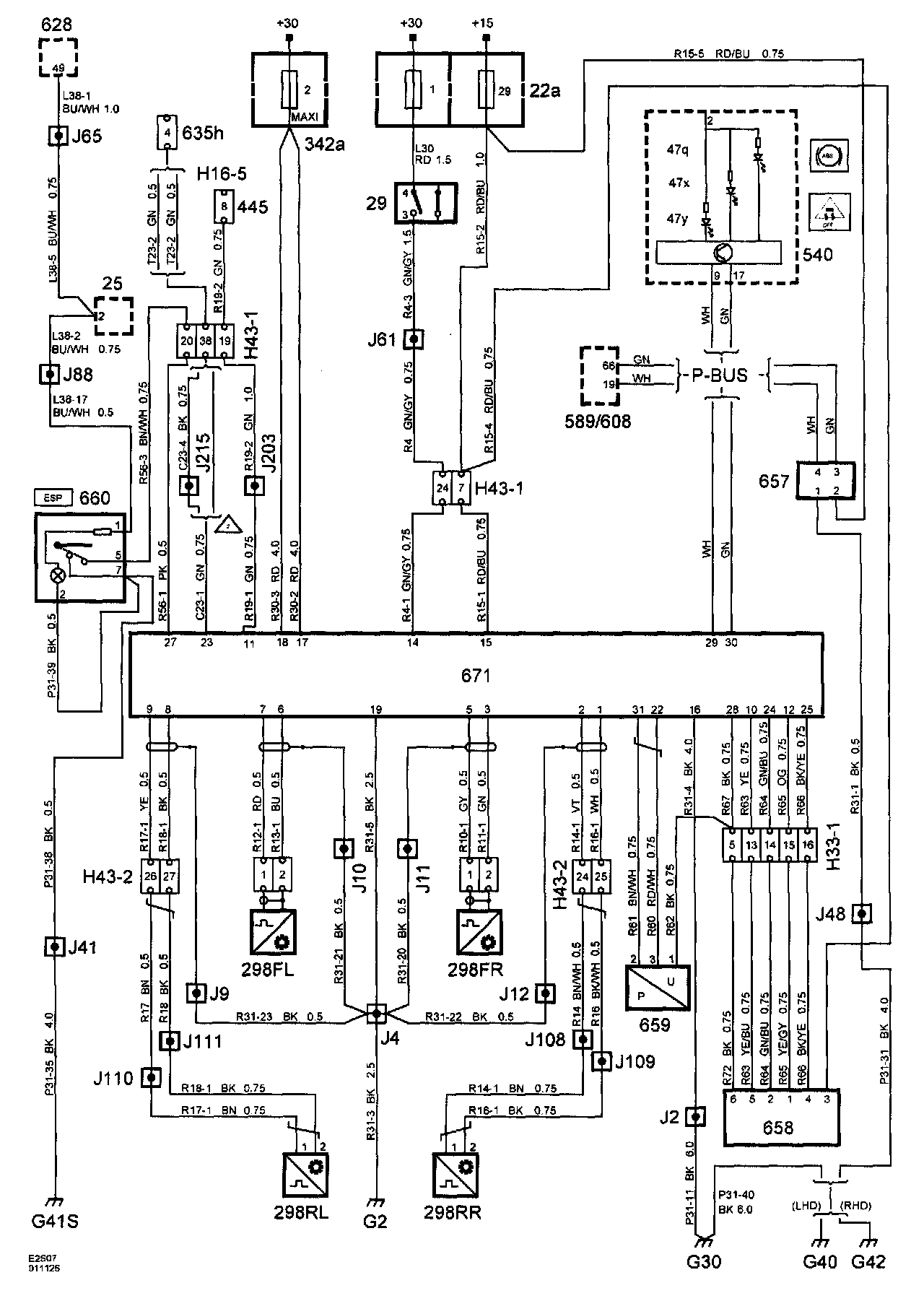

Anti-Lock Brakes With ESP




Anti-Lock Brakes With ESP

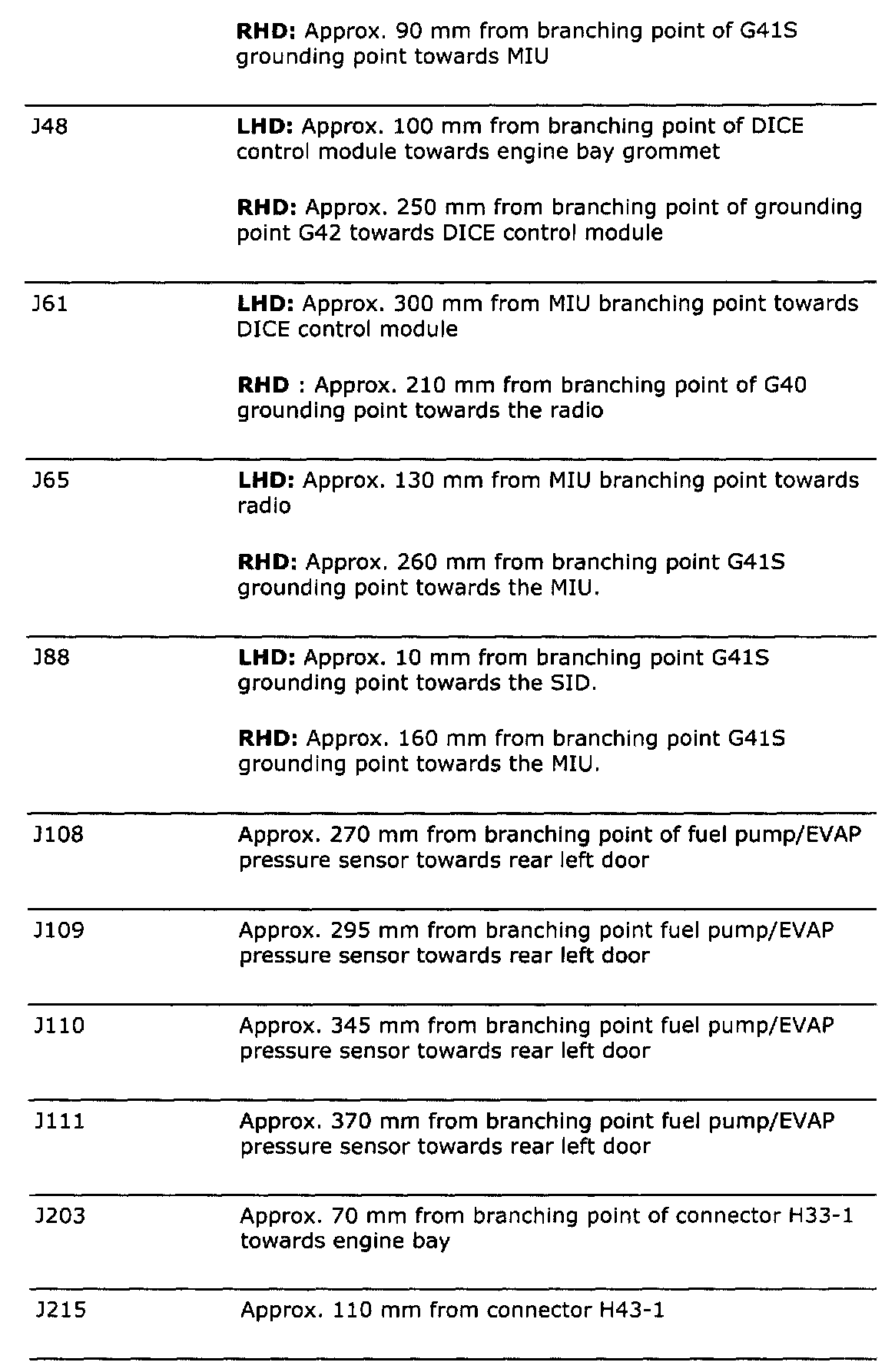

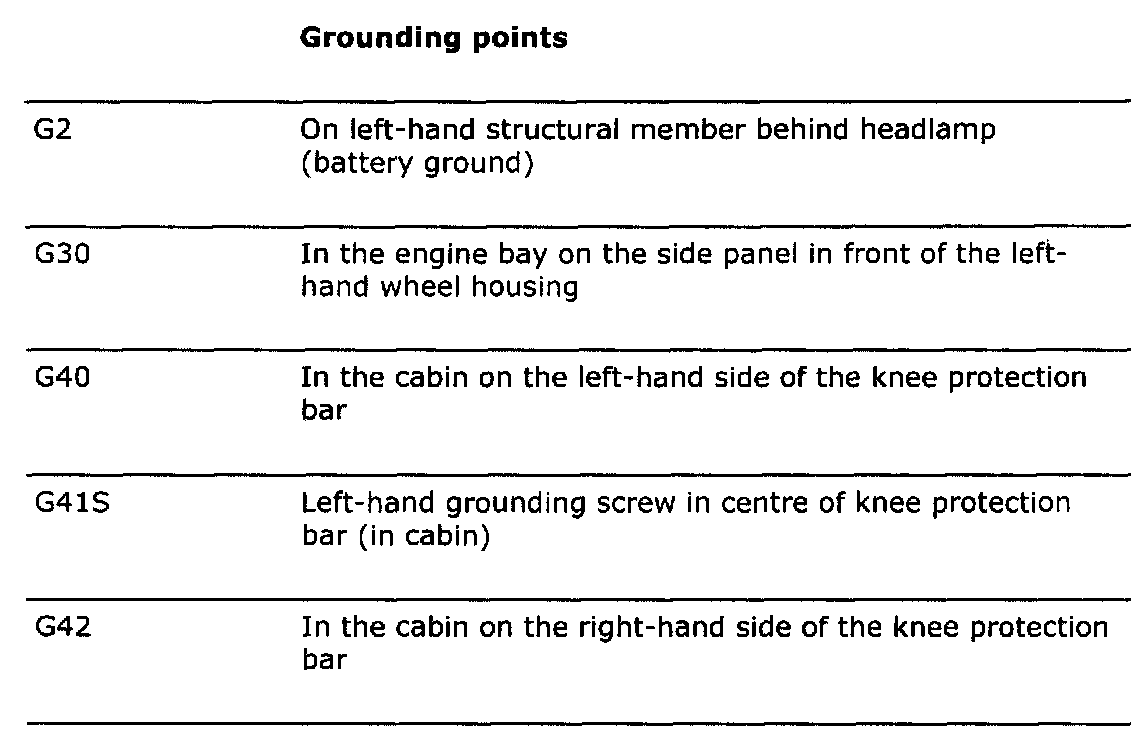

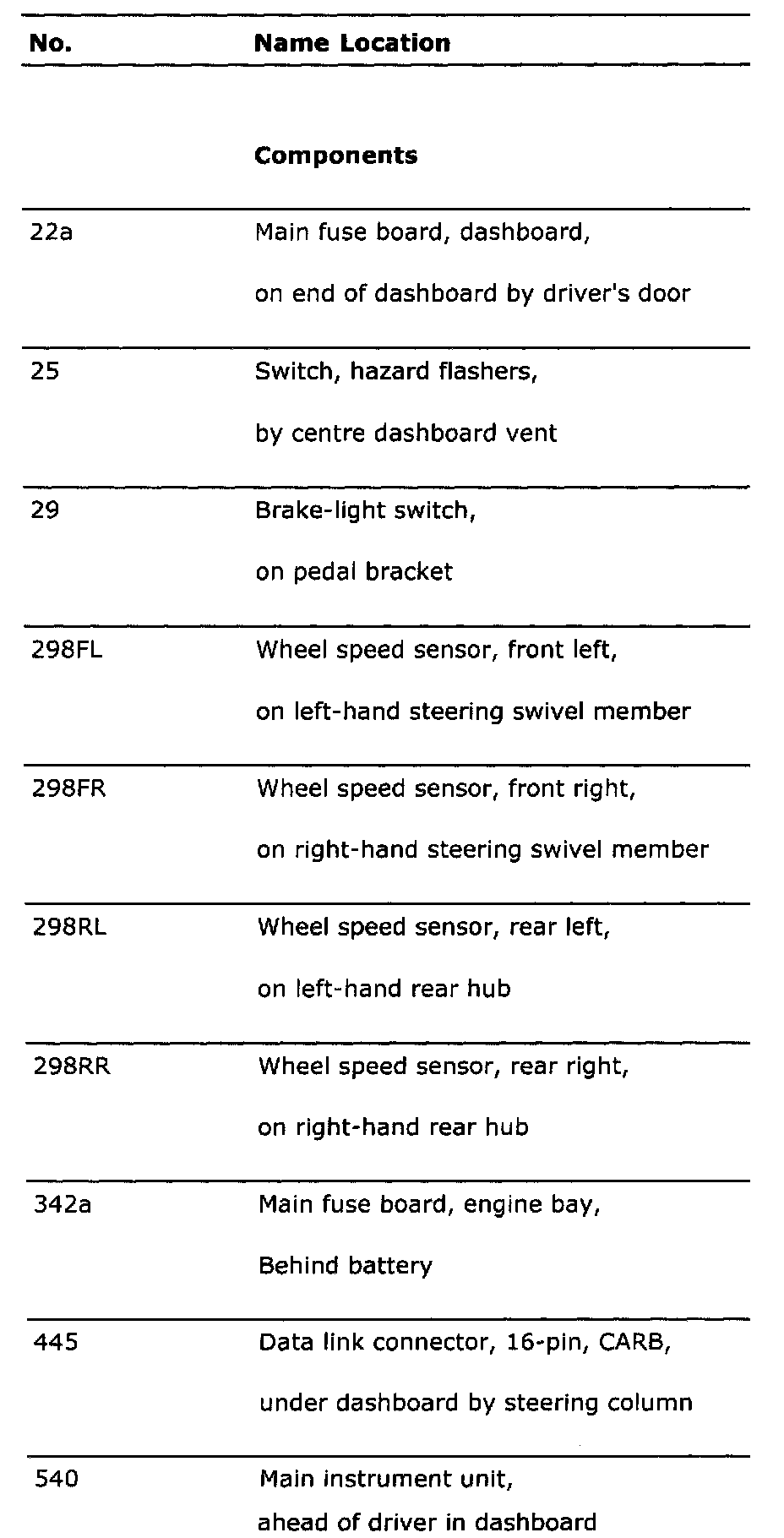

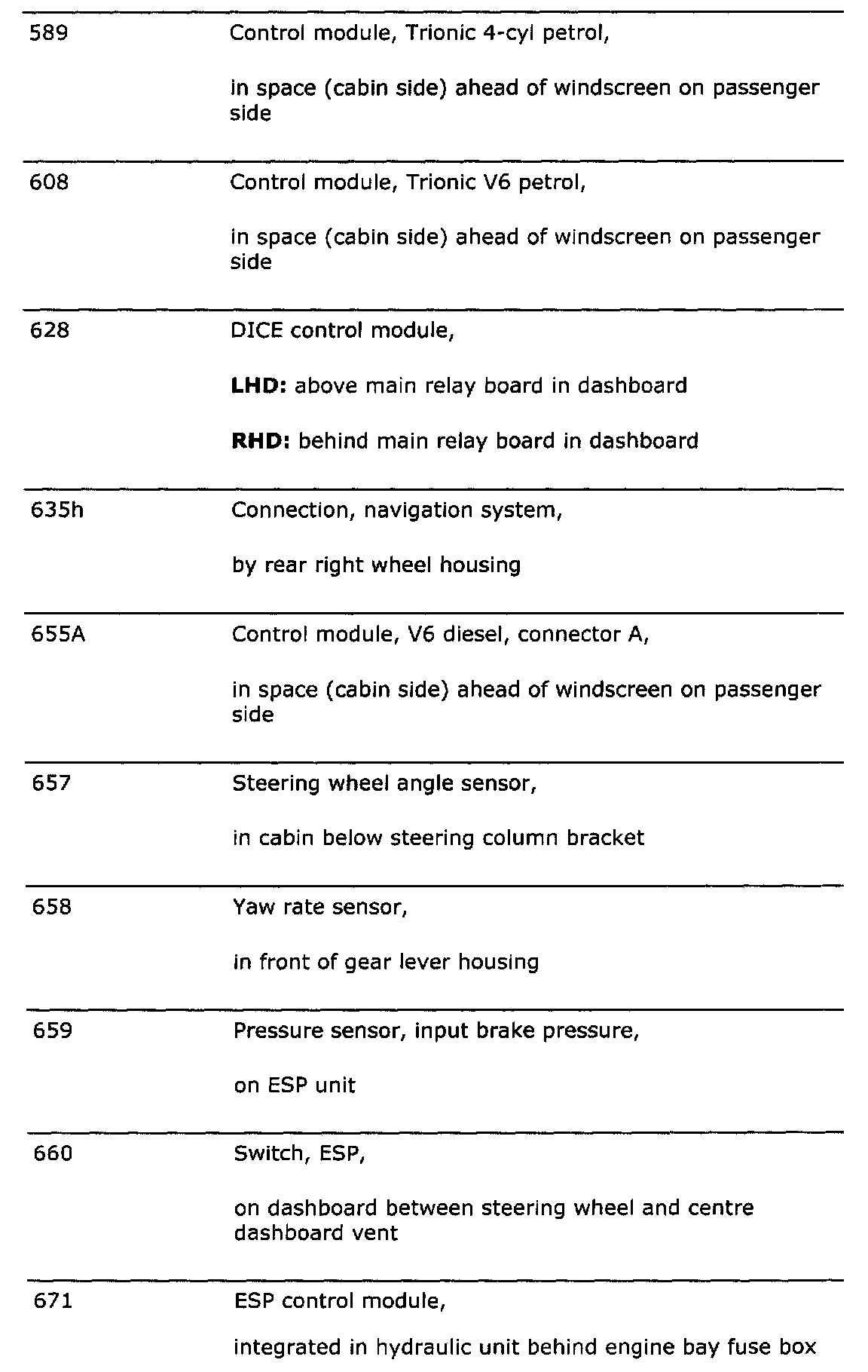

List of Components


Part 1:






Part 2:






Part 3:






Part 4:






Part 5:
