Control Module Inputs

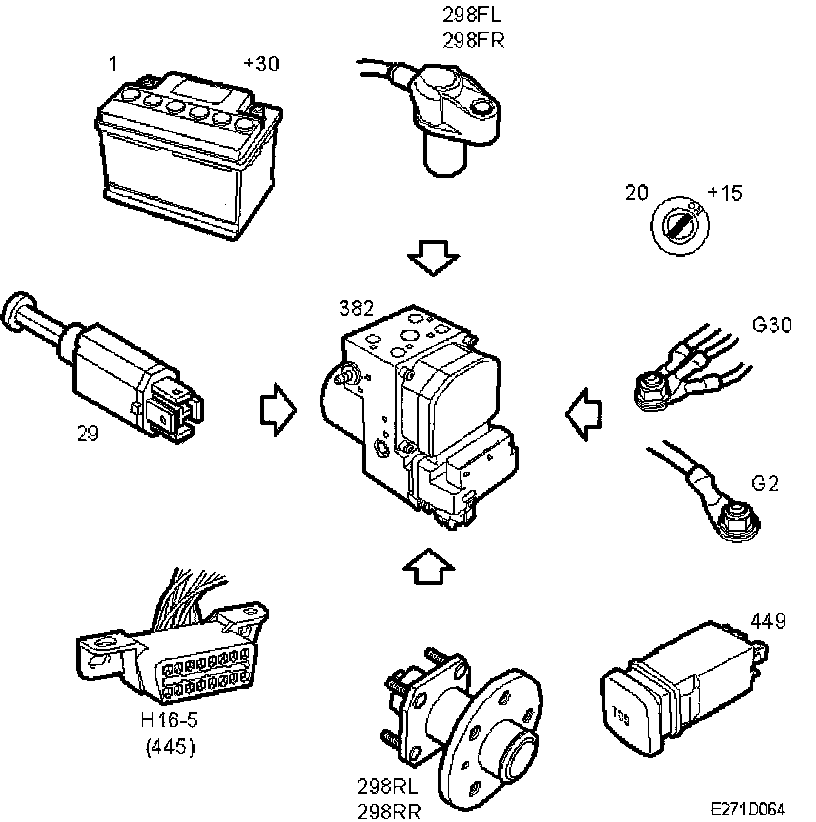

Control Module Inputs:

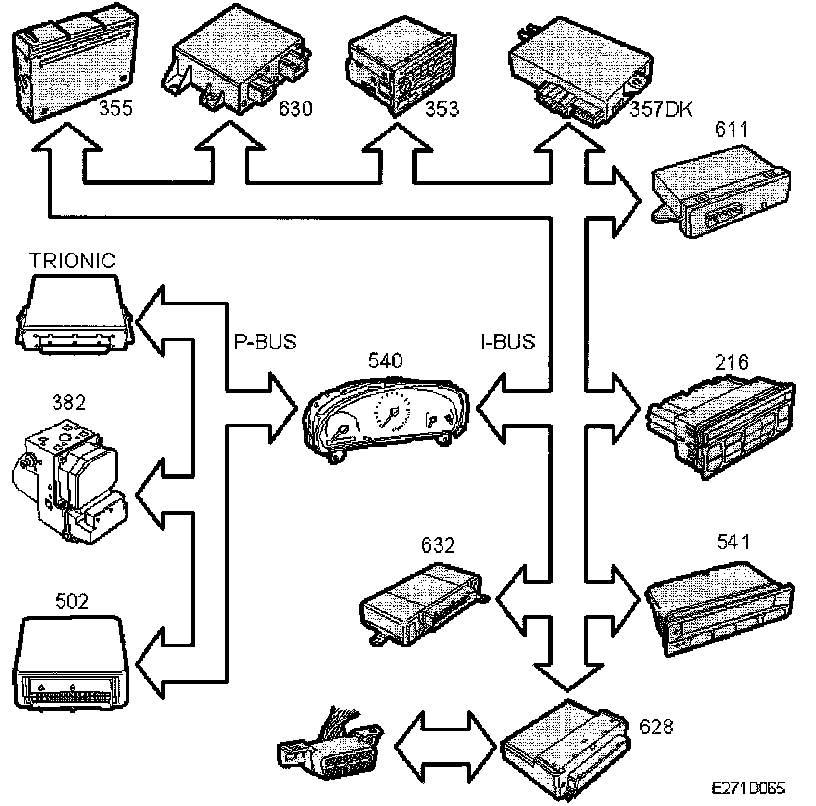

Control Module Bus Inputs:

Legend
- Current (+30 circuit) (1)
- Current (+ 15 circuit) (20)
- Ground (G30, G2).
- Front-wheel sensors (298)
- Rear-wheel sensors (298)
- Brake light switch (29)
- Diagnostics Communication (445)
- switch, TCS (449)
- Pedal position (600/608)
- Engine torque (600/608)
- Engine rpm (600/608)
- Gear selector position sensor
current gear, automatic transmission
the value for manual gearboxes is calculated in the engine management system
