Hood Sensor/Switch (For Alarm): Service and Repair

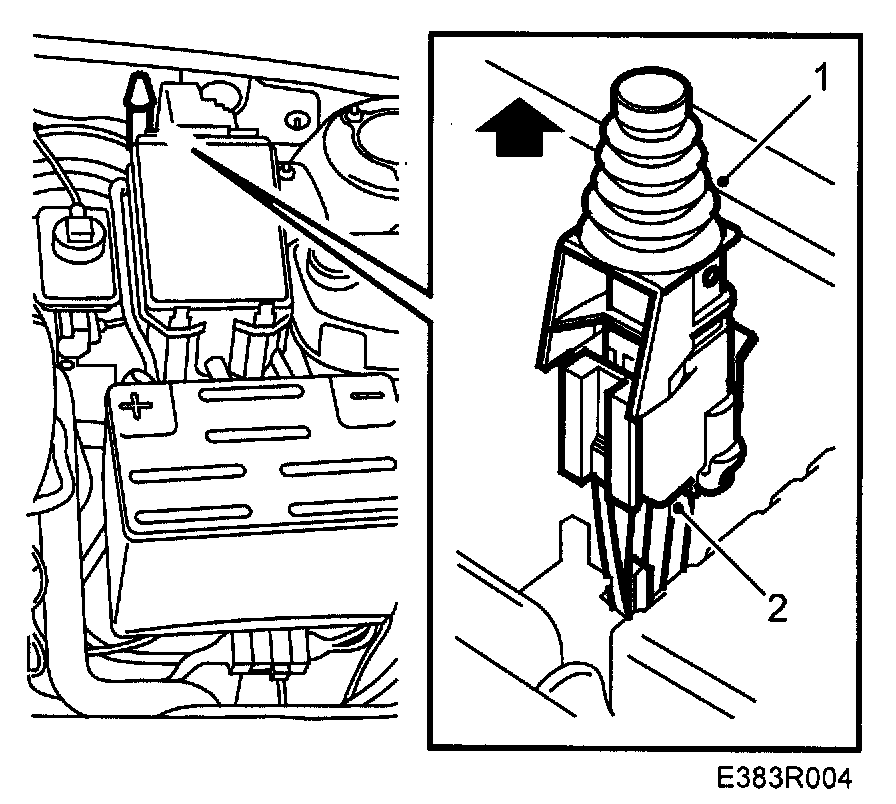

Bonnet Switch

To remove







1. Withdraw the bonnet switch from the holder.
2. Undo the connection and remove the bonnet switch.

To fit
Fit in reverse order.
