Home >> Saab >> 2002 >> 9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Locations >> Component Locations >> Loudspeaker, Parcel Shelf, LH, RH

Loudspeaker, Parcel Shelf, LH, RH

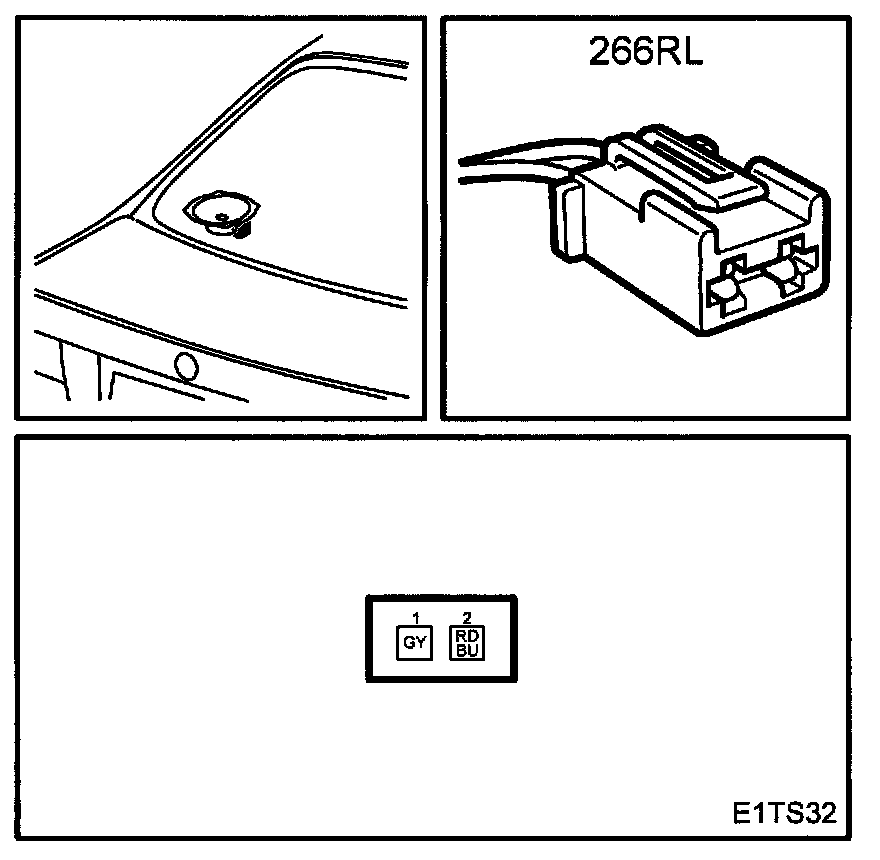

Loudspeaker, Parcel Shelf, LH (266RL)

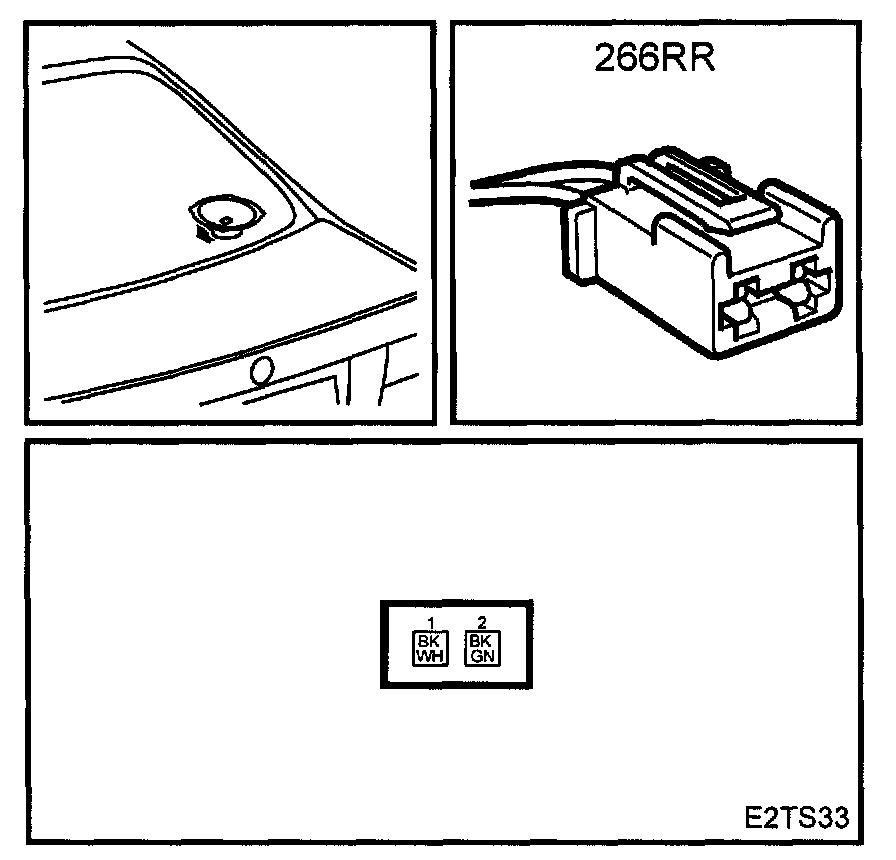

Loudspeaker, parcel shelf, RH, 4D (266RR)
