Main Unit Power Supply

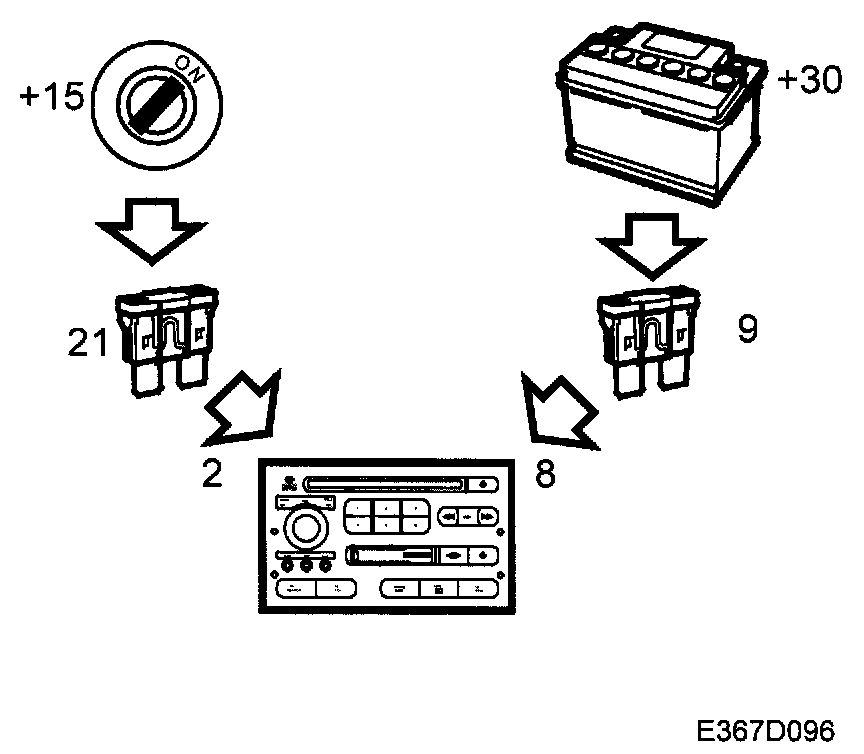

Main unit power supply

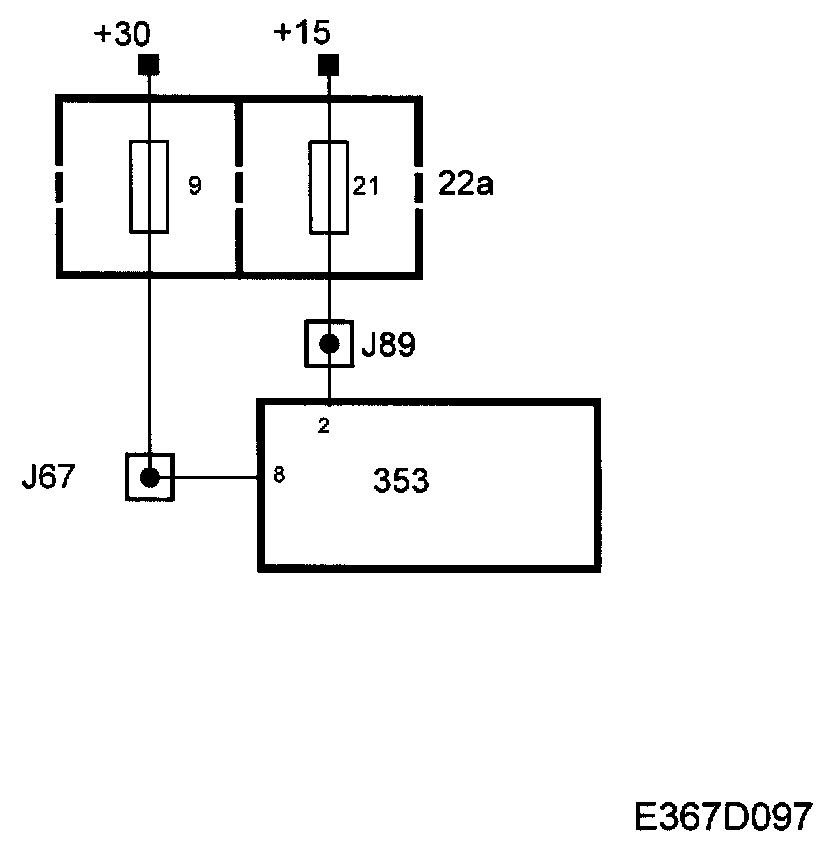

Power supply + 15
From fuse 21 to the main unit, pin 2.

Power supply + 30:
From fuse 9 to the main unit, pin 8.
