The Mobile Phone Batteries Are Not Charging

The Mobile Phone Batteries Are Not Charging







Fault symptoms
The mobile phone batteries are not charging.

Diagnostic help
Applies to a handsfree unit with a charging function.

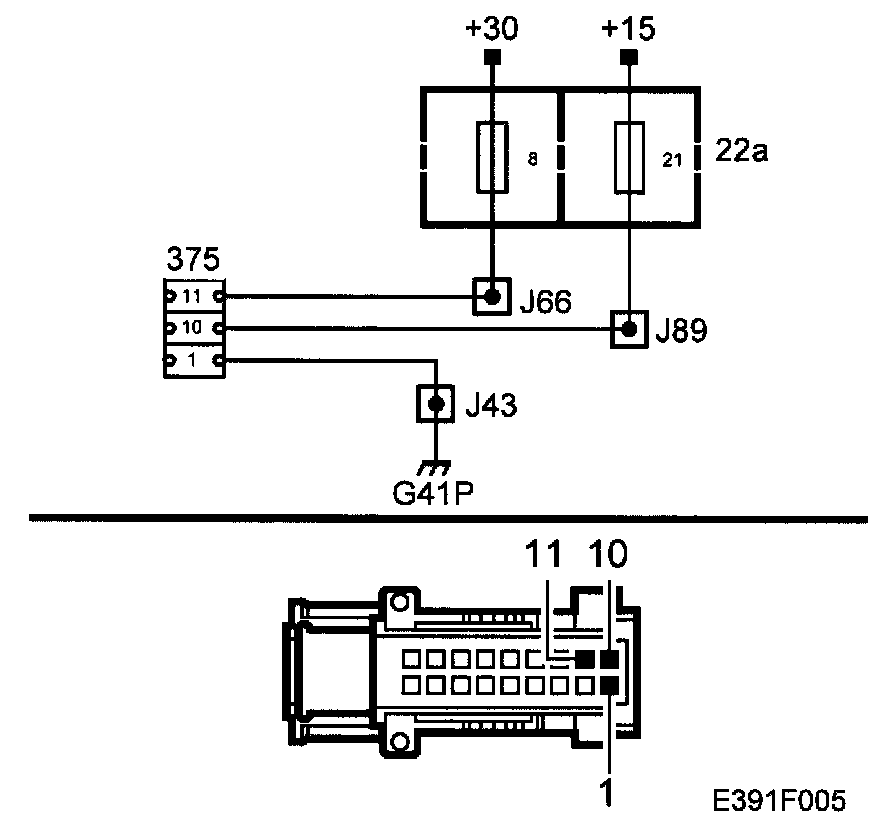

Checking the wiring harness
Jiggle the leads and in-line connectors at various points and in different directions to detect any intermittent breaks or short circuits in the wiring. Observe the multimeter, test lamp or diagnostic instrument while carrying out this check.
