Saab
>>
2002
>>
9-5 Linear Sport Wagon (9600) L4-2.3L Turbo (B235)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Cellular Phone
>>
Description and Operation
>>
Test Readings, 18-Pin Telephone Connector Connections
Test Readings, 18-Pin Telephone Connector Connections

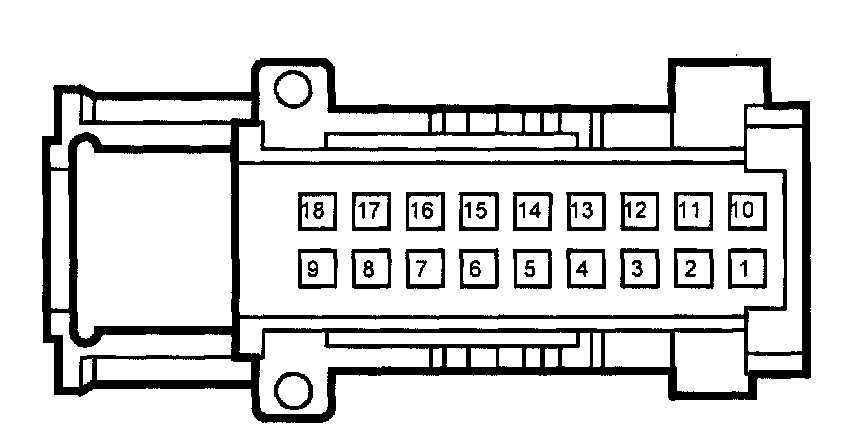

Test Readings, 18-pin Telephone Connector Connections

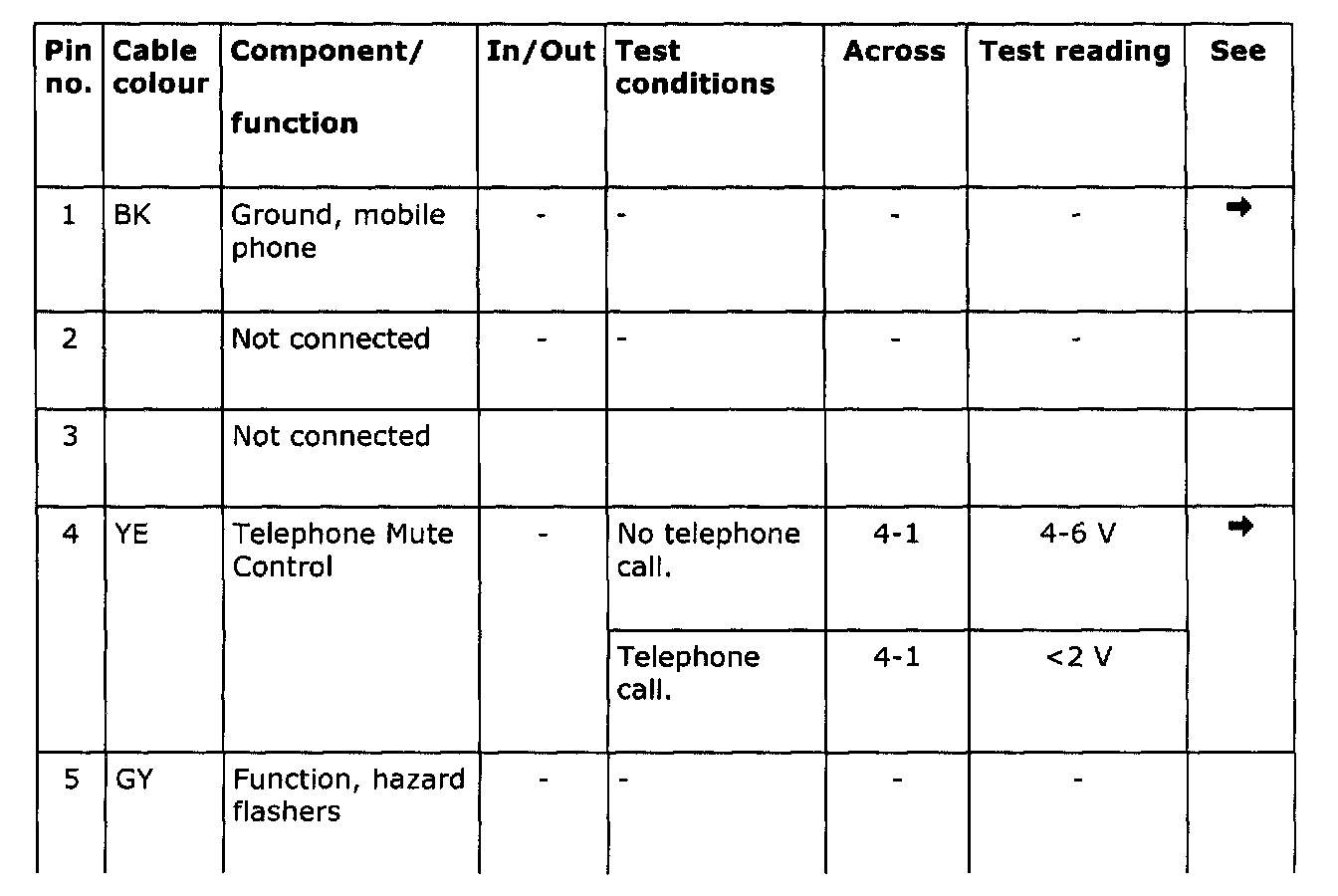

Pin No. 1 - 5:

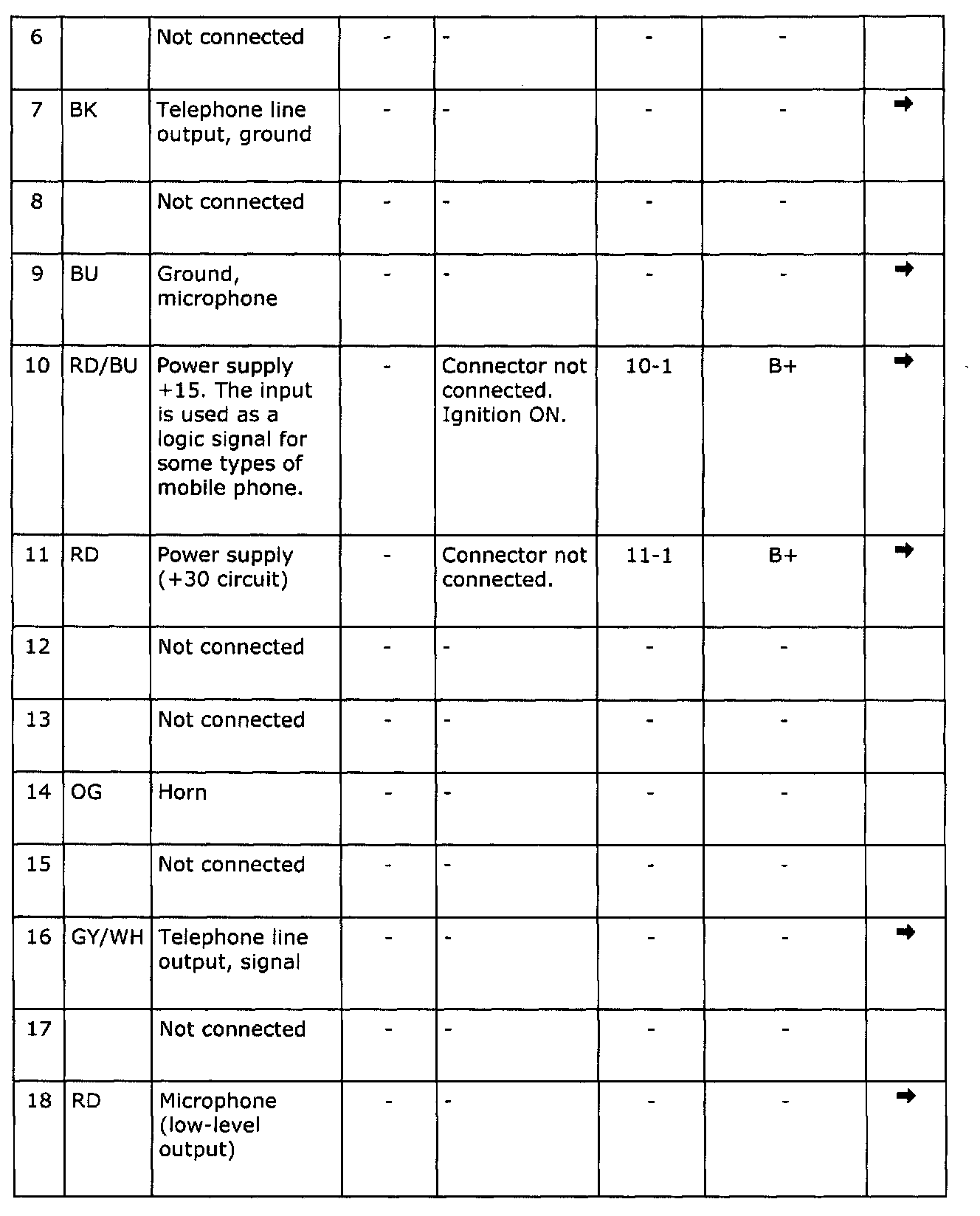

Pin No. 6 - 18:
