Microswitch In Luggage Compartment Lock

Microswitch In Luggage Compartment Lock (5D)

To remove
1. Open the tailgate.

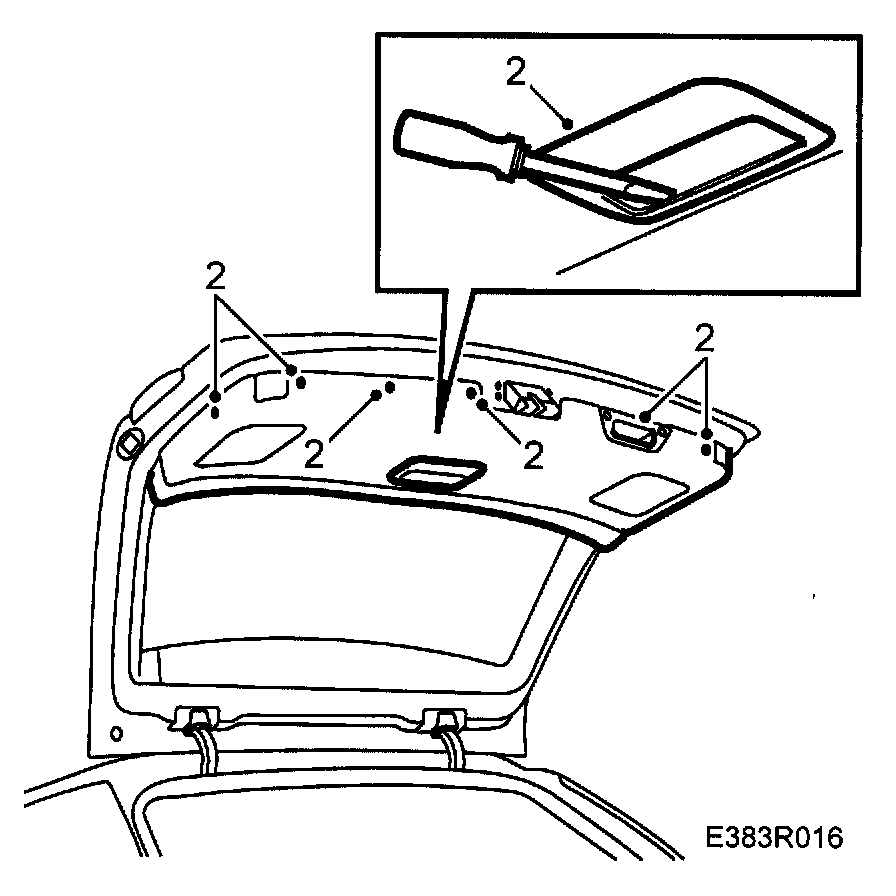

2. Remove the door pull and trim.

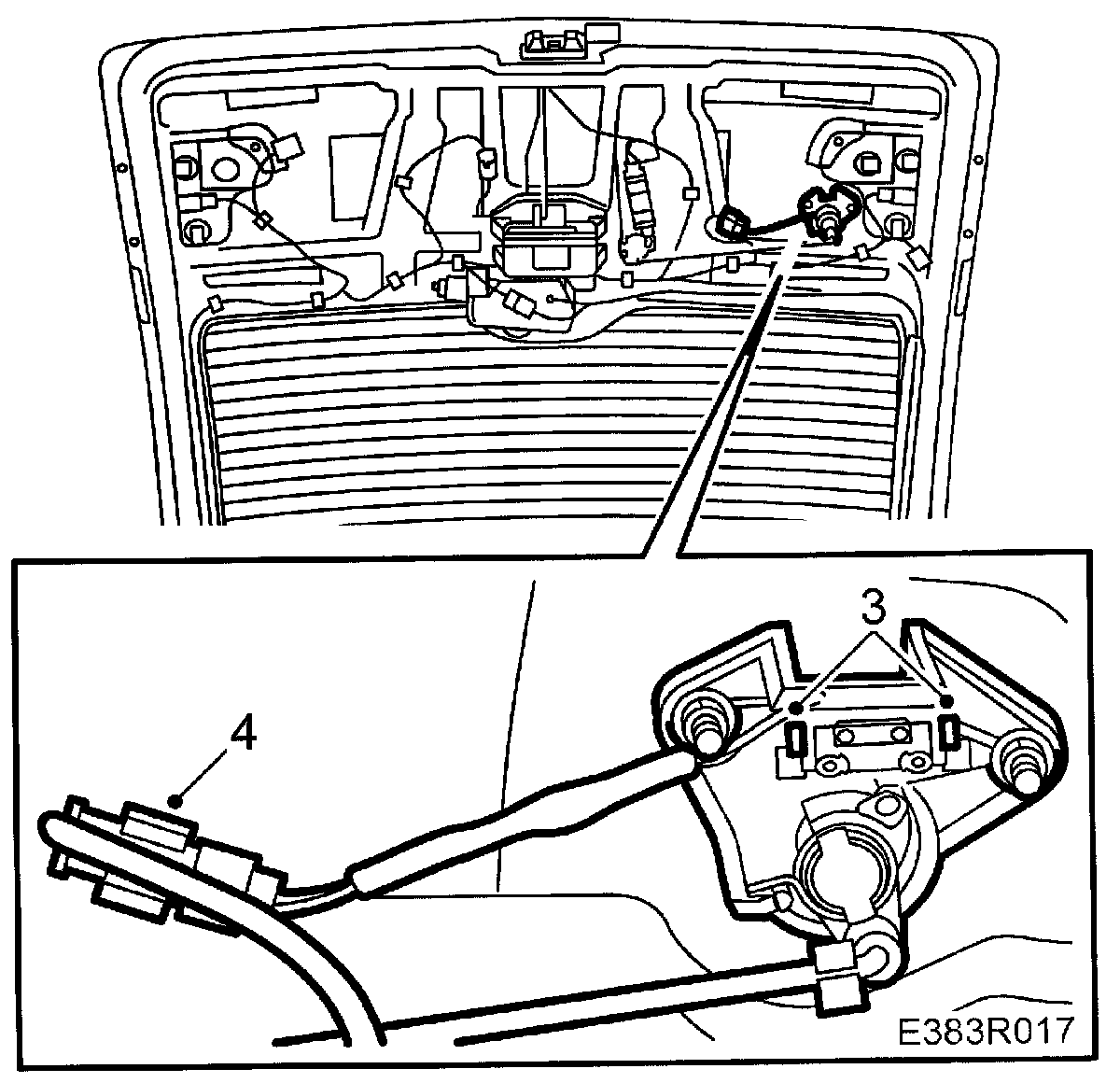

3. Detach the microswitch from the luggage compartment lock.
4. Separate the connector and remove the microswitch.

To fit







1. Fit the microswitch to the luggage compartment lock.
2. Plug in the connector.

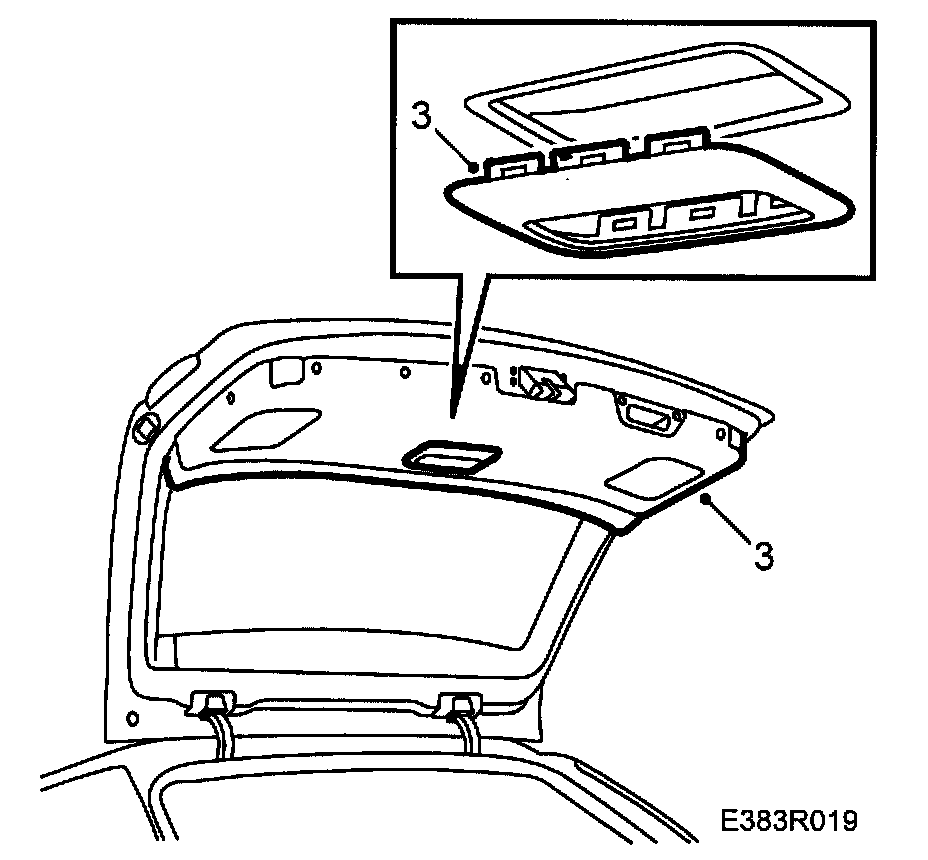

3. Fit the trim and door pull.
