System Overview, Electrical Opening of Tailgate

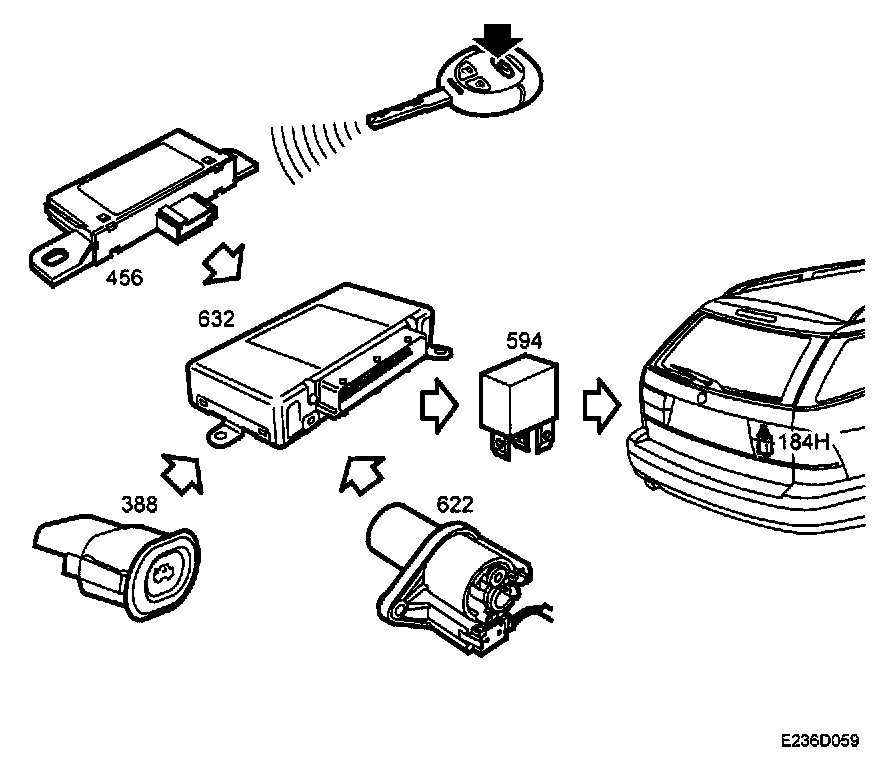

System Overview, Electrical Opening Of Tailgate (5D)







- Control module, TWICE (632)
- Car key
- Antenna, remote control, central locking system (456)
- Switch, tailgate (388)
- Relay, tailgate (594)
- Motor, central locking system, tailgate (184H)
- Microswitch, tailgate lock (622)

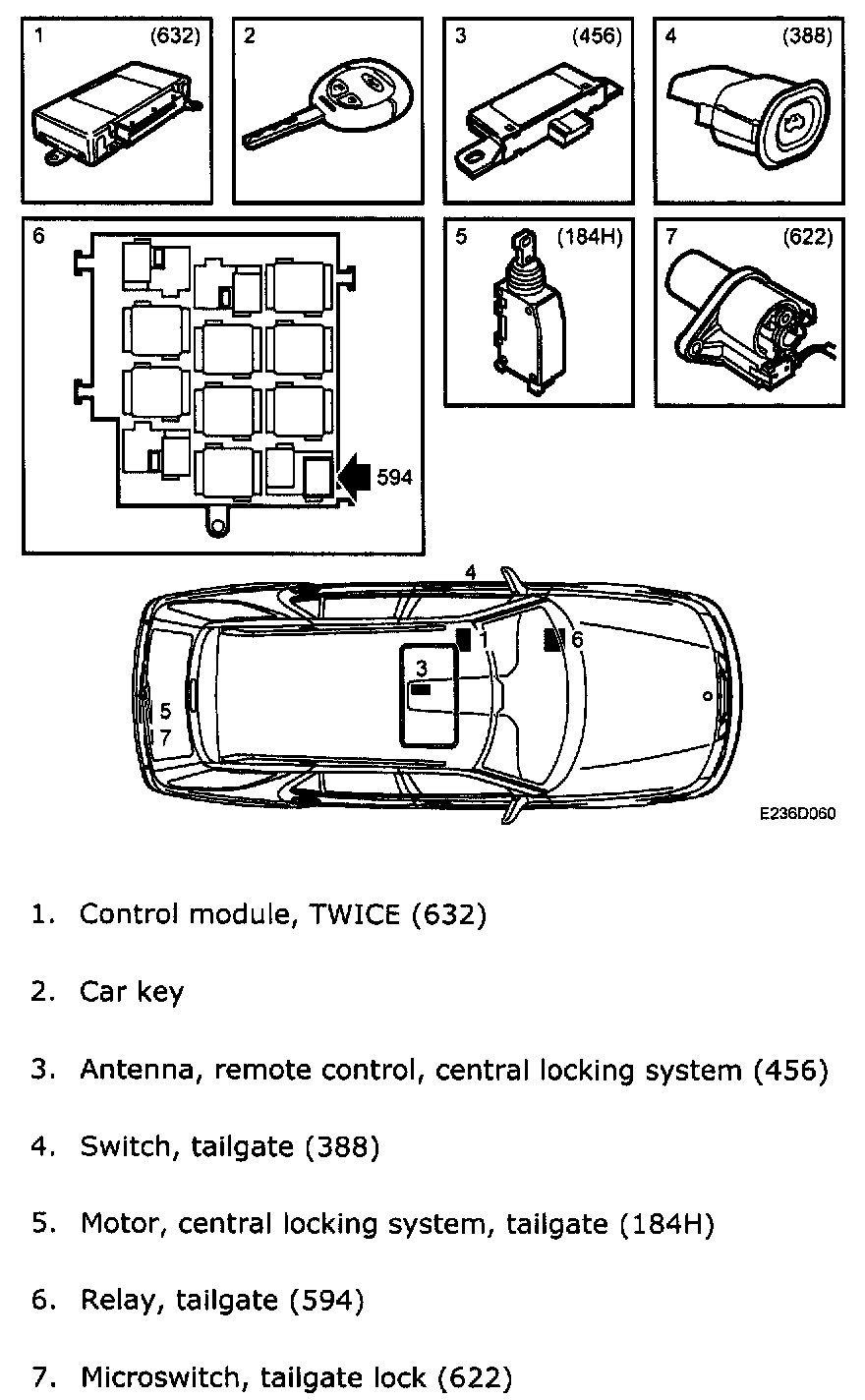

Main components, electrical opening of tailgate (5D)
