Control Module Inputs, Outputs, Bus For the Anti-Theft Alarm

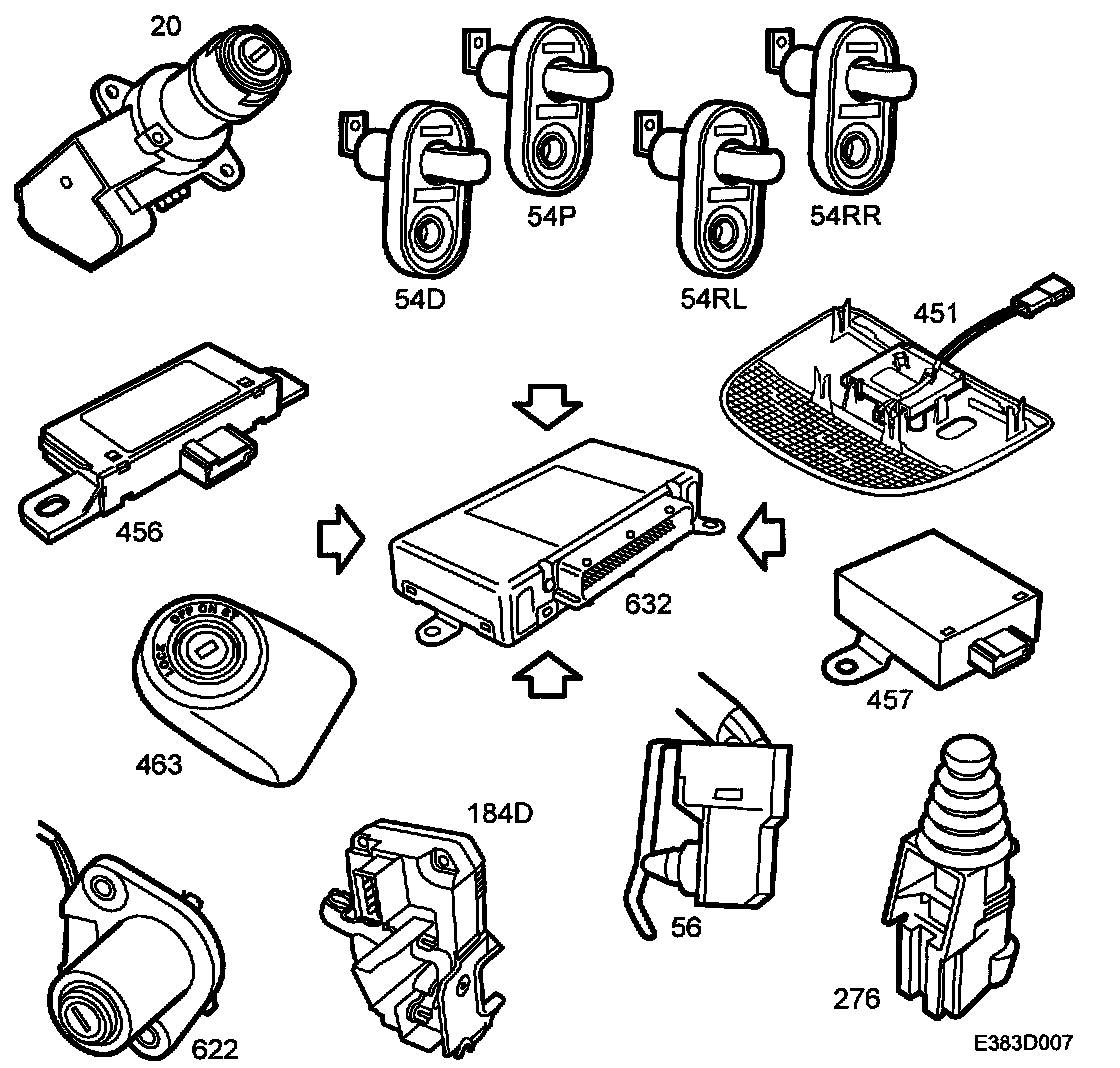

Control Module Inputs For The Anti-theft Alarm







- Key switch in driver's door (184D)
- Door switch, front left (54FL)
- Door switch, front right (54FR)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, luggage compartment lighting (56)
- Microswitch, tailgate lock (622)
- Glass breakage sensor (451)
- Tilt sensor (457)
- Antenna, remote control (456)
- Antenna unit, immobiliser (463)
- Ignition switch (20)

Control Module Inputs For Anti-theft Alarm, Bus







- SID buttons (Night Panel) from SID (541)
- Diagnostics communication

For a further description of the input information from the bus to the control module Bus Communication
For a further description of diagnostics, see Bus and diagnostics communication See Powertrain Management/Computers and Control Systems/Information Bus.

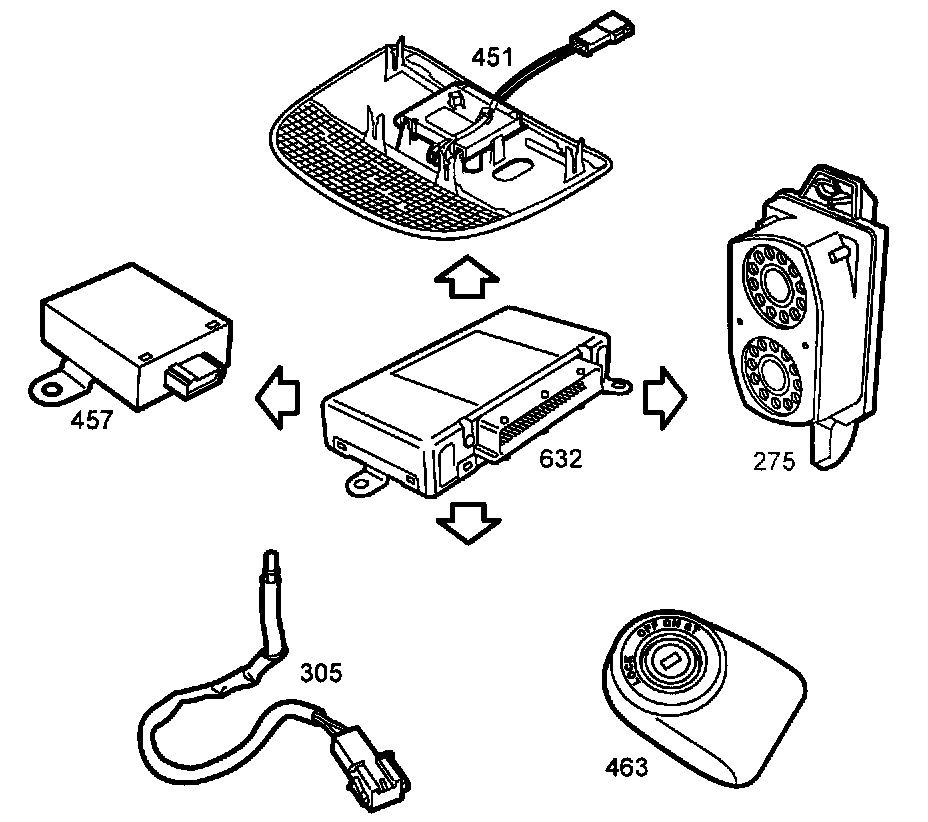

Control Module Outputs For Anti-theft Alarm







- Glass breakage sensor, power supply (451)
- Tilt sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
- Antenna unit, immobiliser, power supply (463)

Control Module Outputs For Anti-theft Alarm, Bus







- Text message used by SID (541)
- Direction indicators (on/off) used by DICE (628)
- Horn (0:6:42 ms) used by SID (541)
- Diagnostics communication

For a further description of the input information from the bus to the control module Bus Communication
For a further description of diagnostics, see Bus and diagnostics communication. See Powertrain Management/Computers and Control Systems/Information Bus.
