Antenna, Phone: Service and Repair

Antenna/Dummy Antenna, Fixed (5D)


NOTE: Cars as of model year 2001 and VIN 13047361 that lack the handsfree provision have a dummy antenna mounted on the roof. For more information Telephone Connection


To remove
If you are unsure whether or not the car has the handsfree provision, check. Shine a light source through the microphone grille. On cars prepared for handsfree, a black microphone will be clearly visible behind the grill. On cars lacking such provision, there will be an empty space behind the grille.

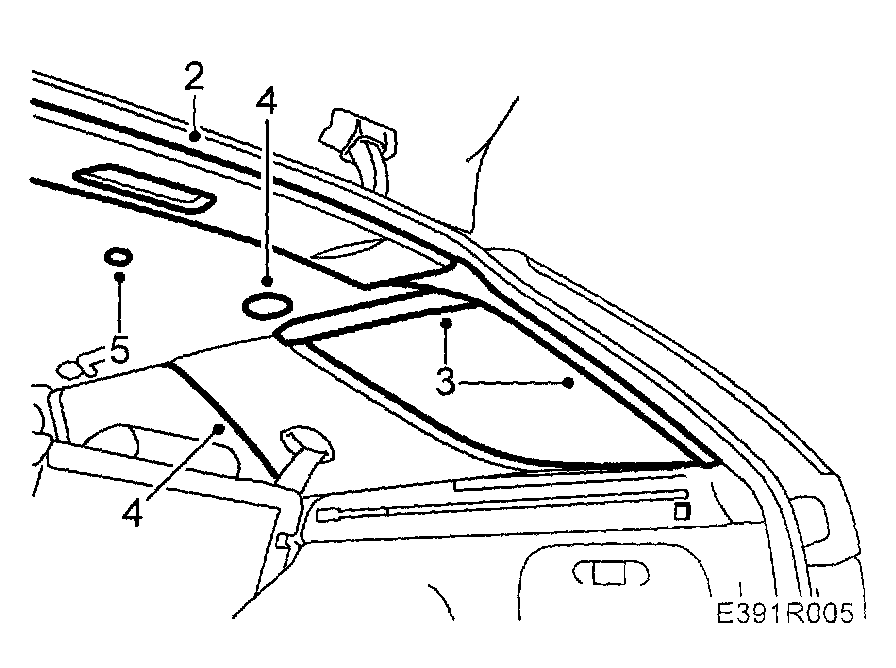

1. Remove the parcel shelf.







2. Remove the rear roof moulding and unplug the connectors for the lighting.
3. Remove the D-pillar trim and the roof moulding over the rear side windows.
4. Remove the fasteners in the roof trim over the rear side windows and undo the top of both C-pillar trims.
5. Remove the two clips in the roof and carefully bend down the headlining.

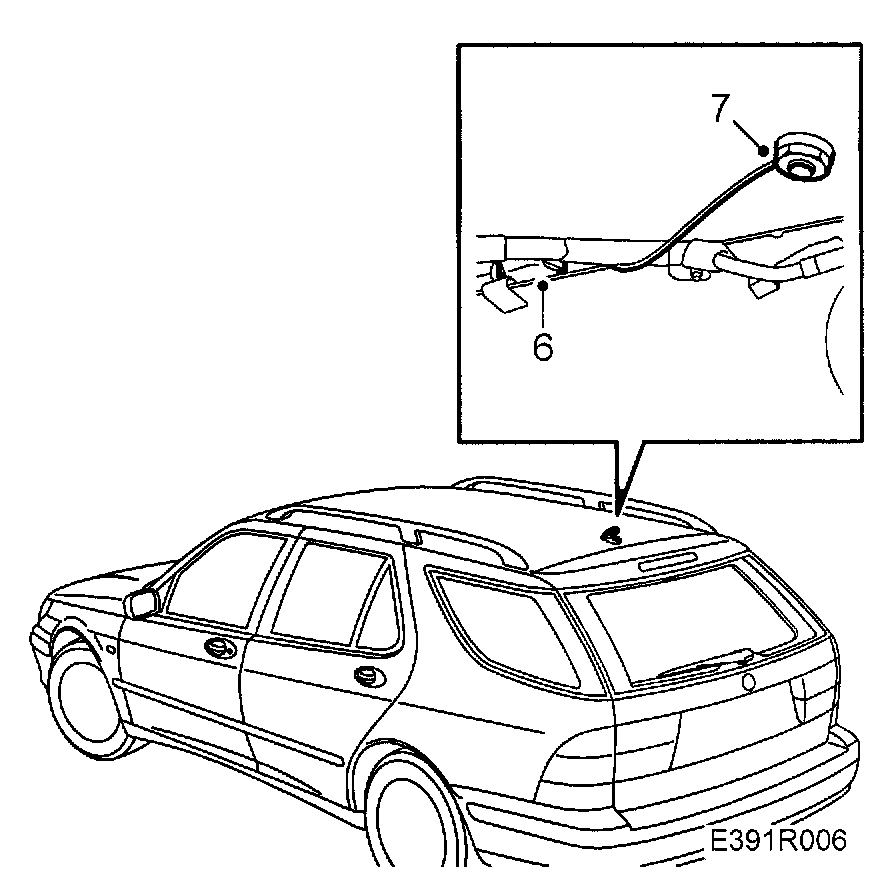

6. Unplug the antenna connection, if applicable.
7. Undo the nut and remove the antenna.

To fit

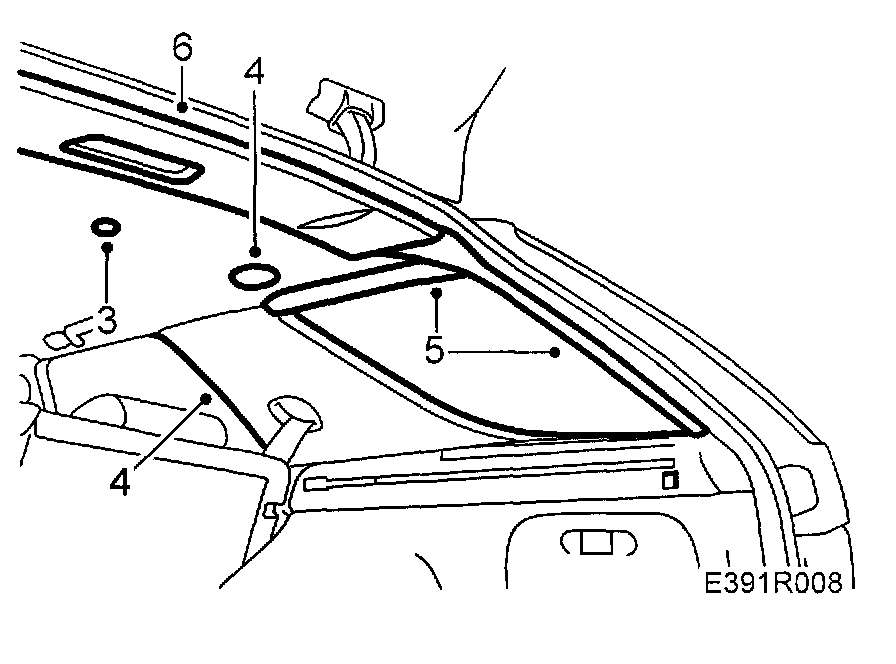

1. Fit the antenna and tighten the nut.
Tightening torque 3.0 Nm (2.2 lbf ft)
2. Plug in the connector (if any).







3. Carefully lift up the headlining and fit the two clips in the roof.
4. Refit the C-pillar trims and fasteners over the rear side windows.
5. Fit the roof mouldings over the rear side windows and refit the D-pillar trim.
6. Plug in the lighting and fit the rear roof moulding.
7. Fit the parcel shelf.
