Manual Adjustment Of Door Mirrors Not Possible

Manual Adjustment Of Door Mirrors Not Possible. One Or All Motors Unserviceable. Applies To Mirrors Both With And Without Memory







Fault symptoms
Manual adjustment of door mirrors by means of the switch is not possible. One or all motors unserviceable. Applies to door mirrors both with and without memory.

Probable cause
Defective leads, switches or motors.

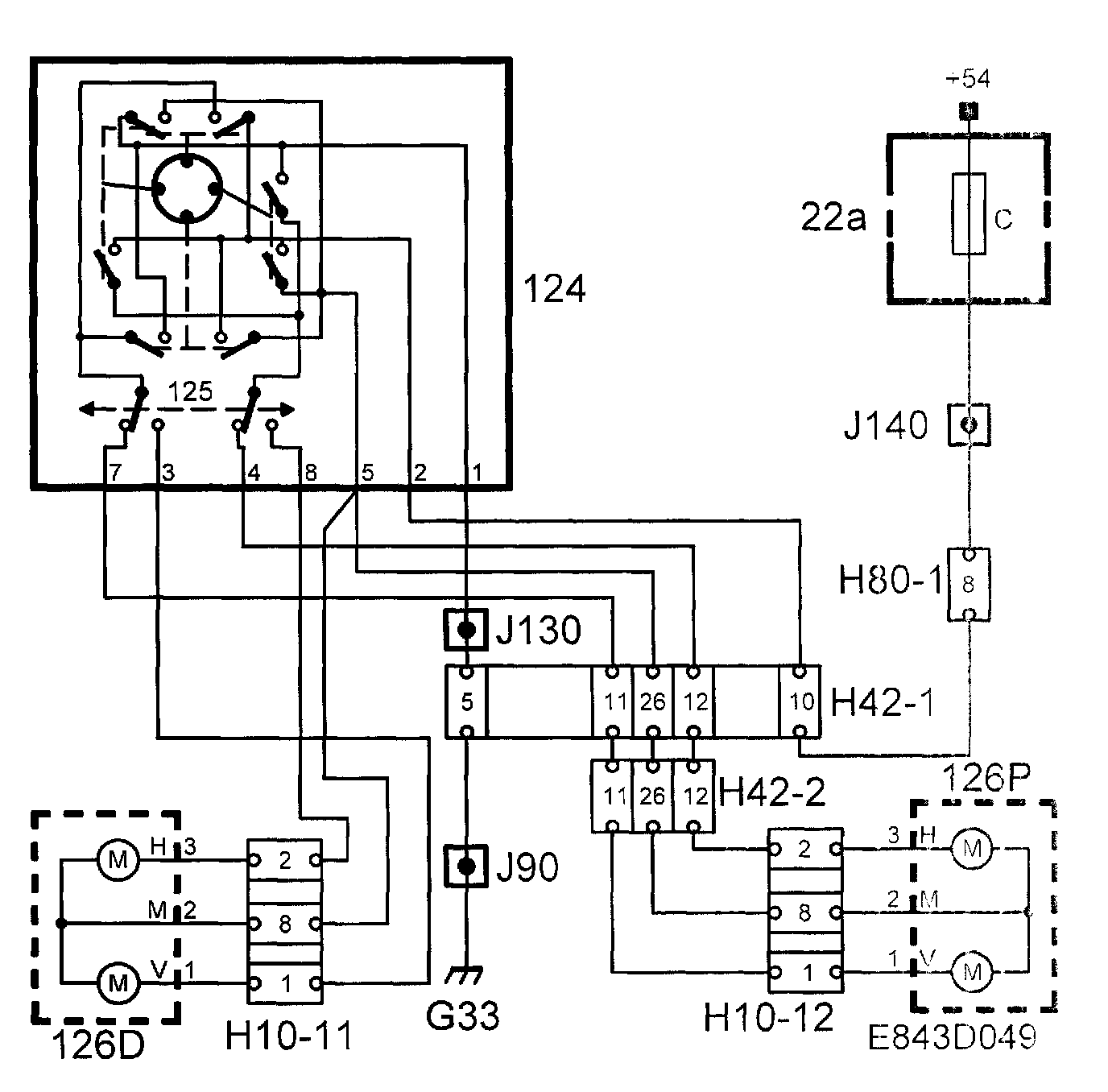

Check the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
