Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Locations >> Grounding Point G7,Petrol

Grounding Point G7,Petrol

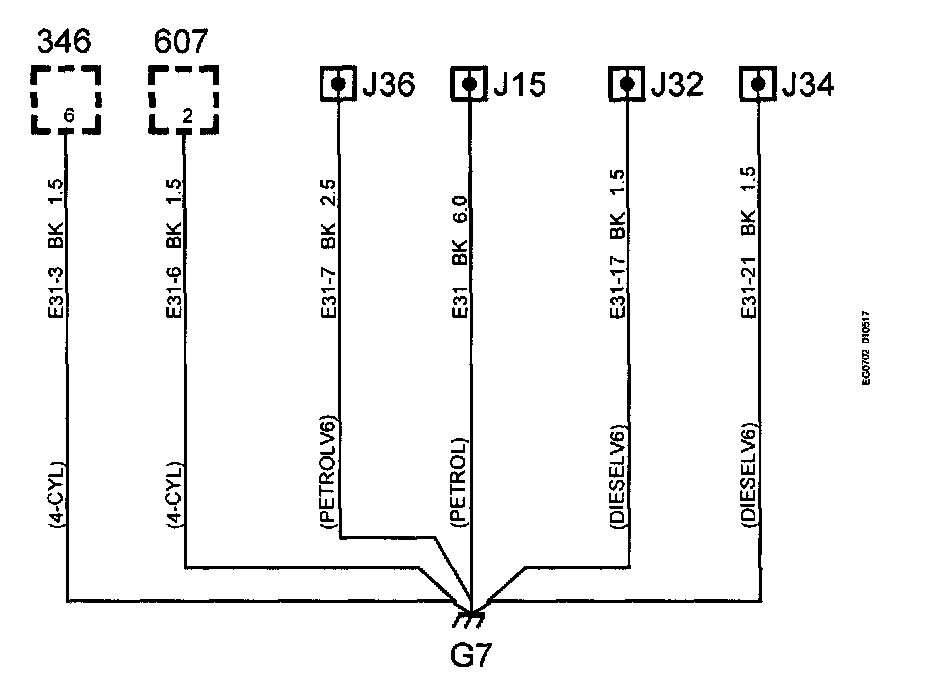

Grounding Point G7, V6 Petrol












Location: On a bracket at the front of the engine.
