Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Locations >> Grounding Point G2

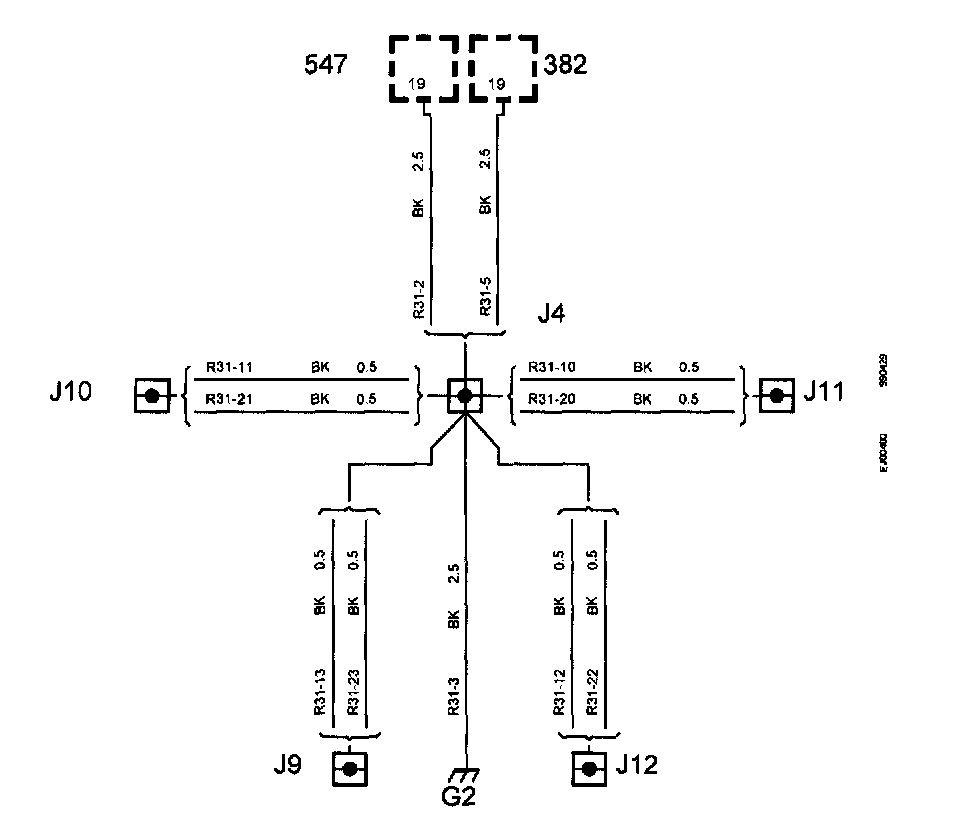

Grounding Point G2




Grounding Point G2

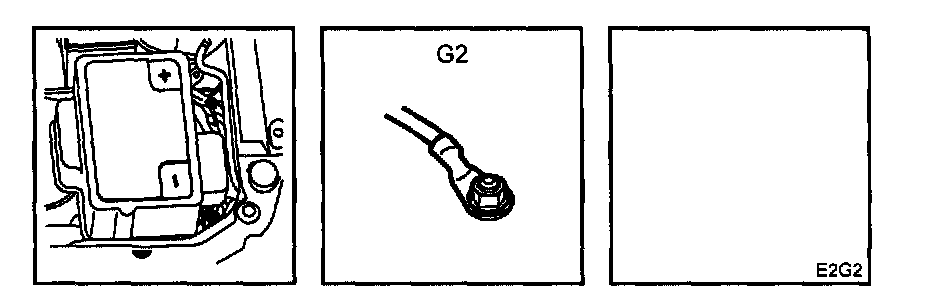

Location: Left-hand structural member behind headlamp (battery ground).
