Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuses >> Fuse 6, Fuse Box 342a In the Engine Bay

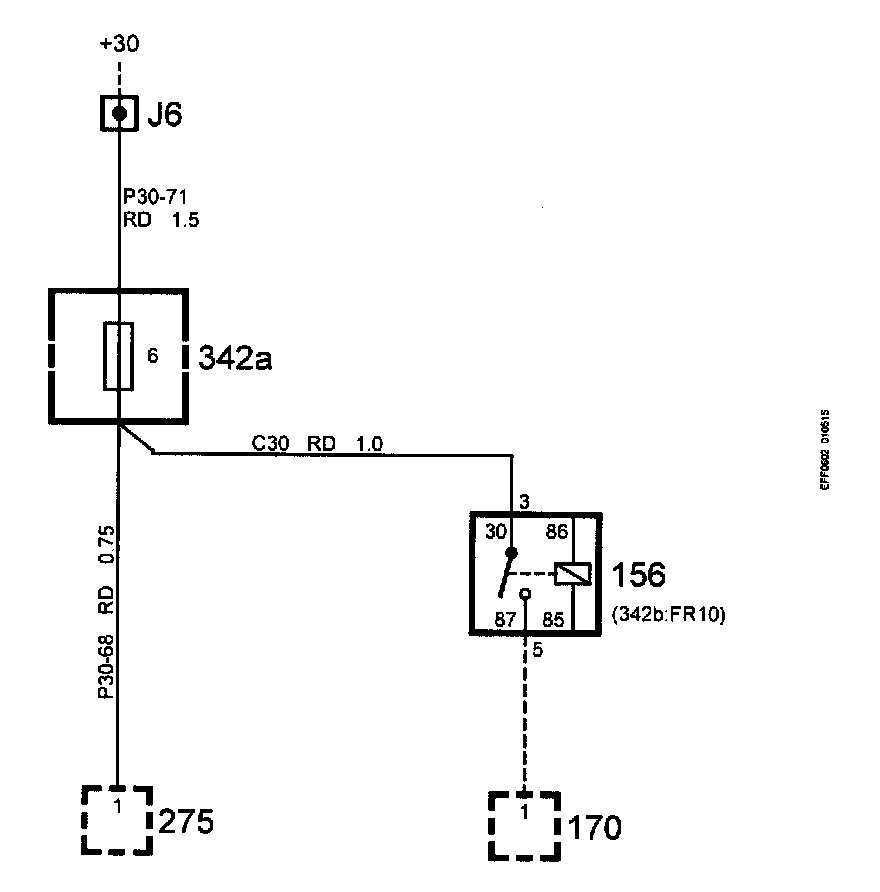

Fuse 6, Fuse Box 342a In the Engine Bay




Fuse 6, Fuse Box 342a In The Engine Bay
