Engine Technical Specifications

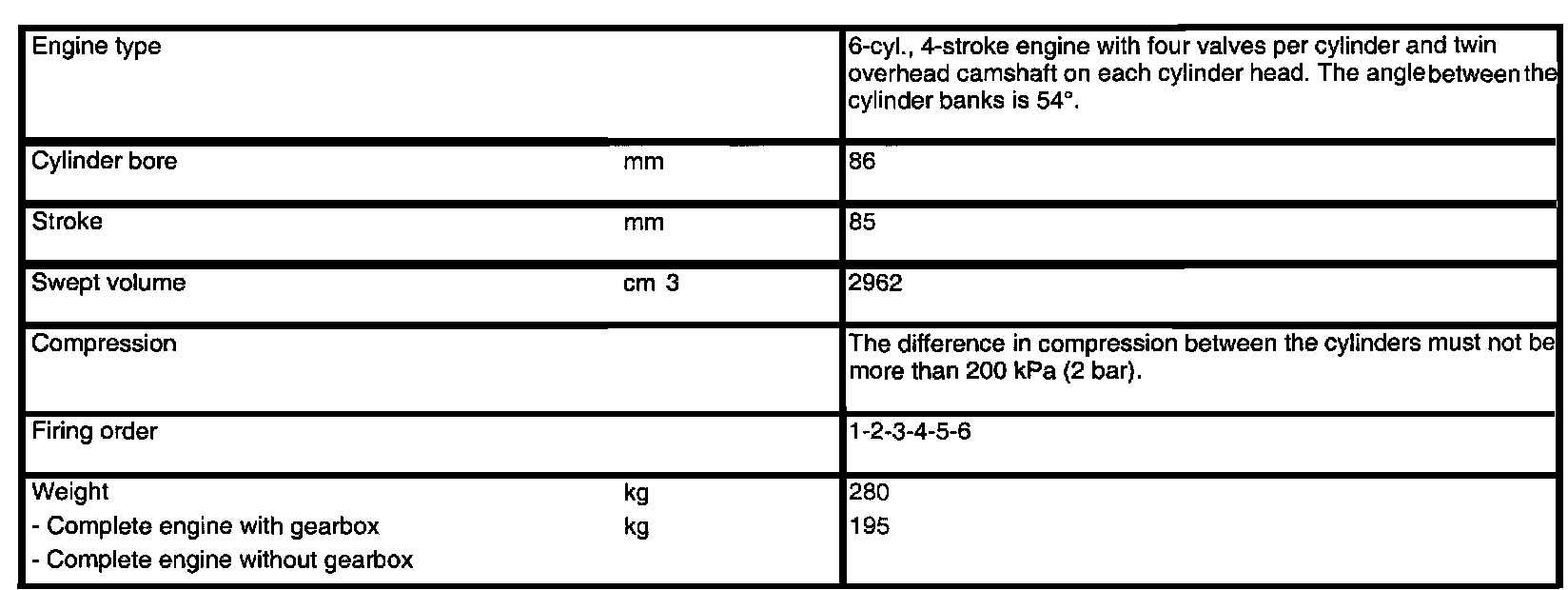

B308 Engine Technical Data:

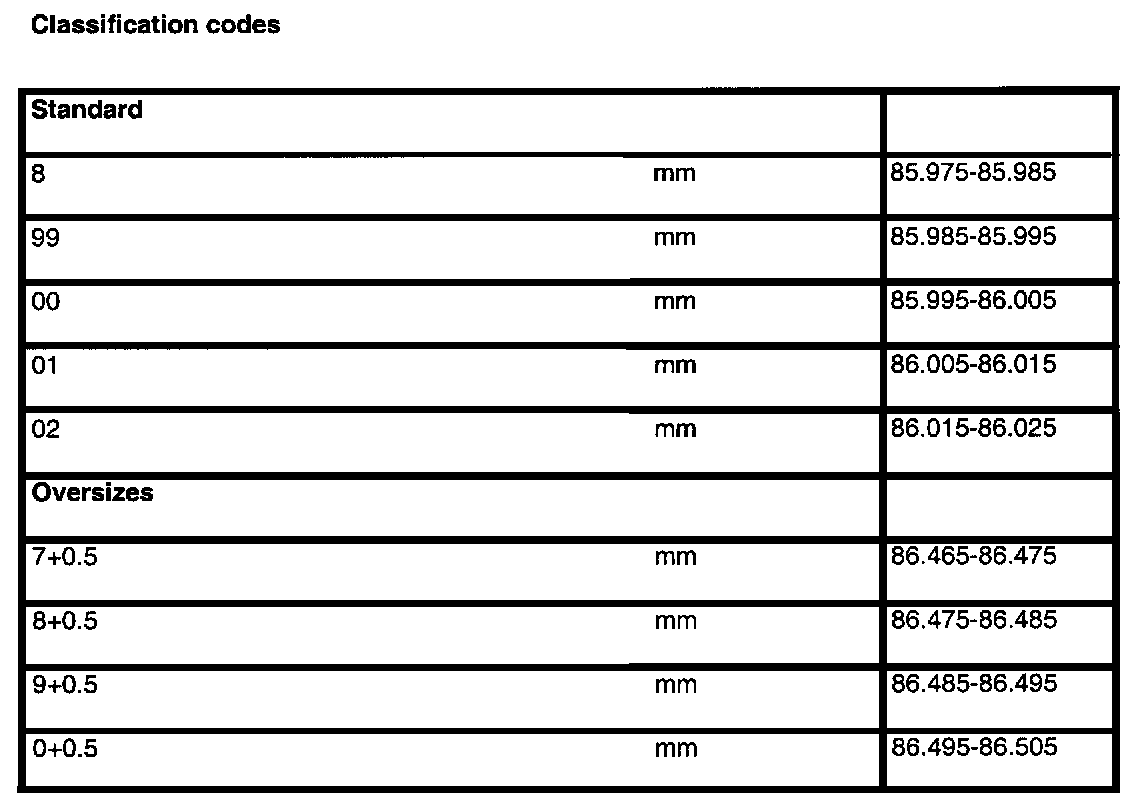

B308 Engine Cylinder Block Data:

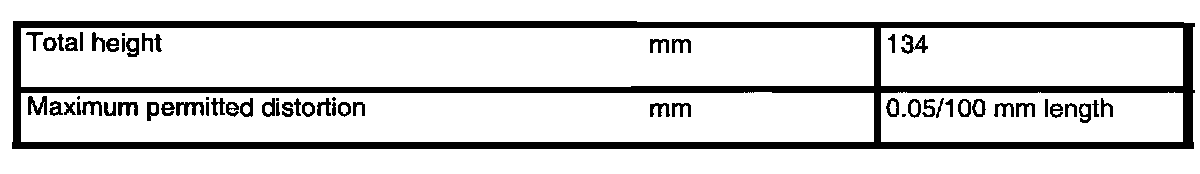

B308 Engine Cylinder Head Height:

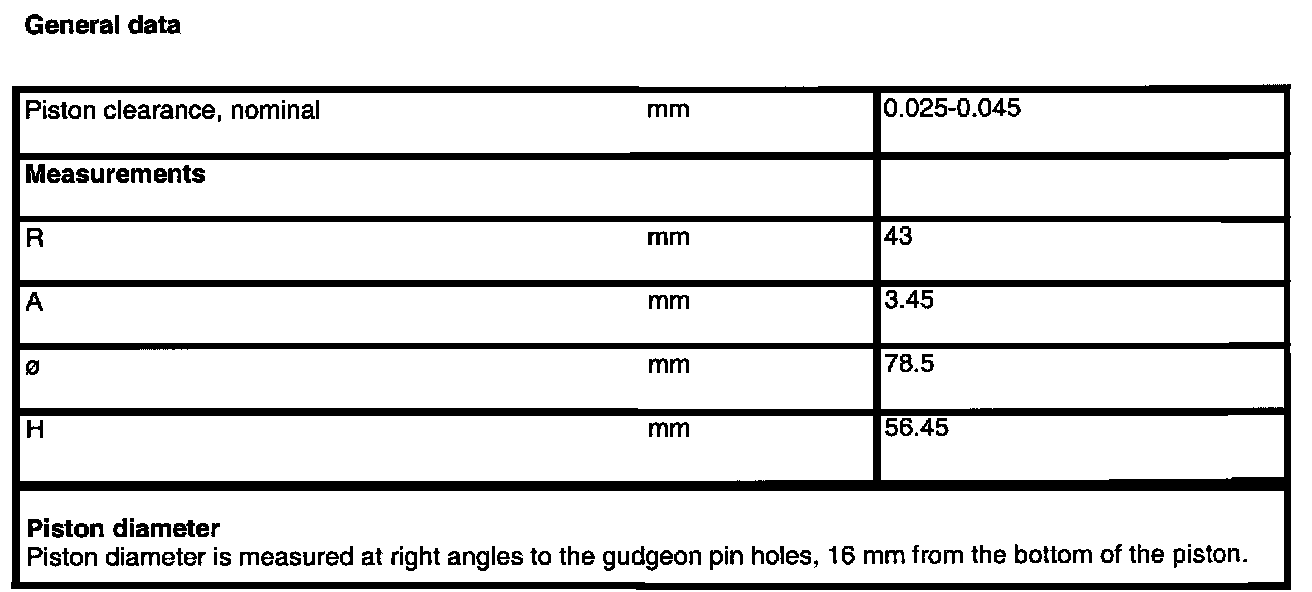

B308 Engine Pistons:

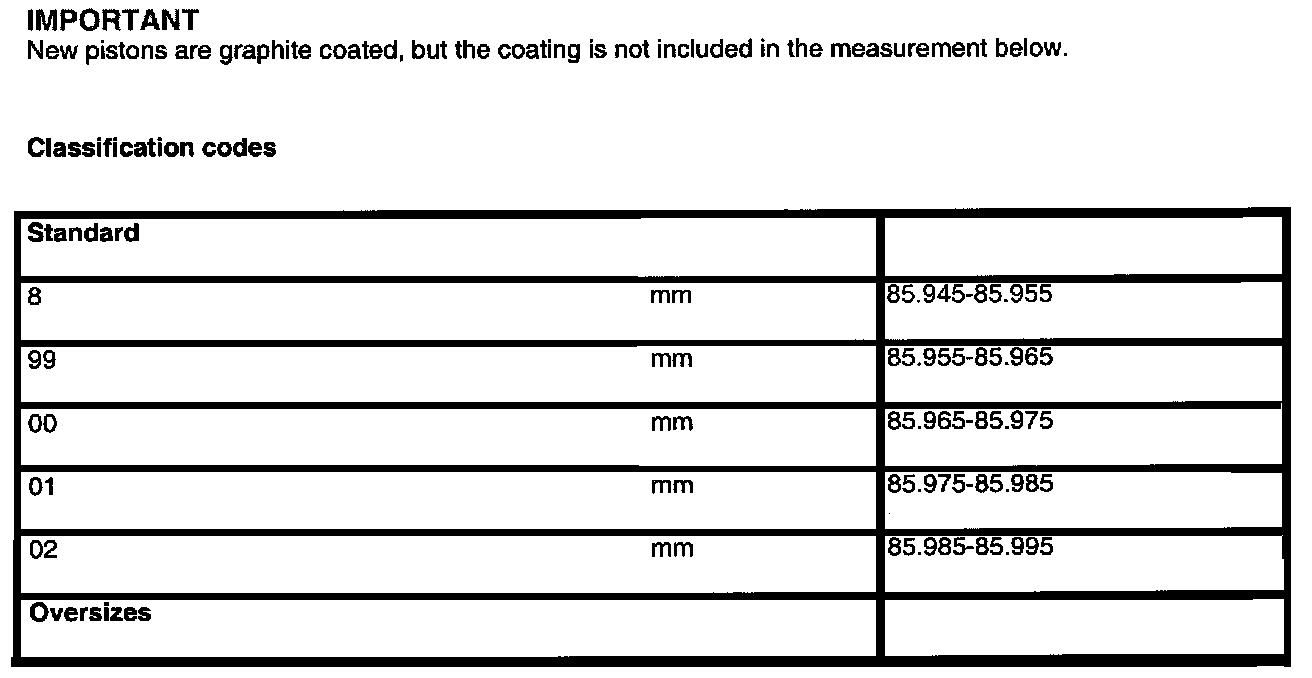

B308 Engine Piston Classification:

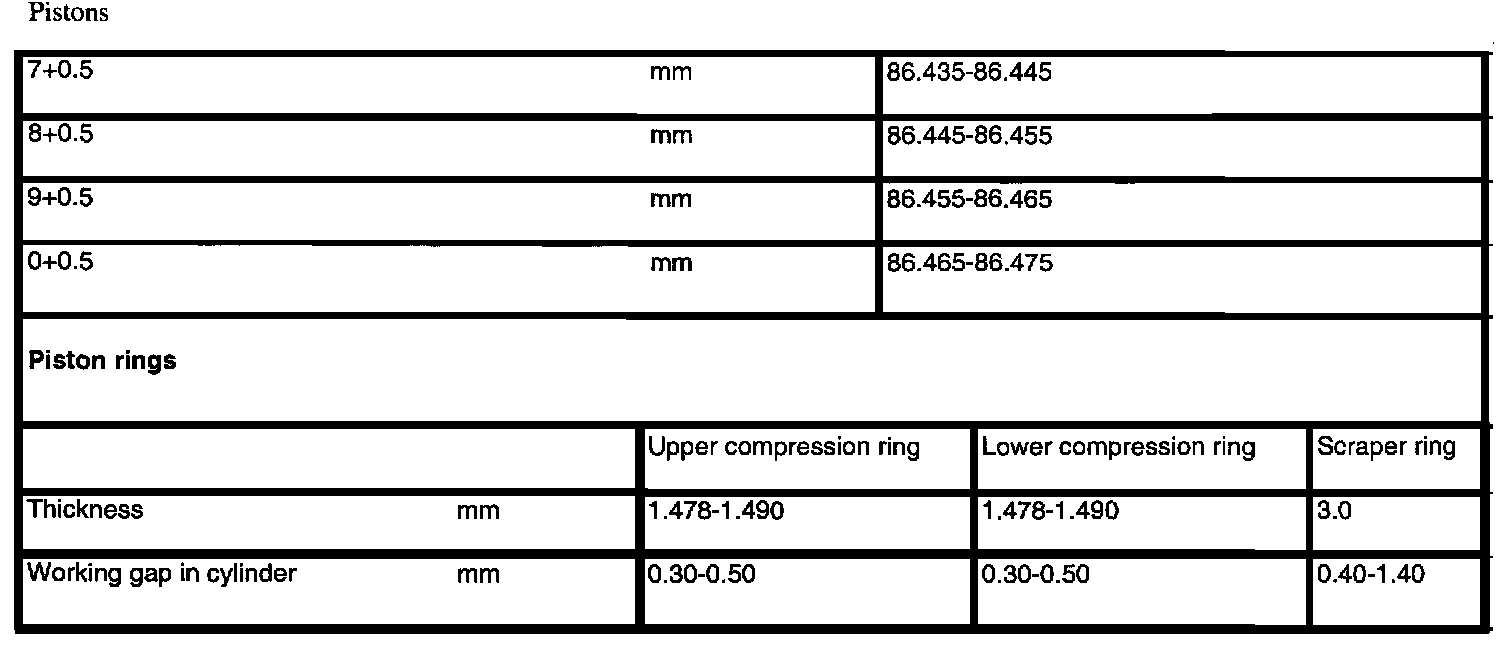

B308 Engine Piston Class Cont. & Piston Rings:

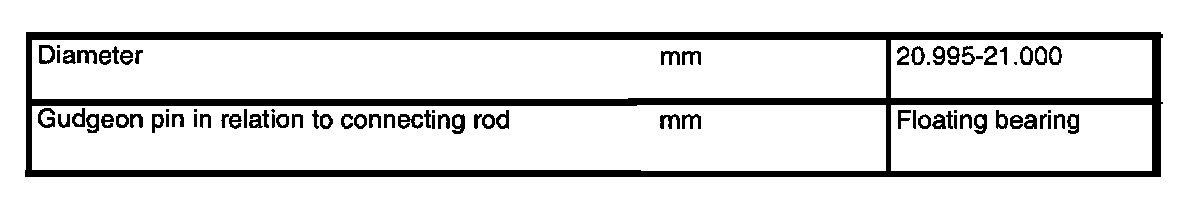

B308 Engine Gudgeon Pin:

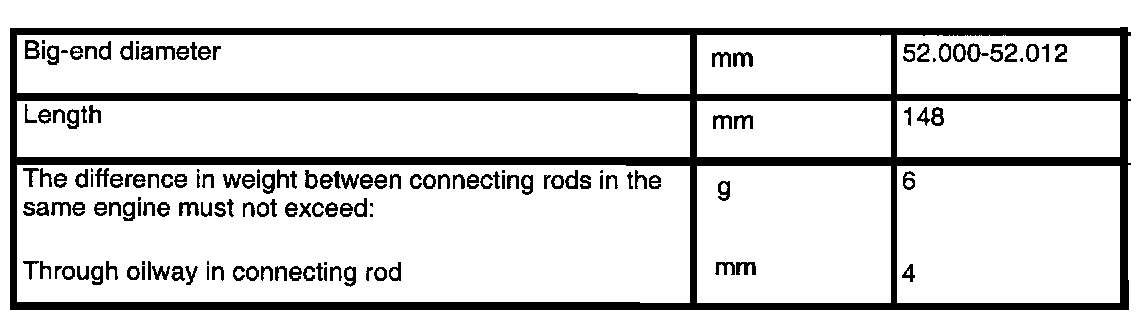

B308 Engine Connecting Rods:

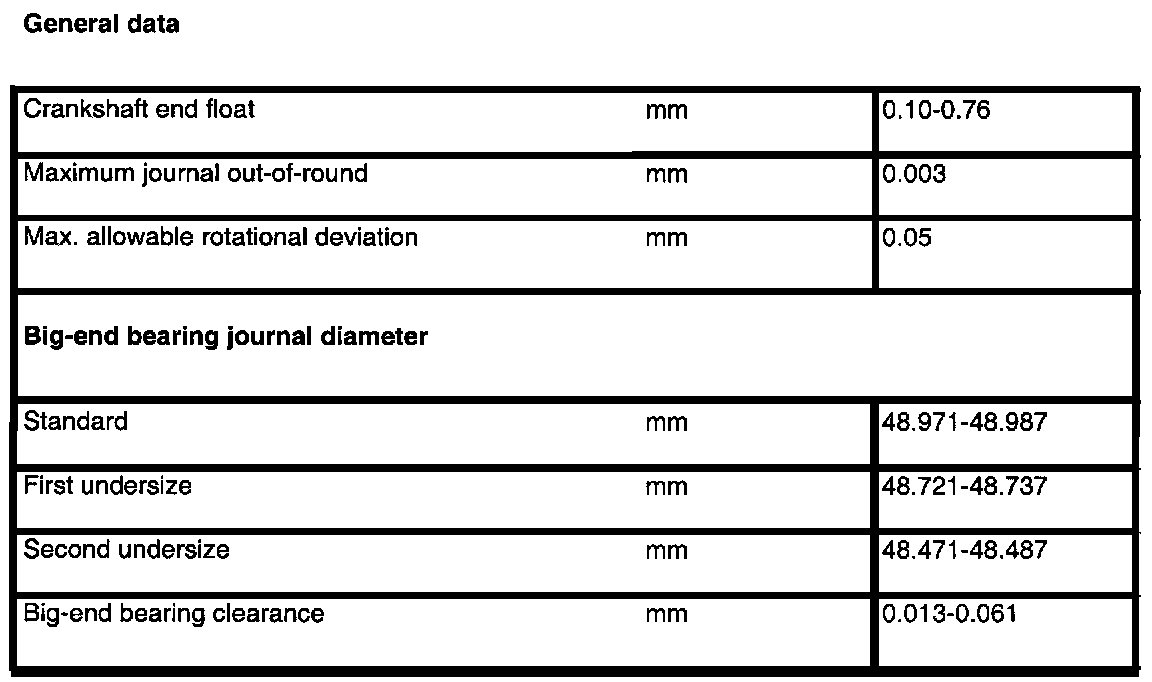

B308 Engine Crankshaft Data:

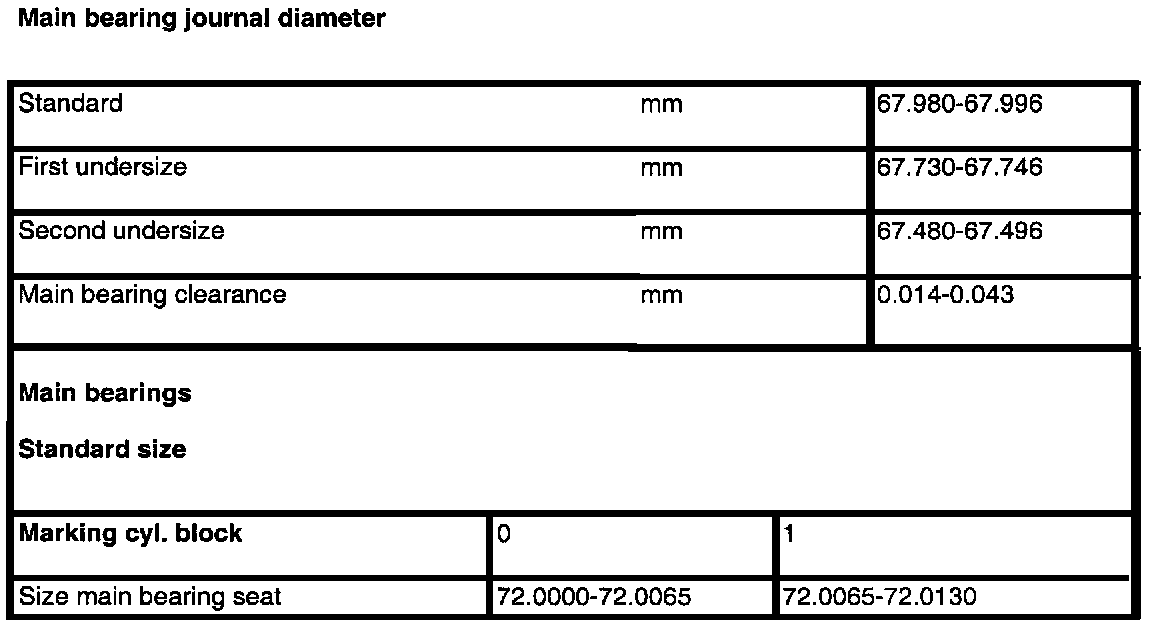

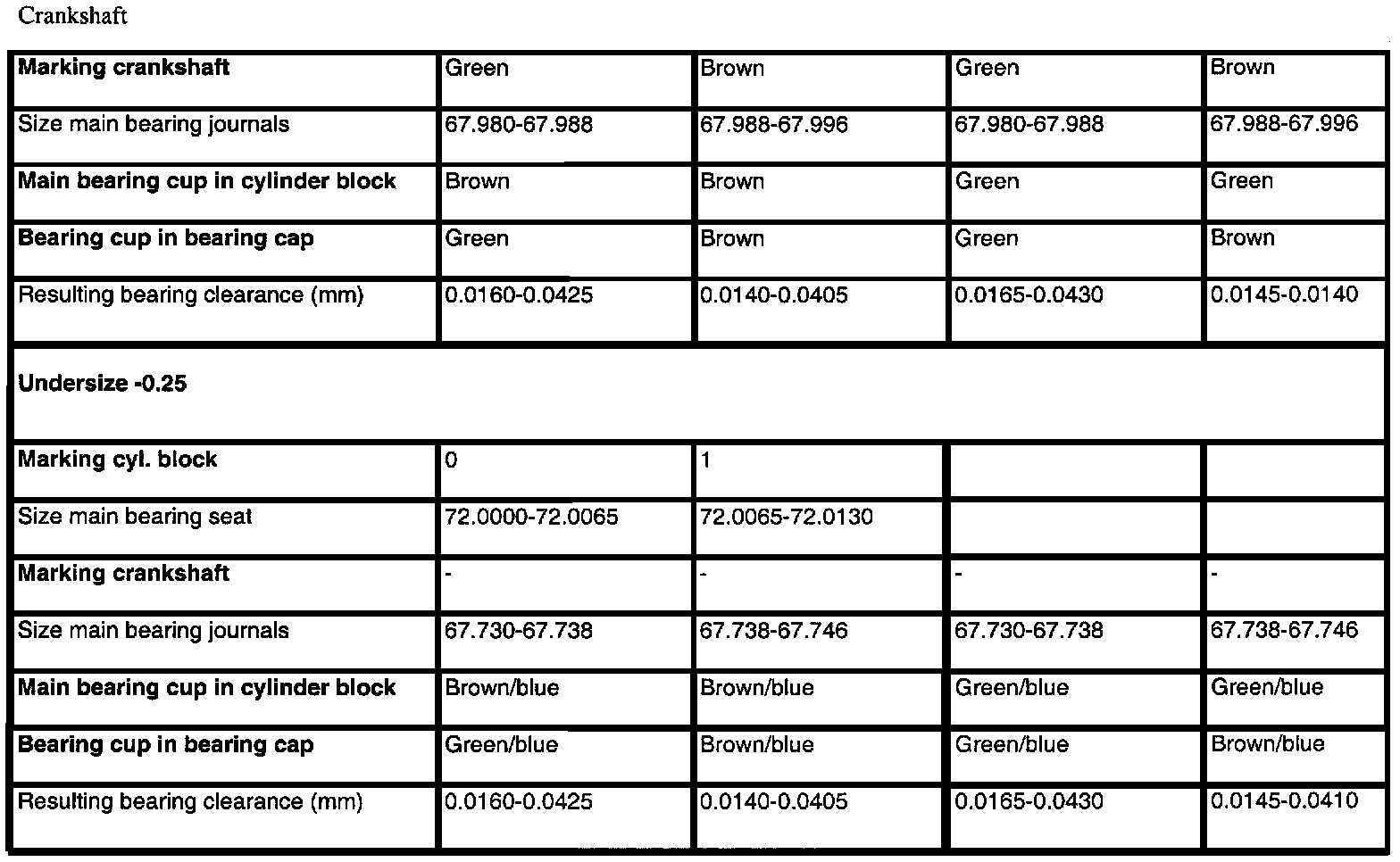

B308 Engine Crankshaft Main Bearings/Diameter:

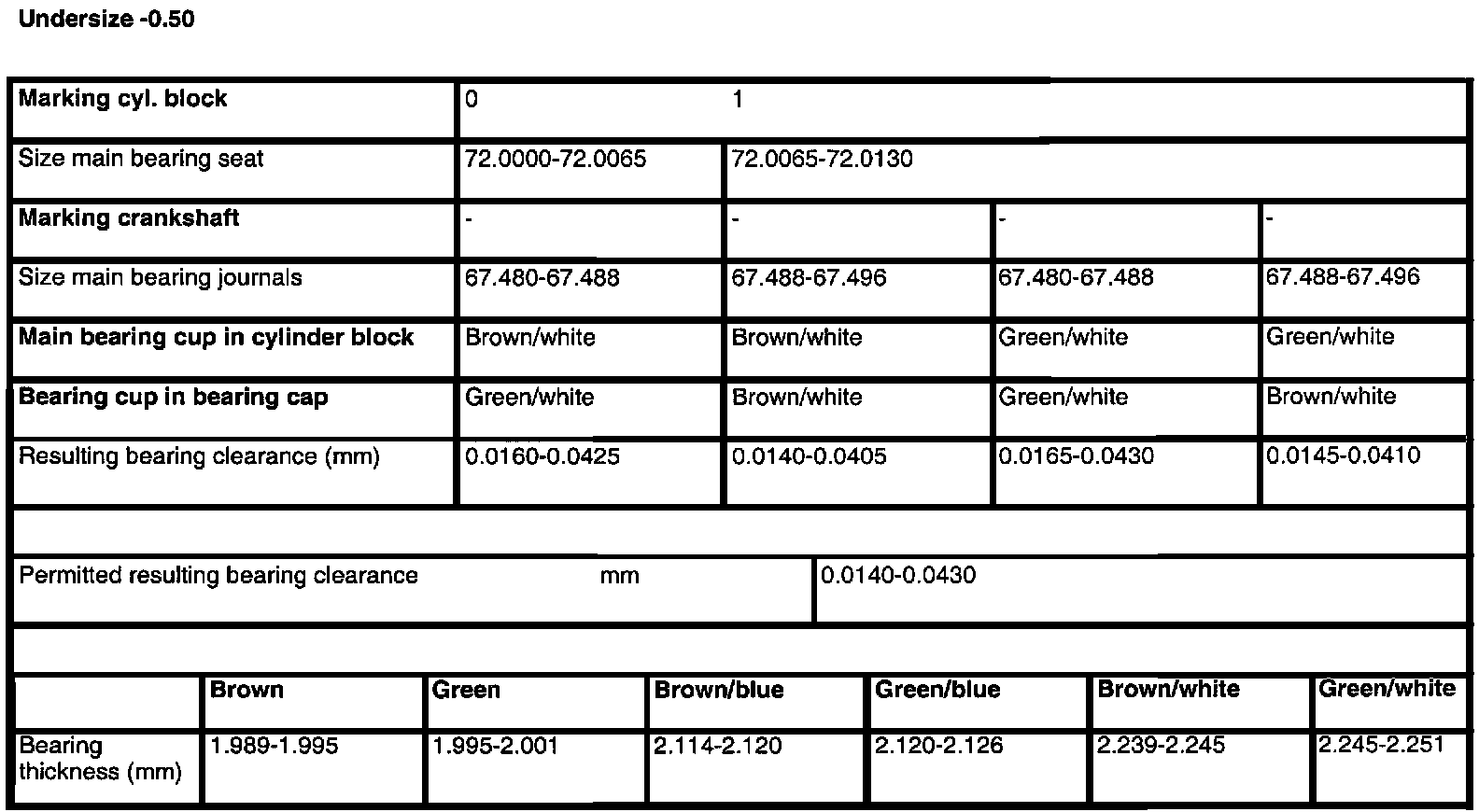

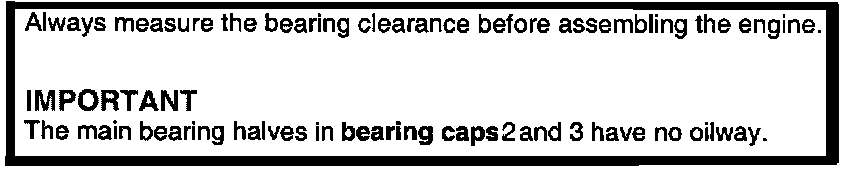

B308 Engine Crankshaft Bearings:

B308 Engine Crankshaft Bearings Cont.:

B308 Engine Bearing Caps:

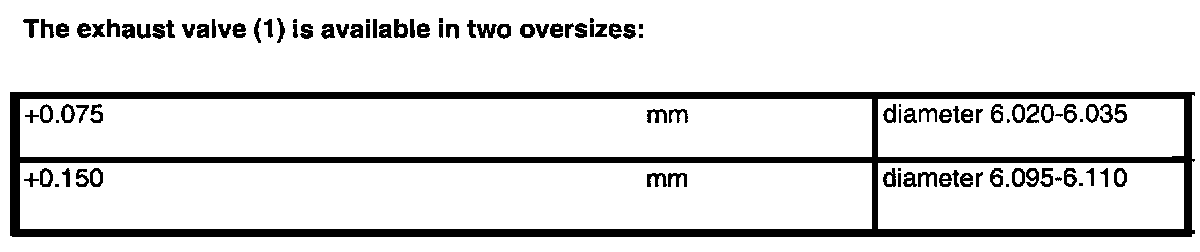

B308 Engine Exhaust Valve:

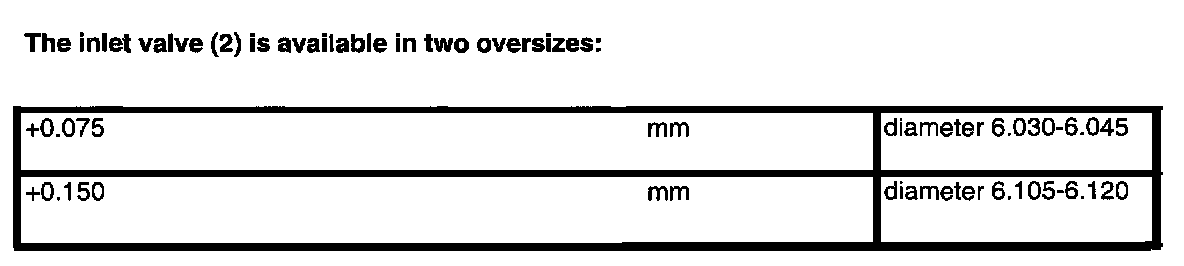

B308 Engine Intake Valve:

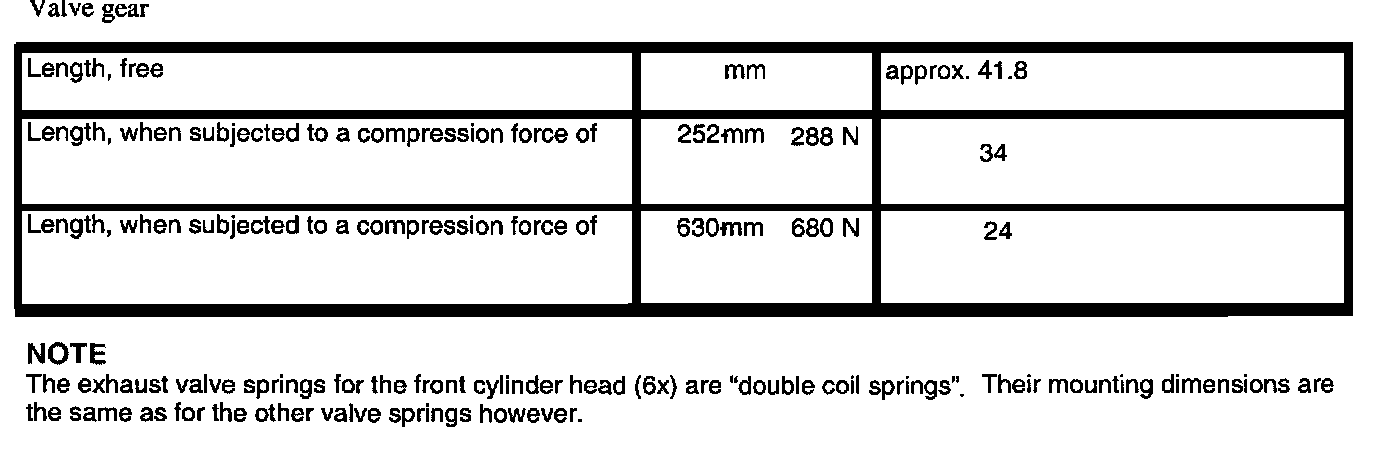

B308 Engine Valve Springs:

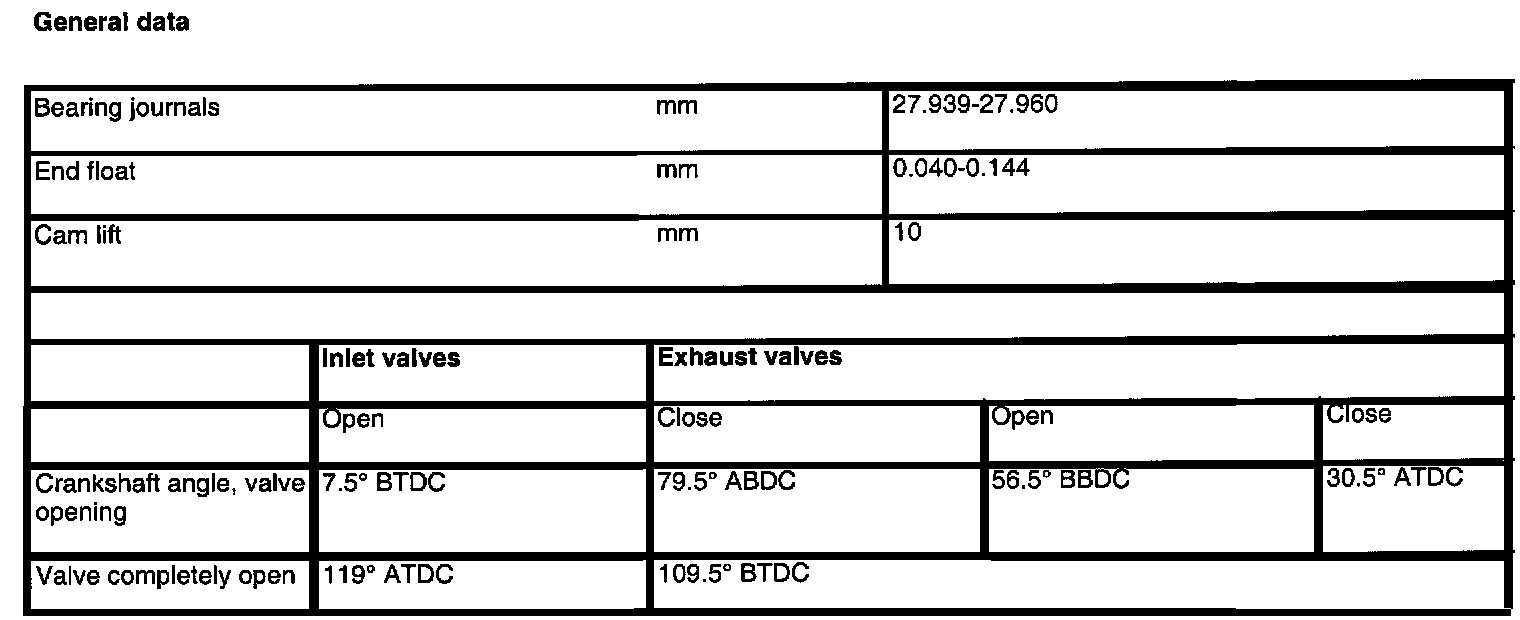

B308 Engine Camshaft Data:

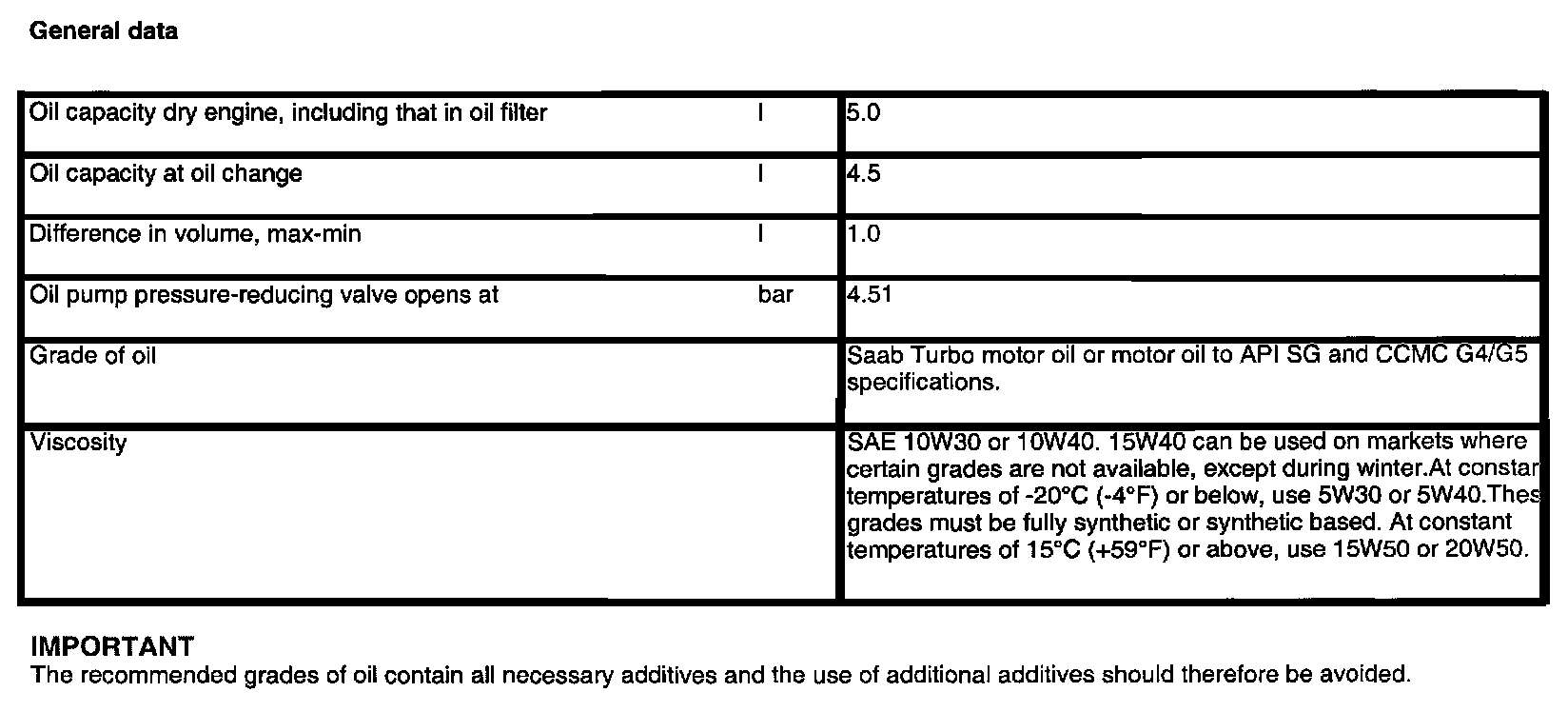

B308 Engine Lubricating System:

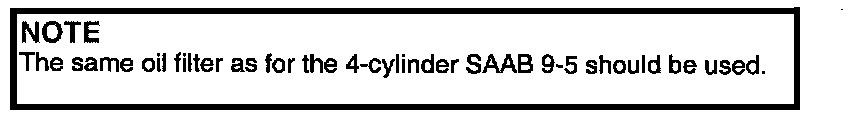

B308 Engine Oil Filter:

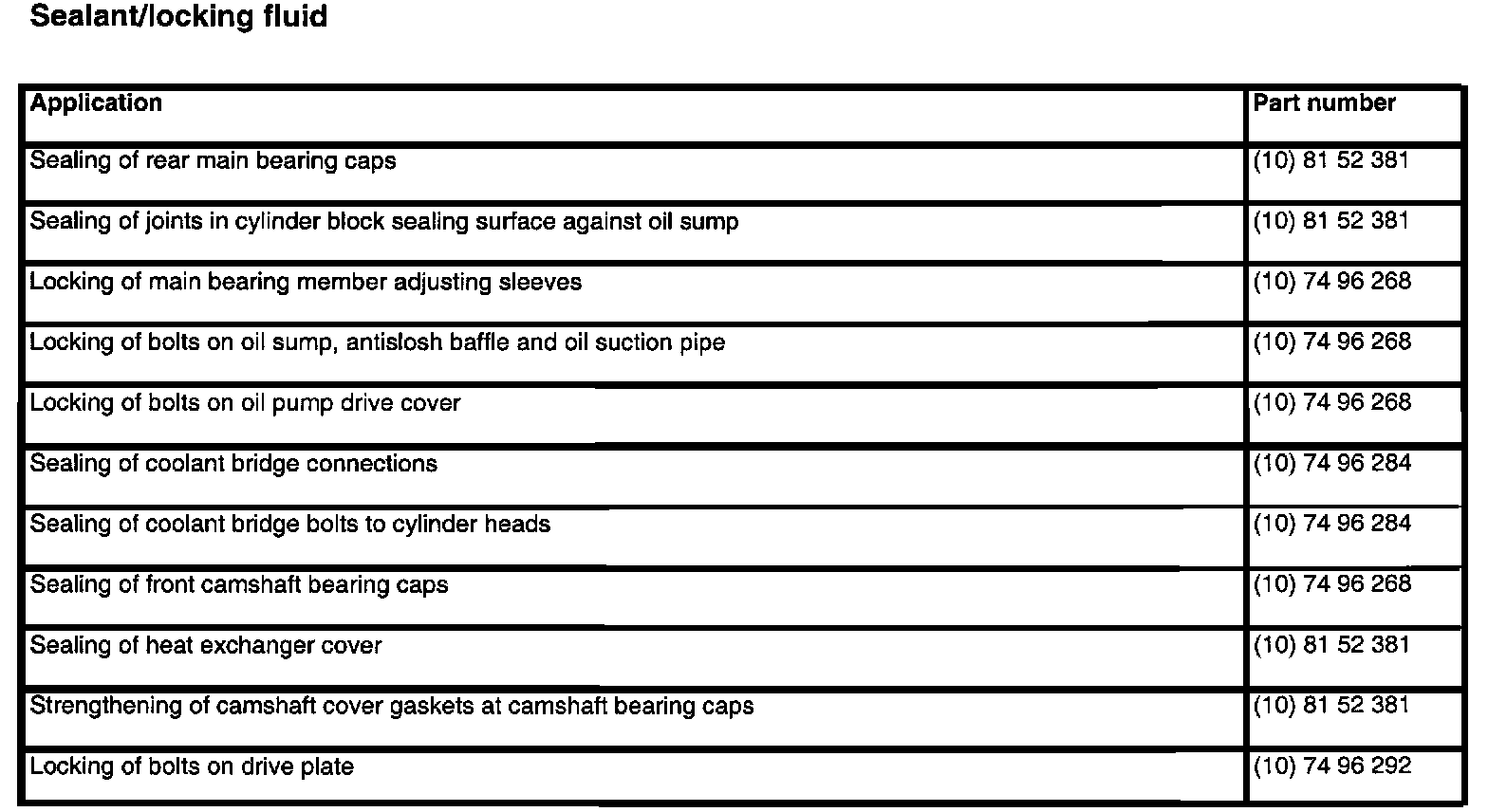

B308 Engine Sealant/Locking Fluids:
