Antenna Amplifier, System 2




Antenna Amplifier, System 2 (4D)

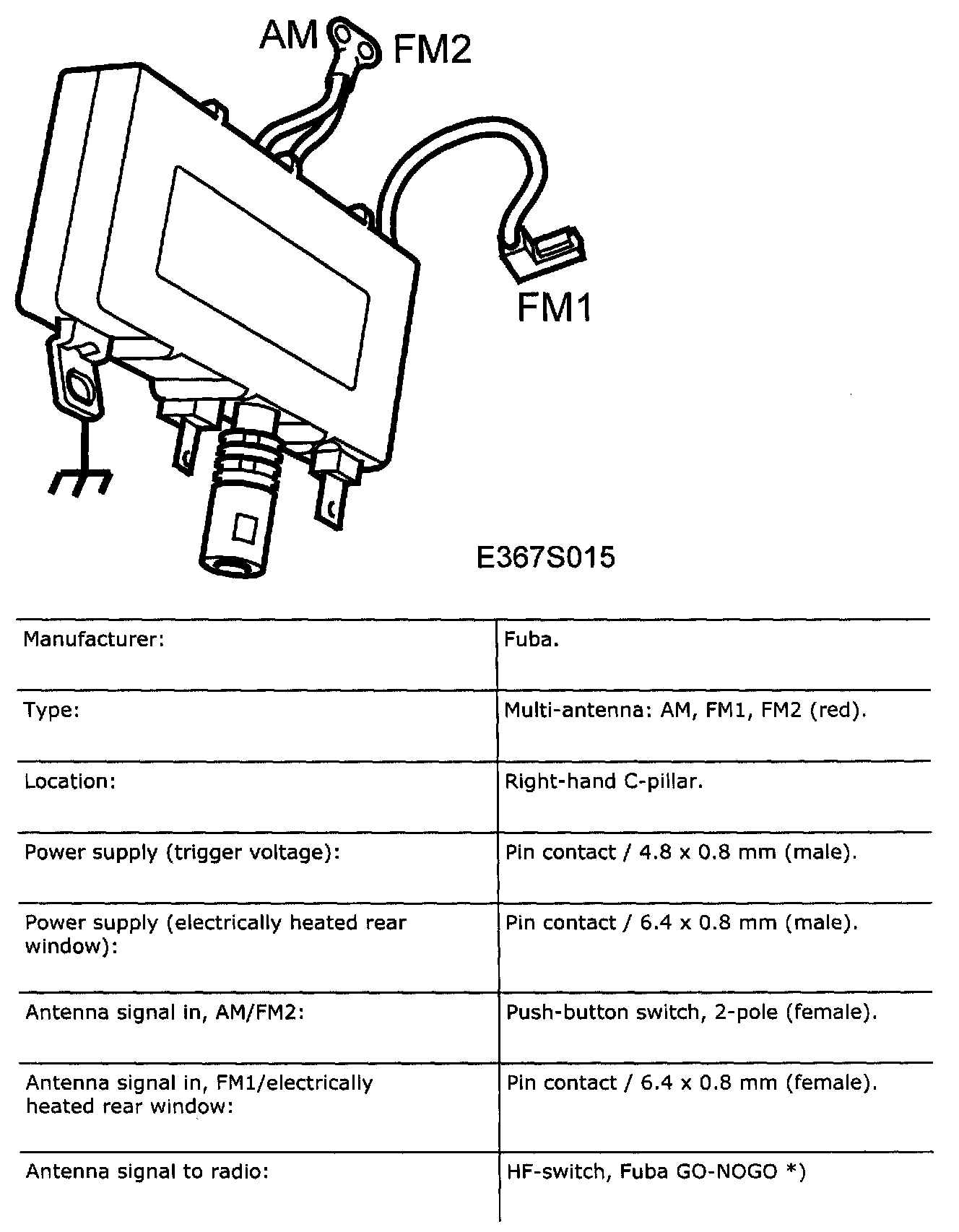

Part 1:

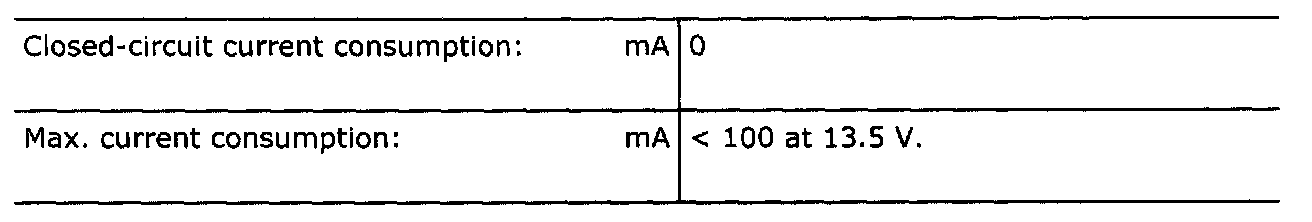

Part 2:






WARNING
*) Exercise care when undoing the high frequency connector, Fuba GO-NOGO. Disconnection must be performed correctly so as not to damage the connector. Service and Repair
