Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Antenna Amplifier >> Antenna Amplifier, System 1

Antenna Amplifier, System 1




Antenna Amplifier, System 1 (4D)

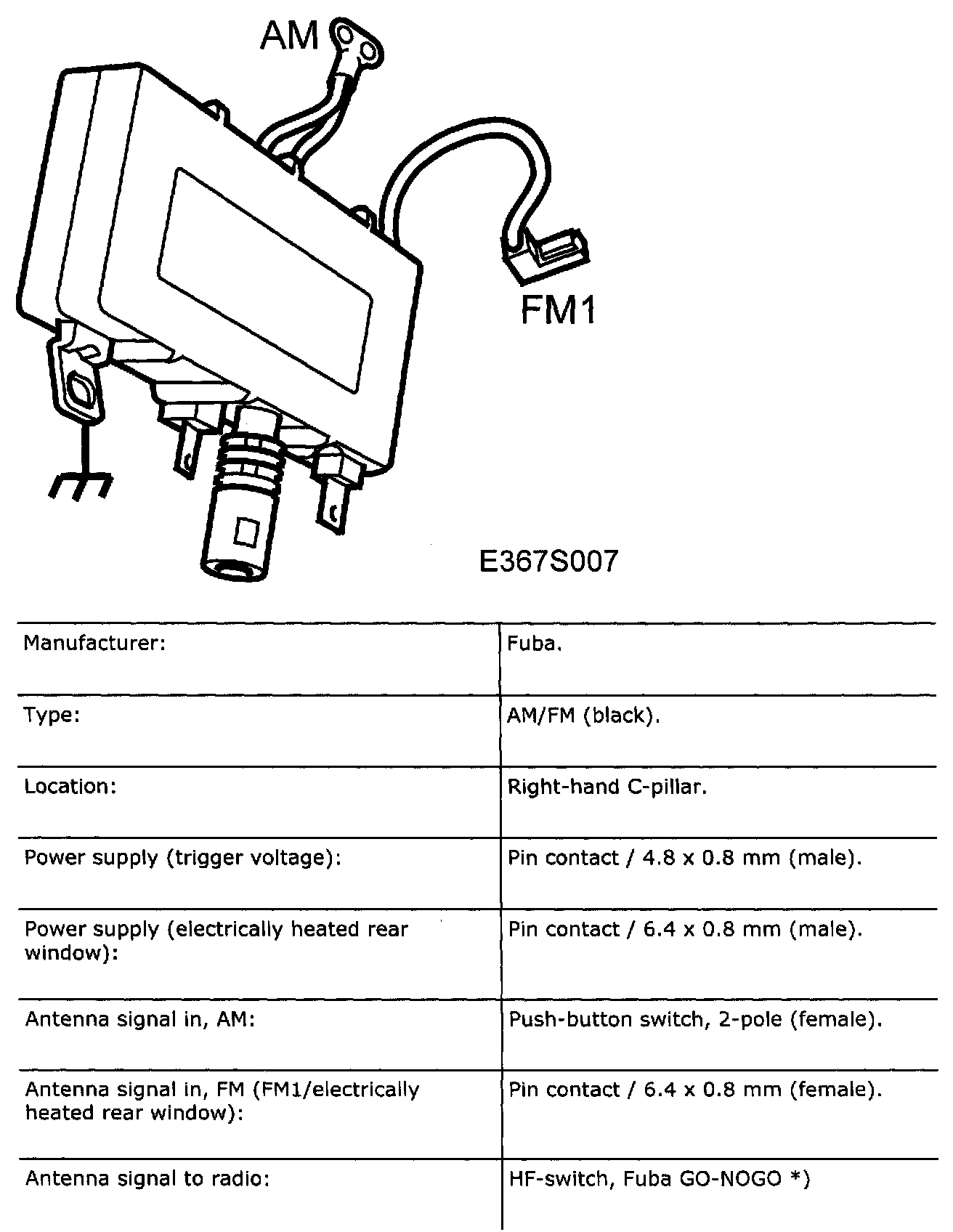

Part 1:

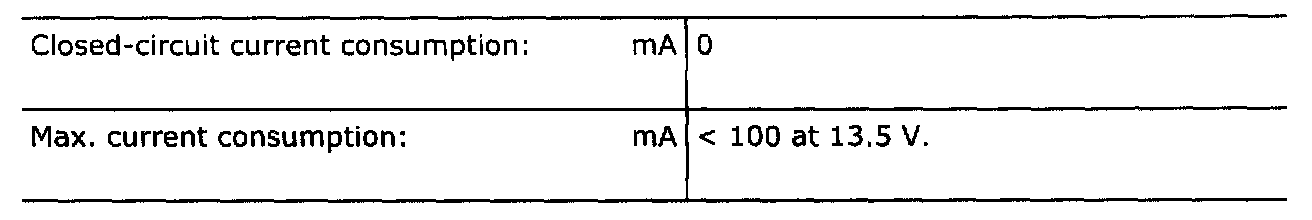

Part 2:






WARNING
*) Exercise care when undoing the high frequency connector, Fuba GO-NOGO. Disconnection must be performed correctly so as not to damage the connector.
