Ground, Rain Sensor




Ground, Rain Sensor

Ground

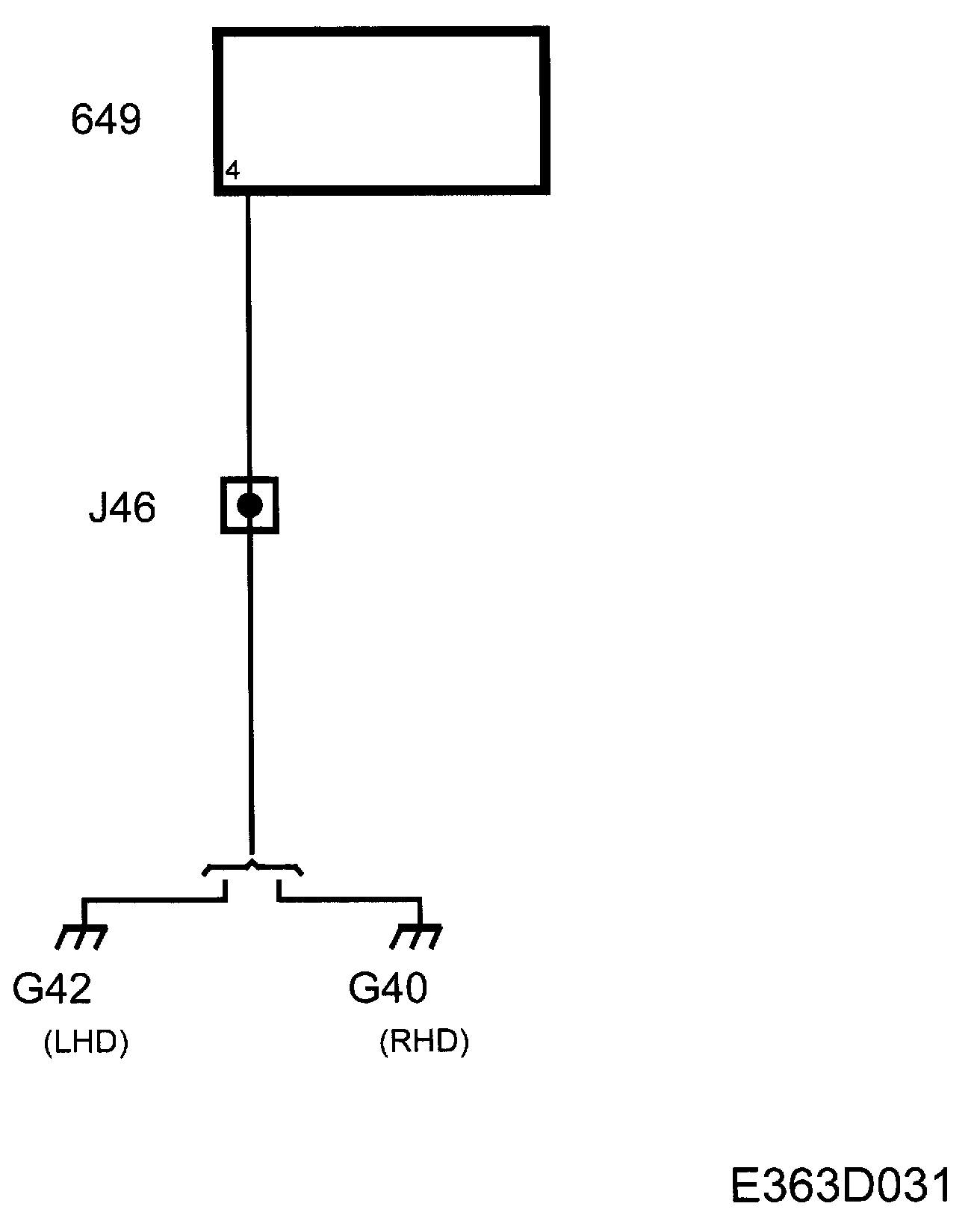

The rain sensor is grounded through pin 4 of grounding point G42 (LHD) or G40 (RHD).

Diagnosis
The function has no diagnostics.
