Yaw Rate Sensor: Service and Repair

Yaw rate sensor

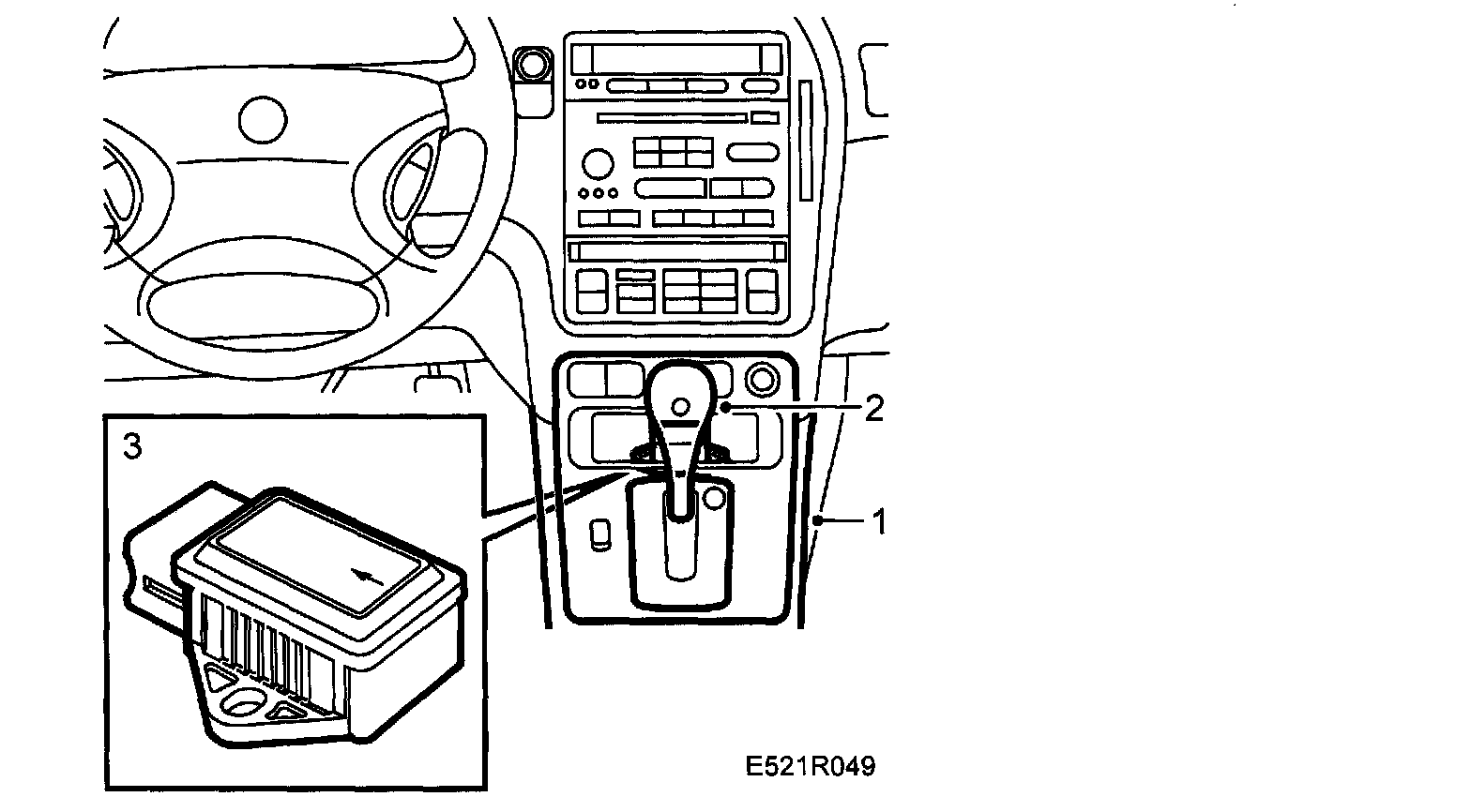

To remove





1. Remove the center console.
2. Manual gearbox: Remove the gear lever housing.
Automatic transmission: Remove the selector lever housing.
3. Remove the gyro sensor. Use a large screwdriver to pry aside the air duct slightly to access the left-hand screw.
4. Unplug the connector from the gyro sensor.

Note: The connector has a locking device that must be released.

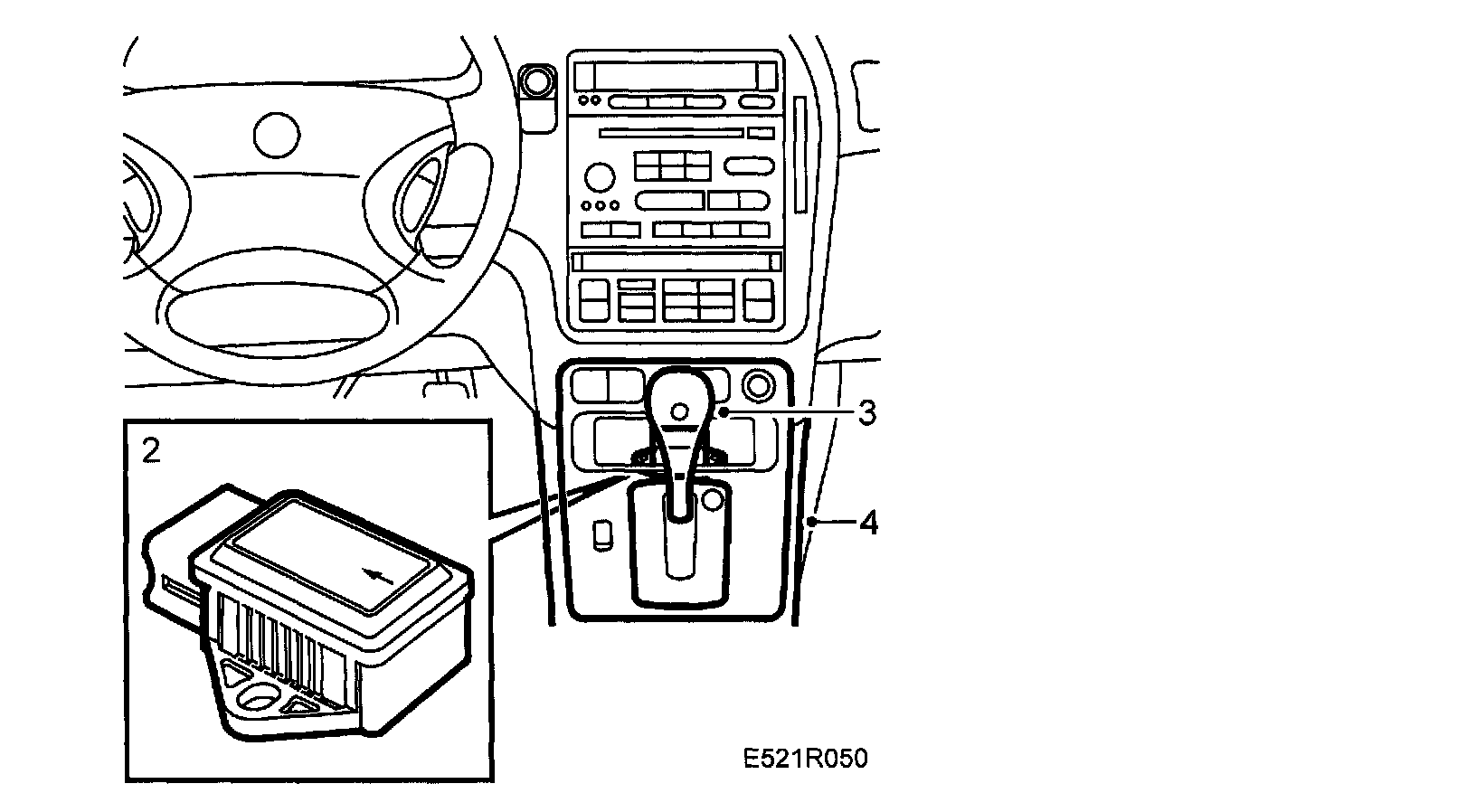

To fit
1. Plug in the gyro sensor.





2. Fit the gyro sensor to the bracket. Use a large screwdriver to pry aside the air duct slightly to access the left-hand screw.

Important: Fit the gyro sensor with the connector and arrow pointing forward in the car.

Tightening torque 5 Nm (3.5 ft. lbs.)
3. Manual gearbox: Fit the gear lever housing.
Automatic transmission: Fit the selector lever housing.
4. Fit the center console
