Turbo Bypass Valve

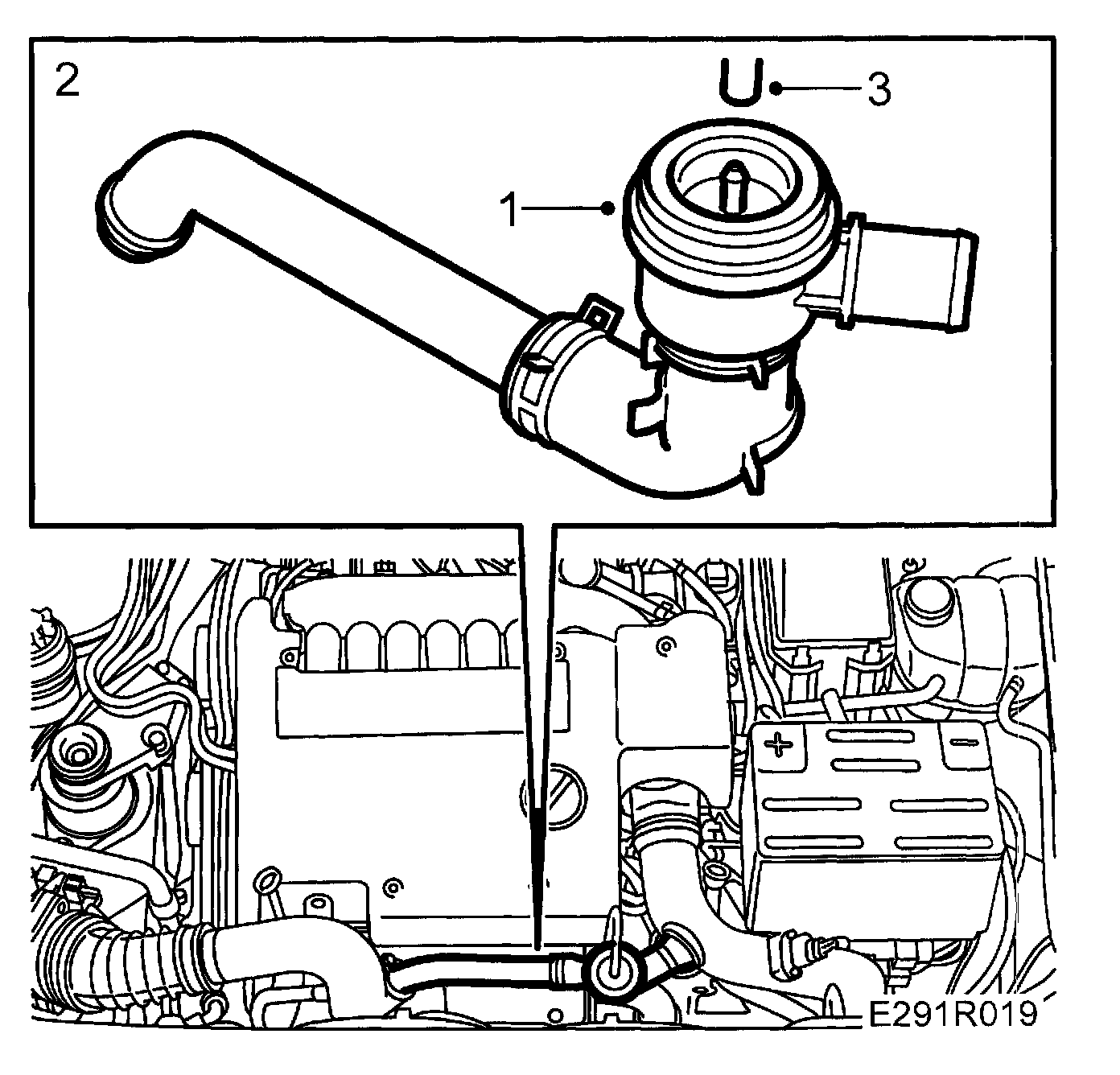

Turbo Bypass Valve, V6

To Remove







1. Undo the hose clip on the turbocharger delivery pipe and the vacuum hose to the valve.
2. Remove the bypass pipe with valve.
3. Remove the bypass valve.


To fit







1. Fit the bypass valve to the bypass pipe.
2. Fit the bypass pipe with valve to the turbo delivery pipe.
3. Fit the vacuum hose to the bypass valve.
