Home >> Saab >> 2002 >> 9-5 Arc (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Ground Locations >> G41P

G41P

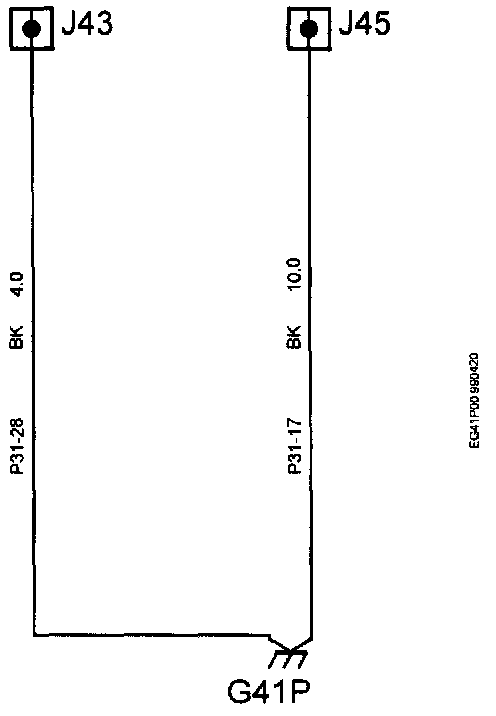

Grounding Point, G41P


G41P:

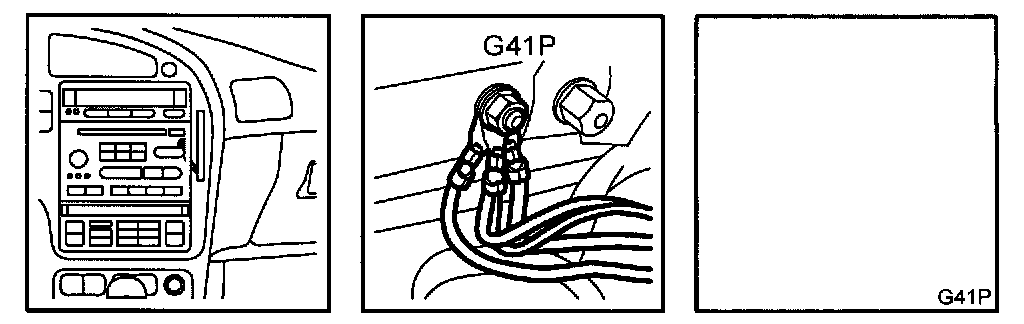

Location: Left grounding screw on middle of knee member (in cabin)
