Bus Signals, PSM




Bus Signals, PSM
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

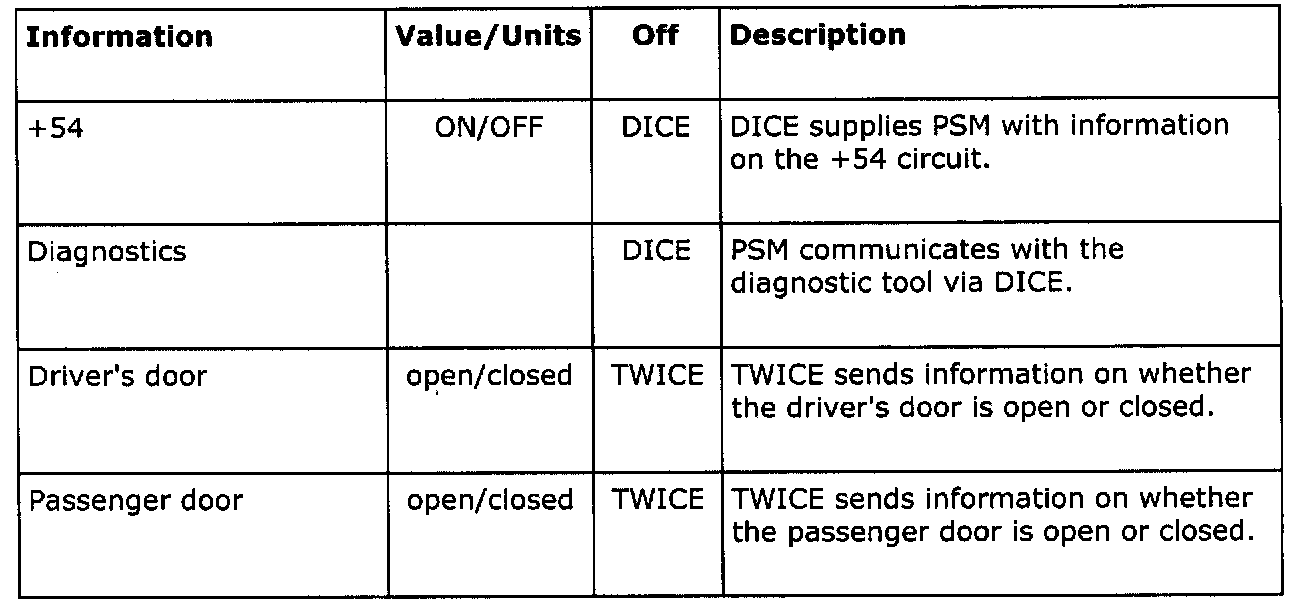

PSM uses the following information:

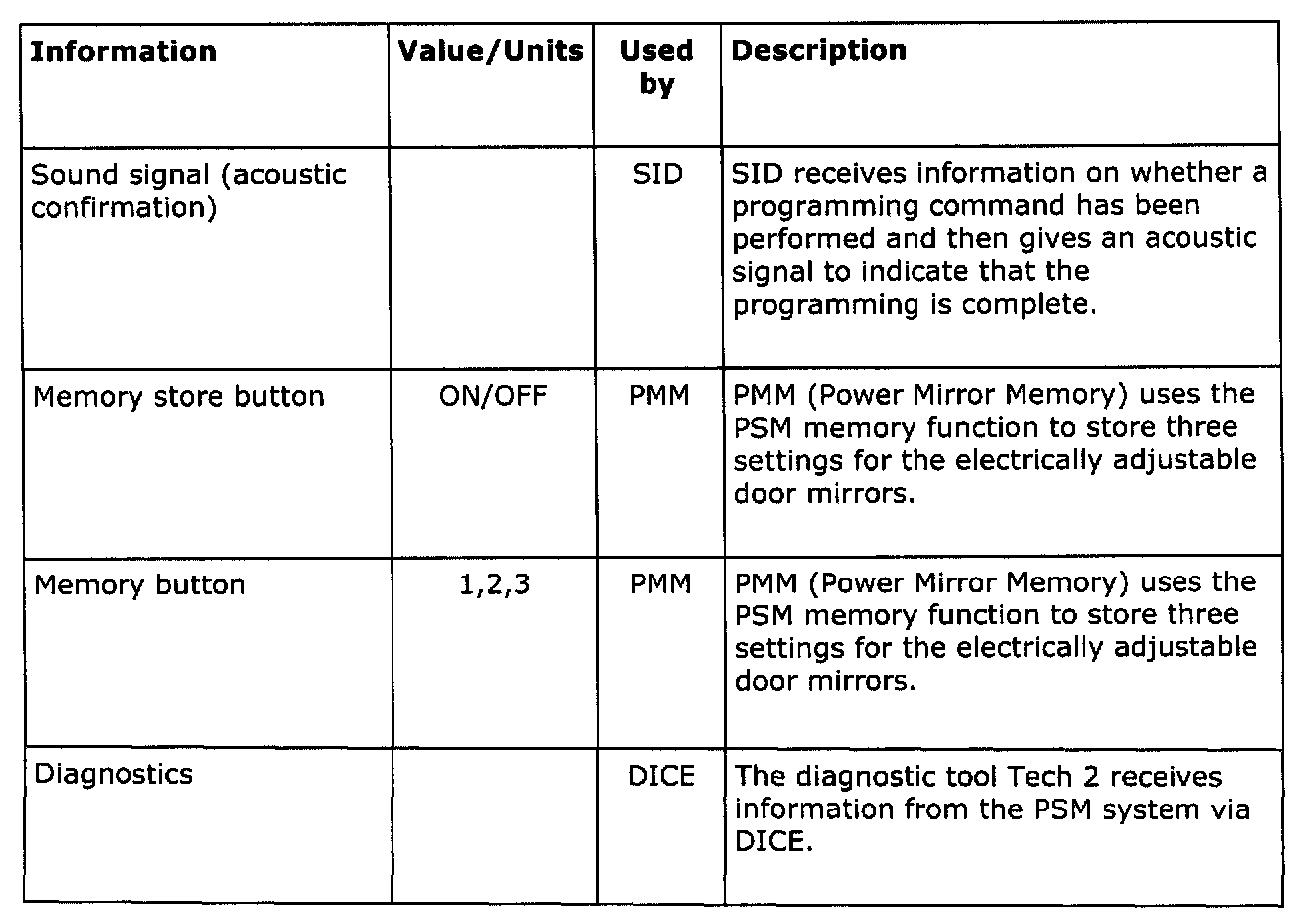

PSM sends out the following information:


Part 1:
