Bus Messages, Trionic T7

Bus Messages, Trionic T7
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

No control module DTC
TCM P1623
MIU P1622
TC/ABS/ESP P1625

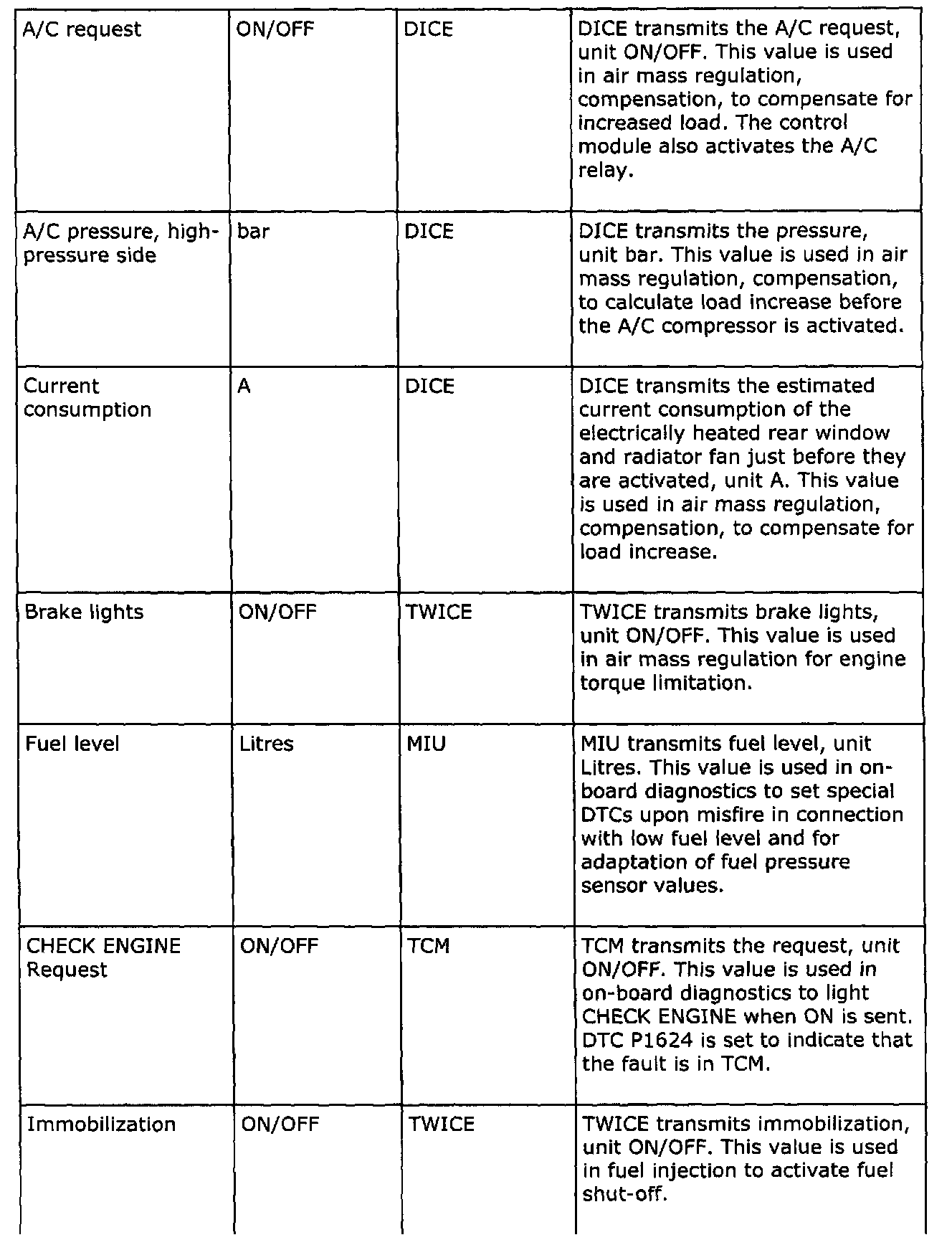

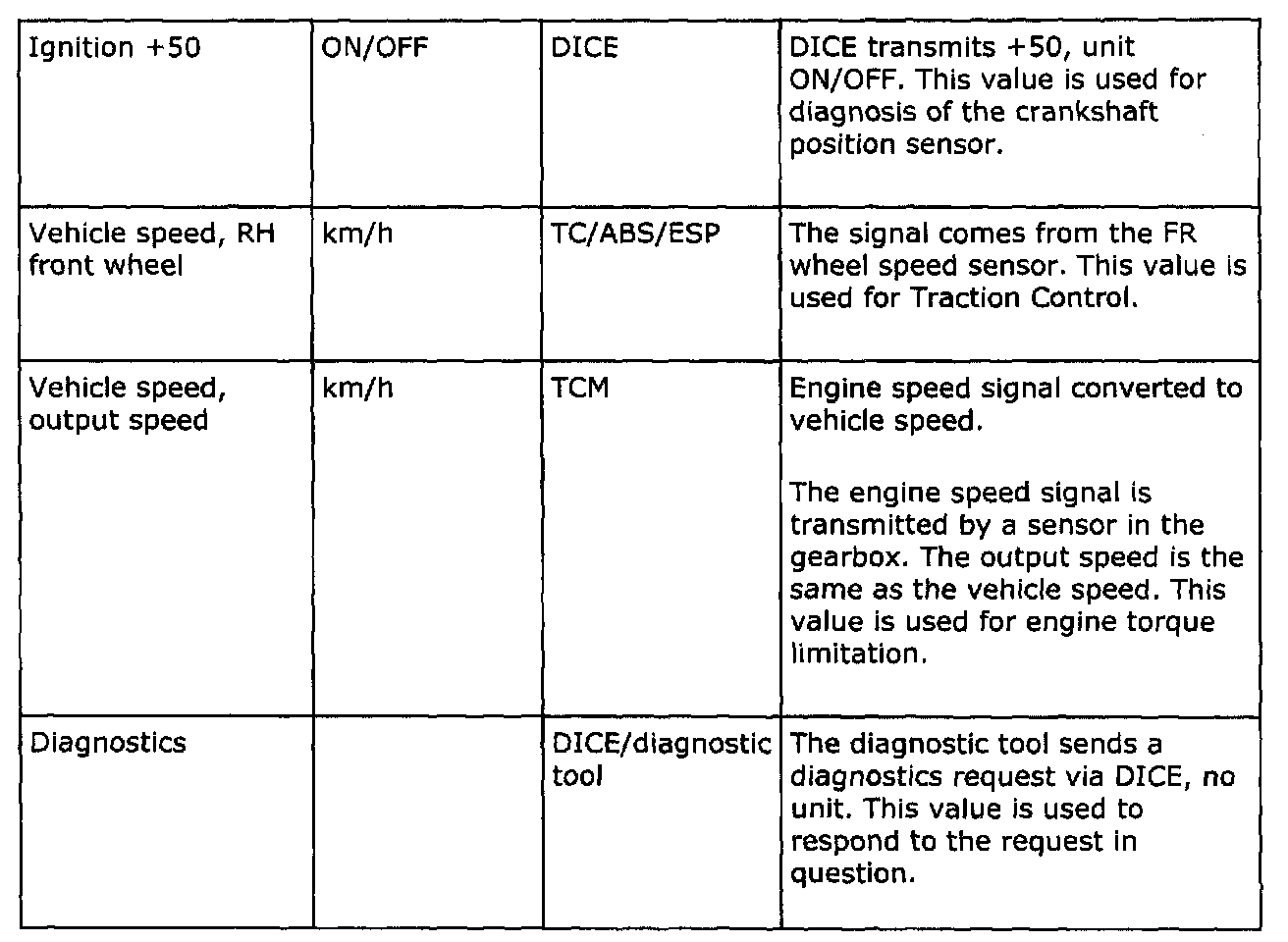

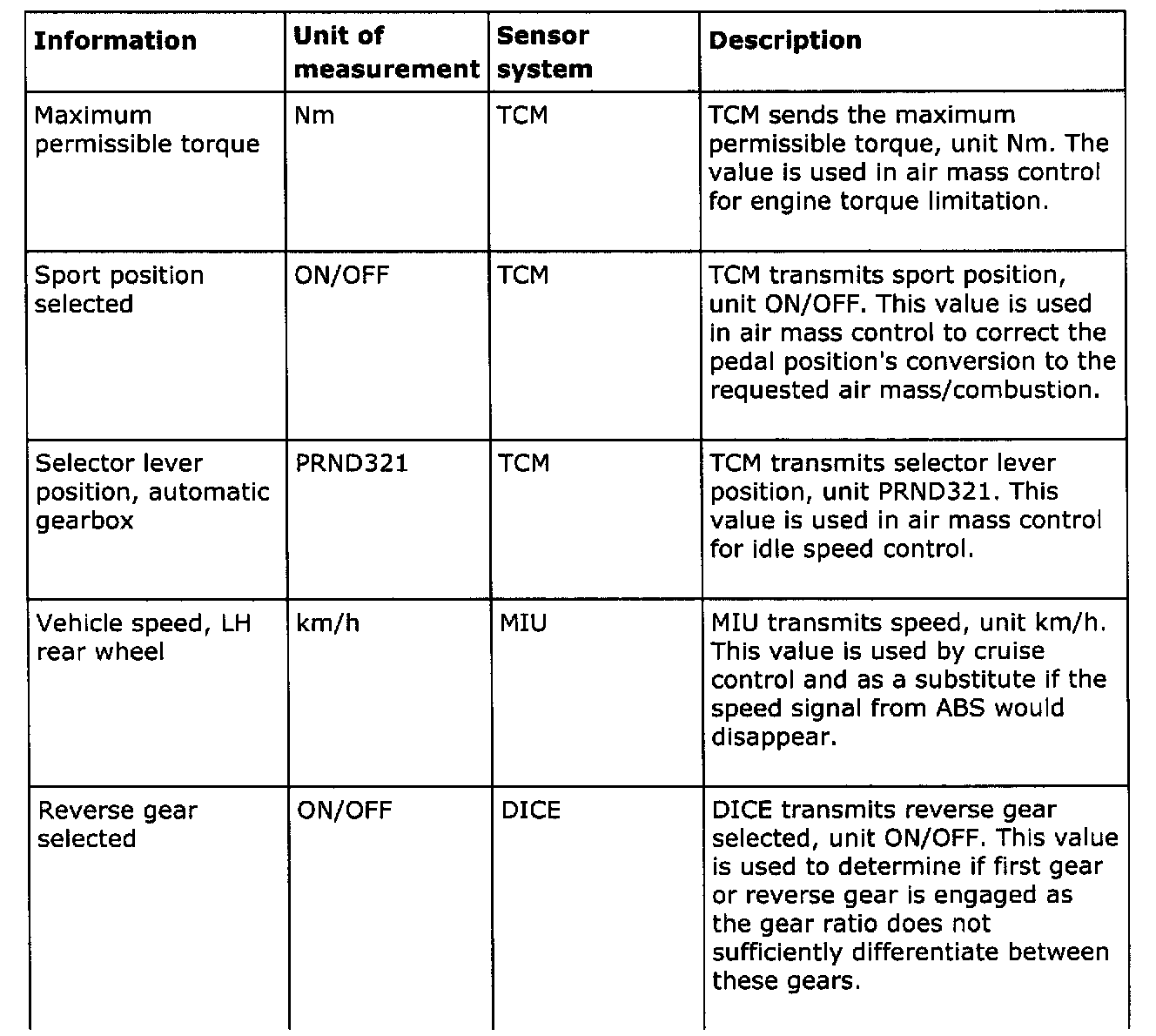

Trionic T7 uses the following information:

Part 1:

Part 2:

Part 3:

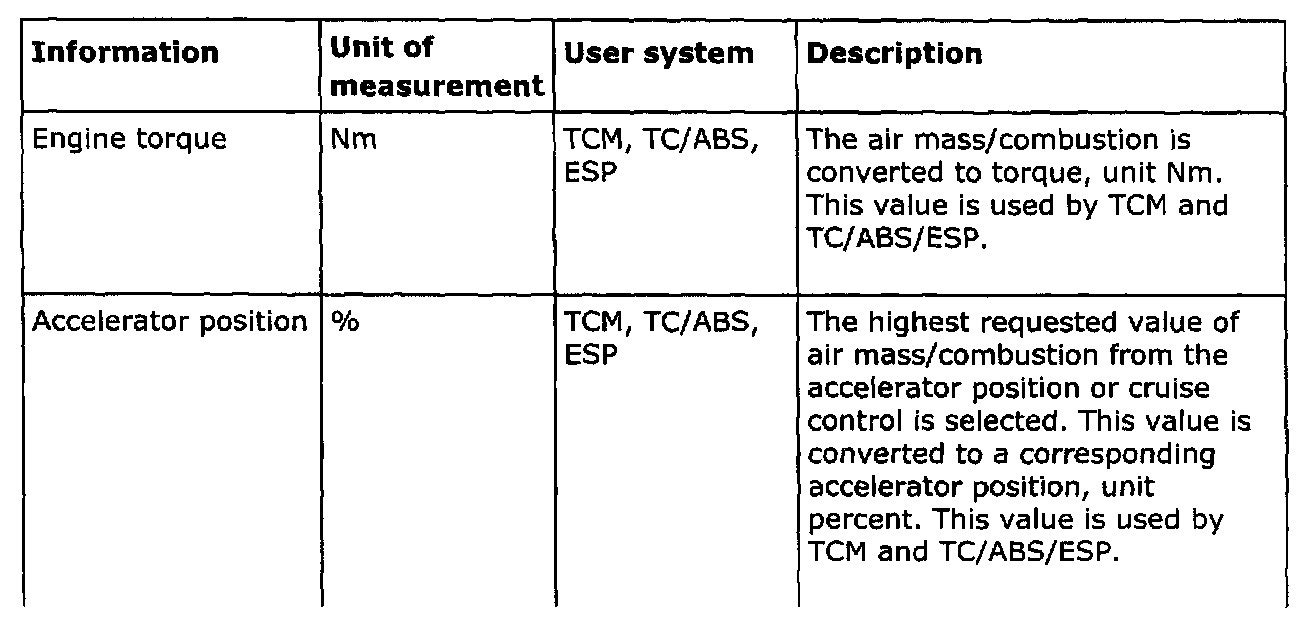

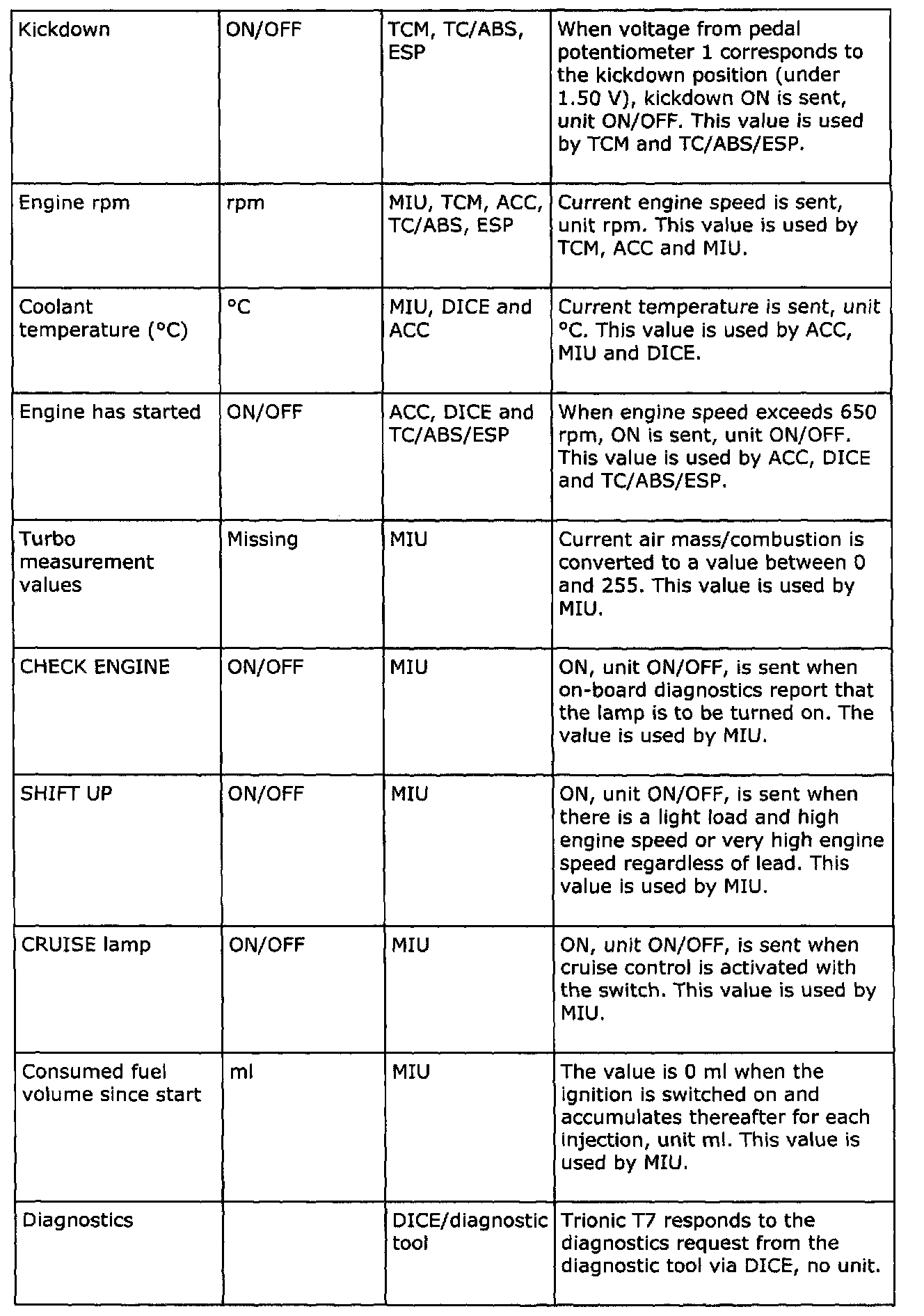

Trionic T7 transmits the following information:

Part 1:

Part 2:
