Bus Messages, SAS




Bus messages, SAS
System Overview, Bus and Diagnostics Communication, Petrol

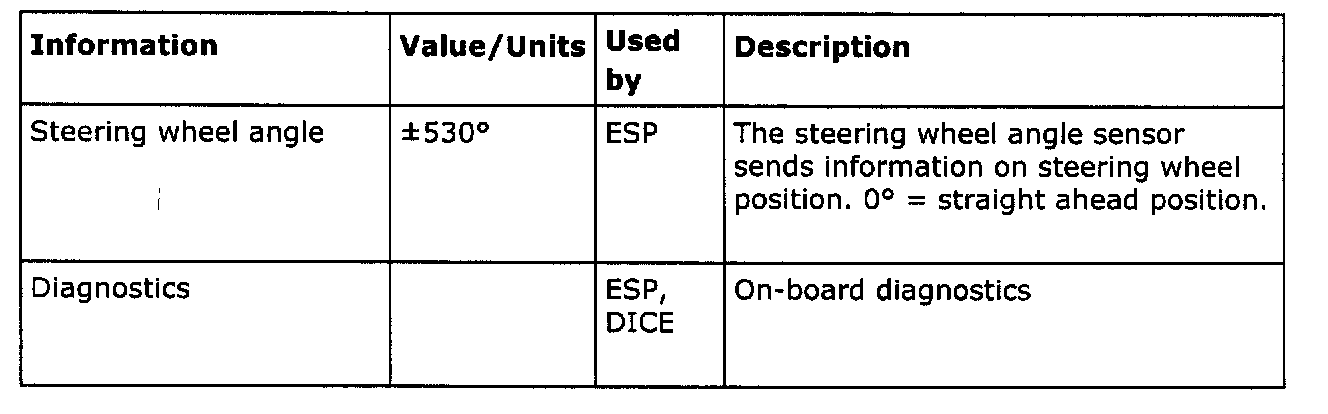

SAS uses the following information:

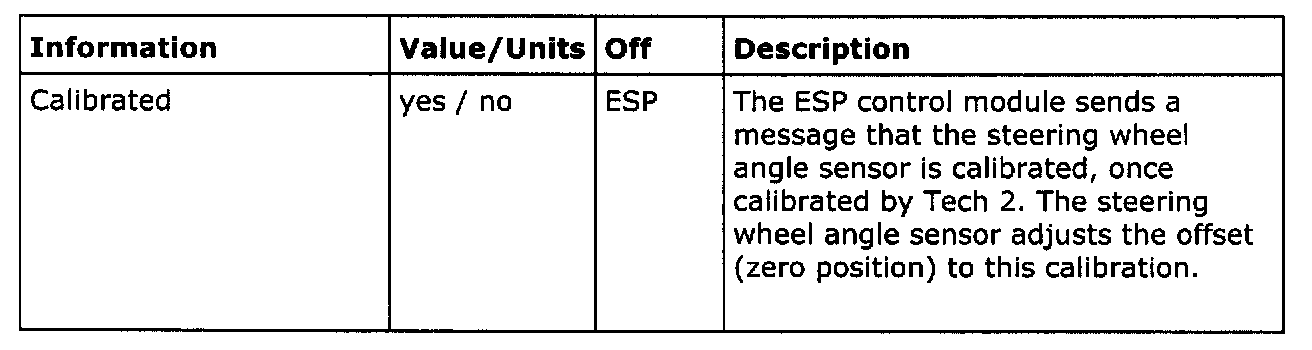

ESP sends tile following information:
