Bus Messages, Lighting (DICE, TWICE, SID)




Bus Messages, Lighting (DICE, TWICE, SID)
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

Bus messages containing lighting information, see the following.

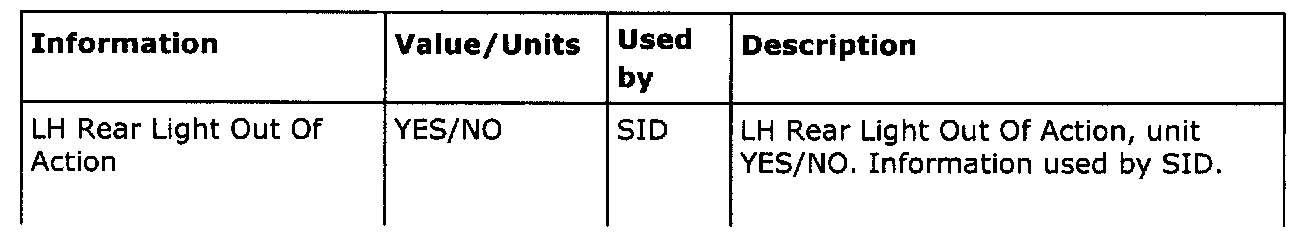

DICE sends the following information, lighting:







TWICE sends the following information, lighting:

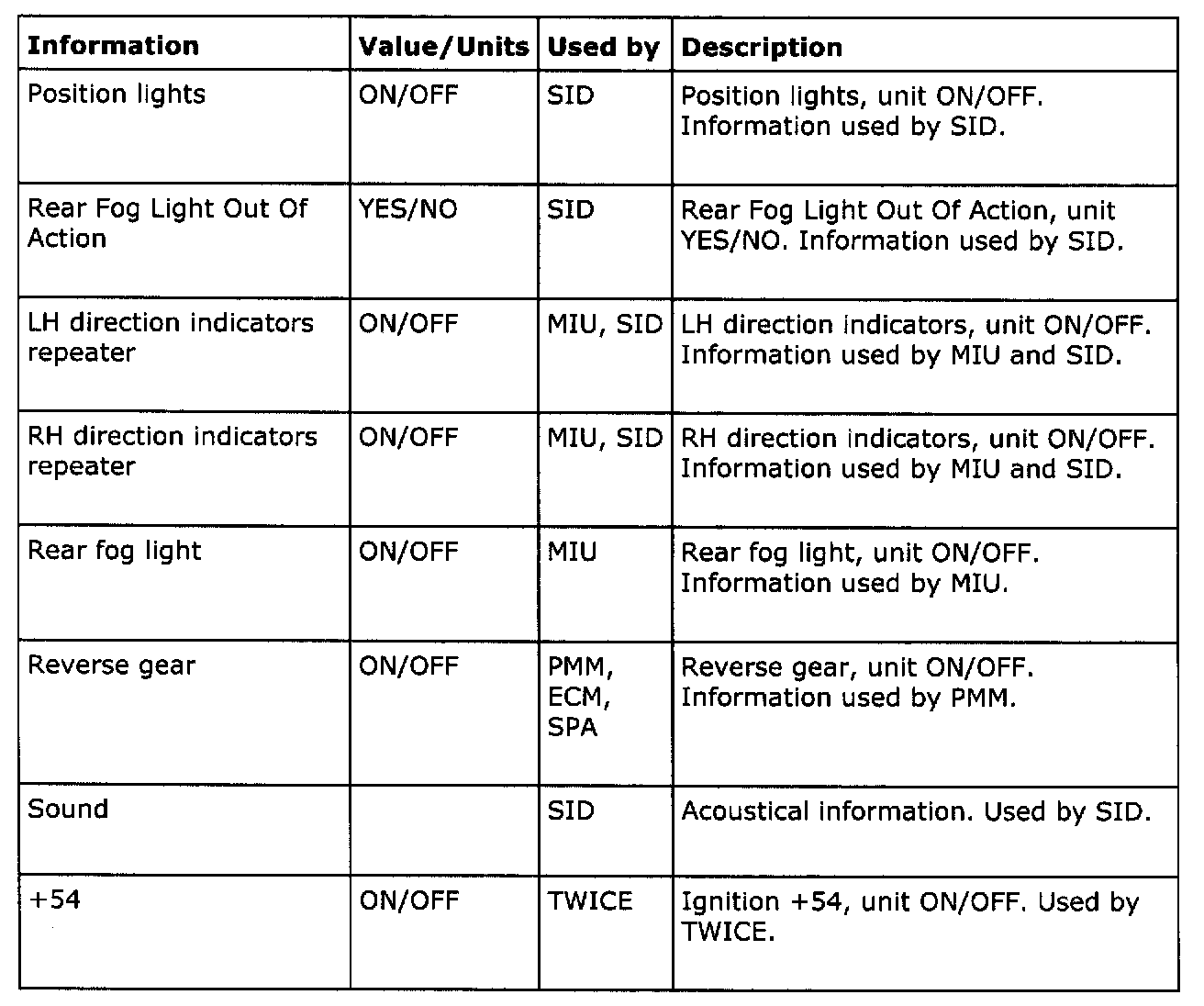

Part 1:

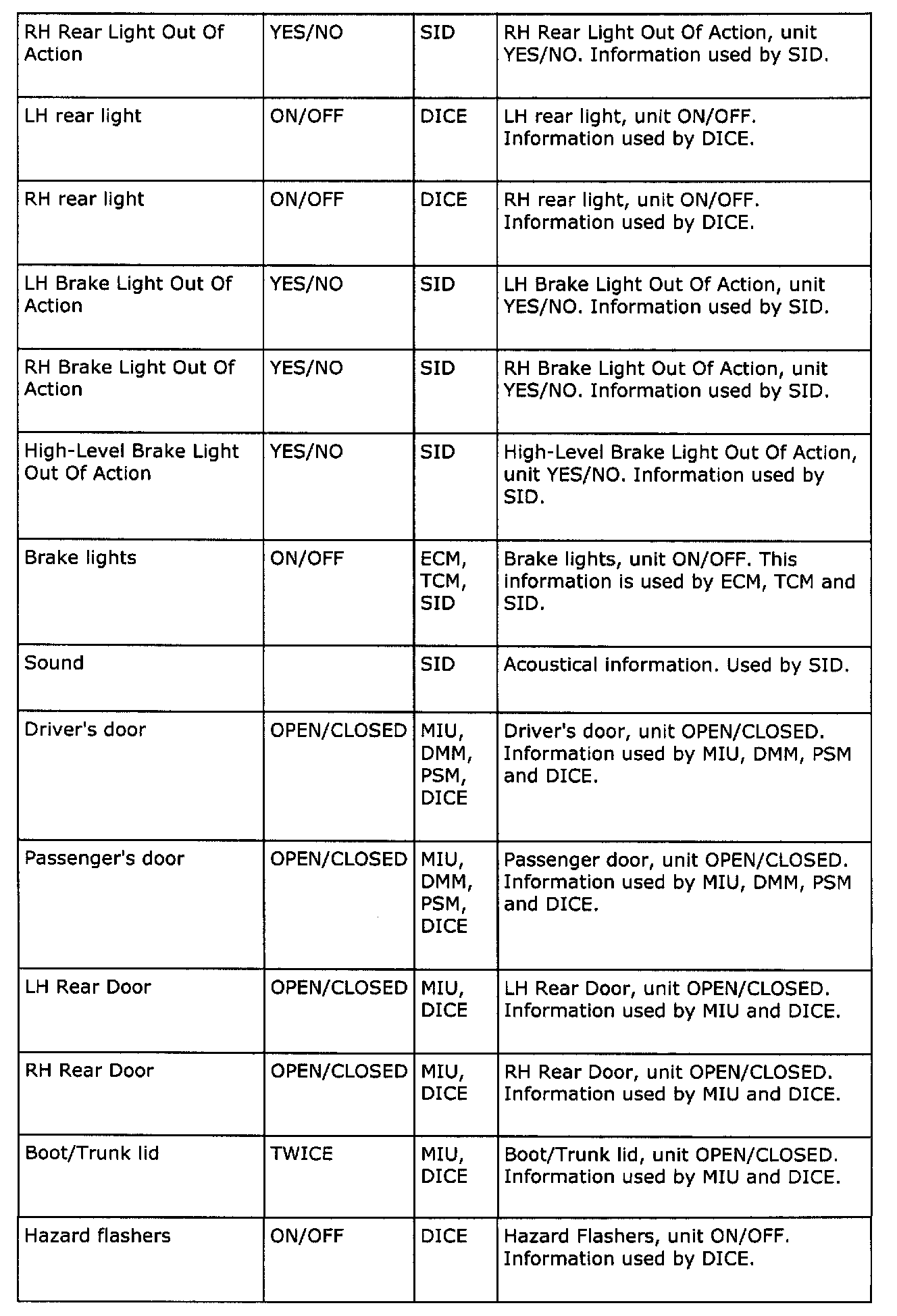

Part 2:

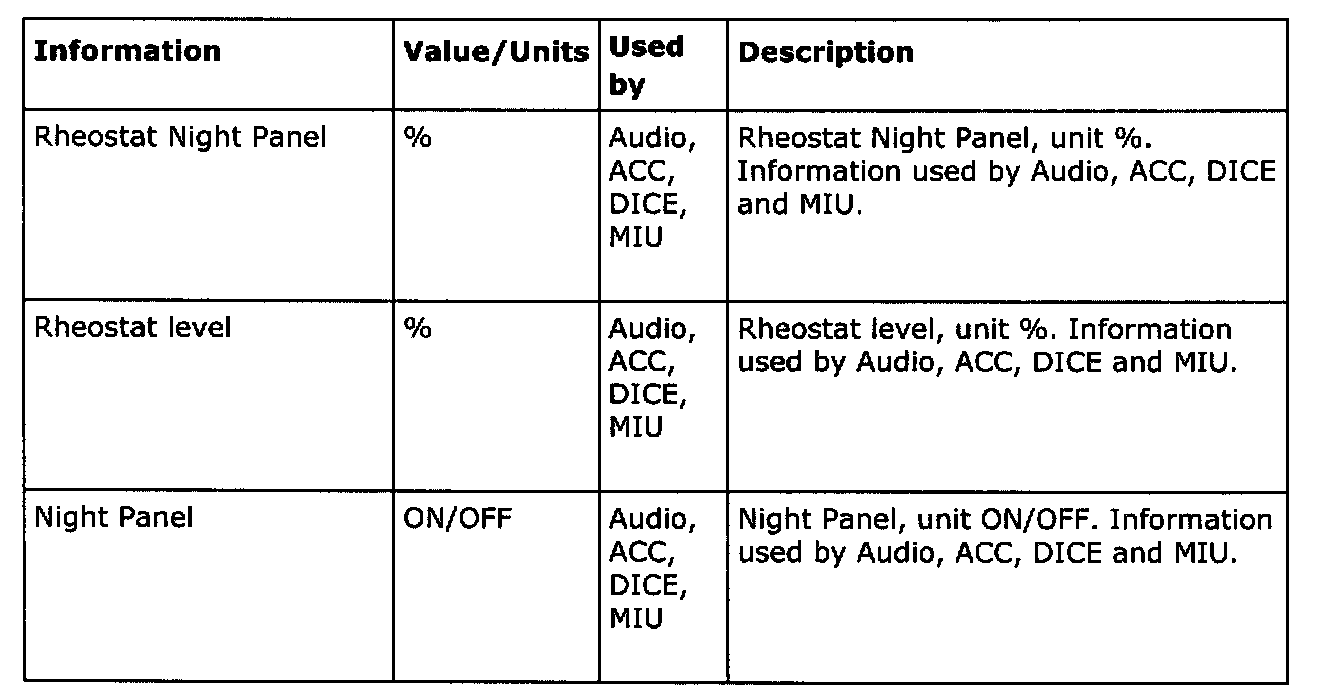

SID sends the following information, lighting:
