Bus Messages, DICE




Bus Messages, DICE
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

DICE uses the following information

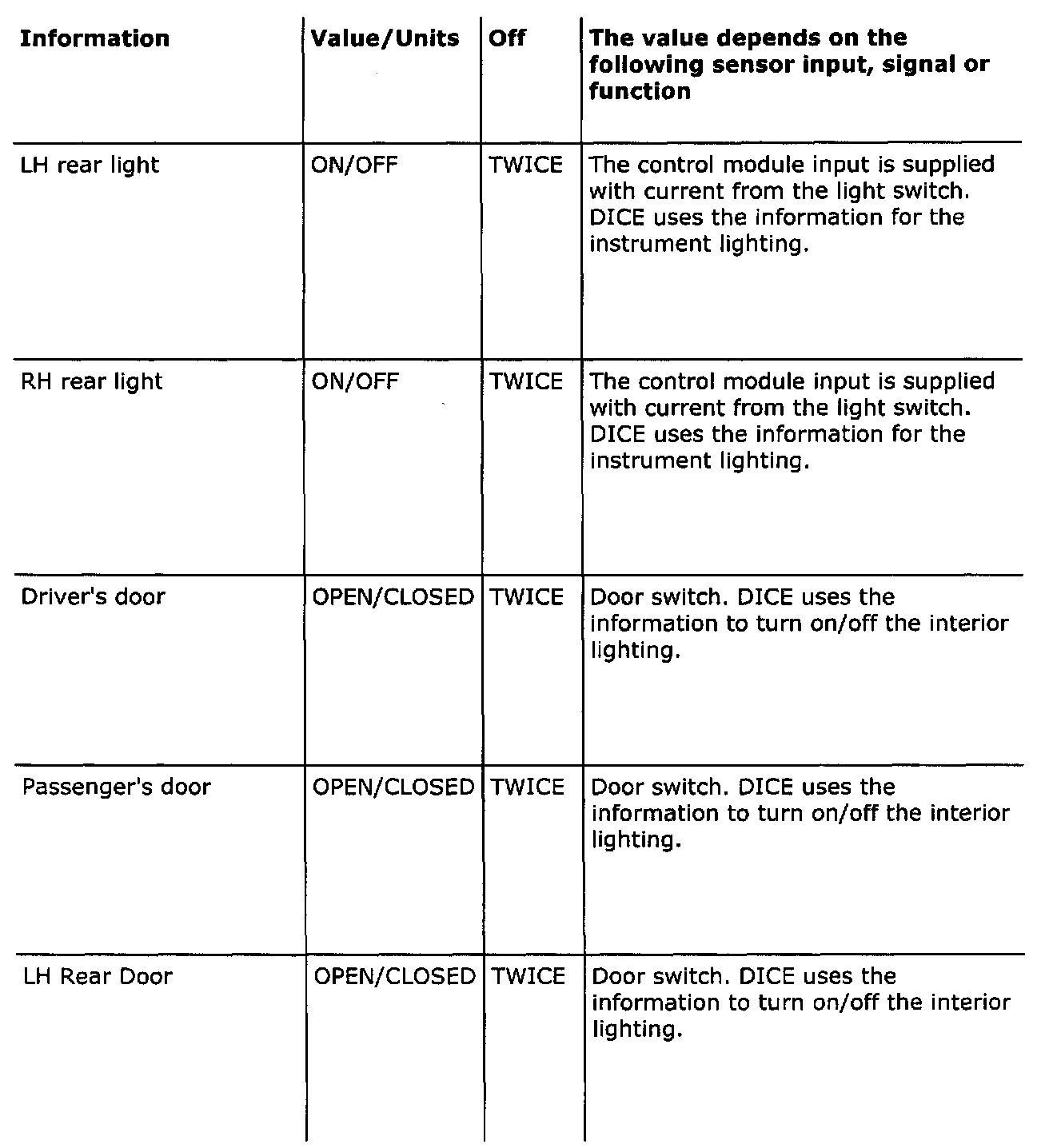

Part 1:

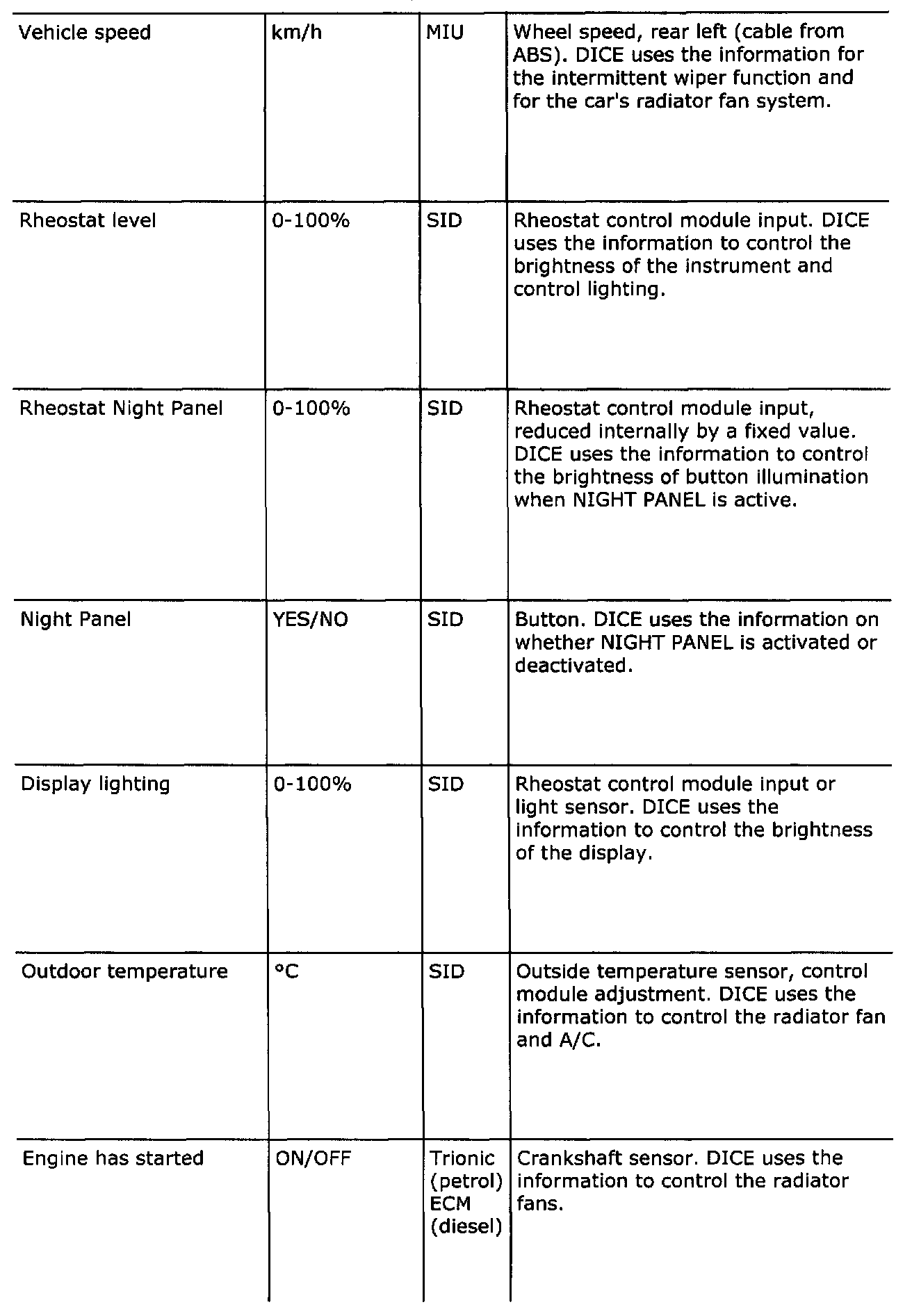

Part 2:

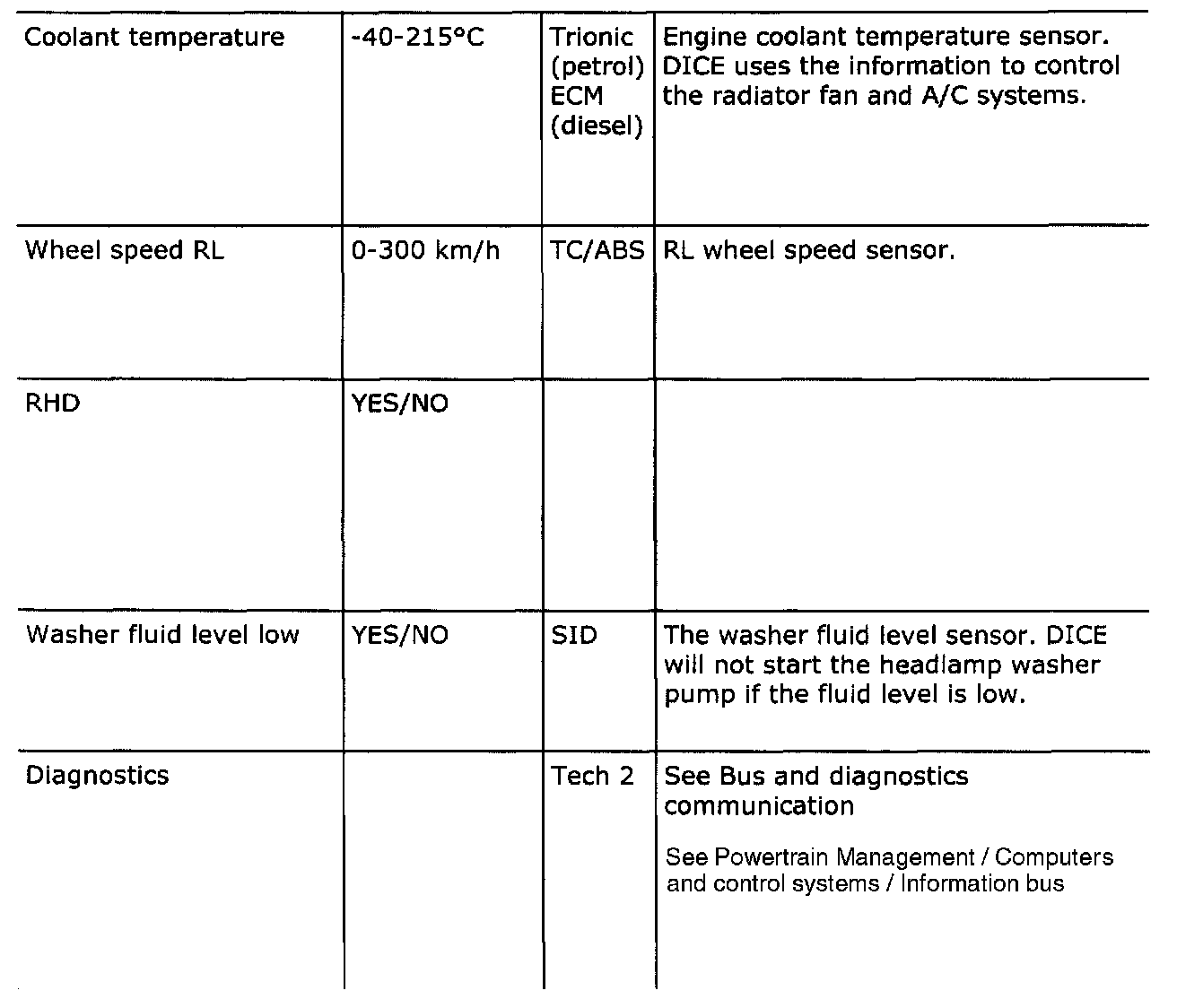

Part 3:

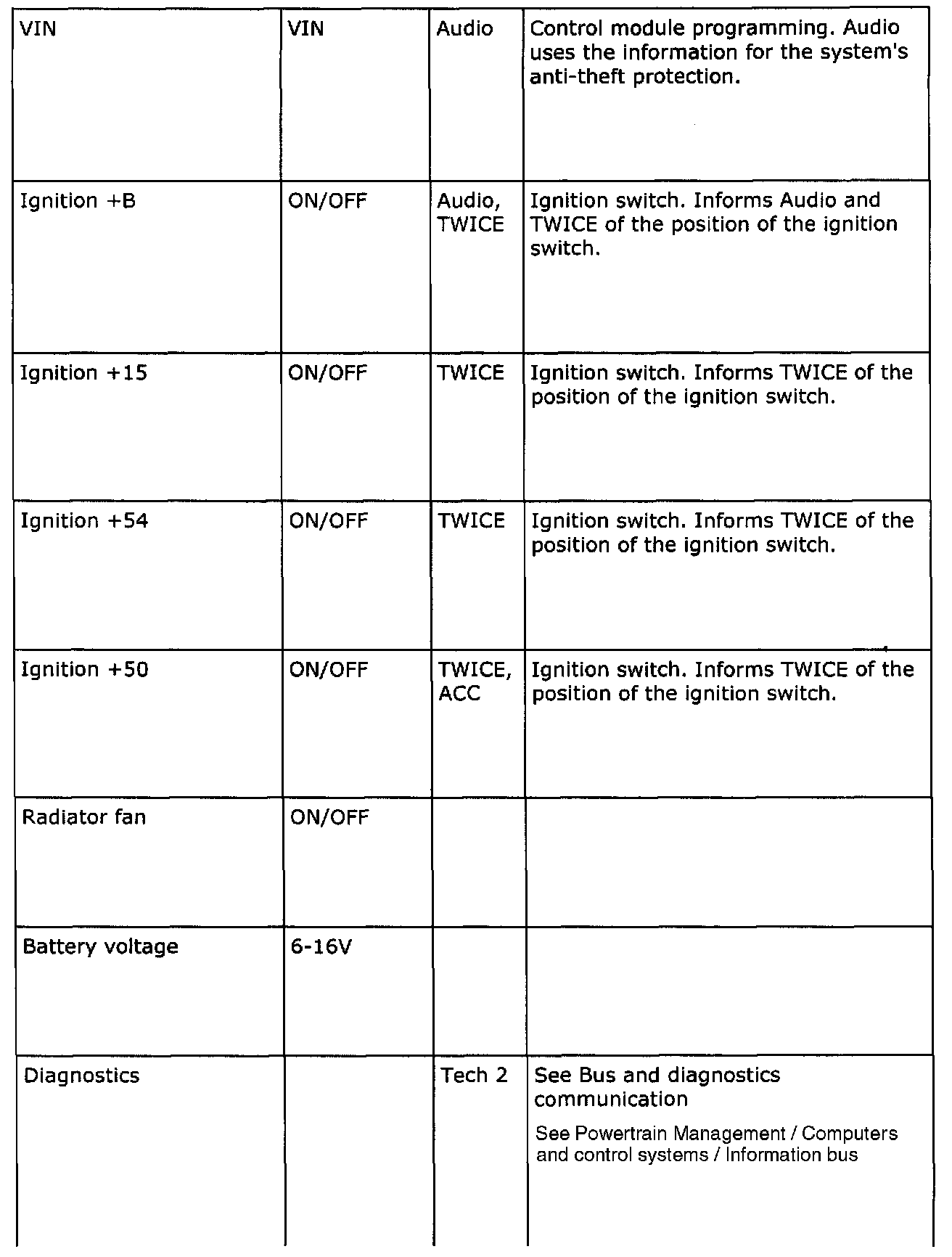

Part 4:






DICE sends the following information

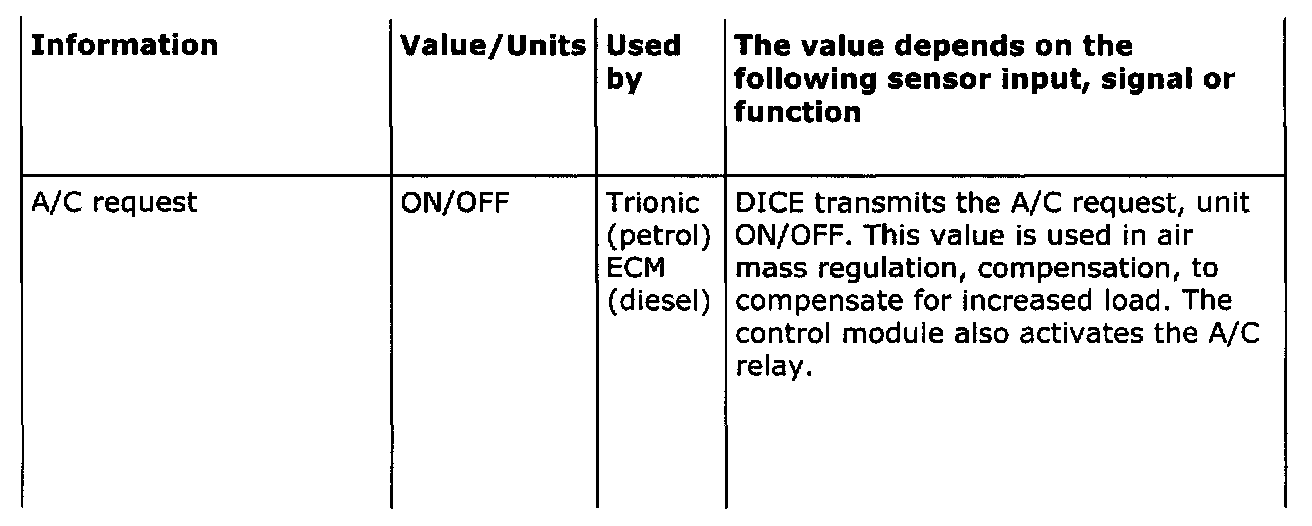

Part 1:

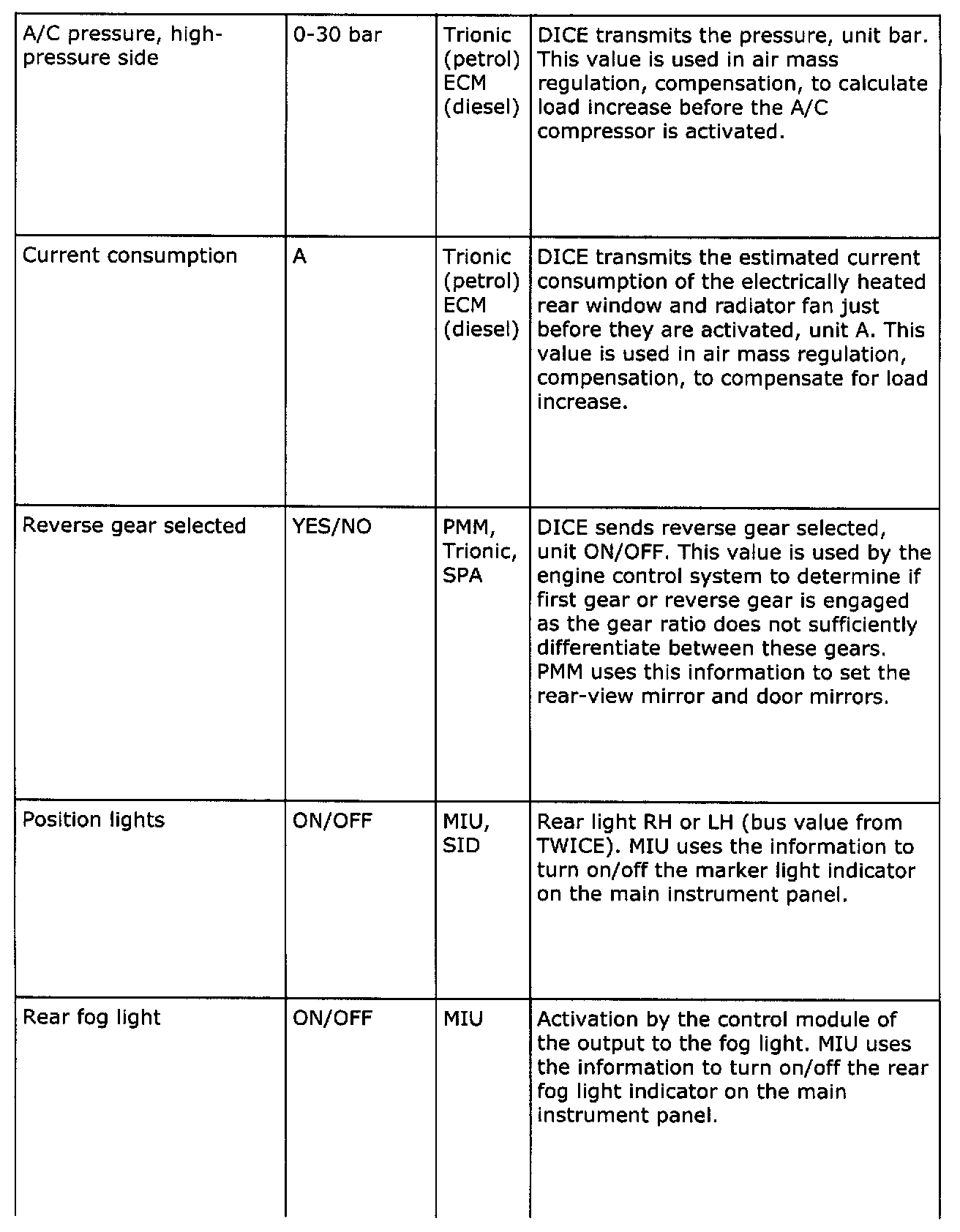

Part 2:

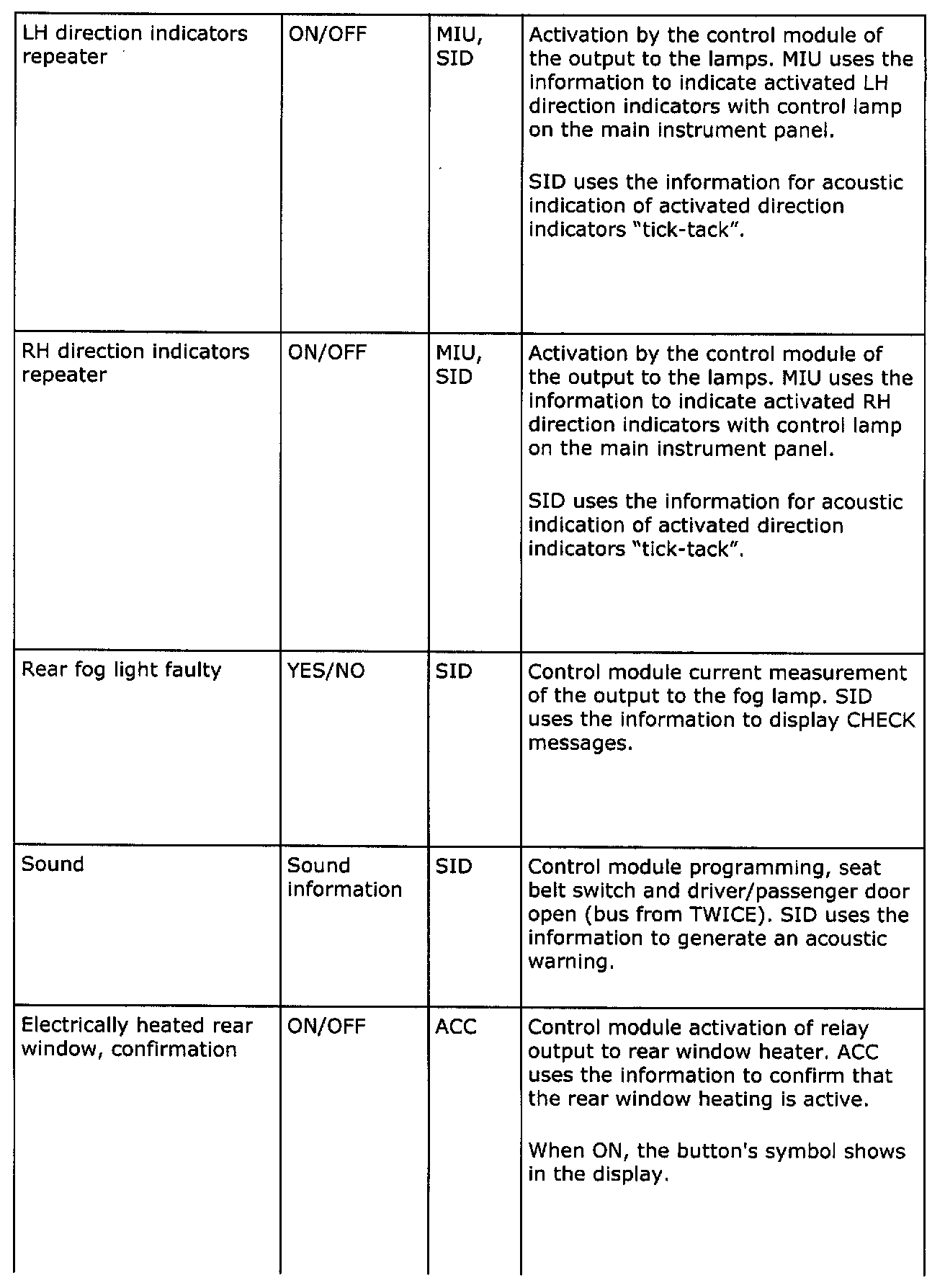

Part 3:






Part 4:
