Bus Messages, Audio




Bus Messages, Audio
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

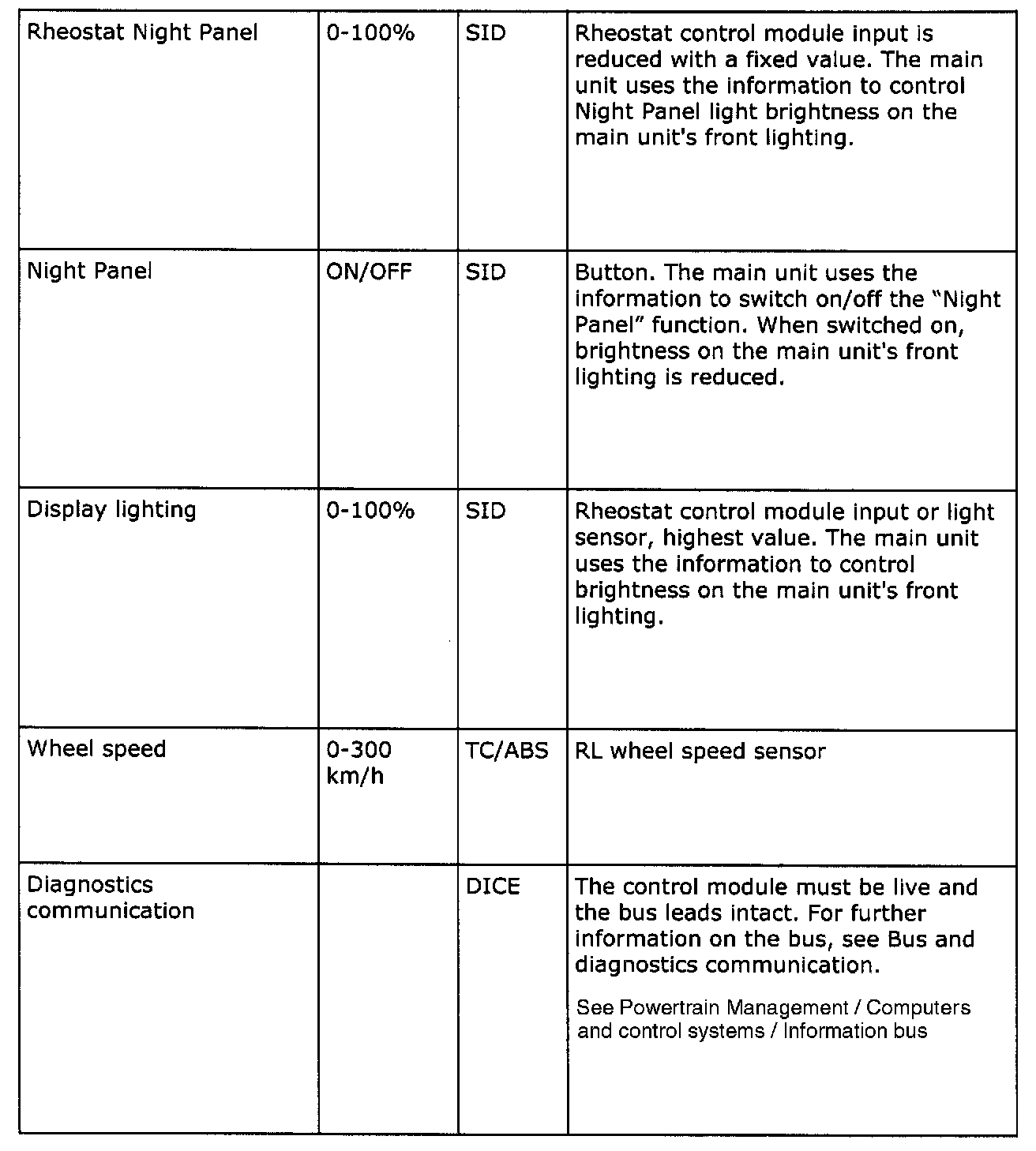

The main unit uses the following information


Part 1:






Part 2:

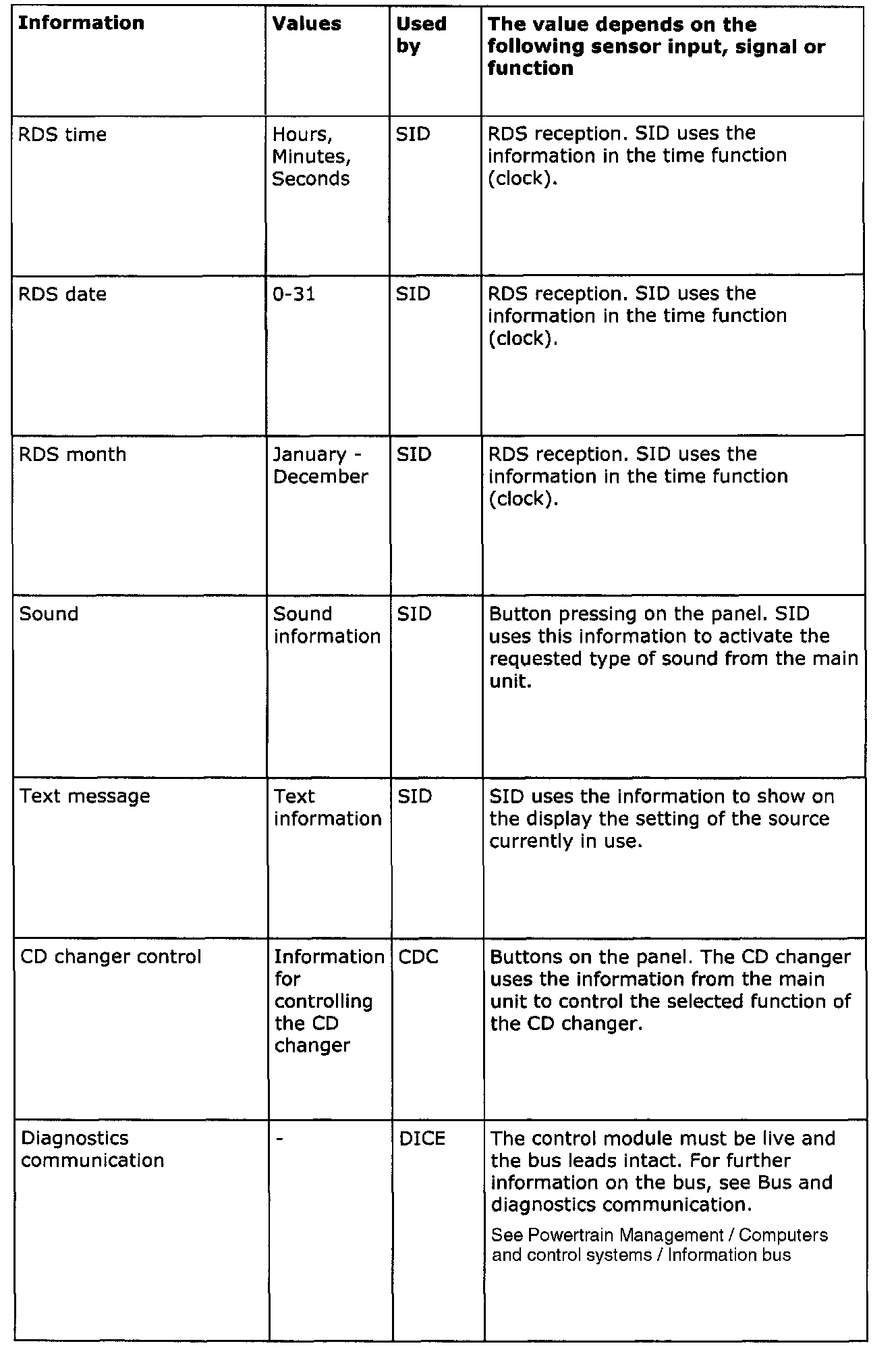

The main unit transmits the following information
