Bus Messages, ACC




Bus Messages, ACC
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

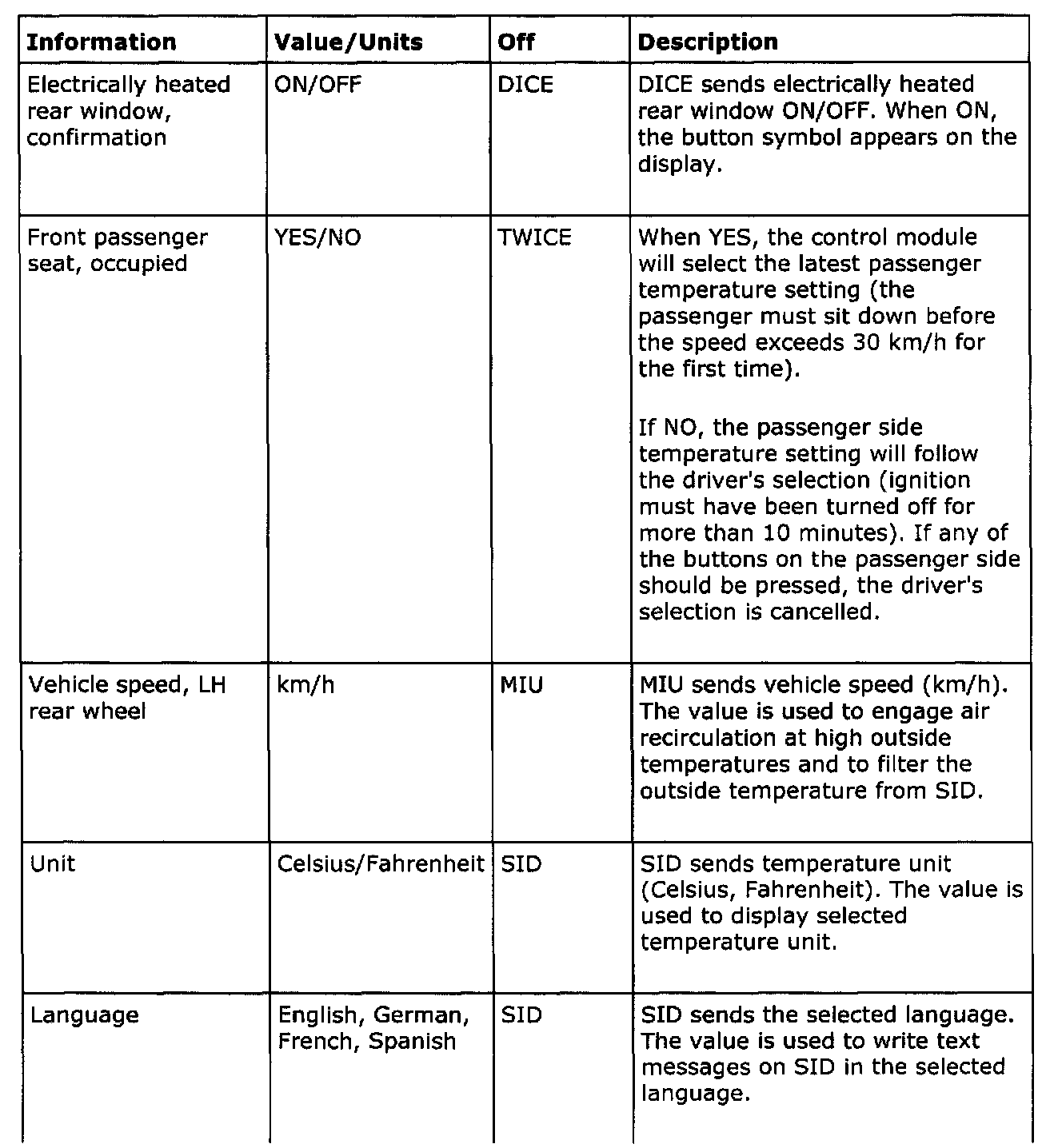

ACC uses the following information:


Part 1:

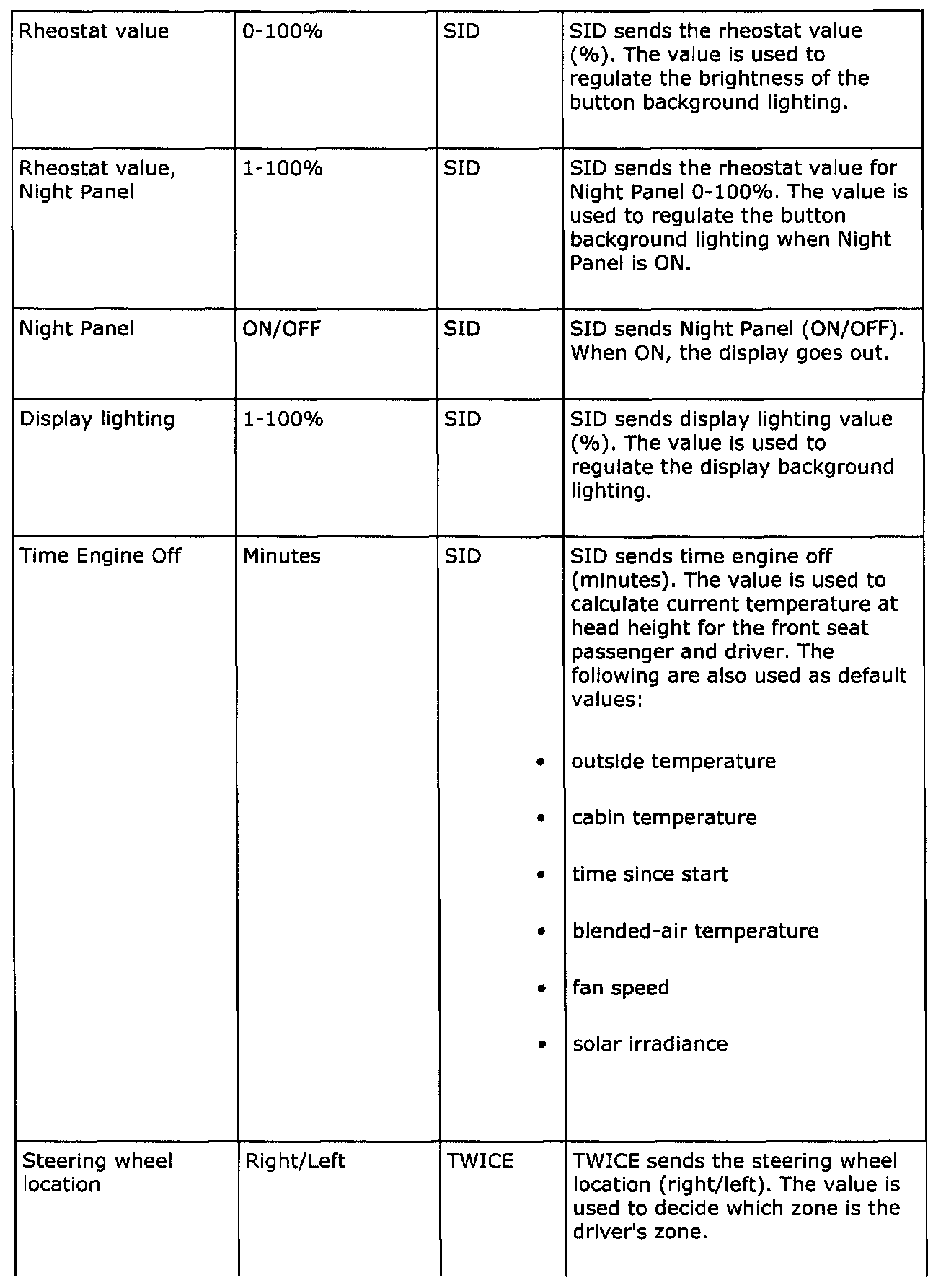

Part 2:

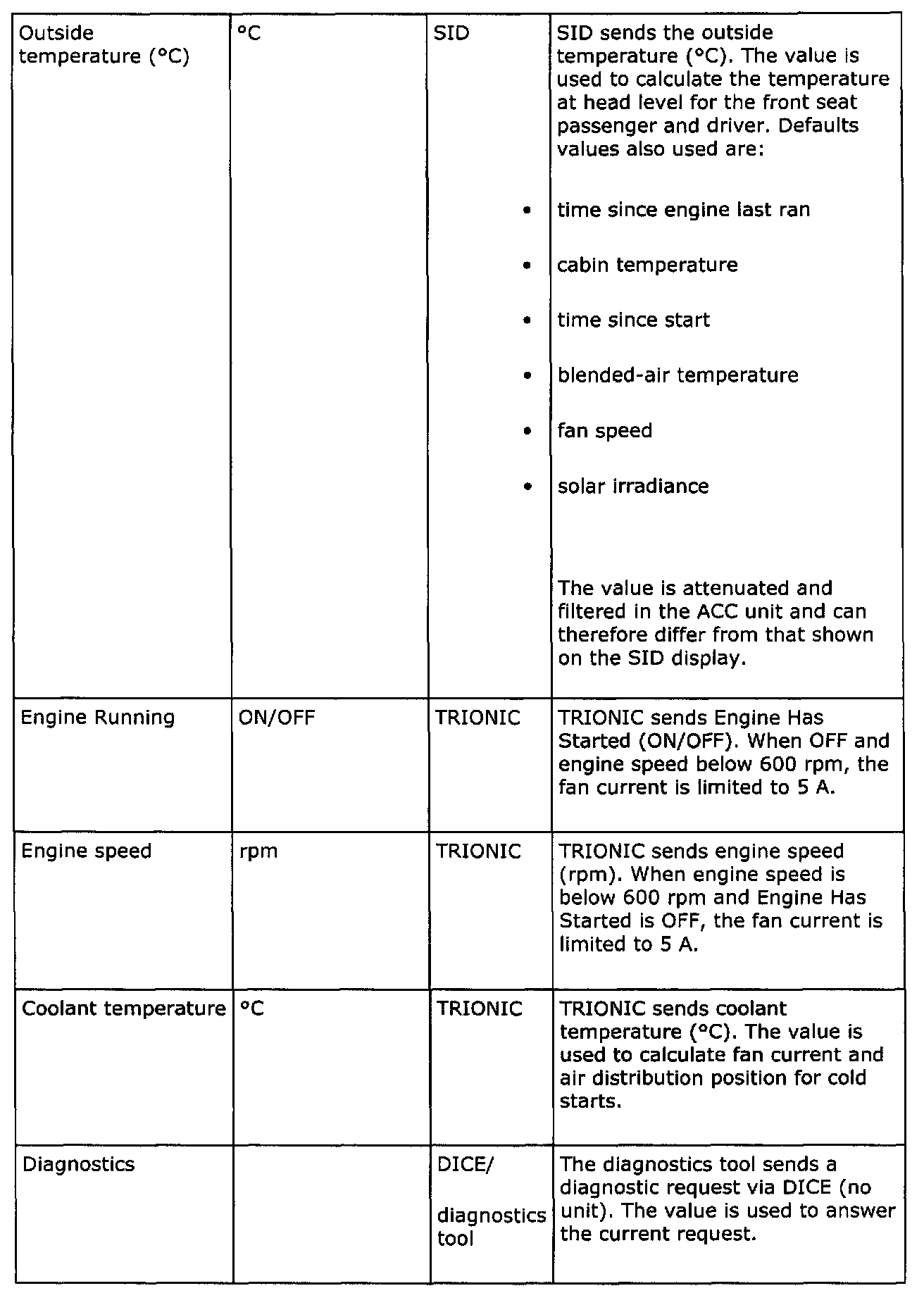

Part 3:

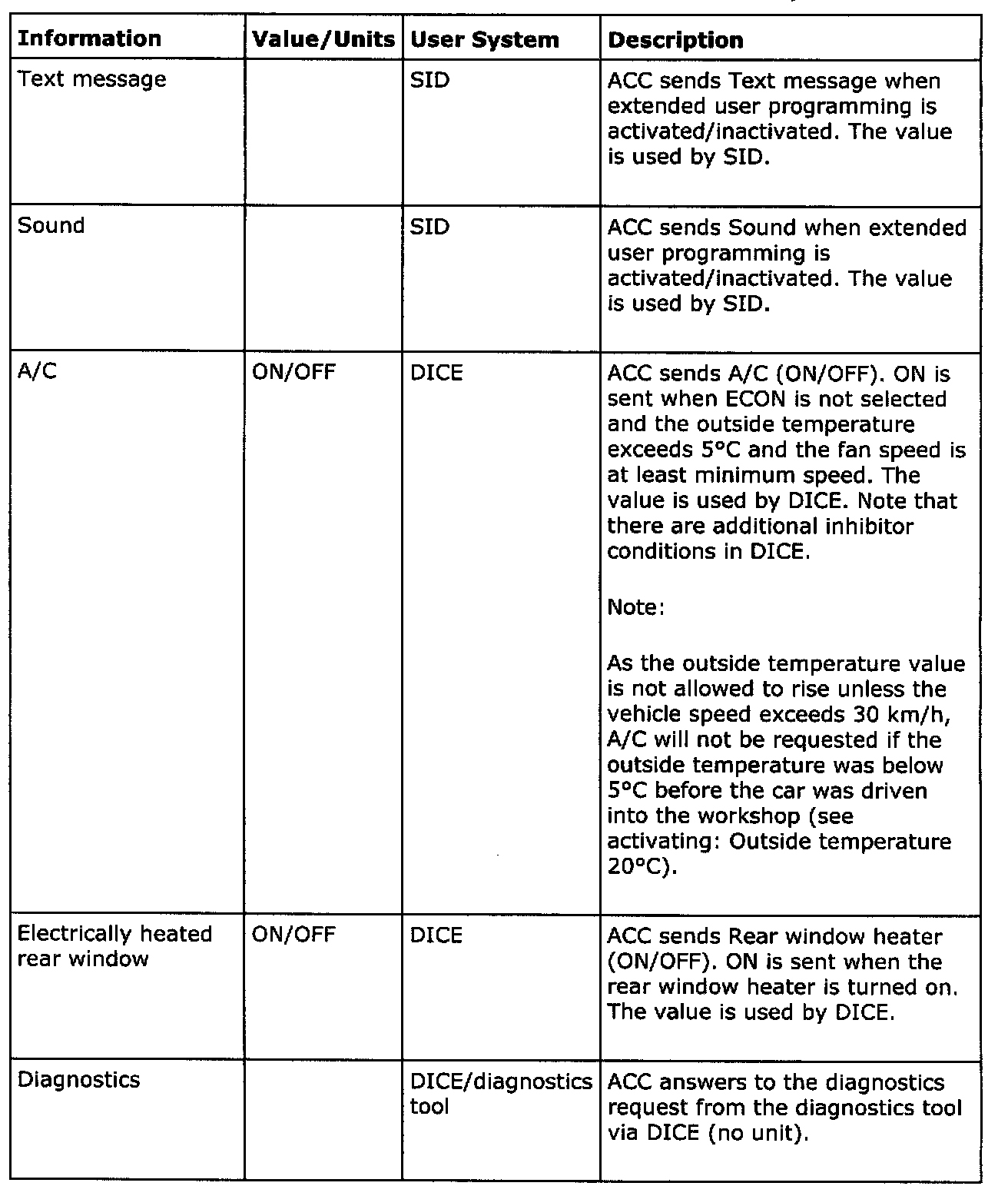

ACC sends the following information:
