Bus Message, SRS




Bus Message, SRS
For a further description of the car's bus system System Overview, Bus and Diagnostics Communication, Petrol

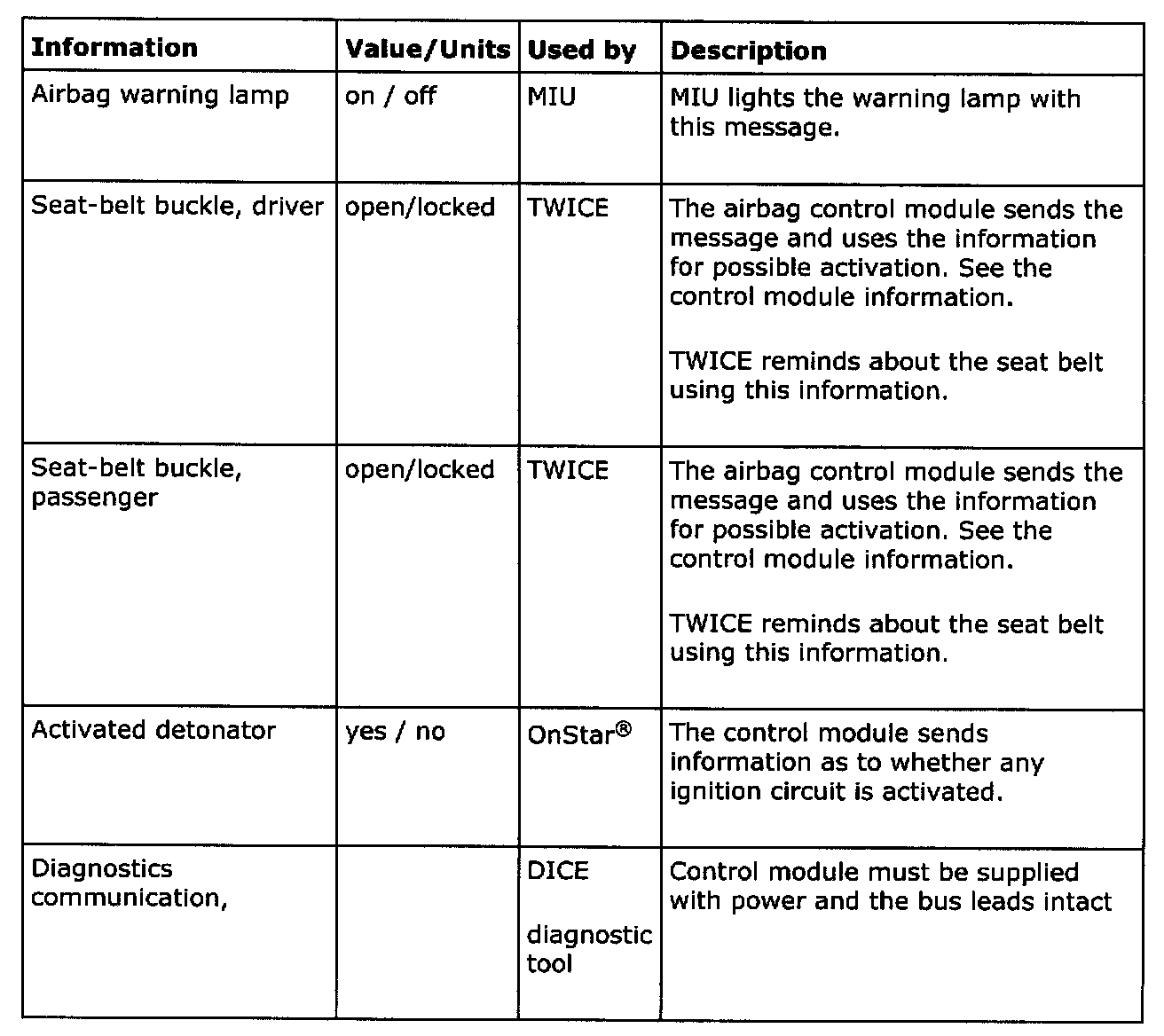

SRS uses the following information:







SRS sends the following information:
